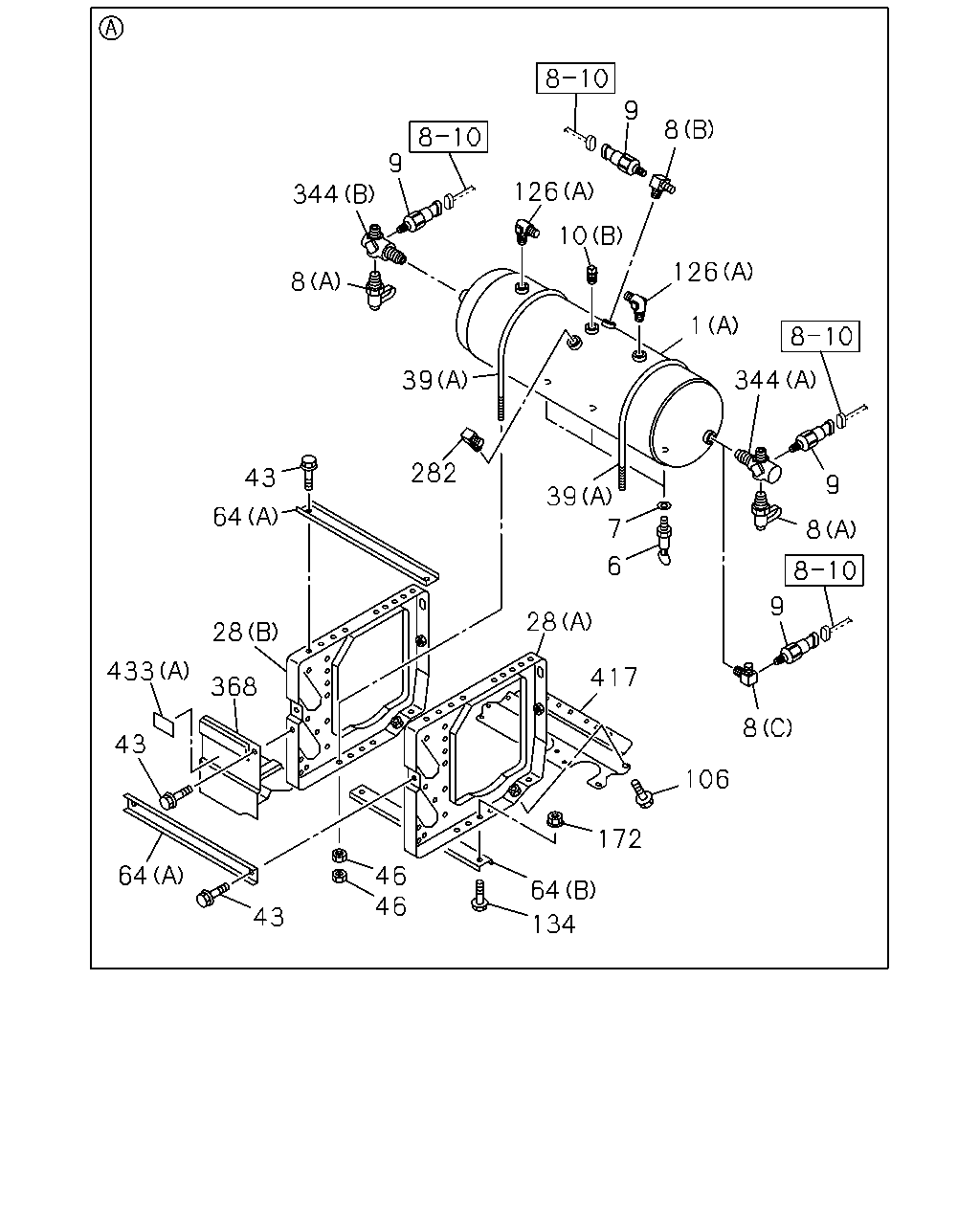

3-20 — AIR TANK (#14792) — 139 parça

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

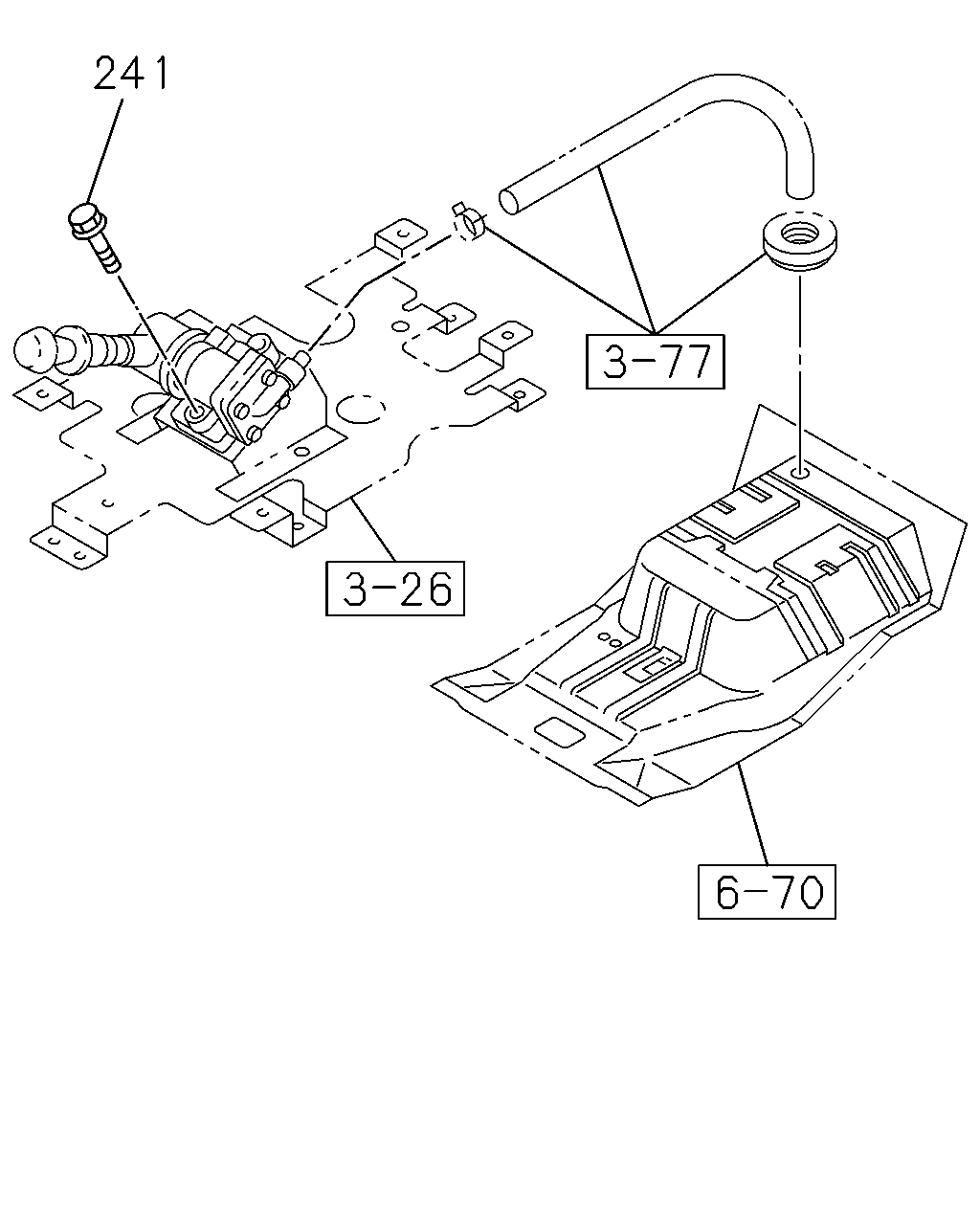

	241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	0803-

9 8 9 126 344 10 126 8 1 344 39 282 43 9 39 64 7 8 6 9 28 28 433 417 368 8 43 106 172 64 46 46 64 43 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISRAEL COUNTRY(CV4) (C)	8-98081-870-1	01	1	1009-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISRAEL COUNTRY(CV4) (B)	8-98166-972-0	01	1	1009-
1	TANK ASM; AIR ISRAEL COUNTRY(CV4) (A)	8-98018-785-3	01	1	1009-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98056-183-2	01	1	0803-1008
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ISRAEL COUNTRY(CV4) (B)	8-98056-183-2	01	1	1009-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98081-872-2	01	1	0803-1008
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ISRAEL COUNTRY(CV4) (C)	8-98081-872-2	01	1	1009-
1	TANK ASM; AIR (A)	8-98056-178-1	01	1	0803-1008
1	TANK ASM; AIR EXC. ISRAEL COUNTRY(CV4) (A)	8-98056-178-1	01	1	1009-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0803-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0803-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0803-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0803-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0803-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0803-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISRAEL COUNTRY(CV4) (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISRAEL COUNTRY(CV4) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	0803-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0803-
8	CONNECTOR; AIR TANK (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	0803-
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0803-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5	8-97609-249-0	03	1	0803-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	02	1	0803-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/4	9-09204-526-0	01	1	0803-1008
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ISRAEL COUNTRY(CV4) (A) PT3/4	9-09204-526-0	01	1	1009-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0803-1008
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISRAEL COUNTRY(CV4) (B) PT3/8	9-09204-517-0	01	1	1009-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1009-
28	BRACKET; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98100-165-3	01	1	0803-
28	BRACKET; AIR TANK (A)	8-98021-918-5	01	1	0803-
28	BRACKET; AIR TANK (B)	8-98044-509-5	01	1	0803-
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=210	1-48317-458-1	02	1	0803-
39	U-BOLT; AIR TANK (A)	8-98022-041-0	02	1	0803-
43	BOLT; STAY,AIR TANK,MAIN M8X16 FLANGE	0-28050-816-0	06	1	0803-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0803-
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	08	1	0803-
64	STAY; AIR TANK,MAIN (A)	8-98044-510-3	02	1	0803-
64	STAY; AIR TANK,MAIN (B)	8-98044-511-2	01	1	0803-
106	BOLT; COVER M8X16 FLANGE	0-28050-816-0	04	1	0803-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0803-1008
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ISRAEL COUNTRY(CV4) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0803-
134	BOLT; COVER FIX M8X16 FLANGE	0-28050-816-0	04	1	0803-
172	NUT; STAY,AIR TANK,MAIN M8 FLANGE	0-91180-108-0	02	1	0803-
282	UNION; 2 WAY M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0803-
344	CONNECTOR; 4WAY (A)	1-09656-726-0	01	1	0803-
344	CONNECTOR; 4WAY (B)	1-09656-767-0	01	1	0803-
368	COVER; AIR TANK	8-98061-625-3	01	1	0803-
417	COVER; HARNESS	8-98111-401-0	01	1	0803-
433	PLATE; NAME (A)	8-98121-999-0	01	1	0806-
433	PLATE; NAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISRAEL COUNTRY(CV4) (B) WHEEL PARK	8-98121-997-0	01	1	1009-
433	PLATE; NAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISRAEL COUNTRY(CV4) (B) ACCESSORY	8-98121-998-0	01	1	1009-

223 81 223 148 274 223 223 223 94 37 42 83 237 238 138 239 178 83 240 86 145 125 217 145 217 125 217 271 271 152 81 145 151 139 148 274 305 145 153 151 140 178 177 178

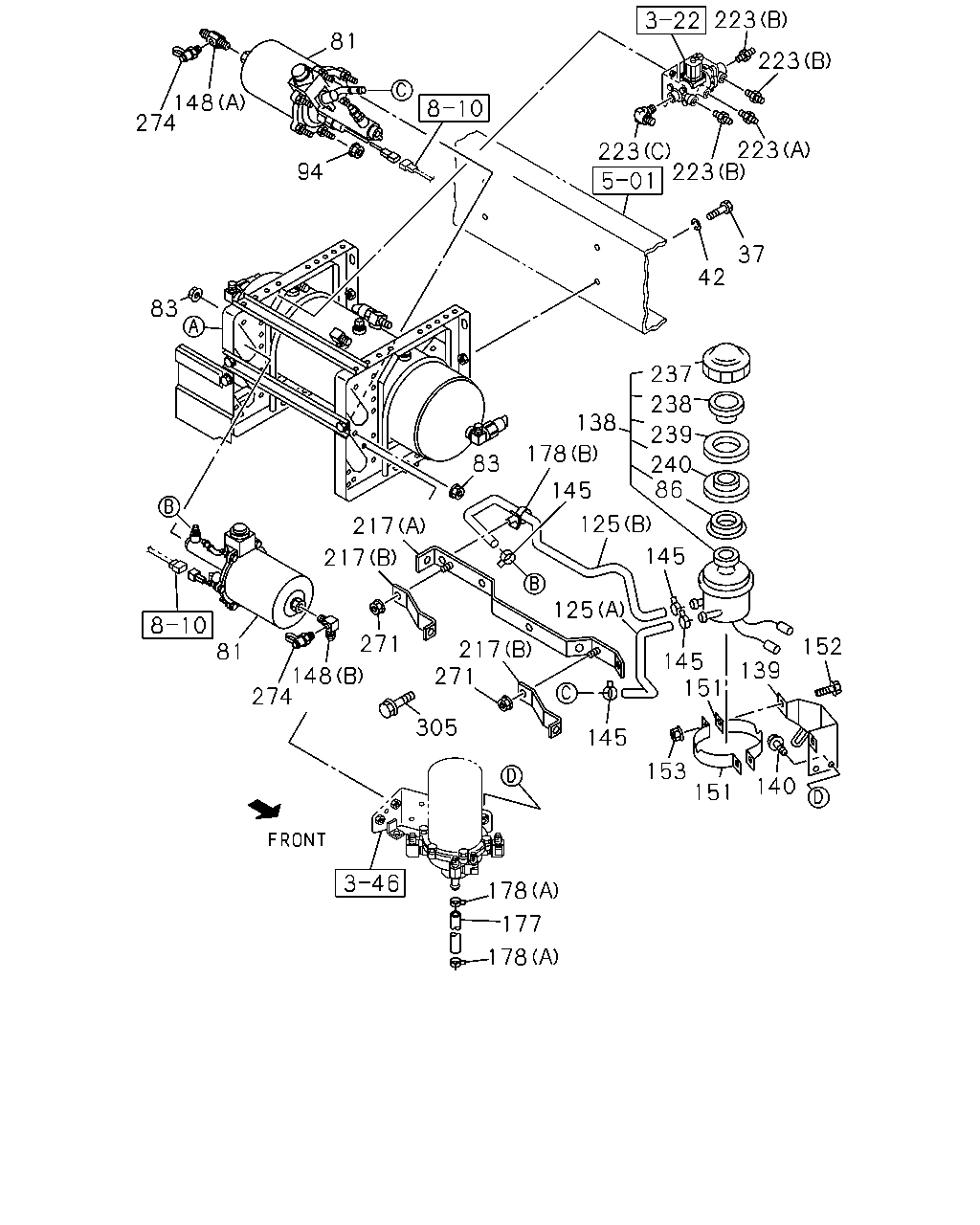

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	04	1	0803-
42	WASHER; PL ID=12.5 OD=32	0-91614-712-0	04	1	0803-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-777-0	02	1	0803-0905
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-826-0	02	1	0906-
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	09	1	0803-
86	SEAL; DUST	1-47529-019-0	01	1	0803-
94	NUT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	04	1	0803-
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98051-217-0	01	1	0803-
125	HOSE; OIL TANK TO AIR MASTER (B)	8-98051-218-1	01	1	0803-
138	TANK ASM; OIL,AIR MASTER	1-47530-186-0	01	1	0803-
139	BRACKET; OIL TANK	8-98051-105-0	01	1	0803-
140	BOLT; OIL TANK TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0803-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0803-
148	CONNECTOR; AIR MASTER (A) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0803-
148	CONNECTOR; AIR MASTER (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0803-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0803-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0803-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0803-
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0803-
178	CLIP; HOSE (B) ID=13-18 L=14.5	1-09709-290-0	08	1	0803-
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	0803-
217	BRACKET; RUBBER HOSE (A)	8-98082-871-0	01	1	0803-
217	BRACKET; RUBBER HOSE (B)	8-98085-273-1	02	1	0803-
223	UNION H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0803-
223	UNION H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	03	1	0803-
223	UNION H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0803-
237	CAP; OIL TANK	1-47525-030-0	01	1	0803-
238	PLATE; BAFFLE	1-47529-022-0	01	1	0803-
239	FILTER; DUST	1-47529-017-0	01	1	0803-
240	HOLDER; FILTER	1-47529-018-0	01	1	0803-
271	NUT; BRKT,HOSE M8 FLANGE	0-91180-108-0	02	1	0803-
274	CONNECTOR; VLV R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0803-
305	BOLT; BRKT,HOSE M8X16 FLANGE	0-28050-816-0	01	1	0803-1008

39 5 5 10 39 1 5 46 46 433 10 7 6 28 94 80 31 30 10 433 1 34 203 203 8 8 8 126 7 40 124 166 6 40 5 8

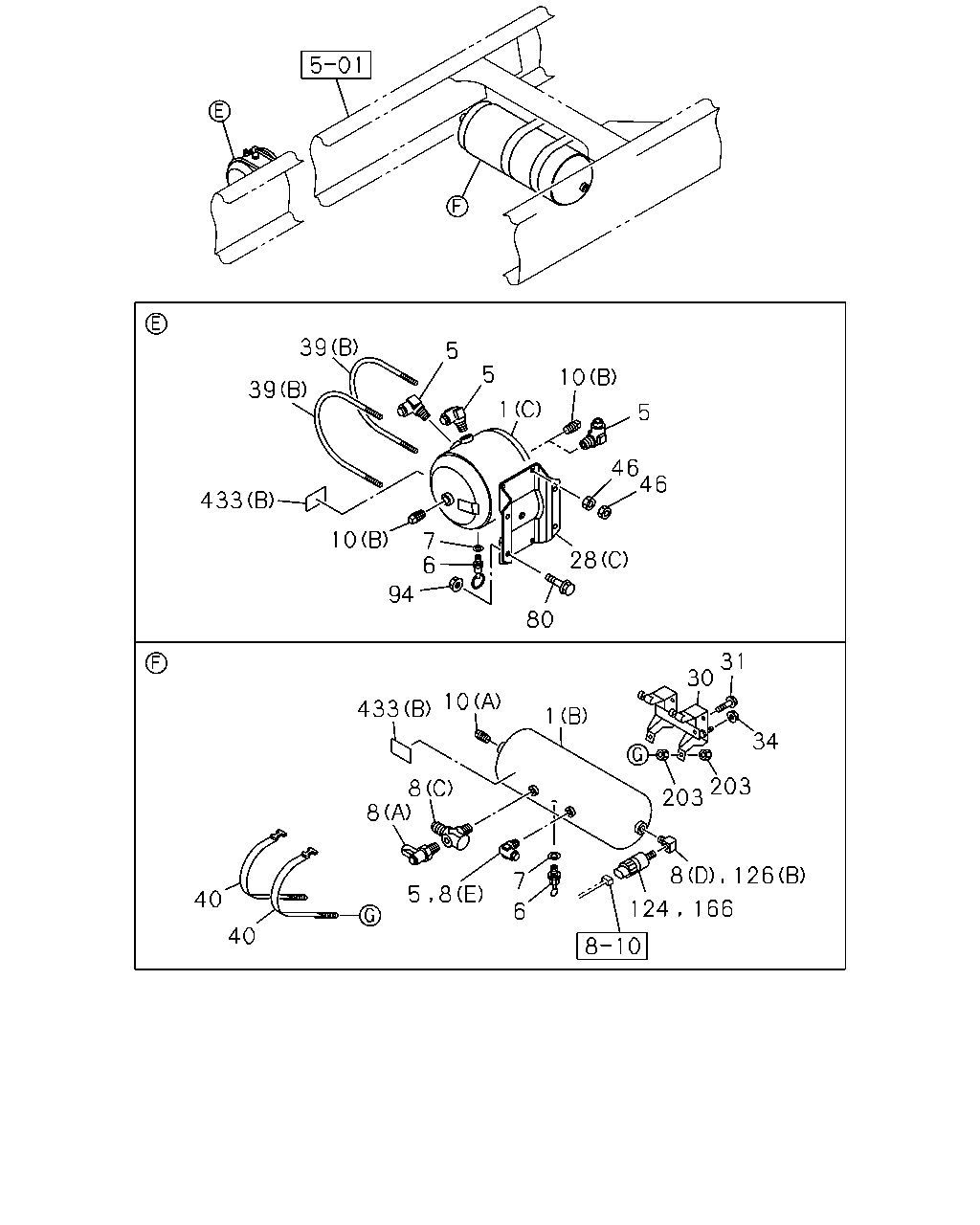

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISRAEL COUNTRY(CV4) (C)	8-98081-870-1	01	1	1009-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISRAEL COUNTRY(CV4) (B)	8-98166-972-0	01	1	1009-
1	TANK ASM; AIR ISRAEL COUNTRY(CV4) (A)	8-98018-785-3	01	1	1009-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98056-183-2	01	1	0803-1008
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ISRAEL COUNTRY(CV4) (B)	8-98056-183-2	01	1	1009-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98081-872-2	01	1	0803-1008
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ISRAEL COUNTRY(CV4) (C)	8-98081-872-2	01	1	1009-
1	TANK ASM; AIR (A)	8-98056-178-1	01	1	0803-1008
1	TANK ASM; AIR EXC. ISRAEL COUNTRY(CV4) (A)	8-98056-178-1	01	1	1009-
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0803-1008
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ISRAEL COUNTRY(CV4) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0803-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0803-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0803-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0803-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0803-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0803-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0803-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISRAEL COUNTRY(CV4) (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISRAEL COUNTRY(CV4) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	0803-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0803-
8	CONNECTOR; AIR TANK (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	0803-
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0803-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	02	1	0803-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/4	9-09204-526-0	01	1	0803-1008
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ISRAEL COUNTRY(CV4) (A) PT3/4	9-09204-526-0	01	1	1009-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0803-1008
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISRAEL COUNTRY(CV4) (B) PT3/8	9-09204-517-0	01	1	1009-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1009-
28	BRACKET; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98100-165-3	01	1	0803-
28	BRACKET; AIR TANK (A)	8-98021-918-5	01	1	0803-
28	BRACKET; AIR TANK (B)	8-98044-509-5	01	1	0803-
30	BRACKET; AIR TANK,SUB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-894-1	01	1	0803-
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	0803-
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	0803-
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=210	1-48317-458-1	02	1	0803-
39	U-BOLT; AIR TANK (A)	8-98022-041-0	02	1	0803-
40	BAND ASM; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-893-1	02	1	0803-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0803-
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	08	1	0803-
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	03	1	0803-
94	NUT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	04	1	0803-
124	SWITCH; AIR PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISRAEL COUNTRY(CV4) STAMP 5.5	8-97609-249-0	01	1	1009-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0803-1008
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ISRAEL COUNTRY(CV4) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0803-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	01	1	0803-1008
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ISRAEL COUNTRY(CV4) STAMP 5.5	8-97609-249-0	01	1	1009-
203	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	04	1	0803-
433	PLATE; NAME (A)	8-98121-999-0	01	1	0806-
433	PLATE; NAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISRAEL COUNTRY(CV4) (B) WHEEL PARK	8-98121-997-0	01	1	1009-
433	PLATE; NAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISRAEL COUNTRY(CV4) (B) ACCESSORY	8-98121-998-0	01	1	1009-
