Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#14788) — 172 parça

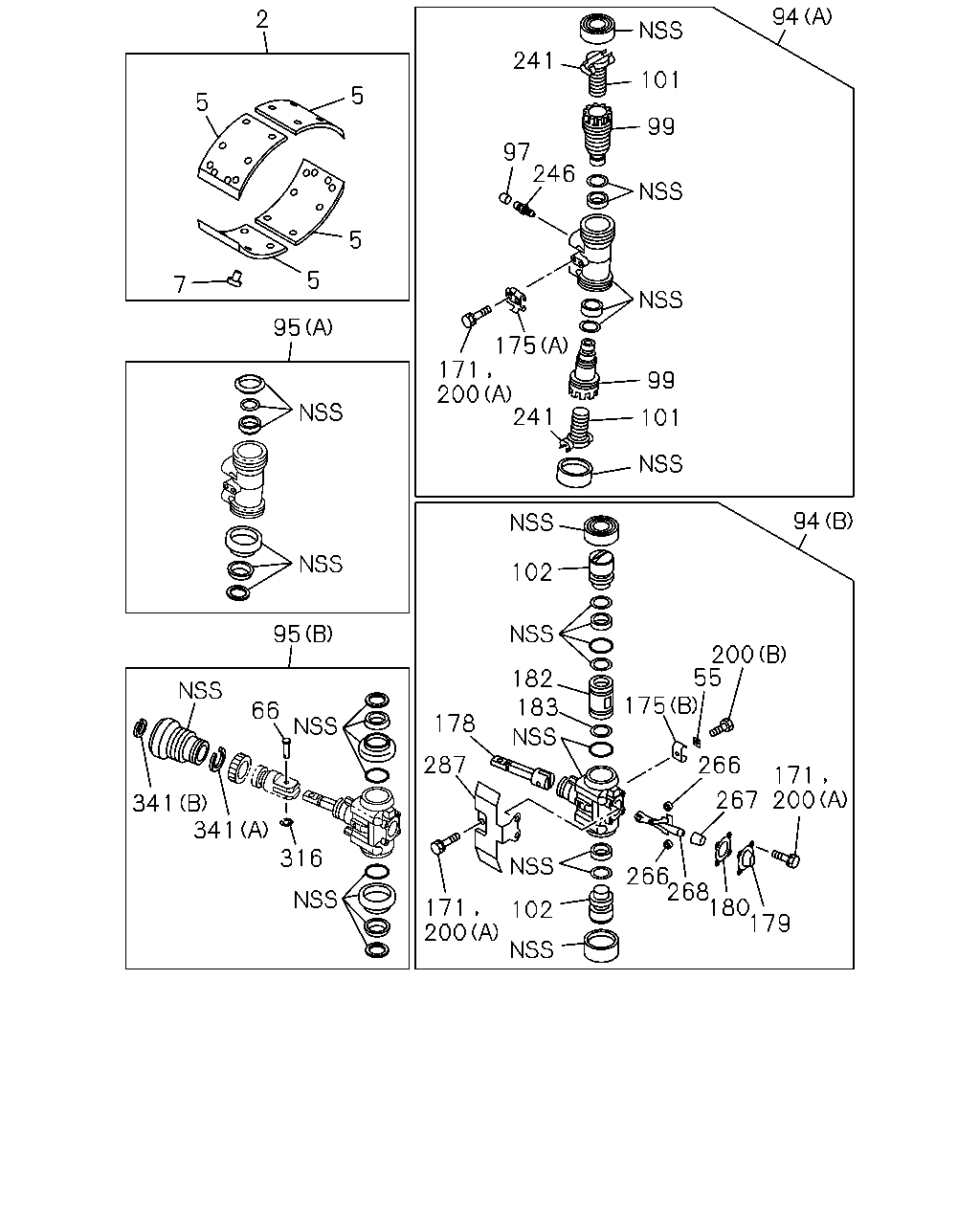

2 5 5 7 5 5 241 97 101 94 99 99 101 241 200 171 175 95 95 66 341 341 316 200 171 102 287 178 183 182 102 266 268 180 179 200 171 267 266 175 55 200 94 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-387-0	02	1	0803-
2	LINING SET; RR BRK,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-386-0	02	1	0803-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-802-0	08	1	0803-
5	LINING; RR BRK SHOE,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	0803-
7	RIVET; LINING,RR BRK	1-09732-056-0	96	1	0803-0803
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	0804-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47622-073-0	02	1	0803-
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09744-129-0	02	1	0803-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-166-1	02	1	0803-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	0803-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	0803-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-171-1	01	1	0803-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-167-0	02	1	0803-0803
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-218-0	01	1	0804-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-219-0	01	1	0804-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-87831-324-0	02	1	0803-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-87831-325-0	02	1	0803-
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-87831-323-0	04	1	0803-
97	CAP; BLEEDER,RR WHEEL CYL OD=12	1-47619-011-0	02	1	0803-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-240-0	04	1	0803-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-238-0	04	1	0803-
101	SCREW; ADJ,RR WHEEL CYL	1-47622-070-0	04	1	0803-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-241-0	02	1	0803-
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-239-0	04	1	0803-
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47622-071-0	10	1	0803-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47619-187-0	02	1	0803-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-188-0	02	1	0803-
178	WEDGE; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47640-013-0	02	1	0803-
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-045-0	02	1	0803-
180	GASKET; COVER,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-013-0	02	1	0803-
182	TAPPET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-280-0	04	1	0803-
183	GASKET; TAPPET,WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09623-561-0	02	1	0803-0803
183	GASKET; TAPPET,WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09623-690-0	02	1	0804-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47622-071-0	04	1	0803-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47622-072-0	02	1	0803-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47159-240-0	02	1	0804-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-47159-241-0	02	1	0804-
241	HOLDER	1-47619-097-0	04	1	0803-
246	BLEEDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	0803-1406
246	BLEEDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-009-0	02	1	1407-
266	ROLLER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47643-003-0	04	1	0803-
267	CAGE; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-004-0	02	1	0803-
268	RETAINER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-003-0	02	1	0803-
287	COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-186-0	02	1	0804-
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9	0-91805-509-0	02	1	0803-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47616-110-0	02	1	0803-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-184-0	02	1	0803-

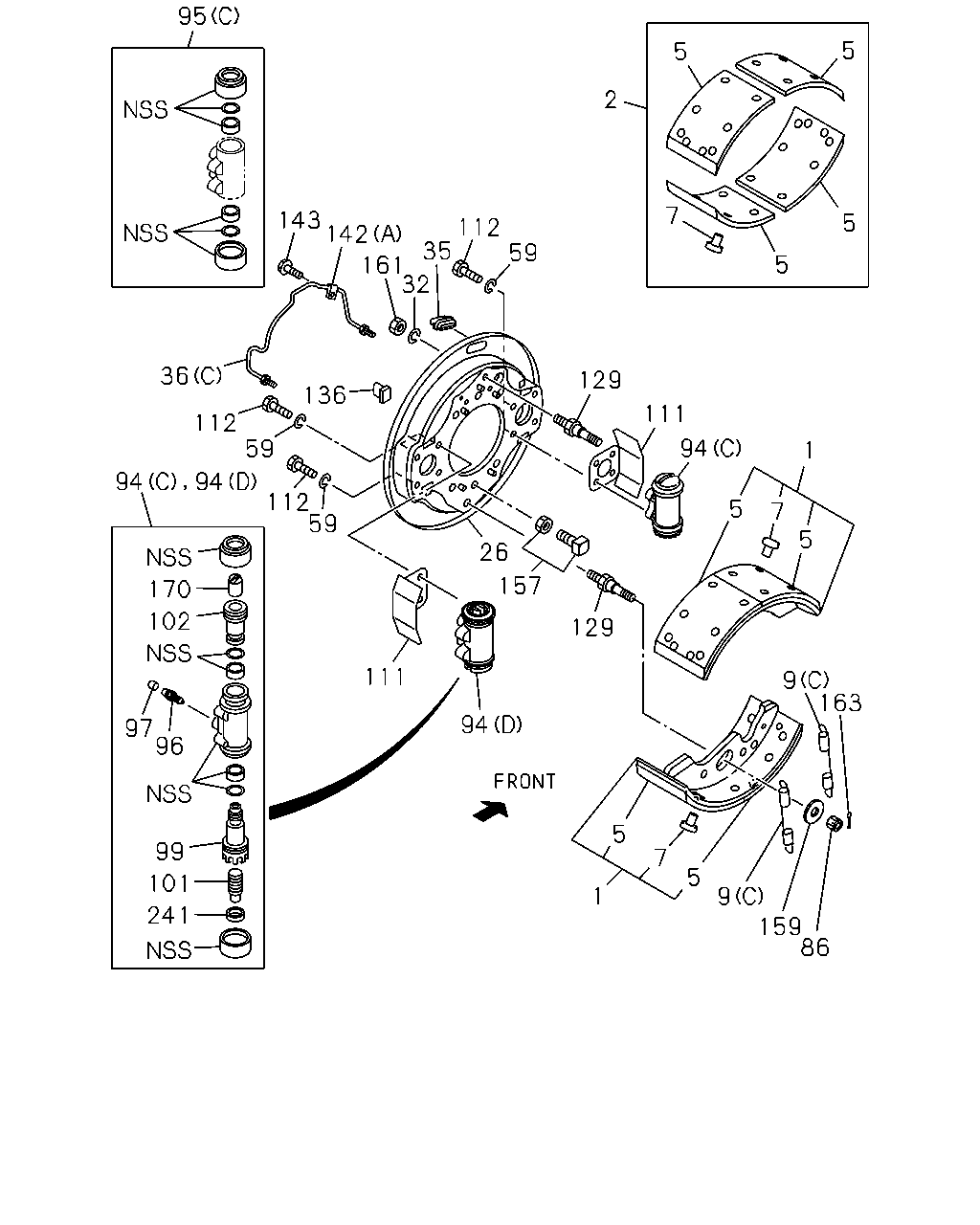

95 36 112 59 94 94 112 59 136 143 142 161 32 35 112 59 129 111 94 5 7 5 1 7 2 5 5 5 5 26 157 129 9 163 159 86 9 5 7 5 1 94 111 241 101 99 96 97 102 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-485-1	04	1	0803-
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-484-0	04	1	0803-
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-387-0	02	1	0803-
2	LINING SET; RR BRK,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-386-0	02	1	0803-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-802-0	08	1	0803-
5	LINING; RR BRK SHOE,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	0803-
7	RIVET; LINING,RR BRK	1-09732-056-0	96	1	0803-0803
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	0804-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-381-1	04	1	0803-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09583-382-0	04	1	0803-
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-383-0	02	1	0803-
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-384-0	02	1	0803-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-702-2	01	1	0803-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-703-2	01	1	0803-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-700-0	01	1	0803-0803
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-712-2	01	1	0804-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-701-0	01	1	0803-0803
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-713-2	01	1	0804-
32	WASHER; LK	1-47159-110-0	04	1	0803-
35	GROMMET; CHECK HOLE	1-09333-139-0	04	1	0803-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-857-0	01	1	0803-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-858-0	01	1	0803-
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-49167-859-0	02	1	0803-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-899-0	02	1	0804-0812
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-905-0	02	1	0901-
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	14	1	0803-
59	WASHER; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	16	1	0803-
86	NUT; FLANGE	1-09440-101-0	04	1	0803-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-166-1	02	1	0803-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	0803-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	0803-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-171-1	01	1	0803-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-167-0	02	1	0803-0803
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-218-0	01	1	0804-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-219-0	01	1	0804-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-87831-324-0	02	1	0803-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-87831-325-0	02	1	0803-
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-87831-323-0	04	1	0803-
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	0803-1406
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-009-0	02	1	1407-
97	CAP; BLEEDER,RR WHEEL CYL OD=12	1-47619-011-0	02	1	0803-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-240-0	04	1	0803-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-238-0	04	1	0803-
101	SCREW; ADJ,RR WHEEL CYL	1-47622-070-0	04	1	0803-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-241-0	02	1	0803-
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-239-0	04	1	0803-
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	02	1	0803-
111	COVER; WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	04	1	0803-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	14	1	0803-
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	16	1	0803-
129	PIN; SHOE HOLD	1-47162-044-0	04	1	0803-
136	GROMMET	1-09333-138-0	04	1	0803-
142	CLAMP; OIL PIPE (A)	1-09701-322-0	02	1	0803-
142	CLAMP; OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-189-0	02	1	0804-
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	0803-
157	BOLT; RR BRK SET M14X43	1-09060-003-0	12	1	0803-
159	WASHER; SHOE HOLD	1-47169-037-0	04	1	0803-
161	NUT; SHOE HOLD LOCK	1-47159-111-0	04	1	0803-
163	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	0-81122-020-0	04	1	0803-
170	PIECE; ANCHOR,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-185-0	04	1	0803-
241	HOLDER	1-47619-097-0	04	1	0803-

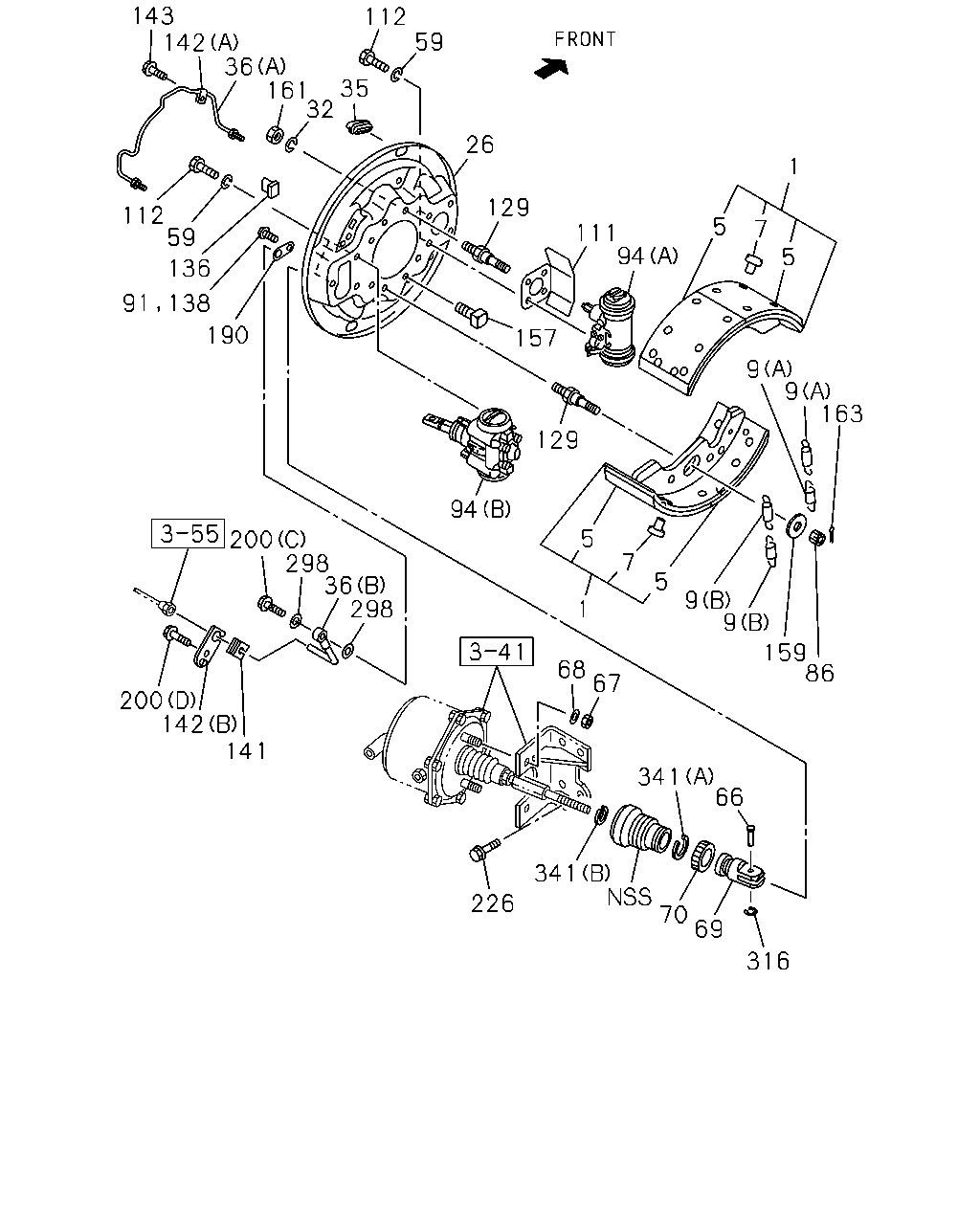

143 142 36 161 32 35 112 59 26 129 111 94 5 1 7 5 9 9 163 157 129 112 59 136 91 138 190 94 5 7 5 9 9 159 86 67 68 341 66 316 69 70 341 226 141 142 200 298 36 298 200 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-485-1	04	1	0803-
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-484-0	04	1	0803-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-802-0	08	1	0803-
5	LINING; RR BRK SHOE,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	0803-
7	RIVET; LINING,RR BRK	1-09732-056-0	96	1	0803-0803
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	0804-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09583-381-1	04	1	0803-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09583-382-0	04	1	0803-
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-383-0	02	1	0803-
9	SPRING; RETURN,BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-384-0	02	1	0803-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-702-2	01	1	0803-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-703-2	01	1	0803-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-700-0	01	1	0803-0803
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-712-2	01	1	0804-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-701-0	01	1	0803-0803
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-713-2	01	1	0804-
32	WASHER; LK	1-47159-110-0	04	1	0803-
35	GROMMET; CHECK HOLE	1-09333-139-0	04	1	0803-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-857-0	01	1	0803-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-49167-858-0	01	1	0803-
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-49167-859-0	02	1	0803-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-899-0	02	1	0804-0812
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-905-0	02	1	0901-
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	14	1	0803-
59	WASHER; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	16	1	0803-
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09744-129-0	02	1	0803-
67	NUT; POWER CHAMBER FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91110-516-0	04	1	0803-
68	WASHER; LK,CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16.2	0-91510-816-0	04	1	0803-
69	JOINT; JAW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09768-106-1	02	1	0803-
70	NUT; LK,JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18	0-91111-518-0	02	1	0803-
86	NUT; FLANGE	1-09440-101-0	04	1	0803-
91	BOLT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X10 W/LK WASHER	0-36220-510-0	02	1	0803-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-166-1	02	1	0803-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	0803-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	0803-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-171-1	01	1	0803-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-167-0	02	1	0803-0803
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-218-0	01	1	0804-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-219-0	01	1	0804-
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	02	1	0803-
111	COVER; WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	04	1	0803-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	14	1	0803-
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	16	1	0803-
129	PIN; SHOE HOLD	1-47162-044-0	04	1	0803-
136	GROMMET	1-09333-138-0	04	1	0803-
138	SCREW; LOCK PLATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X10 W/LK WASHER	0-36220-510-0	02	1	0803-
141	PROTECTOR; RR BRK PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09332-133-0	02	1	0804-
142	CLAMP; OIL PIPE (A)	1-09701-322-0	02	1	0803-
142	CLAMP; OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-189-0	02	1	0804-
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	0803-
157	BOLT; RR BRK SET M14X43	1-09060-003-0	12	1	0803-
159	WASHER; SHOE HOLD	1-47169-037-0	04	1	0803-
161	NUT; SHOE HOLD LOCK	1-47159-111-0	04	1	0803-
163	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	0-81122-020-0	04	1	0803-
190	PLATE; LK,CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-032-0	04	1	0803-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47622-071-0	04	1	0803-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47622-072-0	02	1	0803-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47159-240-0	02	1	0804-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-47159-241-0	02	1	0804-
226	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X35 FLANGE	0-28651-435-0	08	1	0803-
298	GASKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47616-115-0	04	1	0804-
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9	0-91805-509-0	02	1	0803-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47616-110-0	02	1	0803-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-184-0	02	1	0803-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
