◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11137 - FRR-LHD(EU)SPACE EU4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#14786) — 20 parça
çizim 144594
3 3 15
BalonParca AdiParca NoAdetTipApplied Date
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0803-
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 0803-

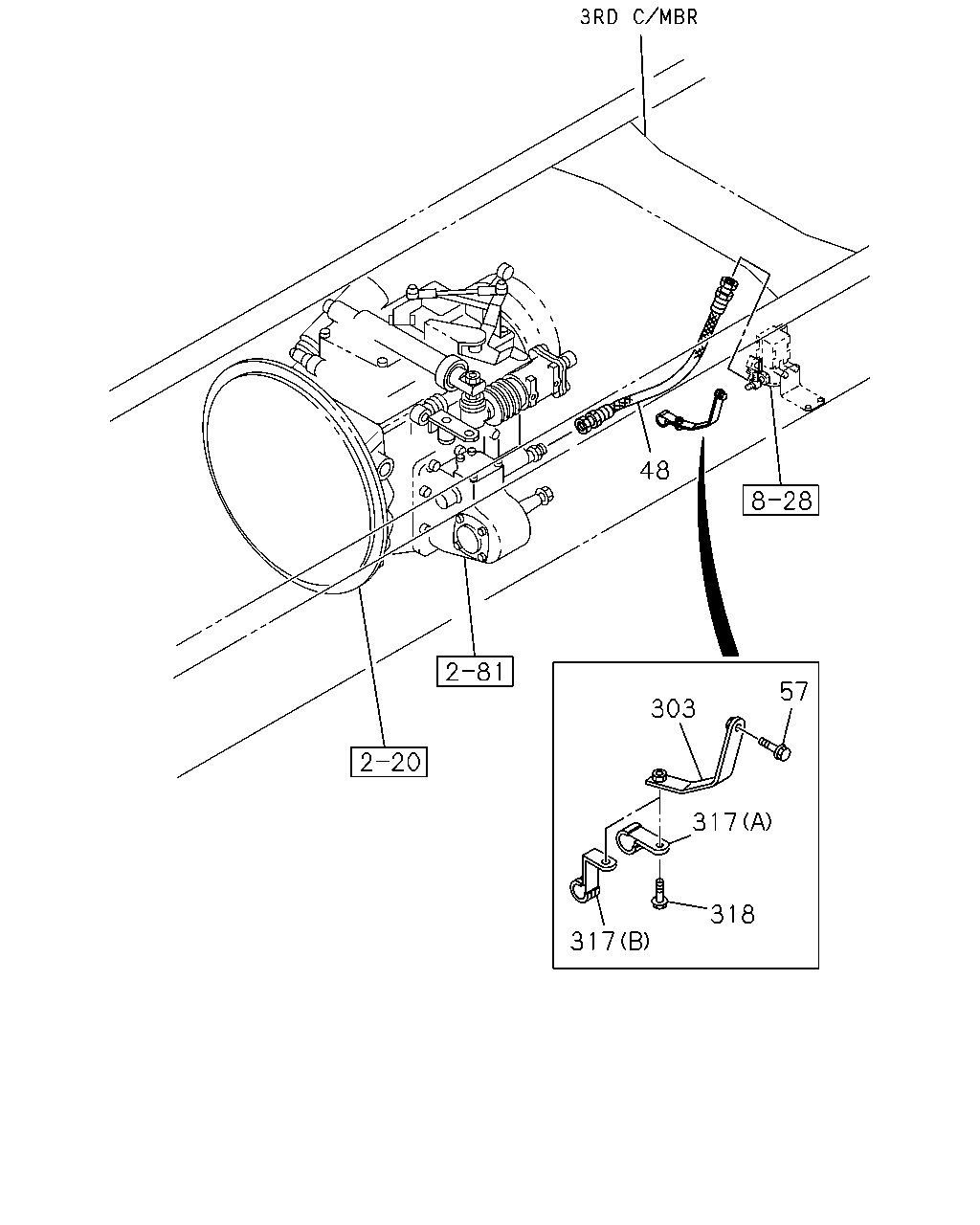

çizim 144601
48 57 303 317 318 317
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
MLD6S M/T(X7W) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=580 		1-09363-613-1 01 1 0906-
48 HOSE; FLEX,PTO
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=540 		1-09363-612-1 01 1 0803-0905
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=540 		1-09363-612-1 01 1 0906-
48 HOSE; FLEX,PTO
WHEEL BASE 3400MM(34W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) L=310 		1-09363-713-0 01 1 0803-0803
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) WHEEL BASE 3400MM(34W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) L=310 		1-09363-713-0 01 1 0804-
48 HOSE; FLEX,PTO
WHEEL BASE 3400MM(34W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=390 		1-09363-616-0 01 1 0803-0803
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) WHEEL BASE 3400MM(34W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=390 		1-09363-616-0 01 1 0804-
48 HOSE; FLEX,PTO
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) L=520 		1-09363-957-0 01 1 0803-0803
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) L=520 		1-09363-957-0 01 1 0804-0905
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) L=450 		1-09363-965-0 01 1 0906-
48 HOSE; FLEX,PTO
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=500 		1-09363-733-0 01 1 0807-
57 BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) PTO CONTROL<SV6> M10X25 FLANGE 		0-28651-025-0 01 1 0906-
303 BRACKET; CLIP
MZX6P M/T(RSW) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) PTO CONTROL<SV6> 		8-98136-974-0 01 1 0906-
303 BRACKET; CLIP
MLD6S M/T(X7W) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) PTO CONTROL<SV6> 		8-98136-977-0 01 1 0906-
317 CLIP; NYLON TUBE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) PTO CONTROL<SV6> (A) ID=11 L=16 		0-95235-025-0 01 1 0906-0907
317 CLIP; NYLON TUBE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) PTO CONTROL<SV6> (B) ID=15 L=22 H=30 		1-09701-215-1 01 1 0908-
318 BOLT; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) PTO CONTROL<SV6> M8X16 FLANGE 		0-28050-816-0 01 1 0906-0909
318 BOLT; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 01 1 0910-
