2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#14780) — 63 parça

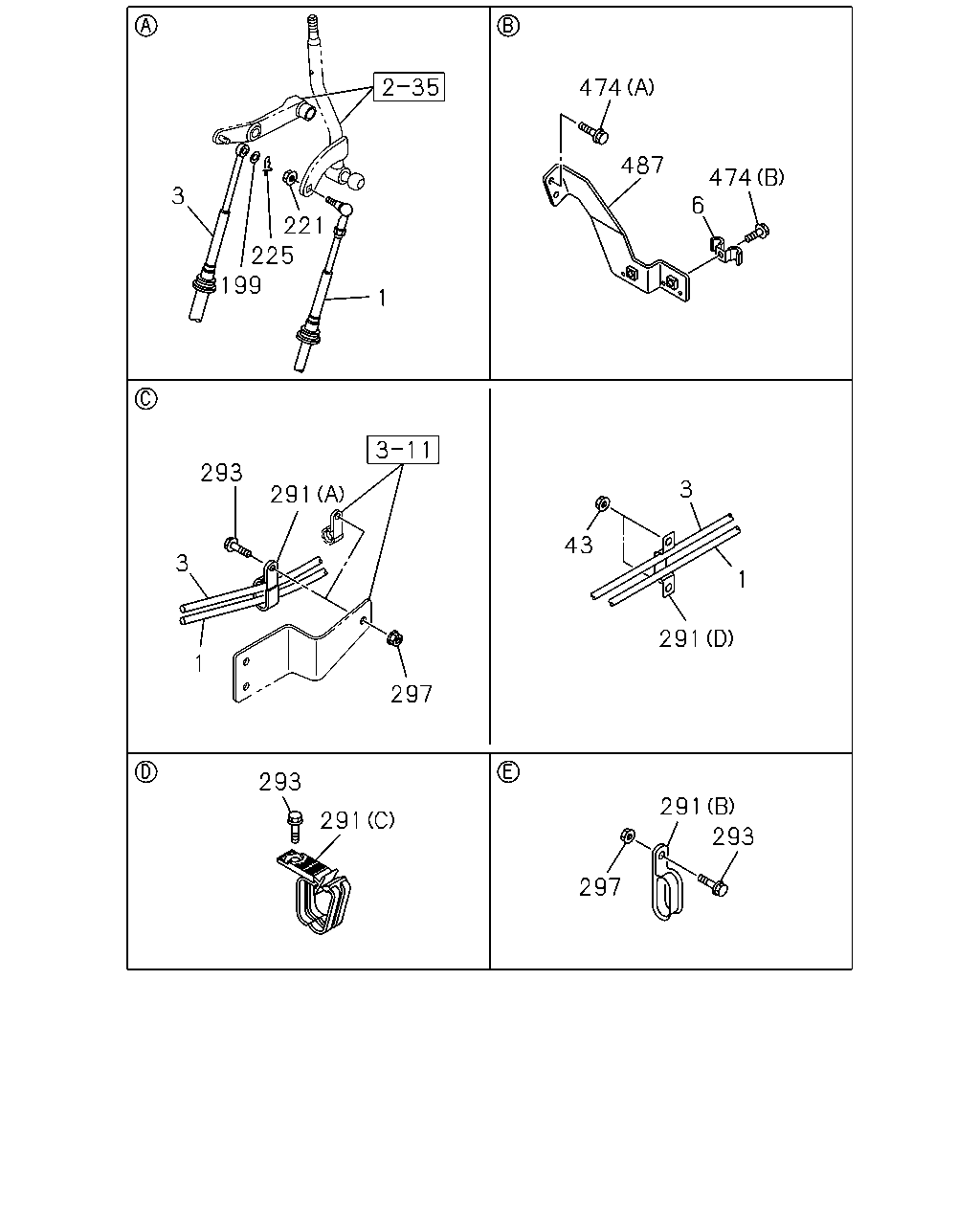

474 487 474 6 3 221 225 199 1 293 3 291 43 3 1 291 1 297 293 291 291 293 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3130	8-98090-396-0	01	1	0803-0804
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3130	8-98090-396-4	01	1	0805-
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3180	8-98090-395-0	01	1	0803-0804
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3180	8-98090-395-6	01	1	0805-
1	CABLE; SHIFT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3040	8-98041-382-0	01	1	0803-0804
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3040	8-98041-382-3	01	1	0805-
1	CABLE; SHIFT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3090	8-98041-381-0	01	1	0803-0804
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3090	8-98041-381-5	01	1	0805-
1	CABLE; SHIFT,TRANS CONT MLD6S M/T(X7W) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3200	8-98121-028-3	01	1	0807-
1	CABLE; SHIFT,TRANS CONT MLD6S M/T(X7W) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3235	8-98121-032-5	01	1	0807-
1	CABLE; SHIFT,TRANS CONT MLD6S M/T(X7W) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3085	8-98121-026-3	01	1	0807-
1	CABLE; SHIFT,TRANS CONT MLD6S M/T(X7W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3120	8-98121-030-5	01	1	0807-
3	CABLE; SELECT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3235	8-98090-397-0	01	1	0803-0804
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3235	8-98090-397-5	01	1	0805-
3	CABLE; SELECT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3155	8-98041-387-0	01	1	0803-0804
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3155	8-98041-387-4	01	1	0805-
3	CABLE; SELECT,TRANS CONT MLD6S M/T(X7W) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3390	8-98121-029-3	01	1	0807-
3	CABLE; SELECT,TRANS CONT MLD6S M/T(X7W) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3165	8-98121-033-5	01	1	0807-
3	CABLE; SELECT,TRANS CONT MLD6S M/T(X7W) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3265	8-98121-027-3	01	1	0807-
3	CABLE; SELECT,TRANS CONT MLD6S M/T(X7W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3040	8-98121-031-5	01	1	0807-
6	CLIP; CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0803-
43	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	02	1	0803-0805
199	WASHER; PL,SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16	0-91614-508-0	01	1	0803-
221	NUT; SHIFT WIRE TO LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	1-09440-049-0	01	1	0803-1011
221	NUT; SHIFT WIRE TO LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	1-09440-062-1	01	1	1012-
225	PIN; SELECT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7	8-94111-137-0	01	1	0803-
291	CLIP; SHIFT TO SELECT,FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98080-966-0	01	1	0806-
291	CLIP; SHIFT TO SELECT,FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 13 L=32	8-97389-264-0	02	1	0803-
291	CLIP; SHIFT TO SELECT,FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0803-1504
291	CLIP; SHIFT TO SELECT,FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 10 & 10 L=43.5	8-98292-921-0	01	1	1505-
291	CLIP; SHIFT TO SELECT,FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (A) ID=11X2 L=16	0-95325-026-0	01	1	0803-
291	CLIP; SHIFT TO SELECT,FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (B) ID=13 & 13 L=32	8-97389-264-0	01	1	0803-
293	BOLT; CLIP,SHIFT TO SELECT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 FLANGE	0-28650-825-0	03	1	0803-
293	BOLT; CLIP,SHIFT TO SELECT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) M8X16 FLANGE	0-28050-816-0	01	1	0803-
293	BOLT; CLIP,SHIFT TO SELECT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) M8X25 FLANGE	0-28650-825-0	02	1	0803-
297	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	02	1	0806-
297	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	01	1	0803-
474	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 W/WASHER	0-51640-825-0	02	1	0803-
474	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 W/WASHER	0-51640-825-0	02	1	0803-
474	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X25 W/WASHER	0-51640-825-0	01	1	0803-
487	BRACKET; CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98080-013-2	01	1	0803-
487	BRACKET; CONT CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98080-013-2	01	1	0803-

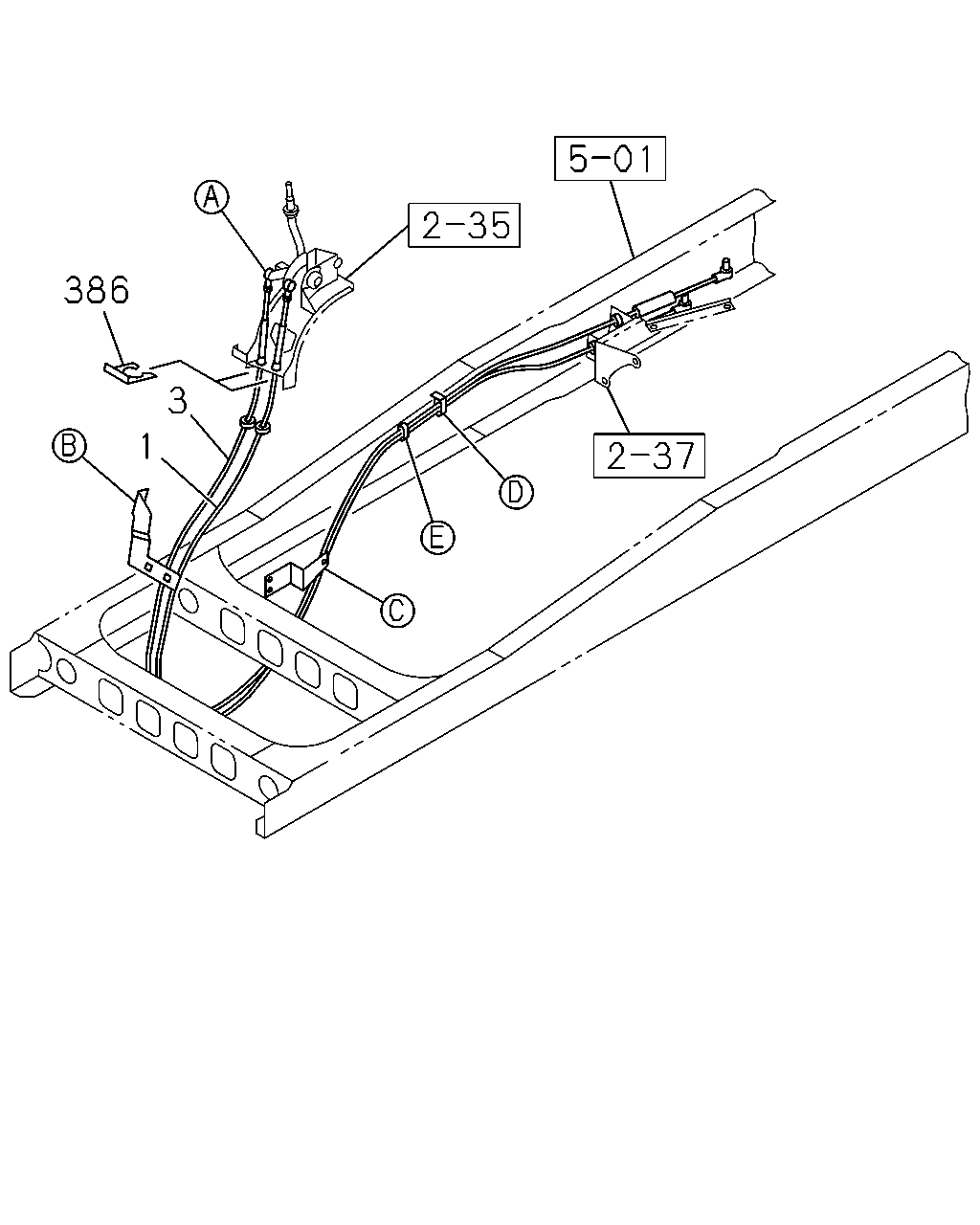

386 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3130	8-98090-396-0	01	1	0803-0804
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3130	8-98090-396-4	01	1	0805-
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3180	8-98090-395-0	01	1	0803-0804
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3180	8-98090-395-6	01	1	0805-
1	CABLE; SHIFT,TRANS CONT ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3040	8-98041-382-0	01	1	0803-0804
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3040	8-98041-382-3	01	1	0805-
1	CABLE; SHIFT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3090	8-98041-381-0	01	1	0803-0804
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3090	8-98041-381-5	01	1	0805-
1	CABLE; SHIFT,TRANS CONT MLD6S M/T(X7W) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3200	8-98121-028-3	01	1	0807-
1	CABLE; SHIFT,TRANS CONT MLD6S M/T(X7W) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3235	8-98121-032-5	01	1	0807-
1	CABLE; SHIFT,TRANS CONT MLD6S M/T(X7W) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3085	8-98121-026-3	01	1	0807-
1	CABLE; SHIFT,TRANS CONT MLD6S M/T(X7W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3120	8-98121-030-5	01	1	0807-
3	CABLE; SELECT,TRANS CONT GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3235	8-98090-397-0	01	1	0803-0804
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3235	8-98090-397-5	01	1	0805-
3	CABLE; SELECT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3155	8-98041-387-0	01	1	0803-0804
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3155	8-98041-387-4	01	1	0805-
3	CABLE; SELECT,TRANS CONT MLD6S M/T(X7W) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3390	8-98121-029-3	01	1	0807-
3	CABLE; SELECT,TRANS CONT MLD6S M/T(X7W) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3165	8-98121-033-5	01	1	0807-
3	CABLE; SELECT,TRANS CONT MLD6S M/T(X7W) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3265	8-98121-027-3	01	1	0807-
3	CABLE; SELECT,TRANS CONT MLD6S M/T(X7W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3040	8-98121-031-5	01	1	0807-
386	CLIP; CONT CABLE & TUBE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09700-966-1	02	1	0803-
