Sayfa 2-30 - Isuzu EPC

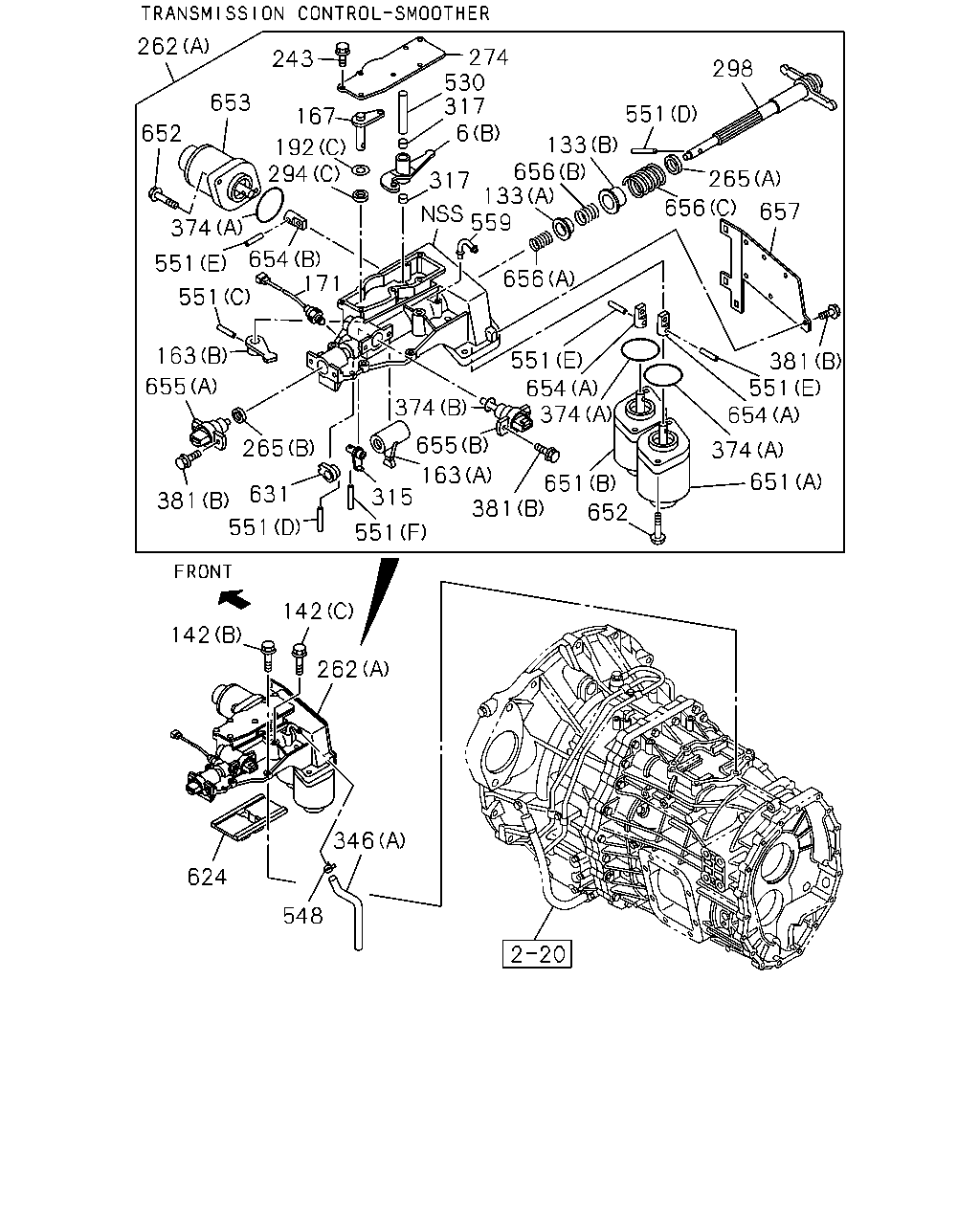

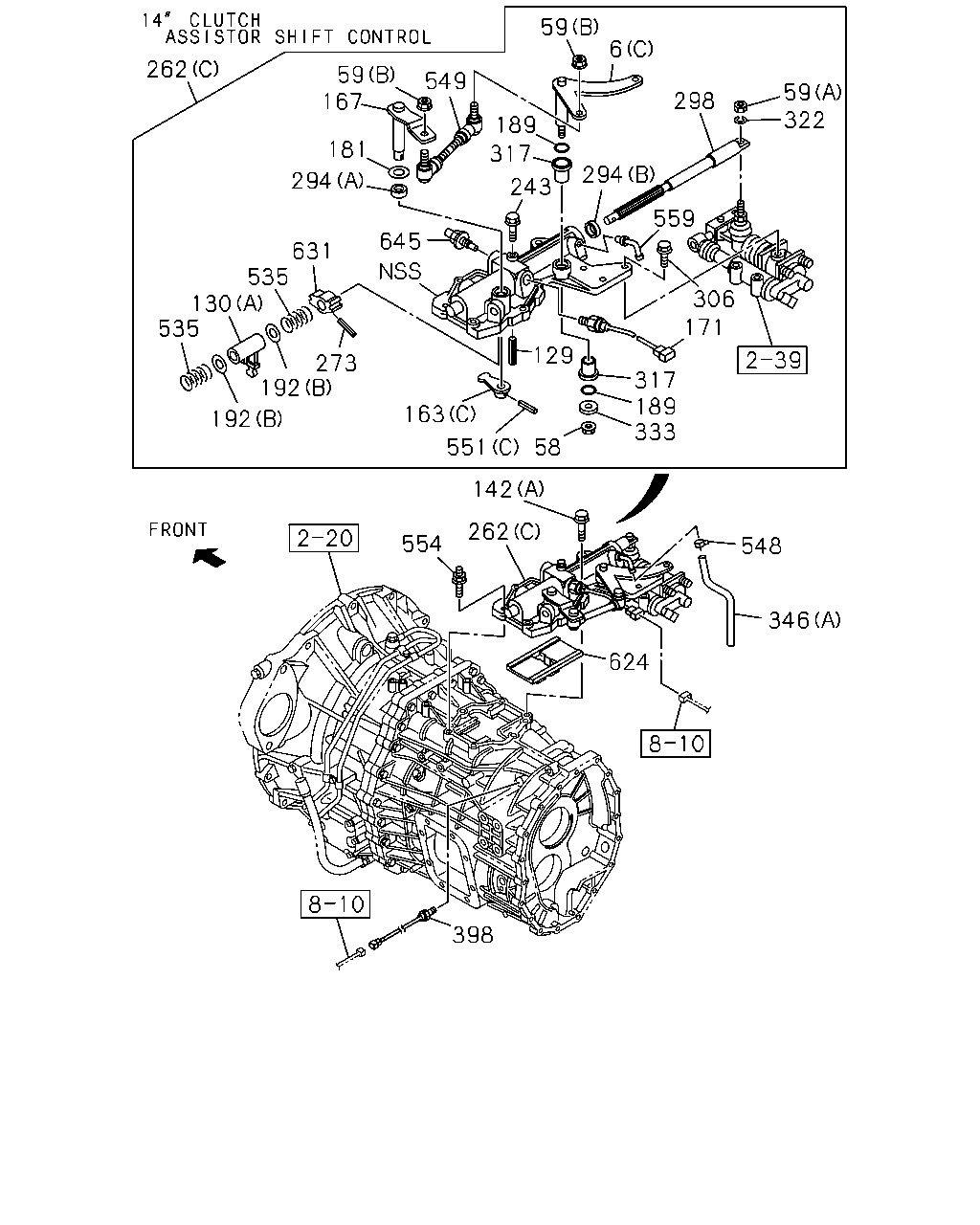

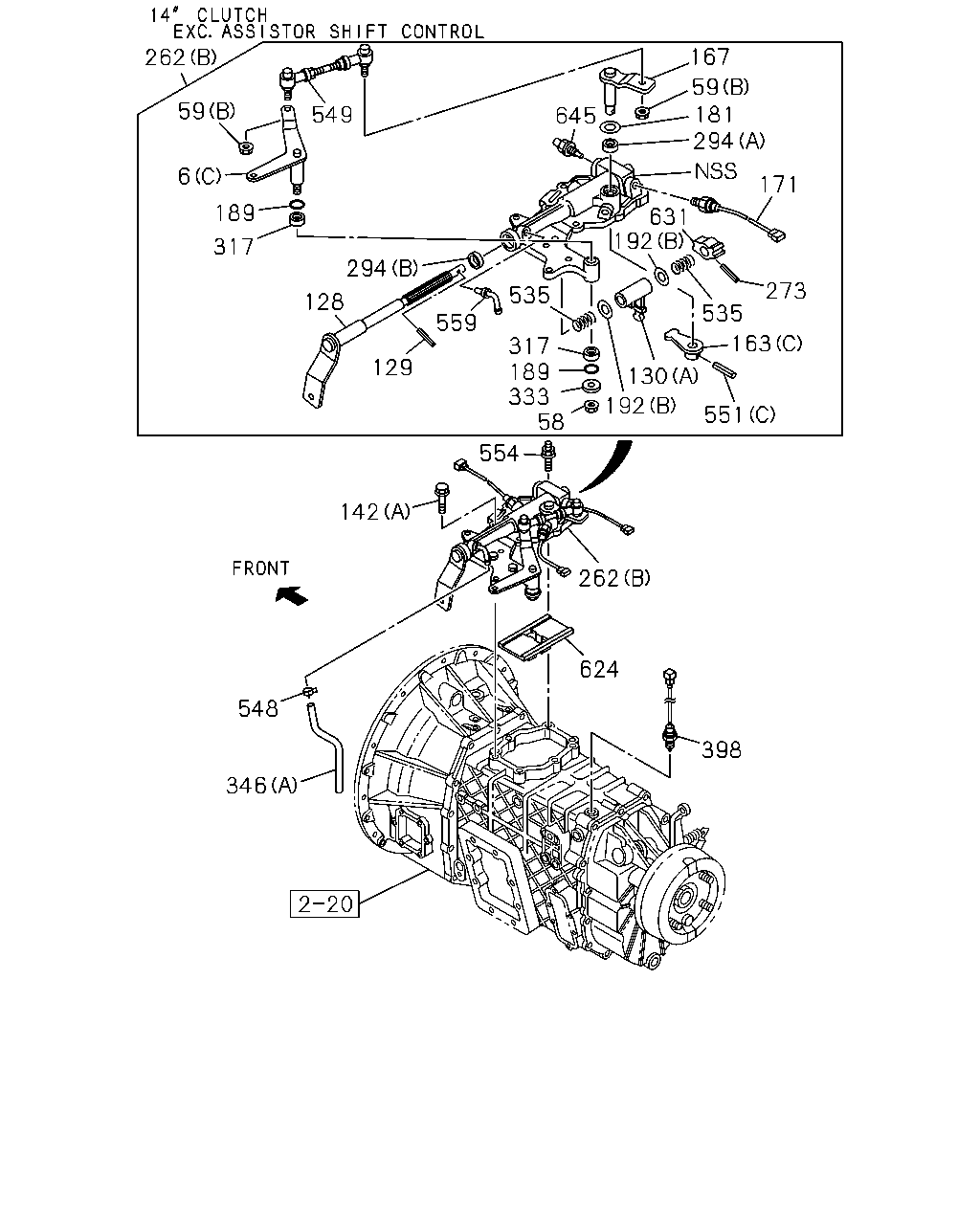

2-30 — GEAR SHIFTER AND QUADRANT BOX (#14778) — 639 parça

296 292 295 292 296 167 293 188 321 187 320 292 181 289 433 315 274 142 142 317 292 285 433 271 317 319 327 323 157 271 289 305 272 130 163 298

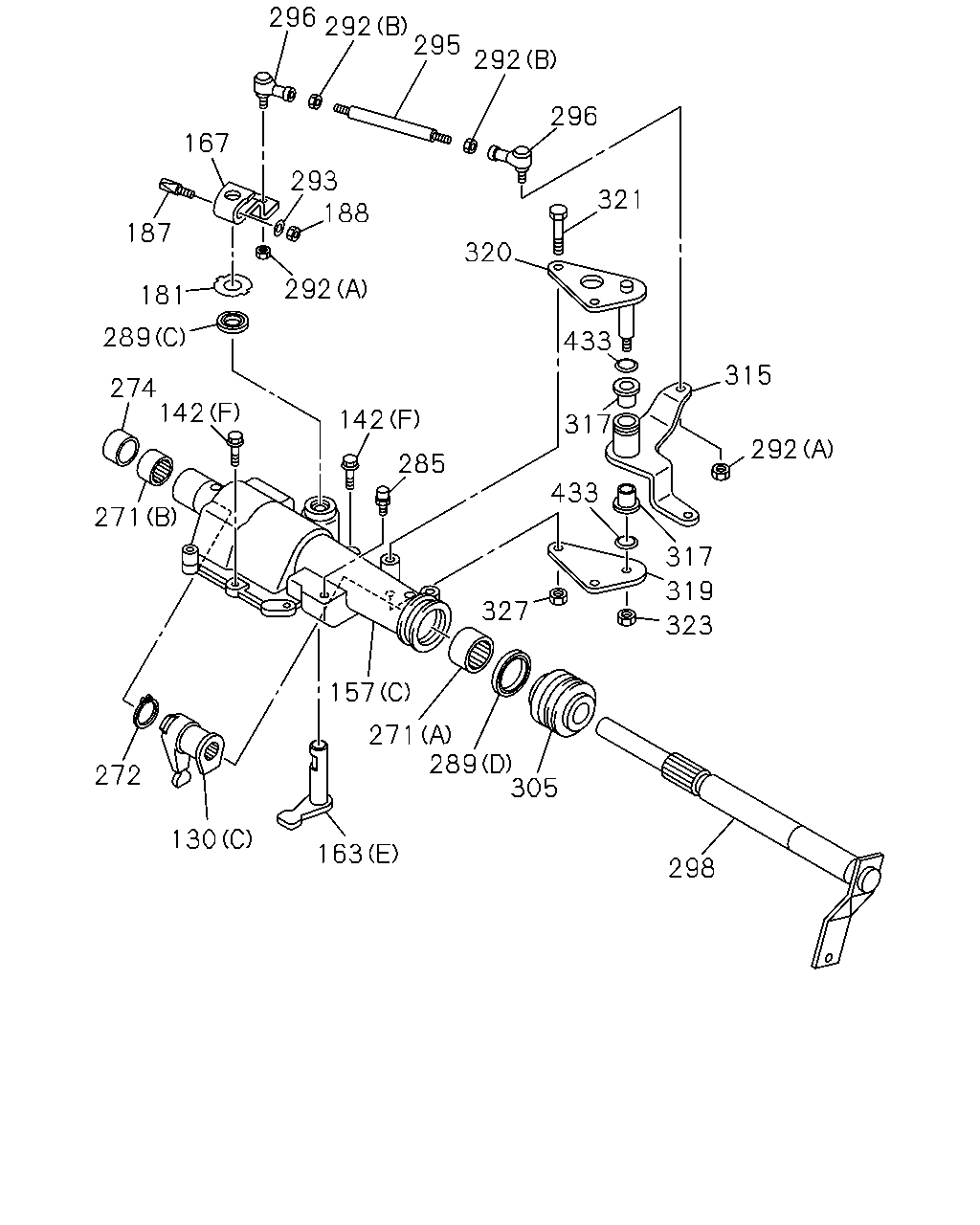

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL 14" CLUTCH(WF6) (A)	8-97306-647-0	01	1	0803-	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (B)	8-98114-548-0	01	1	0807-		●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33521-111-1	01	1	0807-		●
142	BOLT; QUAD BOX 14" CLUTCH(WF6) (A) M8X22 FLANGE	8-97365-376-0	04	1	0803-	●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	0803-	●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	0803-	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	04	1	0807-		●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	03	1	0807-		●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X20,M10X60 L=90	1-09049-020-0	01	1	0807-		●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0807-		●
142	BOLT; QUAD BOX (E) M10X20,M10X26 L=56	8-98010-334-0	01	1	0807-		●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	11	1	0807-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	8-98059-176-0	01	1	0807-		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33541-478-0	01	1	0807-		●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0807-		●
163	LEVER; SELECT,INTERNAL 14" CLUTCH(WF6) (C)	8-97305-663-0	01	1	0803-	●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	0803-	●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	0803-	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (D)	1-33522-153-0	01	1	0807-		●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33522-041-4	01	1	0807-		●
167	LEVER; SELECT,EXTERNAL 14" CLUTCH(WF6)	8-98021-489-0	01	1	0803-	●
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	0803-	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	8-98059-180-0	01	1	0807-		●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-070-0	01	1	0807-		●
181	WASHER; PL,SELECT LEVER 14" CLUTCH(WF6)	8-97367-327-0	01	1	0803-	●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0807-		●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0807-		●
187	BOLT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X42	1-33659-045-0	01	1	0807-		●
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	0807-		●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=20 OD=23	1-33549-016-0	01	1	0807-		●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) ID=28 OD=32	1-33549-104-0	01	1	0807-		●
272	RING; SNAP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09588-175-0	01	1	0807-		●
274	COVER; SHAFT,QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-711-0	01	1	0803-	●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	9-33545-017-1	01	1	0807-		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0807-1204		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1207	●	●
285	BREATHER; AIR,QUAD BOX 14" CLUTCH(WF6)	1-33149-003-0	01	1	1208-1404	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1405-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	0807-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	0807-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (C) OD=30	1-09625-386-0	01	1	0807-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (D) OD=41	1-09625-647-0	01	1	0807-		●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8	0-91111-508-0	02	1	0807-		●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	0807-		●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	0-91610-708-0	01	1	0807-		●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98059-185-0	01	1	0807-		●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0807-		●
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8> L=45.5	1-09760-118-1	02	1	0807-		●
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	0803-1507	●
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-	●
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	0803-	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98059-178-0	01	1	0807-		●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98119-275-0	01	1	0807-		●
305	BOOT; LEVER SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33529-028-0	01	1	0807-		●
315	LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-998-0	01	1	0803-1411	●
315	LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98296-526-0	01	1	1412-	●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98122-789-0	01	1	0807-		●
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	0803-	●
317	BUSHING; LEVER 14" CLUTCH(WF6)	1-09330-119-0	02	1	0803-0806	●
317	BUSHING; LEVER 14" CLUTCH(WF6)	1-09330-119-0	02	1	0807-	●	●
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-515-0	01	1	0807-		●
320	SHAFT; LEVER	8-97377-928-0	01	1	0803-	●
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-474-0	01	1	0807-		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10856-080-0	02	1	0807-		●
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	0807-		●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	02	1	0807-		●
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0807-		●

295 167 166 59 181 289 59 285 6 317 157 189 142 306 273 289 298 59 322 317 189 333 58 130 163

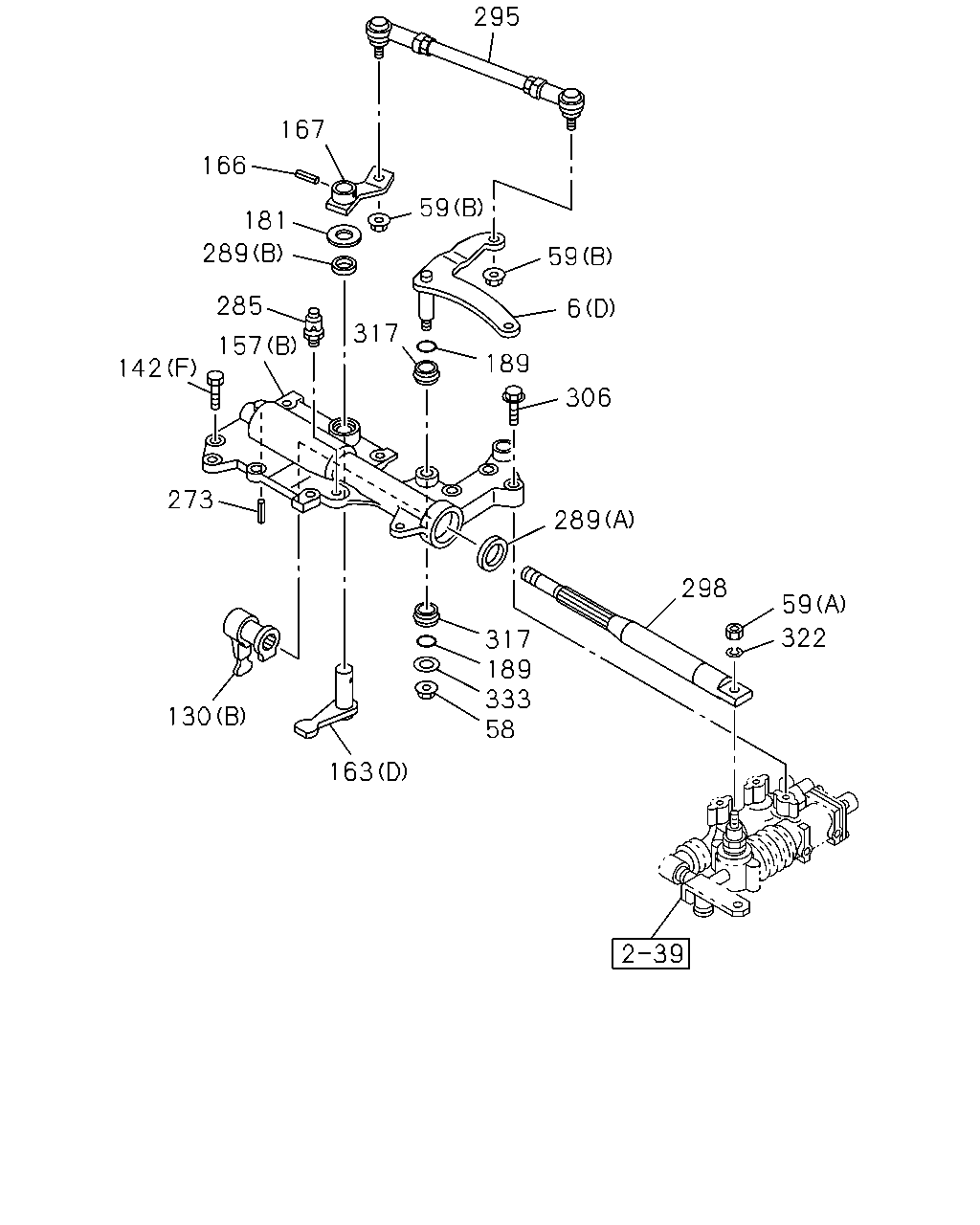

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0803-	●
6	LEVER; RELAY 14" CLUTCH(WF6) (C)	8-98014-157-1	01	1	0803-	●
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	0803-	●
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8> (D)	8-98059-183-0	01	1	0807-		●
58	NUT 14" CLUTCH(WF6) M10 FLANGE	0-91180-110-0	01	1	0803-0806	●
58	NUT 14" CLUTCH(WF6) M10 FLANGE	0-91180-110-0	01	1	0807-	●
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	0807-		●
59	NUT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0803-0806	●
59	NUT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0807-	●	●
59	NUT 14" CLUTCH(WF6) (B) M8 FLANGE	0-91180-108-0	02	1	0803-0806	●
59	NUT 14" CLUTCH(WF6) (B) M8 FLANGE	0-91180-108-0	02	1	0807-	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	0-91180-108-0	02	1	0807-		●
130	LEVER; SHIFT,INTERNAL 14" CLUTCH(WF6) (A)	8-97306-647-0	01	1	0803-	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (B)	8-98114-548-0	01	1	0807-		●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33521-111-1	01	1	0807-		●
142	BOLT; QUAD BOX 14" CLUTCH(WF6) (A) M8X22 FLANGE	8-97365-376-0	04	1	0803-	●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	0803-	●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	0803-	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	04	1	0807-		●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	03	1	0807-		●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X20,M10X60 L=90	1-09049-020-0	01	1	0807-		●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0807-		●
142	BOLT; QUAD BOX (E) M10X20,M10X26 L=56	8-98010-334-0	01	1	0807-		●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	11	1	0807-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	8-98059-176-0	01	1	0807-		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33541-478-0	01	1	0807-		●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0807-		●
163	LEVER; SELECT,INTERNAL 14" CLUTCH(WF6) (C)	8-97305-663-0	01	1	0803-	●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	0803-	●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	0803-	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (D)	1-33522-153-0	01	1	0807-		●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33522-041-4	01	1	0807-		●
166	PIN; SPR,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8> L=25 OD=5	1-09748-032-0	01	1	0807-		●
167	LEVER; SELECT,EXTERNAL 14" CLUTCH(WF6)	8-98021-489-0	01	1	0803-	●
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	0803-	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	8-98059-180-0	01	1	0807-		●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-070-0	01	1	0807-		●
181	WASHER; PL,SELECT LEVER 14" CLUTCH(WF6)	8-97367-327-0	01	1	0803-	●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0807-		●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0807-		●
189	GASKET; SELECT LEVER,CONT BOX 14" CLUTCH(WF6)	1-09623-594-0	02	1	0803-0806	●
189	GASKET; SELECT LEVER,CONT BOX 14" CLUTCH(WF6)	1-09623-594-0	02	1	0807-	●
189	GASKET; SELECT LEVER,CONT BOX ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0807-		●
273	PIN; SPR,STOPPER 14" CLUTCH(WF6) D=4.2 L=25	8-97103-142-0	01	1	0803-	●
273	PIN; SPR,STOPPER ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4	1-09748-031-0	01	1	0807-		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0807-1204		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1207	●	●
285	BREATHER; AIR,QUAD BOX 14" CLUTCH(WF6)	1-33149-003-0	01	1	1208-1404	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1405-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	0807-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	0807-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (C) OD=30	1-09625-386-0	01	1	0807-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (D) OD=41	1-09625-647-0	01	1	0807-		●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98059-185-0	01	1	0807-		●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0807-		●
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	0803-1507	●
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-	●
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	0803-	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98059-178-0	01	1	0807-		●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98119-275-0	01	1	0807-		●
306	BOLT; SHIFT ASSISTOR 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0803-0806	●
306	BOLT; SHIFT ASSISTOR 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0807-	●	●
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	0803-	●
317	BUSHING; LEVER 14" CLUTCH(WF6)	1-09330-119-0	02	1	0803-0806	●
317	BUSHING; LEVER 14" CLUTCH(WF6)	1-09330-119-0	02	1	0807-	●	●
322	WASHER; LK 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0803-0806	●
322	WASHER; LK 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0807-	●	●
333	WASHER; PL,LEVER 14" CLUTCH(WF6) ID=10.5	0-91610-710-0	01	1	0803-0806	●
333	WASHER; PL,LEVER 14" CLUTCH(WF6) ID=10.5	0-91610-710-0	01	1	0807-	●
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5	0-91610-710-0	01	1	0807-		●

38 39 28 54 89 85 30 28 21 84 82 22 19 38 38 33 39 62 20 86 39 54 30 28 86 54 38 86 39 142 31 30 28 86 225 224 513 223 398 80 142 221 413 78 61 86 142 142 142 42 158 218 71 171 157 142 219 78 70 142 69 42 66 227 65 67 13 72 15 65 65 67 68 11 12 86 86 86 86

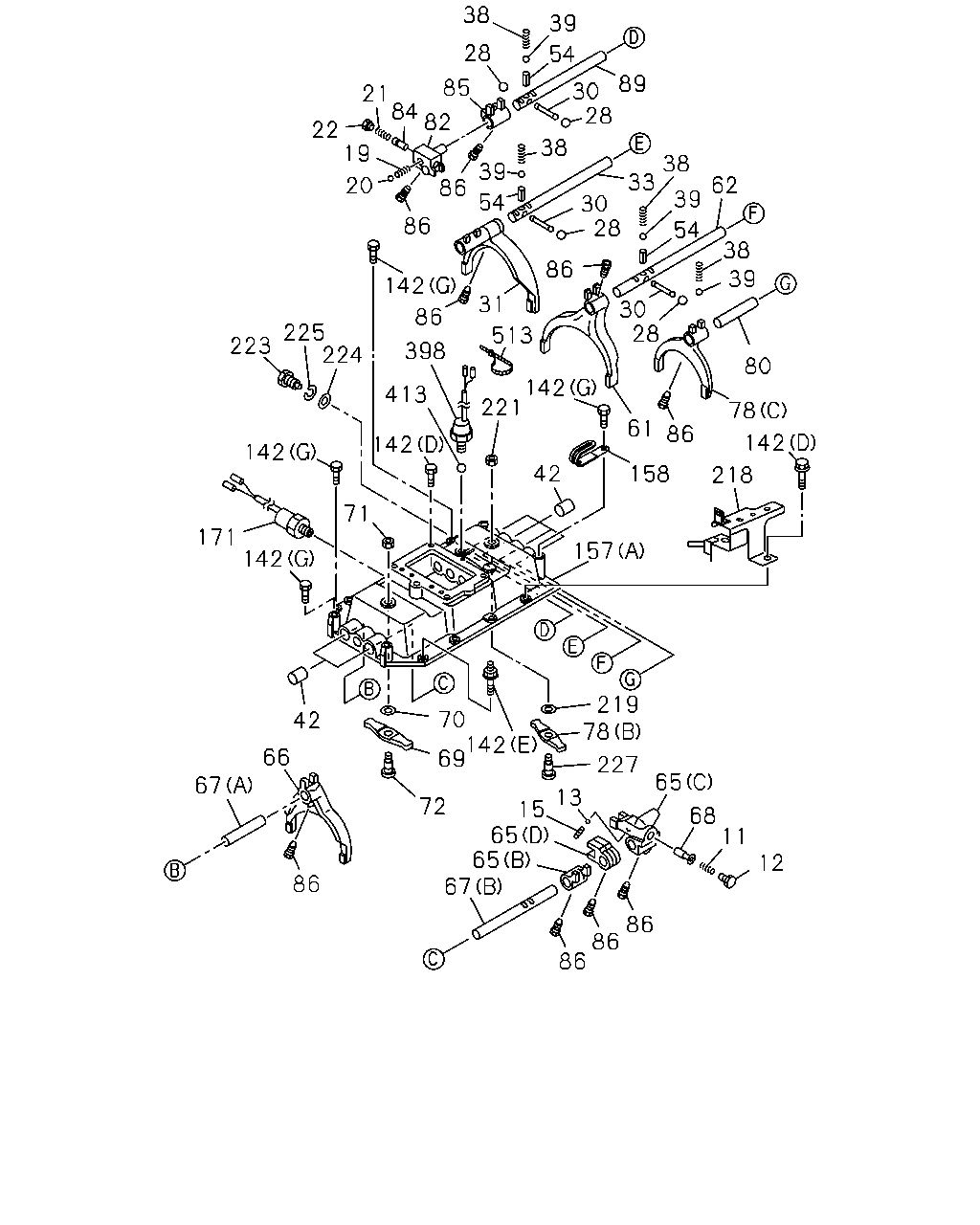

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0807-		●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0807-		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0807-		●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0807-		●
19	SPRING; COIL COMP	1-09580-441-0	01	1	0807-		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0807-		●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0807-		●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0807-		●
28	BALL; INTER LK	9-00097-501-0	04	1	0807-		●
30	PIN; INTER LK	9-33534-003-0	03	1	0807-		●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0807-		●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0807-1202		●
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-		●
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	0807-		●
38	SPRING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09580-419-0	04	1	0807-		●
39	BALL; DETENT	1-09843-012-0	04	1	0807-		●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0807-		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0807-		●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0807-		●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0807-1202		●
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-		●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	8-97388-980-1	01	1	0803-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	1-33511-202-3	01	1	0807-		●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0807-		●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0807-		●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	0803-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0807-		●
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0807-1202		●
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1203-		●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0807-1202		●
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-		●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0807-		●
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	0807-		●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0807-		●
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	0807-		●
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	0807-		●
78	ARM; SHIFT,REV (A)	8-97388-975-1	01	1	0803-	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0807-		●
78	ARM; SHIFT,REV (C)	1-33511-234-1	01	1	0807-		●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0807-1202		●
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-		●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	0803-	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0807-		●
84	SLEEVE; REV	1-33516-025-0	01	1	0807-		●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0807-		●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0807-		●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0803-	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0807-1202		●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-		●
142	BOLT; QUAD BOX 14" CLUTCH(WF6) (A) M8X22 FLANGE	8-97365-376-0	04	1	0803-	●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	0803-	●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	0803-	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	04	1	0807-		●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	03	1	0807-		●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X20,M10X60 L=90	1-09049-020-0	01	1	0807-		●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0807-		●
142	BOLT; QUAD BOX (E) M10X20,M10X26 L=56	8-98010-334-0	01	1	0807-		●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	11	1	0807-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	8-98059-176-0	01	1	0807-		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33541-478-0	01	1	0807-		●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0807-		●
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0803-	●
158	CLIP; HARNESS ID=8	8-94107-659-0	02	1	0807-		●
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1307-1312	●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509	●
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0803-1306	●
171	SWITCH; NEUTRAL 14" CLUTCH(WF6)	8-98023-050-0	01	1	1307-1312	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0807-1104		●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109		●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-		●
218	BRACKET; HARNESS CLIP,QUAD BOX	8-98114-116-0	01	1	0807-		●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0807-		●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0807-		●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0807-		●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0807-		●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0807-		●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0807-		●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0803-1312	●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0807-1209		●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-		●
413	BALL; BACK SW	9-00097-013-0	01	1	0807-		●
513	CLIP; BAND L=140	5-09707-031-1	01	1	0807-		●

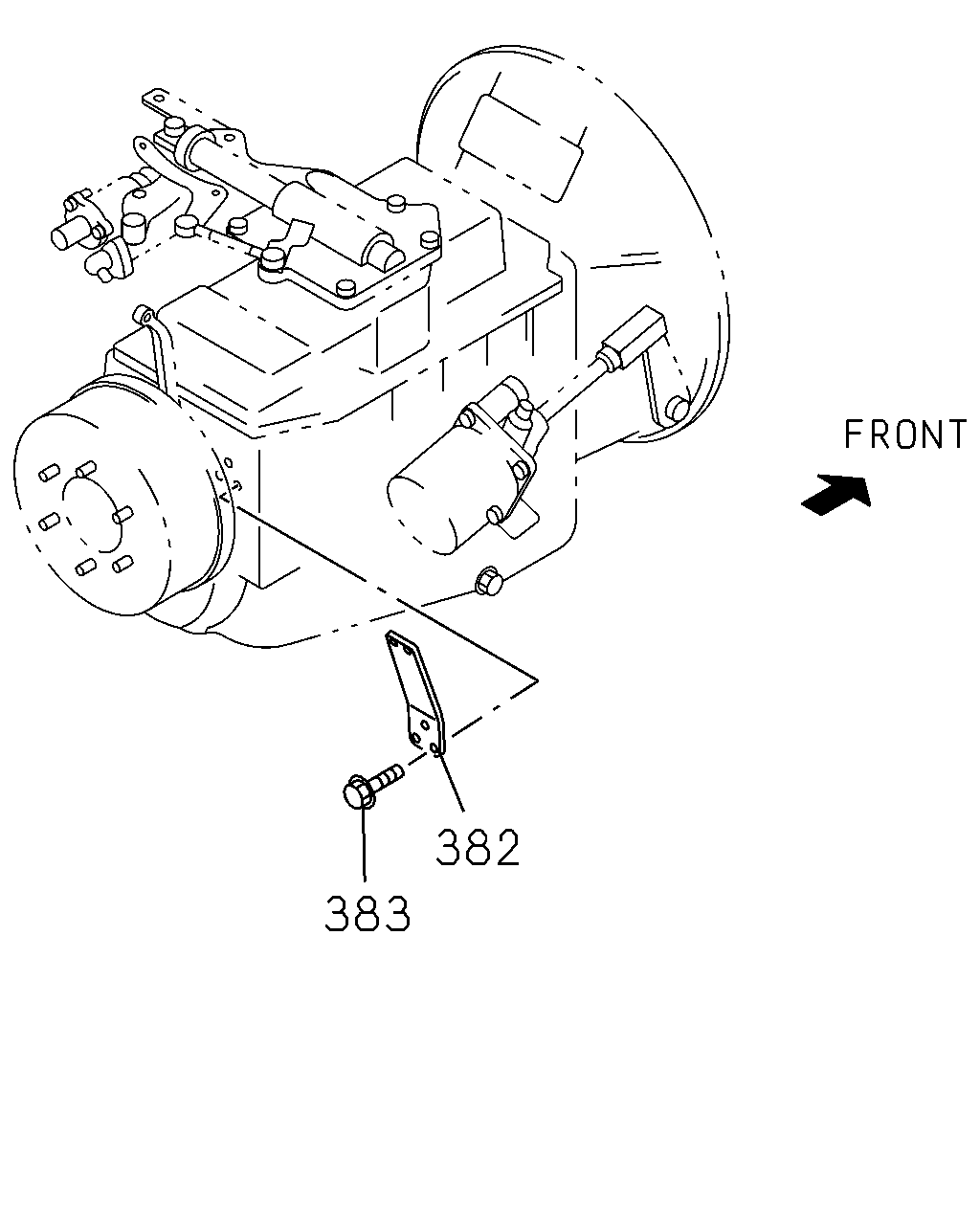

382 383

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-223-0	01	1	0807-		●
	383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X22 FLANGE	0-28181-022-0	03	1	0807-		●

551 78 32 51 684 551 551 89 65 551 82 551 102 551 683 682 99 453 6 192 234 66 192 6 685 320 192 6 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0803-	●
6	LEVER; RELAY 14" CLUTCH(WF6) (C)	8-98014-157-1	01	1	0803-	●
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	0803-	●
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8> (D)	8-98059-183-0	01	1	0807-		●
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	0803-1307	●
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1308-	●
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	0803-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	8-97388-980-1	01	1	0803-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	1-33511-202-3	01	1	0807-		●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0807-		●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0807-		●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	0803-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0807-		●
78	ARM; SHIFT,REV (A)	8-97388-975-1	01	1	0803-	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0807-		●
78	ARM; SHIFT,REV (C)	1-33511-234-1	01	1	0807-		●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	0803-	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0807-		●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0803-	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0807-1202		●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-		●
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	0803-1506	●
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-	●
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	0803-	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0803-	●
192	WASHER; PL 14" CLUTCH(WF6) (B)	8-97305-661-0	02	1	0803-	●
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	0803-	●
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	0803-	●
320	SHAFT; LEVER	8-97377-928-0	01	1	0803-	●
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-474-0	01	1	0807-		●
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	0803-	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0803-	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0803-	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0803-	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	0803-	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	0803-	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	0803-	●
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	0803-	●
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	0803-	●
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	0803-	●
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	0803-	●

262 167 59 181 294 59 549 645 6 171 89 631 192 317 294 273 535 128 535 559 163 317 189 333 58 129 130 192 551 554 142 262 624 548 398 346

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0803-	●
6	LEVER; RELAY 14" CLUTCH(WF6) (C)	8-98014-157-1	01	1	0803-	●
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	0803-	●
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8> (D)	8-98059-183-0	01	1	0807-		●
58	NUT 14" CLUTCH(WF6) M10 FLANGE	0-91180-110-0	01	1	0803-0806	●
58	NUT 14" CLUTCH(WF6) M10 FLANGE	0-91180-110-0	01	1	0807-	●
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	0807-		●
59	NUT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0803-0806	●
59	NUT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0807-	●	●
59	NUT 14" CLUTCH(WF6) (B) M8 FLANGE	0-91180-108-0	02	1	0803-0806	●
59	NUT 14" CLUTCH(WF6) (B) M8 FLANGE	0-91180-108-0	02	1	0807-	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	0-91180-108-0	02	1	0807-		●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0803-	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0807-1202		●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-		●
128	LEVER; SHIFT,EXTERNAL 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98096-925-0	01	1	0803-1208	●
128	LEVER; SHIFT,EXTERNAL 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1209-1507	●
128	LEVER; SHIFT,EXTERNAL 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-345-0	01	1	1508-	●
129	PIN; SPR,SHIFT 14" CLUTCH(WF6) L=30 OD=4	1-09748-031-0	01	1	0803-	●
130	LEVER; SHIFT,INTERNAL 14" CLUTCH(WF6) (A)	8-97306-647-0	01	1	0803-	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (B)	8-98114-548-0	01	1	0807-		●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33521-111-1	01	1	0807-		●
142	BOLT; QUAD BOX 14" CLUTCH(WF6) (A) M8X22 FLANGE	8-97365-376-0	04	1	0803-	●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	0803-	●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	0803-	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	04	1	0807-		●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	03	1	0807-		●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X20,M10X60 L=90	1-09049-020-0	01	1	0807-		●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0807-		●
142	BOLT; QUAD BOX (E) M10X20,M10X26 L=56	8-98010-334-0	01	1	0807-		●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	11	1	0807-		●
163	LEVER; SELECT,INTERNAL 14" CLUTCH(WF6) (C)	8-97305-663-0	01	1	0803-	●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	0803-	●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	0803-	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (D)	1-33522-153-0	01	1	0807-		●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33522-041-4	01	1	0807-		●
167	LEVER; SELECT,EXTERNAL 14" CLUTCH(WF6)	8-98021-489-0	01	1	0803-	●
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	0803-	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	8-98059-180-0	01	1	0807-		●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-070-0	01	1	0807-		●
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1307-1312	●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509	●
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0803-1306	●
171	SWITCH; NEUTRAL 14" CLUTCH(WF6)	8-98023-050-0	01	1	1307-1312	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0807-1104		●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109		●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-		●
181	WASHER; PL,SELECT LEVER 14" CLUTCH(WF6)	8-97367-327-0	01	1	0803-	●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0807-		●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0807-		●
189	GASKET; SELECT LEVER,CONT BOX 14" CLUTCH(WF6)	1-09623-594-0	02	1	0803-0806	●
189	GASKET; SELECT LEVER,CONT BOX 14" CLUTCH(WF6)	1-09623-594-0	02	1	0807-	●
189	GASKET; SELECT LEVER,CONT BOX ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0807-		●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0803-	●
192	WASHER; PL 14" CLUTCH(WF6) (B)	8-97305-661-0	02	1	0803-	●
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	0803-	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98004-473-4	01	1	0803-1204	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98207-563-0	01	1	1205-1306	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-038-0	01	1	1307-1312	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-998-0	01	1	1401-1404	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-158-1	01	1	1405-1507	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-333-1	01	1	1508-	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-474-3	01	1	0803-1204	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-564-0	01	1	1205-1208	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98211-654-0	01	1	1209-1306	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-037-0	01	1	1307-1312	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98240-991-0	01	1	1401-1404	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-157-1	01	1	1405-1507	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-332-1	01	1	1508-	●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-495-4	01	1	0803-1010	●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98107-814-1	01	1	1011-1306	●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98241-122-1	01	1	1307-1411	●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98296-530-0	01	1	1412-1509	●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98331-686-0	01	1	1510-	●
273	PIN; SPR,STOPPER 14" CLUTCH(WF6) D=4.2 L=25	8-97103-142-0	01	1	0803-	●
273	PIN; SPR,STOPPER ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4	1-09748-031-0	01	1	0807-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) (A)	8-97305-662-0	01	1	0803-	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) (B)	8-97363-225-0	01	1	0803-	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	0803-	●
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	0803-	●
317	BUSHING; LEVER 14" CLUTCH(WF6)	1-09330-119-0	02	1	0803-0806	●
317	BUSHING; LEVER 14" CLUTCH(WF6)	1-09330-119-0	02	1	0807-	●	●
333	WASHER; PL,LEVER 14" CLUTCH(WF6) ID=10.5	0-91610-710-0	01	1	0803-0806	●
333	WASHER; PL,LEVER 14" CLUTCH(WF6) ID=10.5	0-91610-710-0	01	1	0807-	●
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5	0-91610-710-0	01	1	0807-		●
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1208-1404	●
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-	●
346	HOSE; AIR (A)	8-97309-855-0	01	1	0803-1204	●
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	0803-	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0803-1312	●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0807-1209		●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-		●
535	SPRING; LEVER 14" CLUTCH(WF6)	8-97385-713-0	02	1	0803-	●
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97031-674-0	01	1	1208-1404	●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-	●
548	CLIP; HOSE	8-97031-674-0	01	1	0803-1204	●
549	ROD; LINK 14" CLUTCH(WF6)	8-98023-095-0	01	1	0803-	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0803-	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0803-	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0803-	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	0803-	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	0803-	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	0803-	●
554	STUD; CONT BOX 14" CLUTCH(WF6) M8X15,M8X25 L=49	8-97365-378-0	02	1	0803-	●
559	PIPE; BREATHER 14" CLUTCH(WF6)	8-97358-318-0	01	1	1405-	●
559	PIPE; BREATHER 14" CLUTCH(WF6)	8-97358-318-0	01	1	0803-1204	●
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	0803-	●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	0803-	●
631	STOPPER; SPRING 14" CLUTCH(WF6)	8-98014-158-0	01	1	0803-	●
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	0803-	●
645	DETENT ASM 14" CLUTCH(WF6)	8-98019-536-0	01	1	0803-	●

637 637 637 636 237 636 195 346 552 195 406 158 651 651 680 630 679 681 178 391 381 632 687 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0803-	●
158	CLIP; HARNESS ID=8	8-94107-659-0	02	1	0807-		●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6)	9-09567-113-0	01	1	0803-	●
195	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0803-	●
237	BRACKET; CABLE,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98009-307-1	01	1	0803-	●
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1208-1404	●
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-	●
346	HOSE; AIR (A)	8-97309-855-0	01	1	0803-1204	●
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	0803-	●
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	0803-	●
381	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE	0-28050-612-0	04	1	0803-0906	●
381	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE	1-33739-842-0	04	1	0907-	●
391	PLUG; SW HOLE 14" CLUTCH(WF6)	8-97300-273-1	01	1	0803-	●
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	0803-	●
552	BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98005-329-1	01	1	0803-	●
630	DETENT ASM	8-98019-536-0	04	1	0803-	●
632	SENSOR; TRANS,REV TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97315-604-1	01	1	0803-	●
636	BRACKET; CLIP 14" CLUTCH(WF6) (B)	8-97610-092-1	01	1	0803-1502	●
636	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-093-1	01	1	0803-	●
637	BOLT; BRACKET (A) M8X16 FLANGE	0-28050-816-0	02	1	0803-1502	●
637	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X16 FLANGE	0-28050-816-0	02	1	1503-	●
637	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-497-1	01	1	0803-	●
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98048-498-1	01	1	0803-	●
679	BRACKET; HEAT PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98005-332-0	01	1	0803-	●
680	BOLT; FLANGE TRANSMISSION CONTROL-SMOOTHER(8GF) M10X20 FLANGE	0-28761-020-0	02	1	0803-	●
681	NUT; FLANGE TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE	0-91180-210-0	02	1	0803-	●
687	GASKET; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF)	9-09567-113-0	01	1	0803-	●

59 6 262 59 167 549 59 322 298 189 181 317 294 294 243 559 645 631 535 130 535 306 171 129 273 192 317 189 333 163 192 551 58 142 262 554 548 346 624 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0803-	●
6	LEVER; RELAY 14" CLUTCH(WF6) (C)	8-98014-157-1	01	1	0803-	●
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	0803-	●
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8> (D)	8-98059-183-0	01	1	0807-		●
58	NUT 14" CLUTCH(WF6) M10 FLANGE	0-91180-110-0	01	1	0803-0806	●
58	NUT 14" CLUTCH(WF6) M10 FLANGE	0-91180-110-0	01	1	0807-	●
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	0807-		●
59	NUT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0803-0806	●
59	NUT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0807-	●	●
59	NUT 14" CLUTCH(WF6) (B) M8 FLANGE	0-91180-108-0	02	1	0803-0806	●
59	NUT 14" CLUTCH(WF6) (B) M8 FLANGE	0-91180-108-0	02	1	0807-	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	0-91180-108-0	02	1	0807-		●
129	PIN; SPR,SHIFT 14" CLUTCH(WF6) L=30 OD=4	1-09748-031-0	01	1	0803-	●
130	LEVER; SHIFT,INTERNAL 14" CLUTCH(WF6) (A)	8-97306-647-0	01	1	0803-	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (B)	8-98114-548-0	01	1	0807-		●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33521-111-1	01	1	0807-		●
142	BOLT; QUAD BOX 14" CLUTCH(WF6) (A) M8X22 FLANGE	8-97365-376-0	04	1	0803-	●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	0803-	●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	0803-	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	04	1	0807-		●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	03	1	0807-		●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X20,M10X60 L=90	1-09049-020-0	01	1	0807-		●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0807-		●
142	BOLT; QUAD BOX (E) M10X20,M10X26 L=56	8-98010-334-0	01	1	0807-		●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	11	1	0807-		●
163	LEVER; SELECT,INTERNAL 14" CLUTCH(WF6) (C)	8-97305-663-0	01	1	0803-	●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	0803-	●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	0803-	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (D)	1-33522-153-0	01	1	0807-		●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33522-041-4	01	1	0807-		●
167	LEVER; SELECT,EXTERNAL 14" CLUTCH(WF6)	8-98021-489-0	01	1	0803-	●
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	0803-	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	8-98059-180-0	01	1	0807-		●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-070-0	01	1	0807-		●
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1307-1312	●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509	●
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0803-1306	●
171	SWITCH; NEUTRAL 14" CLUTCH(WF6)	8-98023-050-0	01	1	1307-1312	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0807-1104		●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109		●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-		●
181	WASHER; PL,SELECT LEVER 14" CLUTCH(WF6)	8-97367-327-0	01	1	0803-	●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0807-		●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0807-		●
189	GASKET; SELECT LEVER,CONT BOX 14" CLUTCH(WF6)	1-09623-594-0	02	1	0803-0806	●
189	GASKET; SELECT LEVER,CONT BOX 14" CLUTCH(WF6)	1-09623-594-0	02	1	0807-	●
189	GASKET; SELECT LEVER,CONT BOX ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0807-		●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0803-	●
192	WASHER; PL 14" CLUTCH(WF6) (B)	8-97305-661-0	02	1	0803-	●
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	0803-	●
243	BOLT; COVER 14" CLUTCH(WF6) M6X12 FLANGE	0-28050-612-0	01	1	0803-0912	●
243	BOLT; COVER 14" CLUTCH(WF6) M6X12 FLANGE	1-33739-842-0	01	1	1001-	●
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	0-28050-612-0	11	1	0803-0906	●
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	1-33739-842-0	11	1	0907-	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98004-473-4	01	1	0803-1204	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98207-563-0	01	1	1205-1306	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-038-0	01	1	1307-1312	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-998-0	01	1	1401-1404	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-158-1	01	1	1405-1507	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-333-1	01	1	1508-	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-474-3	01	1	0803-1204	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-564-0	01	1	1205-1208	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98211-654-0	01	1	1209-1306	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-037-0	01	1	1307-1312	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98240-991-0	01	1	1401-1404	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-157-1	01	1	1405-1507	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-332-1	01	1	1508-	●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-495-4	01	1	0803-1010	●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98107-814-1	01	1	1011-1306	●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98241-122-1	01	1	1307-1411	●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98296-530-0	01	1	1412-1509	●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98331-686-0	01	1	1510-	●
273	PIN; SPR,STOPPER 14" CLUTCH(WF6) D=4.2 L=25	8-97103-142-0	01	1	0803-	●
273	PIN; SPR,STOPPER ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4	1-09748-031-0	01	1	0807-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) (A)	8-97305-662-0	01	1	0803-	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) (B)	8-97363-225-0	01	1	0803-	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	0803-	●
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	0803-1507	●
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-	●
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	0803-	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98059-178-0	01	1	0807-		●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98119-275-0	01	1	0807-		●
306	BOLT; SHIFT ASSISTOR 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0803-0806	●
306	BOLT; SHIFT ASSISTOR 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0807-	●	●
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	0803-	●
317	BUSHING; LEVER 14" CLUTCH(WF6)	1-09330-119-0	02	1	0803-0806	●
317	BUSHING; LEVER 14" CLUTCH(WF6)	1-09330-119-0	02	1	0807-	●	●
322	WASHER; LK 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0803-0806	●
322	WASHER; LK 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0807-	●	●
333	WASHER; PL,LEVER 14" CLUTCH(WF6) ID=10.5	0-91610-710-0	01	1	0803-0806	●
333	WASHER; PL,LEVER 14" CLUTCH(WF6) ID=10.5	0-91610-710-0	01	1	0807-	●
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5	0-91610-710-0	01	1	0807-		●
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1208-1404	●
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-	●
346	HOSE; AIR (A)	8-97309-855-0	01	1	0803-1204	●
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	0803-	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0803-1312	●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0807-1209		●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-		●
535	SPRING; LEVER 14" CLUTCH(WF6)	8-97385-713-0	02	1	0803-	●
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97031-674-0	01	1	1208-1404	●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-	●
548	CLIP; HOSE	8-97031-674-0	01	1	0803-1204	●
549	ROD; LINK 14" CLUTCH(WF6)	8-98023-095-0	01	1	0803-	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0803-	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0803-	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0803-	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	0803-	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	0803-	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	0803-	●
554	STUD; CONT BOX 14" CLUTCH(WF6) M8X15,M8X25 L=49	8-97365-378-0	02	1	0803-	●
559	PIPE; BREATHER 14" CLUTCH(WF6)	8-97358-318-0	01	1	1405-	●
559	PIPE; BREATHER 14" CLUTCH(WF6)	8-97358-318-0	01	1	0803-1204	●
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	0803-	●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	0803-	●
631	STOPPER; SPRING 14" CLUTCH(WF6)	8-98014-158-0	01	1	0803-	●
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	0803-	●
645	DETENT ASM 14" CLUTCH(WF6)	8-98019-536-0	01	1	0803-	●

262 274 530 317 6 243 298 653 551 167 652 133 656 133 559 192 294 265 317 656 657 374 654 171 551 656 551 163 381 551 654 551 654 374 655 374 655 265 374 163 315 651 651 381 631 381 551 652 551 142 142 262 346 624 548

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0803-	●
6	LEVER; RELAY 14" CLUTCH(WF6) (C)	8-98014-157-1	01	1	0803-	●
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	0803-	●
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8> (D)	8-98059-183-0	01	1	0807-		●
133	SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-988-0	01	1	0803-	●
133	SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-989-0	01	1	0803-	●
142	BOLT; QUAD BOX 14" CLUTCH(WF6) (A) M8X22 FLANGE	8-97365-376-0	04	1	0803-	●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	0803-	●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	0803-	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	04	1	0807-		●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M10X60 FLANGE	0-28151-060-0	03	1	0807-		●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X20,M10X60 L=90	1-09049-020-0	01	1	0807-		●
142	BOLT; QUAD BOX (F) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0807-		●
142	BOLT; QUAD BOX (E) M10X20,M10X26 L=56	8-98010-334-0	01	1	0807-		●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	11	1	0807-		●
163	LEVER; SELECT,INTERNAL 14" CLUTCH(WF6) (C)	8-97305-663-0	01	1	0803-	●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	0803-	●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	0803-	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (D)	1-33522-153-0	01	1	0807-		●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33522-041-4	01	1	0807-		●
167	LEVER; SELECT,EXTERNAL 14" CLUTCH(WF6)	8-98021-489-0	01	1	0803-	●
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	0803-	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	8-98059-180-0	01	1	0807-		●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-070-0	01	1	0807-		●
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1307-1312	●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509	●
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0803-1306	●
171	SWITCH; NEUTRAL 14" CLUTCH(WF6)	8-98023-050-0	01	1	1307-1312	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0807-1104		●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109		●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-		●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0803-	●
192	WASHER; PL 14" CLUTCH(WF6) (B)	8-97305-661-0	02	1	0803-	●
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	0803-	●
243	BOLT; COVER 14" CLUTCH(WF6) M6X12 FLANGE	0-28050-612-0	01	1	0803-0912	●
243	BOLT; COVER 14" CLUTCH(WF6) M6X12 FLANGE	1-33739-842-0	01	1	1001-	●
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	0-28050-612-0	11	1	0803-0906	●
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	1-33739-842-0	11	1	0907-	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98004-473-4	01	1	0803-1204	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98207-563-0	01	1	1205-1306	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-038-0	01	1	1307-1312	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-998-0	01	1	1401-1404	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-158-1	01	1	1405-1507	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-333-1	01	1	1508-	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-474-3	01	1	0803-1204	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-564-0	01	1	1205-1208	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98211-654-0	01	1	1209-1306	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-037-0	01	1	1307-1312	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98240-991-0	01	1	1401-1404	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-157-1	01	1	1405-1507	●
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-332-1	01	1	1508-	●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-495-4	01	1	0803-1010	●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98107-814-1	01	1	1011-1306	●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98241-122-1	01	1	1307-1411	●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98296-530-0	01	1	1412-1509	●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98331-686-0	01	1	1510-	●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97363-225-0	01	1	0803-	●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-981-0	01	1	0803-	●
274	COVER; SHAFT,QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-711-0	01	1	0803-	●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	9-33545-017-1	01	1	0807-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) (A)	8-97305-662-0	01	1	0803-	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) (B)	8-97363-225-0	01	1	0803-	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	0803-	●
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	0803-1507	●
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-	●
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	0803-	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98059-178-0	01	1	0807-		●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98119-275-0	01	1	0807-		●
315	LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-998-0	01	1	0803-1411	●
315	LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98296-526-0	01	1	1412-	●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98122-789-0	01	1	0807-		●
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	0803-	●
317	BUSHING; LEVER 14" CLUTCH(WF6)	1-09330-119-0	02	1	0803-0806	●
317	BUSHING; LEVER 14" CLUTCH(WF6)	1-09330-119-0	02	1	0807-	●	●
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1208-1404	●
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-	●
346	HOSE; AIR (A)	8-97309-855-0	01	1	0803-1204	●
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	0803-	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-571-0	03	1	0803-	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97349-573-0	01	1	0803-	●
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	0803-	●
381	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE	0-28050-612-0	04	1	0803-0906	●
381	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE	1-33739-842-0	04	1	0907-	●
530	SHAFT; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-996-0	01	1	0803-	●
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97031-674-0	01	1	1208-1404	●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-	●
548	CLIP; HOSE	8-97031-674-0	01	1	0803-1204	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0803-	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0803-	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0803-	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	0803-	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	0803-	●
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	0803-	●
559	PIPE; BREATHER 14" CLUTCH(WF6)	8-97358-318-0	01	1	1405-	●
559	PIPE; BREATHER 14" CLUTCH(WF6)	8-97358-318-0	01	1	0803-1204	●
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	0803-	●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	0803-	●
631	STOPPER; SPRING 14" CLUTCH(WF6)	8-98014-158-0	01	1	0803-	●
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	0803-	●
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-497-1	01	1	0803-	●
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98048-498-1	01	1	0803-	●
652	BOLT; SORENOID TRANSMISSION CONTROL-SMOOTHER(8GF) M10X25 FLANGE	0-28151-025-0	06	1	0803-	●
653	SOLENOID ASM; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98002-761-0	01	1	0803-	●
654	JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-473-0	02	1	0803-	●
654	JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97380-419-0	01	1	0803-	●
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97324-826-0	01	1	0803-1010	●
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98107-823-0	01	1	1011-	●
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97324-827-0	01	1	0803-1010	●
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98107-824-0	01	1	1011-	●
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-985-0	01	1	0803-	●
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-986-0	01	1	0803-	●
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-987-0	01	1	0803-	●
657	PLATE; SIDE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-712-0	01	1	0803-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
