Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#14777) — 329 parça

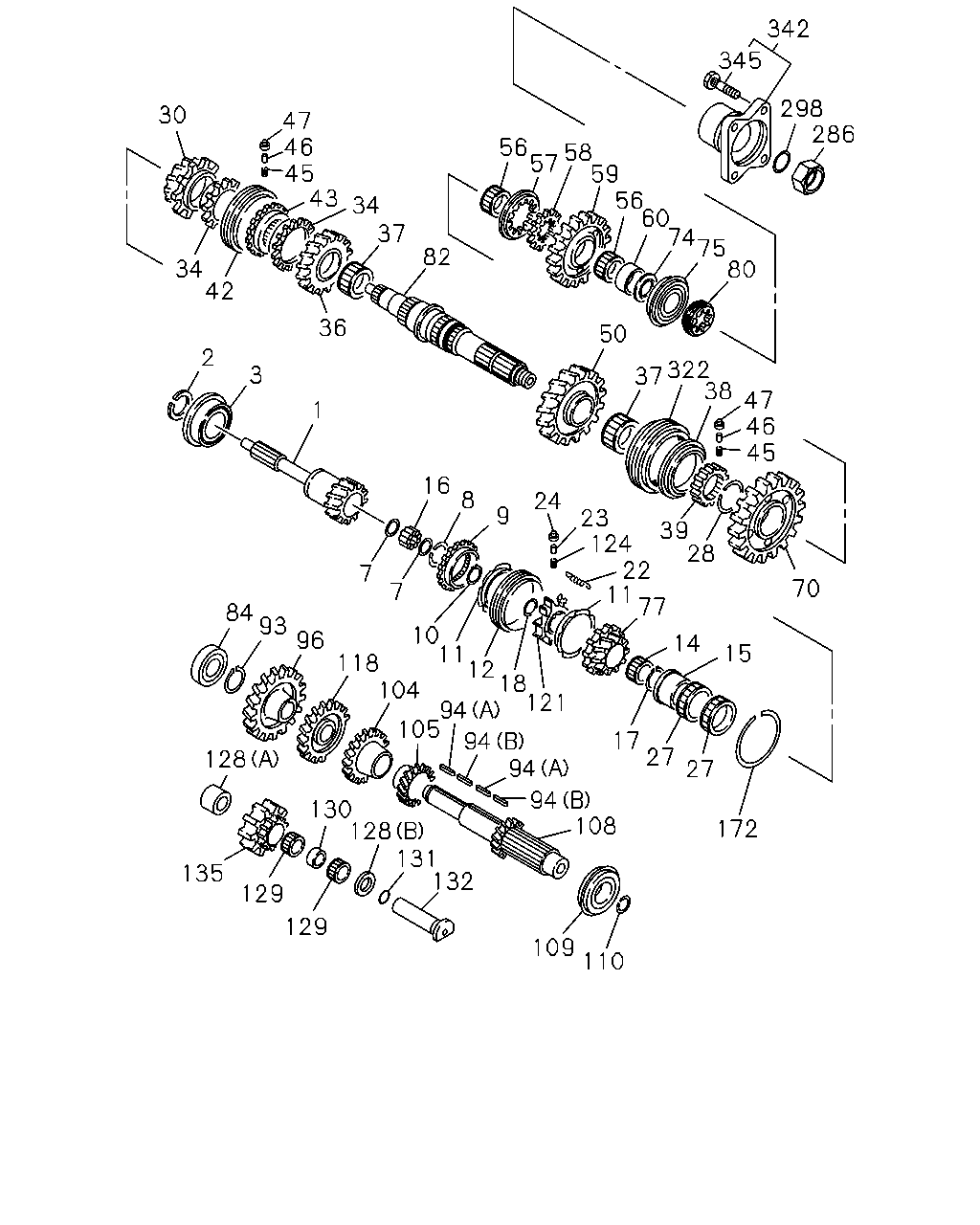

342 345 298 286 30 47 46 45 43 56 58 57 59 56 60 74 75 80 34 37 82 34 42 36 50 2 322 37 38 3 47 46 45 1 16 8 24 9 23 124 22 11 77 39 28 7 70 7 84 93 96 10 11 12 18 121 14 15 118 104 94 105 17 27 94 94 128 27 94 108 130 128 131 132 172 135 129 129 109 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=26	1-33211-789-0	01	1	0807-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0807-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0807-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0807-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0807-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0807-	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0807-	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0807-	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0807-	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0807-	●
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	0803-		●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0807-	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0807-	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0807-	●
15	COLLAR; 4TH GEAR	8-97380-022-0	01	1	0803-1004		●
15	COLLAR; 4TH GEAR	8-98146-345-0	01	1	1005-		●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0807-	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	0807-	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0807-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0803-		●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0807-	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0807-	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0807-	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	0803-		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0807-	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0807-	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0807-	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0807-1107	●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0807-	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97377-696-0	01	1	0803-1010		●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1011-		●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0807-	●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	0807-	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0807-	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0807-	●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	0803-1501		●
39	HUB; CLU,LOW & 2ND Z=45	8-98303-646-0	01	1	1502-1507		●
39	HUB; CLU,LOW & 2ND Z=45	8-98309-852-0	01	1	1508-		●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0807-	●
42	SLEEVE Z=54	1-33262-154-0	01	1	0807-	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0807-	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0807-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0807-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0807-	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0807-	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	0807-	●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	0803-		●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0807-	●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	0803-		●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0807-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0807-	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0807-	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0807-	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0807-	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0807-	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0807-	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98049-406-1	01	1	0803-1203		●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1204-		●
77	GEAR; 6TH,MAINSHAFT Z=26	1-33253-518-0	01	1	0807-	●
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	0803-		●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0807-	●
82	SHAFT; MAIN,TRANS 14" CLUTCH(WF6) Z=19-26	8-98049-375-2	01	1	0803-0905		●
82	SHAFT; MAIN,TRANS 14" CLUTCH(WF6) Z=13-21-19-26	8-98140-880-0	01	1	0906-1308		●
82	SHAFT; MAIN,TRANS 14" CLUTCH(WF6) Z=13-21-19-26	8-98245-057-0	01	1	1309-		●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=19-26-14	8-98049-376-1	01	1	0803-0905		●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26	8-98140-881-0	01	1	0906-1308		●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26	8-98245-058-0	01	1	1309-1507		●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26	8-98292-396-0	01	1	1508-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0807-	●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-1	01	1	0803-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0807-	●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	0803-		●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0807-	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0807-	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0807-	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-216-1	01	1	0807-	●
104	GEAR; 4TH,COUNTER Z=29	8-97377-682-0	01	1	0803-1010		●
104	GEAR; 4TH,COUNTER Z=29	8-98168-502-0	01	1	1011-1203		●
104	GEAR; 4TH,COUNTER Z=29	8-98198-297-0	01	1	1204-		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0807-1107	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311	●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-	●
105	GEAR; 3RD,COUNTER Z=35	8-97377-704-0	01	1	0803-1010		●
105	GEAR; 3RD,COUNTER Z=35	8-98168-501-0	01	1	1011-		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	0807-1311	●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-	●
108	SHAFT; COUNTER Z=27-42-26	8-98005-608-2	01	1	0803-0901		●
108	SHAFT; COUNTER Z=27-42-26	8-98133-783-0	01	1	0902-0912		●
108	SHAFT; COUNTER Z=27-42-26	8-98160-120-0	01	1	1001-1209		●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1210-1501		●
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0807-	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	0807-	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0807-	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0807-	●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	0803-		●
118	GEAR; 6TH,COUNTER Z=54	1-33332-104-1	01	1	0807-	●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0807-	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0807-	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0807-	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0807-	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	0807-	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0807-	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0807-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0	9-09571-410-0	02	1	0803-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0807-	●
132	SHAFT; REV	8-98009-372-0	01	1	0803-		●
132	SHAFT; REV	1-33351-017-0	01	1	0807-	●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	0803-		●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0807-	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0807-	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	8-98014-140-0	01	1	0807-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0803-0806		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-380-0	01	1	0807-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	0807-	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0807-	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98044-770-0	01	1	0803-0912		●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98155-334-0	01	1	1001-		●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-307-1	01	1	0807-	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	8-98014-003-0	04	1	0807-	●

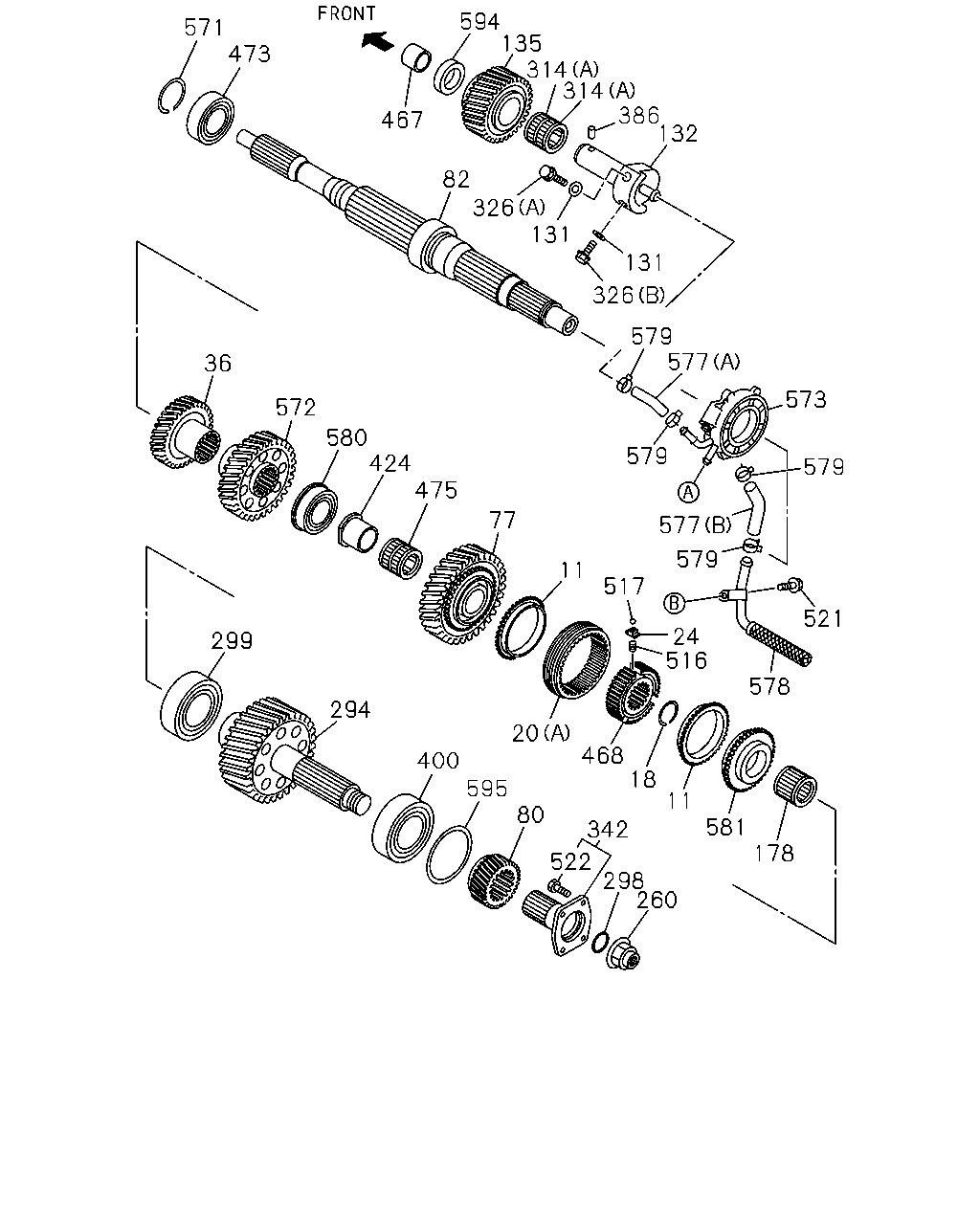

594 135 314 314 386 132 571 473 467 82 326 131 131 326 579 577 36 573 572 580 424 475 579 579 77 577 579 11 517 521 24 516 299 578 294 20 468 18 400 595 80 11 581 342 178 522 298 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	0803-		●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0807-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0803-		●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0807-	●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45	8-98258-279-0	02	1	1509-		●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45	8-97241-296-1	02	1	1211-1308		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	0803-1210		●
20	SLEEVE 14" CLUTCH(WF6) (A) Z=45	8-97241-296-1	03	1	1211-1308		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311		●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508		●
20	SLEEVE 14" CLUTCH(WF6) (A) Z=45	8-98258-279-0	03	1	1509-		●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	0803-1210		●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45	8-98034-769-0	01	1	1211-1308		●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1309-1508		●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45	8-98034-769-0	01	1	1509-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	0803-		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0807-	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97377-696-0	01	1	0803-1010		●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1011-		●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0807-	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98049-406-1	01	1	0803-1203		●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1204-		●
77	GEAR; 6TH,MAINSHAFT Z=26	1-33253-518-0	01	1	0807-	●
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	0803-		●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0807-	●
82	SHAFT; MAIN,TRANS 14" CLUTCH(WF6) Z=19-26	8-98049-375-2	01	1	0803-0905		●
82	SHAFT; MAIN,TRANS 14" CLUTCH(WF6) Z=13-21-19-26	8-98140-880-0	01	1	0906-1308		●
82	SHAFT; MAIN,TRANS 14" CLUTCH(WF6) Z=13-21-19-26	8-98245-057-0	01	1	1309-		●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=19-26-14	8-98049-376-1	01	1	0803-0905		●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26	8-98140-881-0	01	1	0906-1308		●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26	8-98245-058-0	01	1	1309-1507		●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26	8-98292-396-0	01	1	1508-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0807-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0	9-09571-410-0	02	1	0803-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0807-	●
132	SHAFT; REV	8-98009-372-0	01	1	0803-		●
132	SHAFT; REV	1-33351-017-0	01	1	0807-	●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	0803-		●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0807-	●
178	BEARING; NEEDLE,MAINSHAFT	8-97253-099-1	01	1	0803-		●
260	NUT; MAINSHAFT END M36 FLANGE	8-98014-140-0	01	1	0803-		●
294	SHAFT; OUTPUT Z=43	8-97380-571-0	01	1	0803-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0803-0806		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-380-0	01	1	0807-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	0807-	●
299	BEARING; OUTPUT SHAFT FRT	8-97377-970-0	01	1	0803-		●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	0803-		●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	0803-		●
326	BOLT; REV SHAFT (A) M10X50 FLANGE	0-29261-050-0	01	1	0803-		●
326	BOLT; REV SHAFT (B) M10X50	8-98014-738-0	01	1	0803-		●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98044-770-0	01	1	0803-0912		●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98155-334-0	01	1	1001-		●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-307-1	01	1	0807-	●
386	PIN; REV SHAFT OD=4 L=8	9-08150-408-0	01	1	0803-		●
400	BEARING; OUTPUT SHAFT RR	8-97377-977-0	01	1	0803-		●
424	COLLAR; 6TH GEAR	8-97377-954-2	01	1	0803-0904		●
424	COLLAR; 6TH GEAR	8-98125-318-0	01	1	0905-		●
467	COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	0803-		●
468	HUB; CLU,5TH & 6TH Z=45	8-98075-734-0	01	1	0803-		●
473	BEARING; INPUT SHAFT	8-97377-950-0	01	1	0803-		●
475	BEARING; 6TH COLLAR OD=50.000-	8-98142-265-0	01	1	0905-		●
475	BEARING; 6TH COLLAR OD=-49.999	8-98101-505-0	01	1	0803-		●
516	SPRING; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-98032-197-0	09	1	0803-		●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98054-981-0	09	1	0803-		●
517	BALL; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-97252-935-0	09	1	0803-		●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	10	1	0803-		●
521	BOLT M8X12 FLANGE	0-28050-812-0	01	1	0803-		●
522	BOLT; FLANGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	8-98014-003-0	04	1	0803-		●
571	RING; SNAP,BRG	8-97377-951-0	01	1	0803-		●
572	GEAR; 4TH,INPUT Z=37	8-97377-697-0	01	1	0803-1010		●
572	GEAR; 4TH,INPUT Z=37	8-98168-500-0	01	1	1011-		●
573	PUMP ASM; OIL	8-98044-683-0	01	1	0803-1205		●
573	PUMP ASM; OIL	8-98212-241-0	01	1	1206-		●
577	HOSE; OIL PUMP (A)	8-98033-981-0	04	1	0803-1205		●
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	1206-		●
577	HOSE; OIL PUMP (B)	8-98033-982-0	02	1	0803-		●
578	SCREEN; OIL PUMP	8-98009-345-0	02	1	0803-		●
579	CLAMP; HOSE ID=16	8-97329-628-0	10	1	0803-1205		●
579	CLAMP; HOSE ID=16	8-97329-628-0	07	1	1206-		●
580	BEARING; MAINSHAFT RR	8-97377-953-0	01	1	0803-		●
581	CLUTCH; DOG,5TH GEAR	8-97377-956-0	01	1	0803-		●
594	WASHER; THRUST,REV IDLE	8-98005-633-0	01	1	0803-		●
595	SHIM; OUTPUT SHAFT T=1.44	8-97377-984-0	01	1	0803-		●
595	SHIM; OUTPUT SHAFT T=1.50	8-97377-985-0	01	1	0803-		●
595	SHIM; OUTPUT SHAFT T=1.56	8-97377-986-0	01	1	0803-		●
595	SHIM; OUTPUT SHAFT T=1.62	8-97377-987-0	01	1	0803-		●
595	SHIM; OUTPUT SHAFT T=1.68	8-97377-988-0	01	1	0803-		●
595	SHIM; OUTPUT SHAFT T=1.74	8-97377-989-0	01	1	0803-		●
595	SHIM; OUTPUT SHAFT T=1.80	8-97377-990-0	01	1	0803-		●
595	SHIM; OUTPUT SHAFT T=1.86	8-97377-991-0	01	1	0803-		●
595	SHIM; OUTPUT SHAFT T=1.38	8-98009-379-0	01	1	0803-		●
595	SHIM; OUTPUT SHAFT T=1.26	8-98022-221-0	01	1	0803-		●
595	SHIM; OUTPUT SHAFT T=1.32	8-98022-222-0	01	1	0803-		●

223 592 24 516 517 587 596 398 320 118 506 325 593 174 15 582 104 105 108 582 589 590 588 20 579 577 579 106 582 586 174 585 584 58 517 516 39 20 20 241 84 24 93 57 314 95 241 582 561 563

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	COLLAR; 4TH GEAR	8-97380-022-0	01	1	0803-1004		●
15	COLLAR; 4TH GEAR	8-98146-345-0	01	1	1005-		●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0807-	●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45	8-98258-279-0	02	1	1509-		●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45	8-97241-296-1	02	1	1211-1308		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	0803-1210		●
20	SLEEVE 14" CLUTCH(WF6) (A) Z=45	8-97241-296-1	03	1	1211-1308		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311		●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508		●
20	SLEEVE 14" CLUTCH(WF6) (A) Z=45	8-98258-279-0	03	1	1509-		●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	0803-1210		●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45	8-98034-769-0	01	1	1211-1308		●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1309-1508		●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45	8-98034-769-0	01	1	1509-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	0803-		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0807-	●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	0803-1501		●
39	HUB; CLU,LOW & 2ND Z=45	8-98303-646-0	01	1	1502-1507		●
39	HUB; CLU,LOW & 2ND Z=45	8-98309-852-0	01	1	1508-		●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0807-	●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	0803-		●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0807-	●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	0803-		●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0807-	●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-1	01	1	0803-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0807-	●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	0803-		●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0807-	●
95	GEAR; REV,COUNTER Z=44	8-98005-229-0	01	1	0803-		●
104	GEAR; 4TH,COUNTER Z=29	8-97377-682-0	01	1	0803-1010		●
104	GEAR; 4TH,COUNTER Z=29	8-98168-502-0	01	1	1011-1203		●
104	GEAR; 4TH,COUNTER Z=29	8-98198-297-0	01	1	1204-		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0807-1107	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311	●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-	●
105	GEAR; 3RD,COUNTER Z=35	8-97377-704-0	01	1	0803-1010		●
105	GEAR; 3RD,COUNTER Z=35	8-98168-501-0	01	1	1011-		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	0807-1311	●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-	●
106	GEAR; 2ND,COUNTER Z=44	8-97376-989-0	01	1	0803-0905		●
106	GEAR; 2ND,COUNTER Z=44	8-98140-884-0	01	1	0906-		●
108	SHAFT; COUNTER Z=27-42-26	8-98005-608-2	01	1	0803-0901		●
108	SHAFT; COUNTER Z=27-42-26	8-98133-783-0	01	1	0902-0912		●
108	SHAFT; COUNTER Z=27-42-26	8-98160-120-0	01	1	1001-1209		●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1210-1501		●
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0807-	●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	0803-		●
118	GEAR; 6TH,COUNTER Z=54	1-33332-104-1	01	1	0807-	●
174	SYNCHRONIZER ASM; 2ND-3RD 14" CLUTCH(WF6)	8-98315-823-2	02	1	1509-		●
223	NUT; COUNTER SHAFT END M34 FLANGE	8-98005-894-0	01	1	0803-		●
241	RING; SNAP (A) ID=46.5 T=1.8	8-97254-743-0	01	1	0803-		●
241	RING; SNAP (B) ID=96 T=2.5	8-98009-391-0	01	1	0803-		●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	0803-		●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	0803-		●
320	HUB; CLU,4TH & 3RD Z=45	8-98075-733-0	01	1	0803-1501		●
320	HUB; CLU,4TH & 3RD Z=45	8-98303-649-0	01	1	1502-1507		●
320	HUB; CLU,4TH & 3RD Z=45	8-98309-859-0	01	1	1508-		●
325	SHIM; COUNTER SHAFT BRG T=1.56	8-97377-994-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG T=1.62	8-97377-995-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG T=1.68	8-97377-996-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG T=1.74	8-97377-997-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG T=1.80	8-97377-998-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG T=1.26	8-98009-373-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG T=1.32	8-98009-374-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG T=1.38	8-98009-375-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG T=1.44	8-98009-376-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98009-377-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG T=1.14	8-98022-218-0	01	1	0803-		●
325	SHIM; COUNTER SHAFT BRG T=1.20	8-98022-219-0	01	1	0803-		●
398	GEAR; COUNTER Z=22	8-97380-568-0	01	1	0803-		●
506	COLLAR; 6TH,COUNTER	8-97377-965-0	01	1	0803-		●
516	SPRING; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-98032-197-0	09	1	0803-		●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98054-981-0	09	1	0803-		●
517	BALL; SYNCHRO,INDEX 14" CLUTCH(WF6)	8-97252-935-0	09	1	0803-		●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	10	1	0803-		●
561	GEAR; LOW,COUNTER Z=44	8-98000-330-0	01	1	0803-		●
563	COLLAR; 1ST GEAR	8-97380-022-0	01	1	0803-1004		●
563	COLLAR; 1ST GEAR	8-98146-345-0	01	1	1005-		●
577	HOSE; OIL PUMP (A)	8-98033-981-0	04	1	0803-1205		●
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	1206-		●
577	HOSE; OIL PUMP (B)	8-98033-982-0	02	1	0803-		●
579	CLAMP; HOSE ID=16	8-97329-628-0	10	1	0803-1205		●
579	CLAMP; HOSE ID=16	8-97329-628-0	07	1	1206-		●
582	BEARING; NEEDLE,COUNTER GEAR	8-97253-110-0	04	1	0803-		●
584	RING; BLOCK,2ND 14" CLUTCH(WF6) Z=45	8-98223-605-1	01	1	1211-1308		●
584	RING; BLOCK,2ND Z=45	8-98034-770-0	01	1	0803-1210		●
584	RING; BLOCK,2ND TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-98034-770-0	01	1	1211-1308		●
584	RING; BLOCK,2ND Z=45	8-98034-770-0	01	1	1309-1508		●
584	RING; BLOCK,2ND TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-98034-770-0	01	1	1509-		●
585	RING; OUTSIDE,2ND	8-97241-309-1	01	1	0803-1508		●
585	RING; OUTSIDE,2ND TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-309-1	01	1	1509-		●
586	RING; INSIDE,2ND 14" CLUTCH(WF6)	8-98223-606-1	01	1	1211-1308		●
586	RING; INSIDE,2ND	8-97241-312-1	01	1	0803-1210		●
586	RING; INSIDE,2ND TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-312-1	01	1	1211-1308		●
586	RING; INSIDE,2ND	8-97241-312-1	01	1	1309-1508		●
586	RING; INSIDE,2ND TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-312-1	01	1	1509-		●
587	CASE; PUMP,COUNTER	8-97377-959-0	01	1	0803-1205		●
587	CASE; PUMP,COUNTER	8-98212-196-0	01	1	1206-1501		●
587	CASE; PUMP,COUNTER	8-98303-650-0	01	1	1502-		●
588	RING; BLOCK,3RD 14" CLUTCH(WF6) Z=45	8-98223-605-1	01	1	1210-1308		●
588	RING; BLOCK,3RD Z=45	8-97241-306-1	01	1	0803-1209		●
588	RING; BLOCK,3RD TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-97241-306-1	01	1	1210-1308		●
588	RING; BLOCK,3RD Z=45	8-97241-306-1	01	1	1309-1508		●
588	RING; BLOCK,3RD TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-97241-306-1	01	1	1509-		●
589	RING; OUTSIDE,3RD	8-97241-309-1	01	1	0803-1508		●
589	RING; OUTSIDE,3RD TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-309-1	01	1	1509-		●
590	RING; INSIDE,3RD 14" CLUTCH(WF6)	8-98223-606-1	01	1	1210-1308		●
590	RING; INSIDE,3RD	8-97241-312-1	01	1	0803-1209		●
590	RING; INSIDE,3RD TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-312-1	01	1	1210-1308		●
590	RING; INSIDE,3RD	8-97241-312-1	01	1	1309-1508		●
590	RING; INSIDE,3RD TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-312-1	01	1	1509-		●
592	RING; BLOCK,4TH Z=45	8-97241-306-1	01	1	0803-		●
593	BEARING; COUNTER MIDDLE	8-97377-976-0	01	1	0803-		●
596	BEARING; ROOLER,COUNTER END	8-97377-968-0	01	1	0803-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
