2-25 — SPEEDOMETER DRIVEN GEAR (#14776) — 71 parça

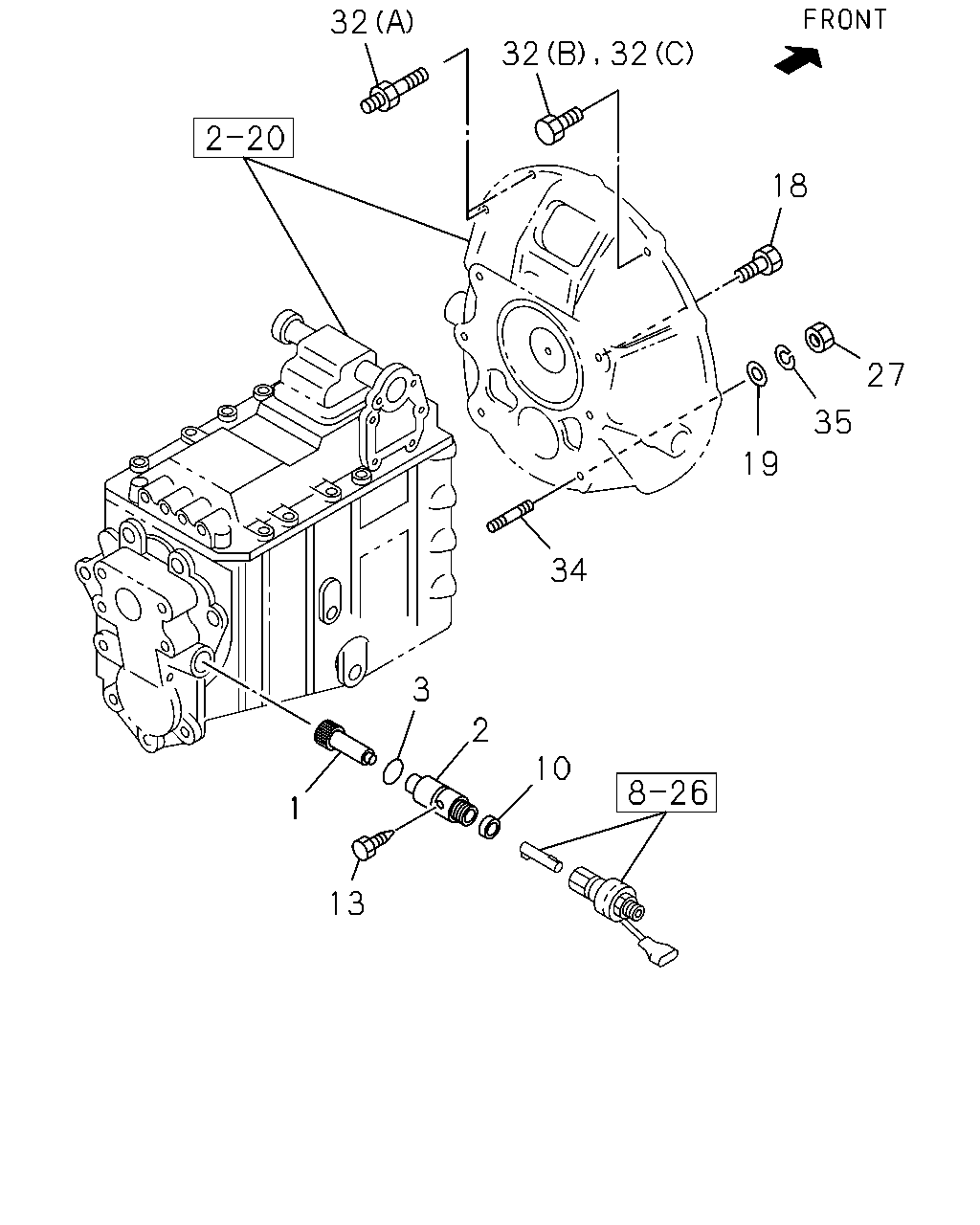

32 18 27 35 19 34 3 2 10 1 13 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD TRANSMISSION CONTROL-SMOOTHER(8GF) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) Z=15	1-33372-133-5	02	1	0901-	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0803-0806	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0807-0812	●	●
1	GEAR; DRIVEN,SPD TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) Z=15	1-33372-133-5	01	1	0901-	●
1	GEAR; DRIVEN,SPD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=15	1-33372-133-5	01	1	0901-	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0901-		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER TRANSMISSION CONTROL-SMOOTHER(8GF) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98000-271-0	02	1	0901-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-98000-271-0	01	1	0803-0812	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98000-271-0	01	1	0901-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98000-271-0	01	1	0901-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-058-3	01	1	0807-		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0803-0806	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0807-0812	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A).	1-09623-246-0	01	1	0901-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ).	1-09623-246-0	01	1	0901-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0901-		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09623-246-0	02	1	0901-	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0803-0806	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0807-0812	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A). NOK	1-09625-510-0	01	1	0901-	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ). NOK	1-09625-510-0	01	1	0901-	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0901-		●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NOK	1-09625-510-0	02	1	0901-	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	8-98014-141-0	01	1	0807-		●
18	BOLT; CLU HSG TO TRANS	1-09033-015-0	06	1	0807-		●
19	WASHER; PL,CLU HSG TO TRANS ID=17 OD=30	0-91610-516-0	02	1	0807-		●
27	NUT; CLU HSG TO TRANS M16	0-91110-516-0	02	1	0807-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE	0-28151-045-0	06	1	0803-0806	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE	0-28151-045-0	06	1	0807-	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X50 FLANGE	0-28151-050-0	02	1	0803-0806	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X50 FLANGE	0-28151-050-0	02	1	0807-1301	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (D) M10X55 FLANGE	8-97365-449-0	02	1	1302-	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X45 L=75	8-98010-335-0	02	1	0803-0806	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X45 L=75	8-98010-335-0	02	1	0807-	●	●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	0807-		●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	0-91510-516-0	02	1	0807-		●

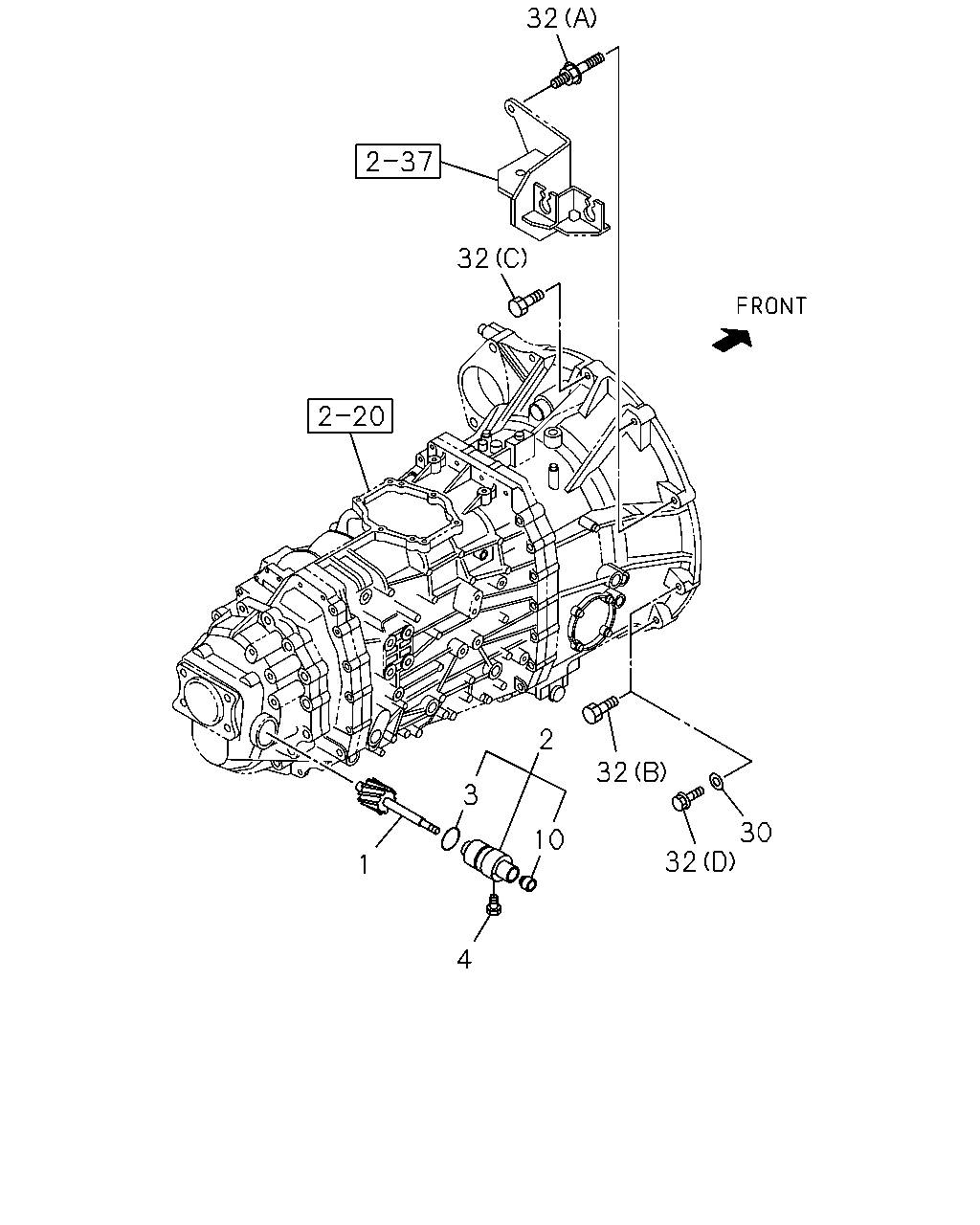

32 32 1 4 3 2 10 32 32 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD TRANSMISSION CONTROL-SMOOTHER(8GF) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) Z=15	1-33372-133-5	02	1	0901-	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0803-0806	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0807-0812	●	●
1	GEAR; DRIVEN,SPD TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) Z=15	1-33372-133-5	01	1	0901-	●
1	GEAR; DRIVEN,SPD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=15	1-33372-133-5	01	1	0901-	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0901-		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER TRANSMISSION CONTROL-SMOOTHER(8GF) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98000-271-0	02	1	0901-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-98000-271-0	01	1	0803-0812	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98000-271-0	01	1	0901-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98000-271-0	01	1	0901-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-058-3	01	1	0807-		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0803-0806	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0807-0812	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A).	1-09623-246-0	01	1	0901-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ).	1-09623-246-0	01	1	0901-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0901-		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09623-246-0	02	1	0901-	●
4	BOLT; RET,DRIVEN GEAR TRANSMISSION CONTROL-SMOOTHER(8GF) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X12.5 FLANGE	8-98014-141-0	02	1	0901-	●
4	BOLT; RET,DRIVEN GEAR M6X12.5 FLANGE	8-98014-141-0	01	1	0803-0812	●
4	BOLT; RET,DRIVEN GEAR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X12.5 FLANGE	8-98014-141-0	01	1	0901-	●
4	BOLT; RET,DRIVEN GEAR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X12.5 FLANGE	8-98014-141-0	01	1	0901-	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0803-0806	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0807-0812	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A). NOK	1-09625-510-0	01	1	0901-	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ). NOK	1-09625-510-0	01	1	0901-	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0901-		●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NOK	1-09625-510-0	02	1	0901-	●
30	WASHER; PL,TRANS ID=11 OD=24	8-94152-902-0	02	1	1302-	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE	0-28151-045-0	06	1	0803-0806	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE	0-28151-045-0	06	1	0807-	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X50 FLANGE	0-28151-050-0	02	1	0803-0806	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X50 FLANGE	0-28151-050-0	02	1	0807-1301	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (D) M10X55 FLANGE	8-97365-449-0	02	1	1302-	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X45 L=75	8-98010-335-0	02	1	0803-0806	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X45 L=75	8-98010-335-0	02	1	0807-	●	●
