Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#14775) — 260 parça

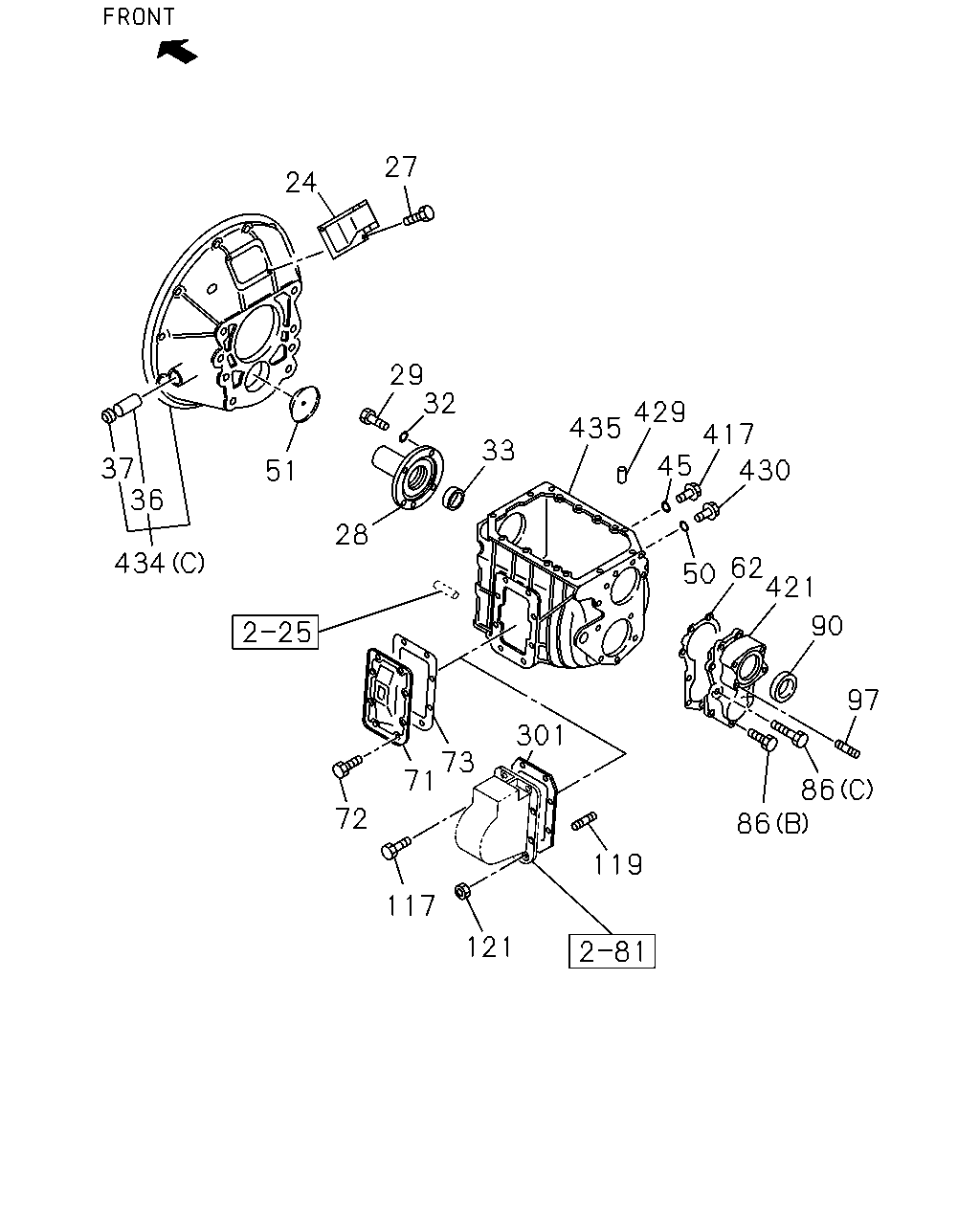

27 24 29 32 429 435 417 45 33 37 36 430 51 28 434 62 421 50 90 97 301 73 71 86 86 72 119 117 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST 14" CLUTCH(WF6)	1-31131-041-0	01	1	0803-0806	●
24	COVER; CHECK HOLE,DUST 14" CLUTCH(WF6)	1-31131-041-0	01	1	0807-1410	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0807-1410		●
24	COVER; CHECK HOLE,DUST 14" CLUTCH(WF6)	8-98284-107-0	01	1	1411-	●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-		●
27	BOLT; COVER TO CLU HSG 14" CLUTCH(WF6) M8X12 FLANGE	0-28050-812-0	02	1	0803-1410	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0807-1410		●
27	BOLT; COVER TO CLU HSG 14" CLUTCH(WF6) M8X16 FLANGE	0-28050-816-0	02	1	1411-	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-		●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	0807-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0807-		●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0807-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6)	8-97377-947-0	01	1	0803-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	0803-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0807-		●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0807-		●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0807-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0803-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0807-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0803-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0807-		●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	0807-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0807-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97377-949-0	01	1	0803-0901	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97252-624-2	01	1	0902-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	0807-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0807-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	08	1	0803-0803	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	0804-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	0804-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0803-0806	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0807-	●	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0803-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0807-		●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0807-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0803-0806	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0807-1103	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-		●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0803-0806	●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0807-	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0807-		●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0807-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	0803-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0807-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0803-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0807-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0803-0806	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0807-	●	●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-037-0	01	1	0807-		●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0803-	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0807-		●
421	COVER; RR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98124-515-0	01	1	0901-	●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0803-0812	●
421	COVER; RR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98004-790-1	01	1	0901-0901	●
421	COVER; RR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98004-790-1	01	1	0901-0901	●
421	COVER; RR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98051-477-0	01	1	0902-	●
421	COVER; RR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98051-477-0	01	1	0902-	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0807-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0807-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0803-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0807-		●
434	HOUSING; CLU 14" CLUTCH(WF6) (A)	8-98004-507-2	01	1	0803-	●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97383-564-3	01	1	0803-0906	●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98100-981-1	01	1	0907-	●
434	HOUSING; CLU (C)	8-98114-530-2	01	1	0807-		●
435	CASE; TRANS	8-97388-872-4	01	1	0803-	●
435	CASE; TRANS	8-98113-243-0	01	1	0807-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

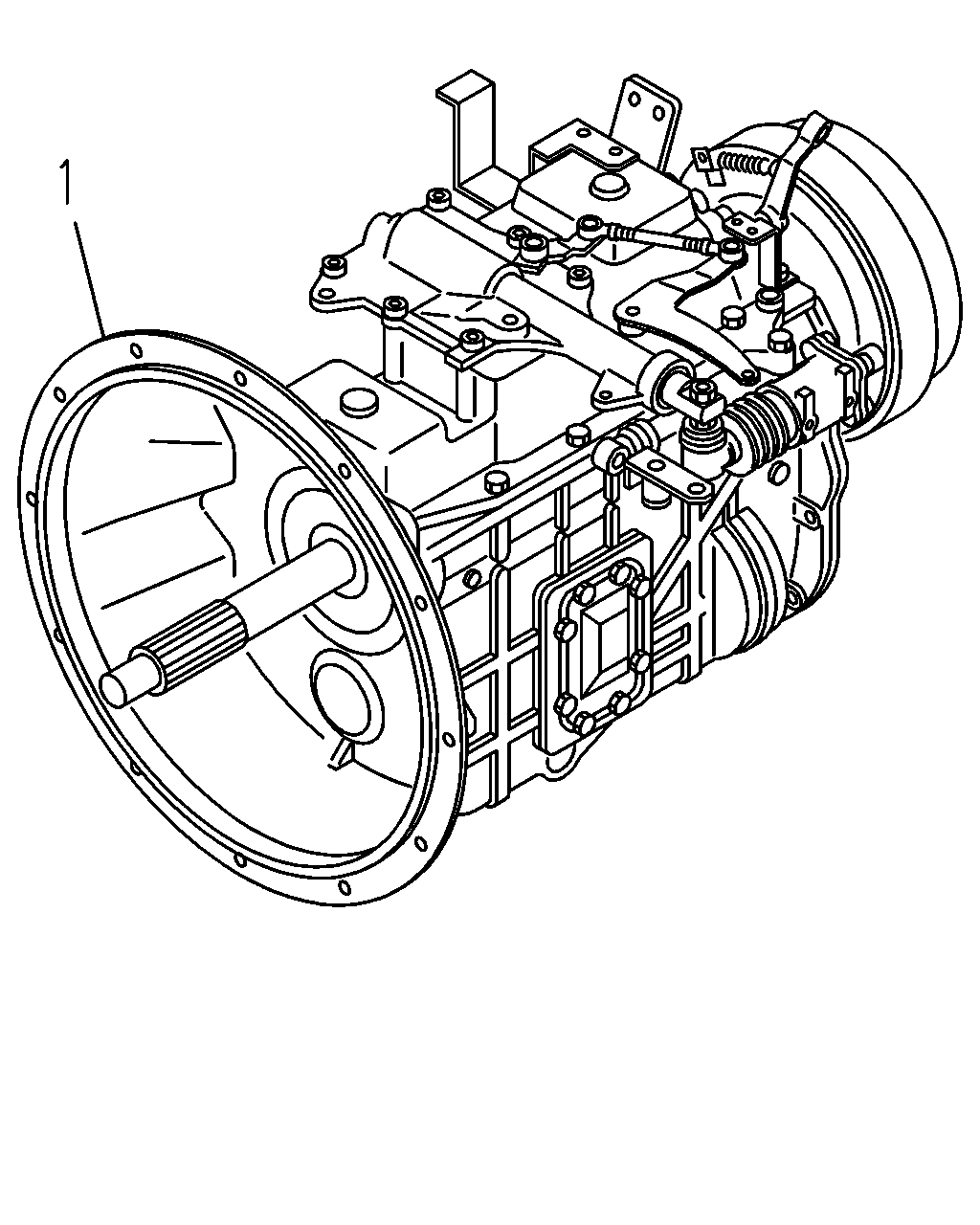

1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98041-787-0	01	1	0803-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 14" CLUTCH(WF6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98059-799-0	01	1	0803-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), 14"CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>	8-98108-380-0	01	1	0803-0812	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), 14"CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98041-780-0	01	1	0803-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S)	8-98041-830-0	01	1	0803-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 14" CLUTCH(WF6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S),ASSISTOR SHIFT CONTROL<WX8>	8-98064-379-0	01	1	0803-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),14" CLUTCH(WF6), ASSISTOR SHIFT CONTROL<WX8>	8-98108-378-0	01	1	0803-0812	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),14" CLUTCH(WF6), ASSISTOR SHIFT CONTROL<WX8>	8-98141-018-0	01	1	0901-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),14" CLUTCH(WF6), ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98041-823-0	01	1	0803-0812	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),14" CLUTCH(WF6), ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98141-019-0	01	1	0901-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98041-787-0	01	1	0803-0803	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98115-539-0	01	1	0804-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>, ASSISTOR SHIFT CONTROL<WX8>	8-98059-799-0	01	1	0803-0803	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>, ASSISTOR SHIFT CONTROL<WX8>	8-98115-547-0	01	1	0804-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>, 14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>	8-98108-380-0	01	1	0803-0803	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>, 14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>	8-98115-567-0	01	1	0804-0812	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>, 14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98041-780-0	01	1	0803-0803	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>, 14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98115-561-0	01	1	0804-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98041-830-0	01	1	0803-0803	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98115-537-0	01	1	0804-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98064-379-0	01	1	0803-0803	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98115-546-0	01	1	0804-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>	8-98108-378-0	01	1	0803-0803	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>	8-98115-566-0	01	1	0804-0812	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>	8-98141-018-0	01	1	0901-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98041-823-0	01	1	0803-0803	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98115-558-0	01	1	0804-0812	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98141-019-0	01	1	0901-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-185-0	01	1	0807-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 14" CLUTCH(WF6) MANUAL TRANSMISSION<X9C> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-288-0	01	1	0807-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>, TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-185-0	01	1	0807-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 14" CLUTCH(WF6) MANUAL TRANSMISSION<X9C> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>, ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-288-0	01	1	0807-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-178-0	01	1	0807-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 14" CLUTCH(WF6) MANUAL TRANSMISSION<X9C> EXC. PARKING BRAKE DRUM 8.5"(B1S),ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-286-0	01	1	0807-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-178-0	01	1	0807-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 14" CLUTCH(WF6) MANUAL TRANSMISSION<X9C> EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-286-0	01	1	0807-		●

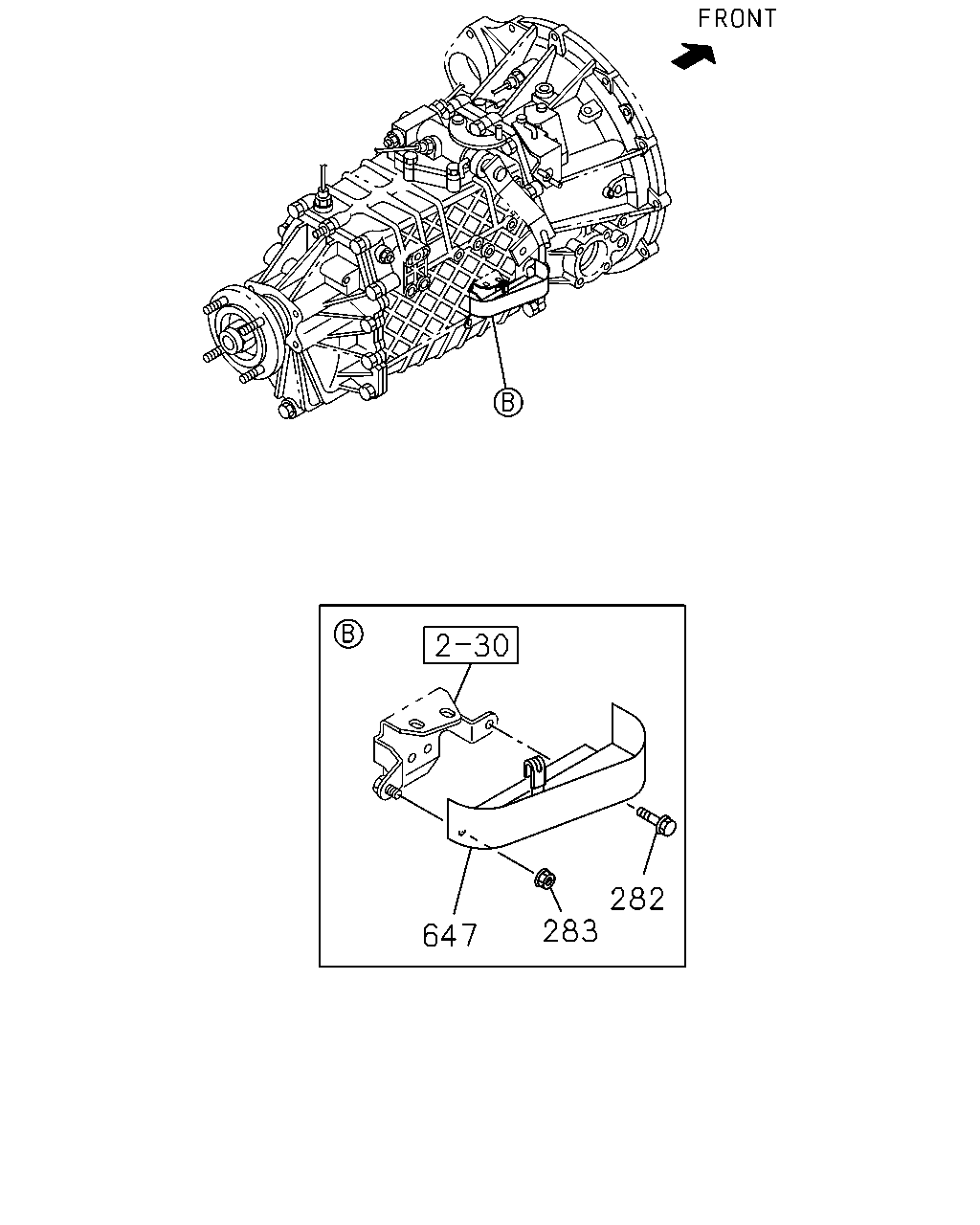

282 283 647

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
282	BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
283	NUT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
647	PROTECTOR; HEAT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97329-465-0	01	1	0803-	●	●

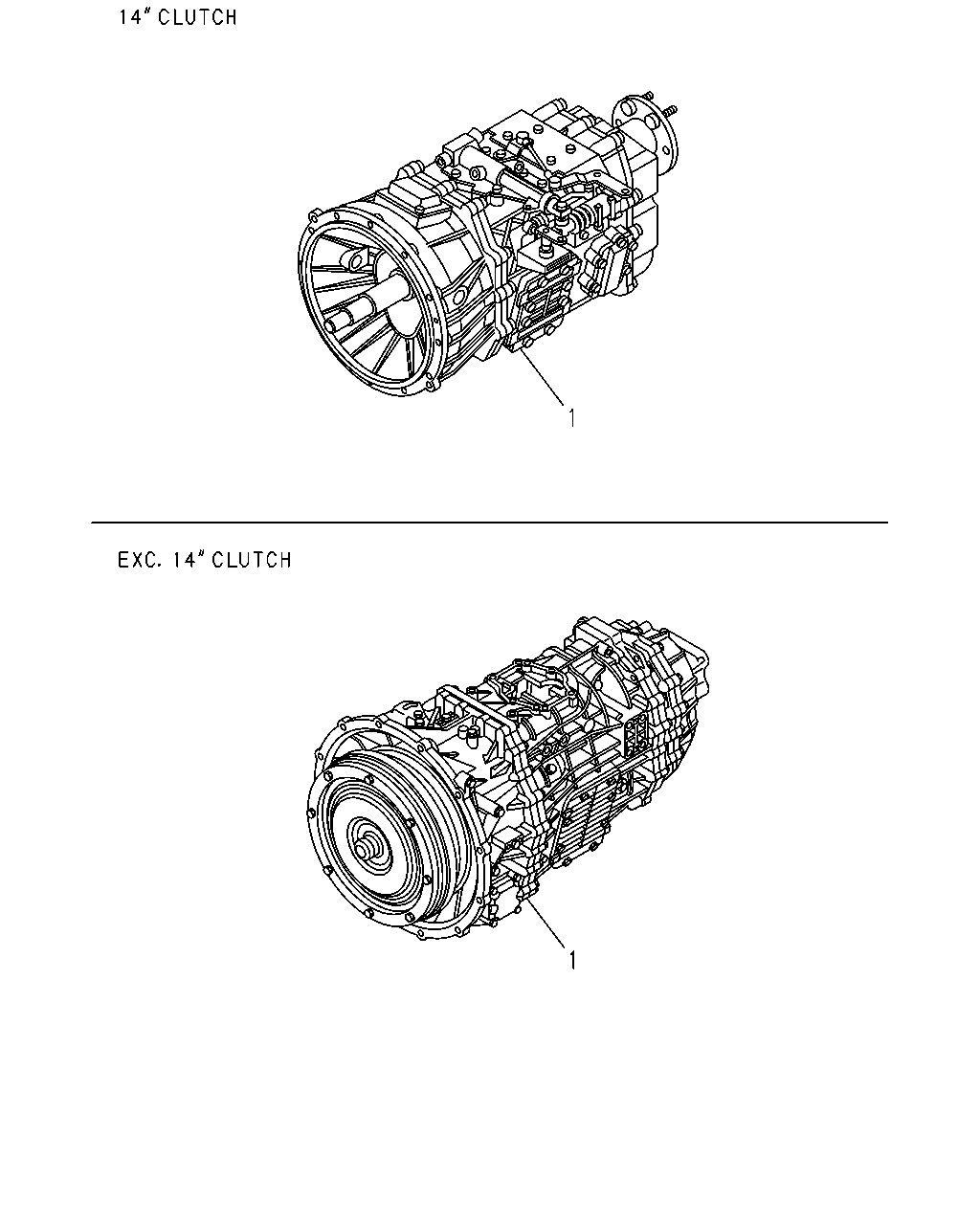

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98041-787-0	01	1	0803-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 14" CLUTCH(WF6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98059-799-0	01	1	0803-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), 14"CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>	8-98108-380-0	01	1	0803-0812	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), 14"CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98041-780-0	01	1	0803-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S)	8-98041-830-0	01	1	0803-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 14" CLUTCH(WF6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S),ASSISTOR SHIFT CONTROL<WX8>	8-98064-379-0	01	1	0803-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),14" CLUTCH(WF6), ASSISTOR SHIFT CONTROL<WX8>	8-98108-378-0	01	1	0803-0812	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),14" CLUTCH(WF6), ASSISTOR SHIFT CONTROL<WX8>	8-98141-018-0	01	1	0901-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),14" CLUTCH(WF6), ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98041-823-0	01	1	0803-0812	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),14" CLUTCH(WF6), ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98141-019-0	01	1	0901-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98041-787-0	01	1	0803-0803	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98115-539-0	01	1	0804-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>, ASSISTOR SHIFT CONTROL<WX8>	8-98059-799-0	01	1	0803-0803	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>, ASSISTOR SHIFT CONTROL<WX8>	8-98115-547-0	01	1	0804-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>, 14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>	8-98108-380-0	01	1	0803-0803	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>, 14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>	8-98115-567-0	01	1	0804-0812	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>, 14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98041-780-0	01	1	0803-0803	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>, 14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98115-561-0	01	1	0804-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98041-830-0	01	1	0803-0803	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98115-537-0	01	1	0804-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98064-379-0	01	1	0803-0803	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98115-546-0	01	1	0804-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>	8-98108-378-0	01	1	0803-0803	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>	8-98115-566-0	01	1	0804-0812	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>	8-98141-018-0	01	1	0901-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98041-823-0	01	1	0803-0803	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98115-558-0	01	1	0804-0812	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>,KD PREPARATORY PACK<6HF>	8-98141-019-0	01	1	0901-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-185-0	01	1	0807-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 14" CLUTCH(WF6) MANUAL TRANSMISSION<X9C> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-288-0	01	1	0807-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>, TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-185-0	01	1	0807-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) 14" CLUTCH(WF6) MANUAL TRANSMISSION<X9C> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>, ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-288-0	01	1	0807-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-178-0	01	1	0807-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 14" CLUTCH(WF6) MANUAL TRANSMISSION<X9C> EXC. PARKING BRAKE DRUM 8.5"(B1S),ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-286-0	01	1	0807-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-178-0	01	1	0807-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 14" CLUTCH(WF6) MANUAL TRANSMISSION<X9C> EXC. PARKING BRAKE DRUM 8.5"(B1S),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-286-0	01	1	0807-		●

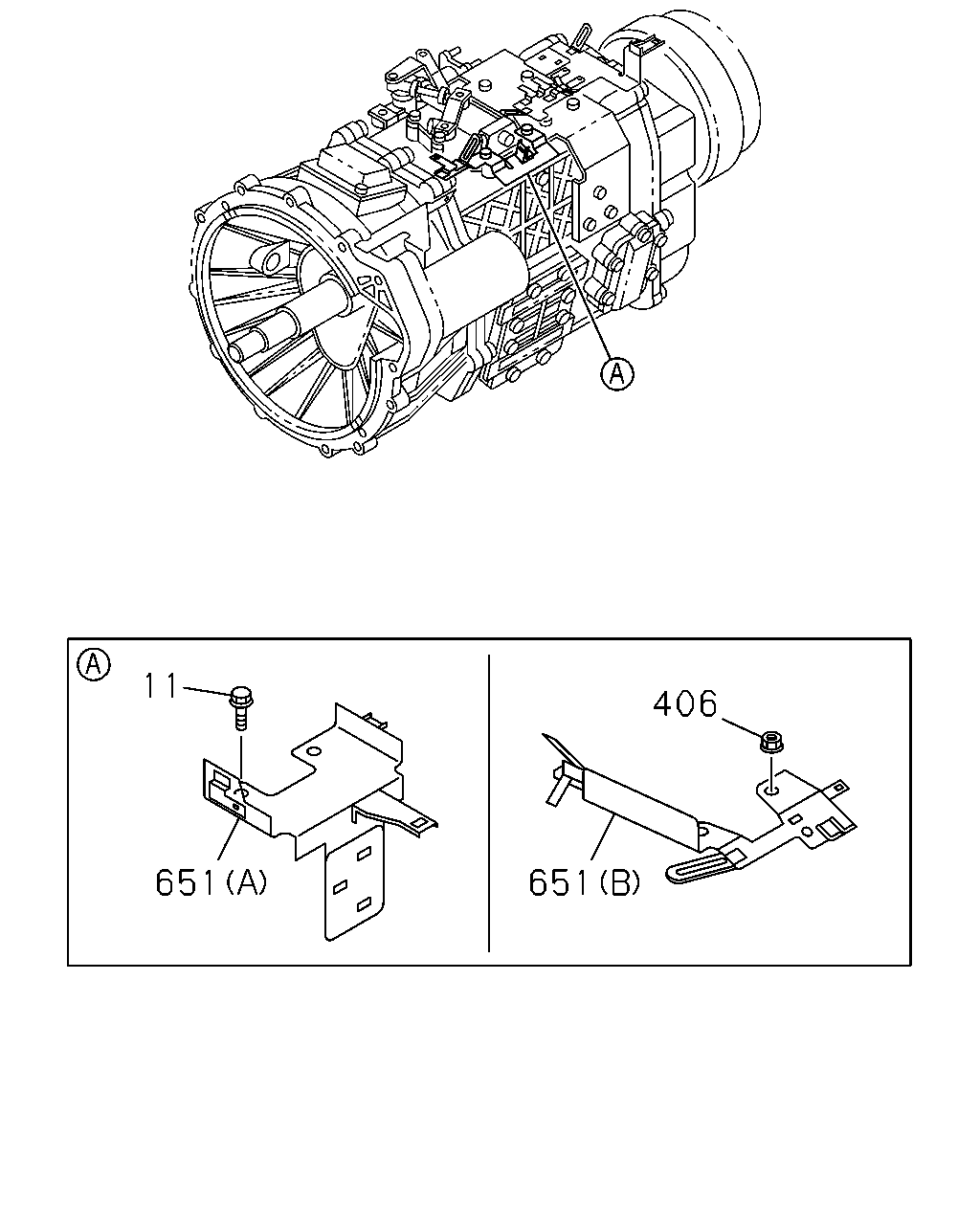

11 406 651 651

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT M12X25 FLANGE	0-28151-225-0	02	1	1309-	●	●
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	0-28650-835-0	02	1	0803-	●
406	NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0803-	●
651	BRACKET; T/M HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-090-3	01	1	0803-	●
651	BRACKET; T/M HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97609-800-3	01	1	0803-	●

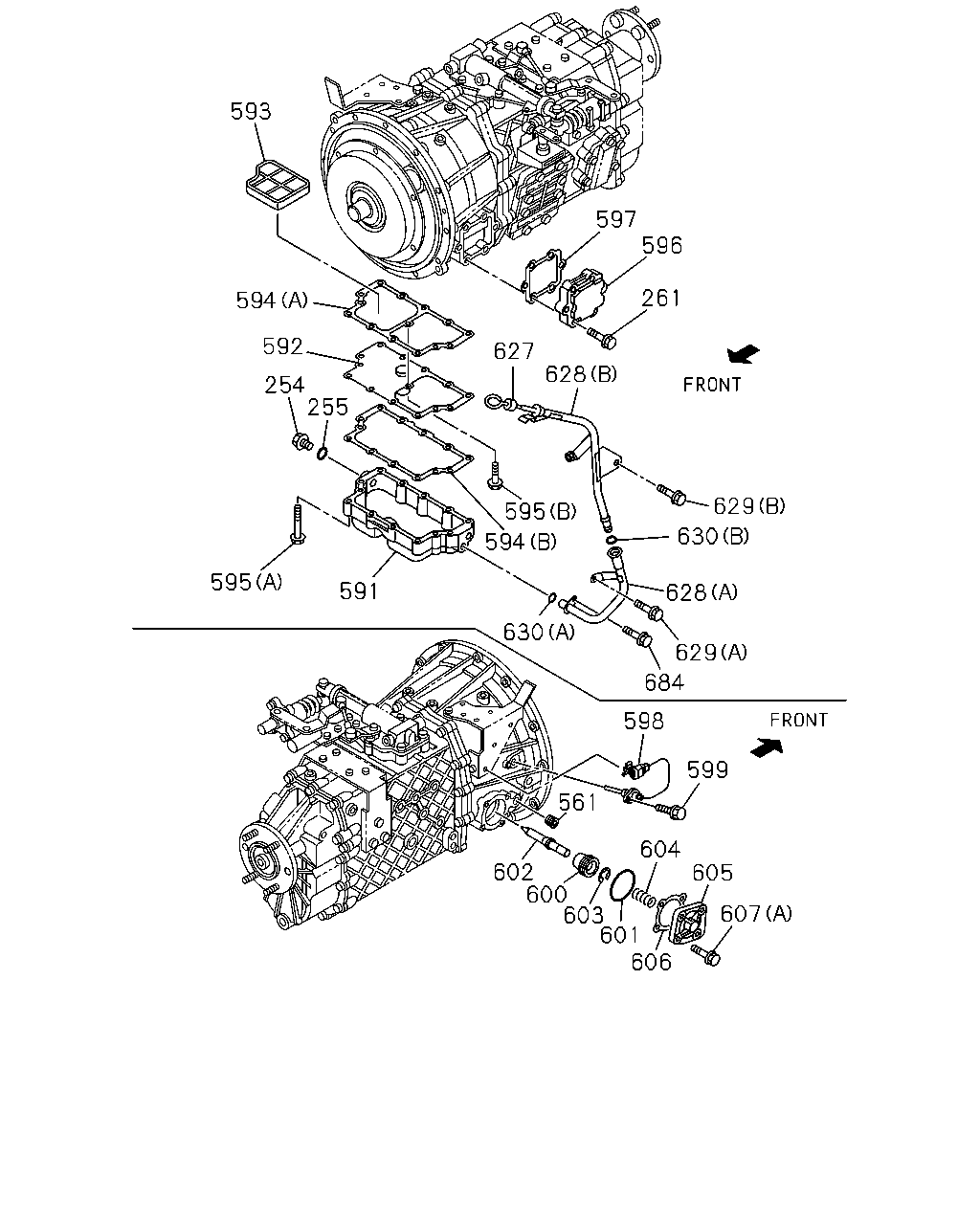

593 597 596 261 594 592 627 628 254 255 629 595 630 594 595 591 628 630 629 684 598 599 561 604 602 600 603 601 606 605 607

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
254	PLUG; DRAIN,OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97365-374-0	01	1	0803-	●
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17	8-97115-712-0	01	1	0803-	●
261	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X35 FLANGE	0-28650-635-0	06	1	0803-	●
561	PLUG TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97320-204-0	01	1	0803-	●
591	PAN; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-429-2	01	1	0803-	●
592	COVER; STRAINER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-771-1	01	1	0803-	●
593	FILTER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-438-1	01	1	0803-	●
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97256-430-1	01	1	0803-	●
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97289-772-0	01	1	0803-	●
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X16 FLANGE	0-28650-616-0	01	1	0803-	●
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X35 FLANGE	0-28650-635-0	13	1	0803-	●
596	COVER; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-773-0	01	1	0803-	●
597	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-774-0	01	1	0803-	●
598	SENSOR; TURBINE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-495-1	01	1	0803-	●
599	BOLT; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE	0-28650-616-0	01	1	0803-	●
600	PISTON; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-652-1	01	1	0803-	●
601	SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-755-0	01	1	0803-	●
602	PLUNGER; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98009-306-1	01	1	0803-	●
603	RING; SNAP TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8	9-09185-008-0	01	1	0803-	●
604	SPRING; PISTON TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97371-467-0	01	1	0803-	●
605	COVER; CYLINDER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-756-0	01	1	0803-	●
606	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-757-0	01	1	0803-	●
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	0803-	●
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	04	1	0803-	●
627	GAUGE; OIL LEVEL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98024-423-2	01	1	0803-	●
628	TUBE; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-673-0	01	1	0803-	●
628	TUBE; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98005-326-2	01	1	0803-	●
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10X16 FLANGE	0-28151-016-0	01	1	0803-	●
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE	0-28650-616-0	01	1	0803-	●
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=15.8	8-97305-656-0	01	1	0803-	●
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=12.3	8-97313-558-0	01	1	0803-	●
684	BOLT; OIL FILLER TUBE TRANSMISSION CONTROL-SMOOTHER(8GF) M10X16 FLANGE	0-28151-016-0	01	1	0803-	●

202 587 27 691 24 685 607 685 607 33 33 33 434 434 316 316 688 688 41 435 692 417 45 430 50 609 256 73 686 71 86 256 72 692 117 315 119 97 90 121 295 421 257 86 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST 14" CLUTCH(WF6)	1-31131-041-0	01	1	0803-0806	●
24	COVER; CHECK HOLE,DUST 14" CLUTCH(WF6)	1-31131-041-0	01	1	0807-1410	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0807-1410		●
24	COVER; CHECK HOLE,DUST 14" CLUTCH(WF6)	8-98284-107-0	01	1	1411-	●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-		●
27	BOLT; COVER TO CLU HSG 14" CLUTCH(WF6) M8X12 FLANGE	0-28050-812-0	02	1	0803-1410	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0807-1410		●
27	BOLT; COVER TO CLU HSG 14" CLUTCH(WF6) M8X16 FLANGE	0-28050-816-0	02	1	1411-	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6)	8-97377-947-0	01	1	0803-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	0803-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0807-		●
41	SPRING; DETENT BALL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-140-0	01	1	0803-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0803-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0807-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0803-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0807-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97377-949-0	01	1	0803-0901	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97252-624-2	01	1	0902-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	0807-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0807-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	08	1	0803-0803	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	0804-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	0804-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0803-0806	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0807-	●	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0803-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0807-		●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0807-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0803-0806	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0807-1103	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-		●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0803-0806	●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0807-	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0807-		●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0807-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	0803-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0807-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0803-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0807-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0803-0806	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0807-	●	●
202	BOLT; PLATE TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	0803-	●
257	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8	8-97329-633-0	01	1	0803-	●
295	PLATE; COVER,PTO EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98116-575-0	01	1	0804-	●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	0803-	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0803-	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0803-	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0807-		●
421	COVER; RR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98124-515-0	01	1	0901-	●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0803-0812	●
421	COVER; RR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98004-790-1	01	1	0901-0901	●
421	COVER; RR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98004-790-1	01	1	0901-0901	●
421	COVER; RR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98051-477-0	01	1	0902-	●
421	COVER; RR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98051-477-0	01	1	0902-	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0807-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0803-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0807-		●
434	HOUSING; CLU 14" CLUTCH(WF6) (A)	8-98004-507-2	01	1	0803-	●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97383-564-3	01	1	0803-0906	●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98100-981-1	01	1	0907-	●
434	HOUSING; CLU (C)	8-98114-530-2	01	1	0807-		●
435	CASE; TRANS	8-97388-872-4	01	1	0803-	●
435	CASE; TRANS	8-98113-243-0	01	1	0807-		●
587	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-318-0	01	1	0803-	●
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	0803-	●
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	04	1	0803-	●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0803-	●
685	COVER; OIL PORT	8-98018-864-1	01	1	0803-	●
686	CASE; RR,TRANS	8-97388-873-1	01	1	0803-	●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	0803-1110	●
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1111-1508	●
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-	●
691	PLATE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98044-428-0	01	1	0803-	●
692	PIN; DOWEL OD=11 L=8	9-11229-058-1	04	1	0803-	●
692	PIN; DOWEL OD=14 L=10	9-11319-065-3	02	1	0803-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
