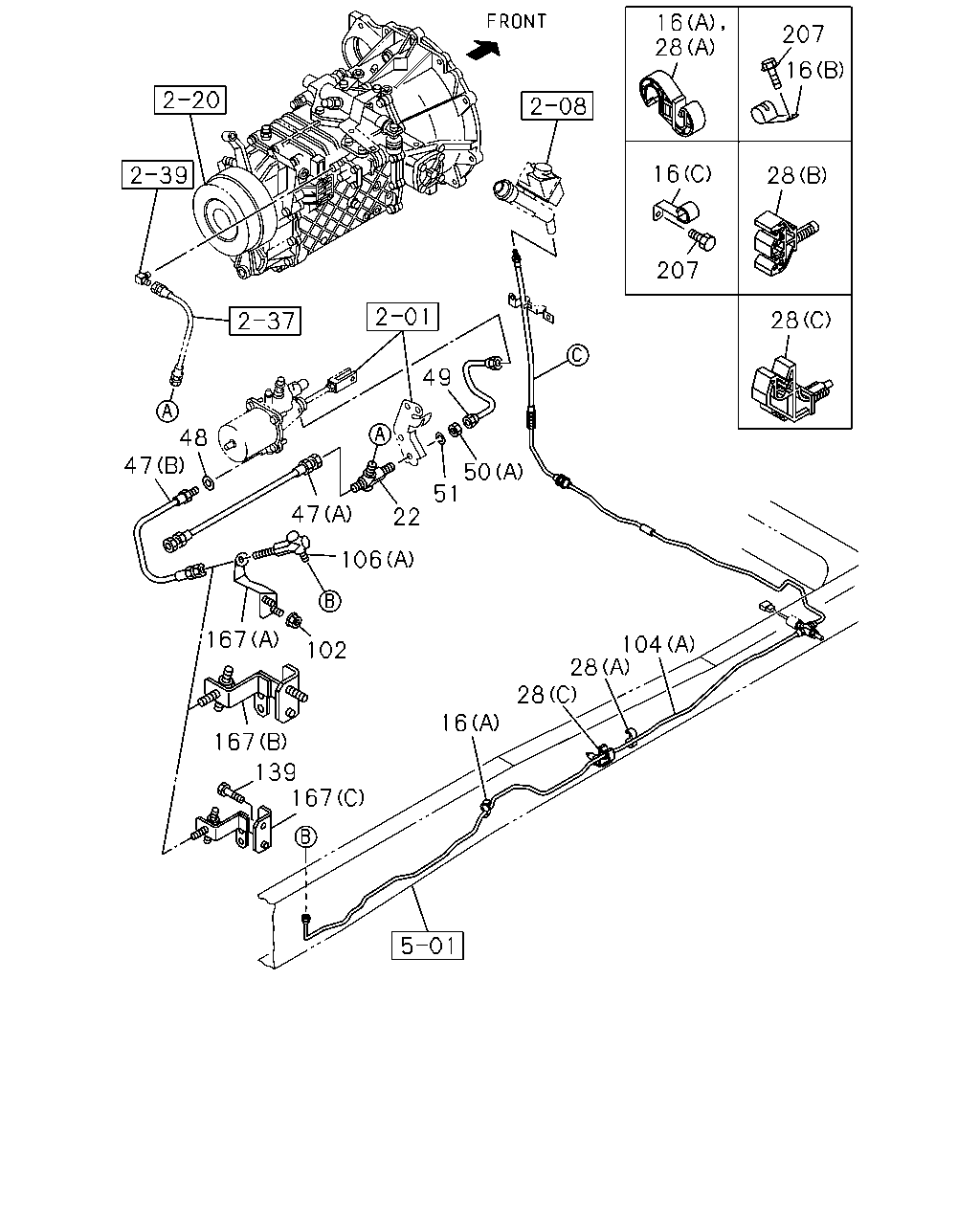

2-05 — CLUTCH PIPING (#14771) — 88 parça

101 50 239 23 104 180 107 106 104 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	GROMMET; CLU PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	0803-0901
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12	0-91111-512-0	01	1	0803-1006
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12	0-91111-512-0	01	1	0803-1006
50	NUT; UNION EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12	0-91111-512-0	01	1	1007-1009
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12	0-91111-512-0	01	1	1007-1009
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12	0-91111-512-0	01	1	1010-
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12	0-91111-512-0	01	1	1010-
50	NUT; UNION 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	0803-0806
50	NUT; UNION MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	0803-0806
50	NUT; UNION 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	0807-1009
50	NUT; UNION MZX6P M/T(RSW),MLD6S M/T(X7W) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	0807-1009
50	NUT; UNION MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	1010-
50	NUT; UNION 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	1010-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=510	8-98059-811-0	01	1	0803-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1624 SERVICED BY L=1700	1-47428-737-0	01	1	0803-0805
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1643 SERVICED BY L=1700	1-47428-737-0	01	1	0806-0807
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1684 SERVICED BY L=1700	1-47428-737-0	01	1	0808-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039	8-98078-086-1	01	1	0803-0803
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039	8-98078-086-1	01	1	0804-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2214	8-98115-607-1	01	1	0807-
106	UNION; OIL PIPE MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 3WAY	1-09654-137-2	01	1	0807-
106	UNION; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY	8-98051-113-0	01	1	0803-0910
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY	8-98051-113-0	01	1	0911-
106	UNION; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW	0-92125-206-0	01	1	0803-0803
106	UNION; OIL PIPE MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW	0-92125-206-0	01	1	0804-
107	NUT; UNION,OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12	9-09840-280-0	01	1	0803-0803
107	NUT; UNION,OIL PIPE MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12	9-09840-280-0	01	1	0804-
180	PLUG; PIPE EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF)	9-09204-510-0	01	1	0803-0910
184	UNION; FLEX HOSE EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98150-865-0	01	1	0911-
239	UNION; CLU HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 2WAY	1-09654-059-2	01	1	0803-

16 28 207 16 16 28 207 28 49 48 47 50 51 47 22 106 167 104 102 28 28 16 167 139 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12	1-09709-278-1	02	1	0902-
16	CLIP; FLEX HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=18 L=28	1-09701-067-0	01	1	0803-
16	CLIP; FLEX HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12	1-09709-278-1	01	1	0803-0901
16	CLIP; FLEX HOSE MZX6P M/T(RSW) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12	1-09709-278-1	01	1	0902-
16	CLIP; FLEX HOSE MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 H=45 L=25	1-09700-866-0	01	1	0807-
22	UNION; CLU PIPE 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	0803-
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35	1-09701-247-1	01	1	0803-
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35 & 10.0	1-09709-274-1	03	1	0803-
28	CLIP; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98012-254-1	04	1	0803-
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) WHEEL BASE 3400MM(34W) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=560	1-09363-914-0	01	1	0803-
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) WHEEL BASE 3400MM(34W) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=640	1-09363-974-0	01	1	0803-
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=390	8-98080-980-0	01	1	0803-
47	HOSE; FLEX,CLU CONT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=660	1-09363-971-0	01	1	0803-
47	HOSE; FLEX,CLU CONT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=740	1-09363-674-0	01	1	0803-
47	HOSE; FLEX,CLU CONT MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=540	1-09363-612-1	01	1	0807-
47	HOSE; FLEX,CLU CONT MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=620	1-09363-770-0	01	1	0807-
47	HOSE; FLEX,CLU CONT MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=550	8-98122-509-0	01	1	0807-
48	GASKET; FLEX HOSE,CLU CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0	9-09571-410-0	02	1	0803-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 14" CLUTCH(WF6) L=204	1-49117-400-0	01	1	0803-
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12	0-91111-512-0	01	1	0803-1006
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12	0-91111-512-0	01	1	0803-1006
50	NUT; UNION EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12	0-91111-512-0	01	1	1007-1009
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12	0-91111-512-0	01	1	1007-1009
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12	0-91111-512-0	01	1	1010-
50	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12	0-91111-512-0	01	1	1010-
50	NUT; UNION 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	0803-0806
50	NUT; UNION MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	0803-0806
50	NUT; UNION 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	0807-1009
50	NUT; UNION MZX6P M/T(RSW),MLD6S M/T(X7W) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	0807-1009
50	NUT; UNION MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12	9-09840-280-0	01	1	1010-
50	NUT; UNION 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	1010-
51	WASHER; LK 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0803-0806
51	WASHER; LK MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2	0-91510-512-0	01	1	0803-0806
51	WASHER; LK 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0807-1009
51	WASHER; LK MZX6P M/T(RSW),MLD6S M/T(X7W) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2	0-91510-512-0	01	1	0807-1009
51	WASHER; LK MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2	0-91510-512-0	01	1	1010-
51	WASHER; LK 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	1010-
102	NUT; FLEX HOSE,CLU CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE	0-91180-210-0	02	1	0803-0803
102	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE	0-91180-210-0	02	1	0804-
102	NUT; FLEX HOSE,CLU CONT MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE	0-91180-210-0	01	1	0807-0809
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1624 SERVICED BY L=1700	1-47428-737-0	01	1	0803-0805
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1643 SERVICED BY L=1700	1-47428-737-0	01	1	0806-0807
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1684 SERVICED BY L=1700	1-47428-737-0	01	1	0808-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039	8-98078-086-1	01	1	0803-0803
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039	8-98078-086-1	01	1	0804-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2214	8-98115-607-1	01	1	0807-
106	UNION; OIL PIPE MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 3WAY	1-09654-137-2	01	1	0807-
106	UNION; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY	8-98051-113-0	01	1	0803-0910
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY	8-98051-113-0	01	1	0911-
106	UNION; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW	0-92125-206-0	01	1	0803-0803
106	UNION; OIL PIPE MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW	0-92125-206-0	01	1	0804-
139	BOLT; BRKT MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10X30 FLANGE	0-28051-030-0	01	1	0810-
167	BRACKET; UNION MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98128-622-0	01	1	0807-0809
167	BRACKET; UNION MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98132-086-0	01	1	0810-
167	BRACKET; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98078-147-0	01	1	0803-0803
167	BRACKET; UNION MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98078-147-0	01	1	0804-
207	BOLT; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	0803-
207	BOLT; CLIP MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE	0-28650-825-0	01	1	0807-
