2-01 — CLUTCH (#14769) — 156 parça

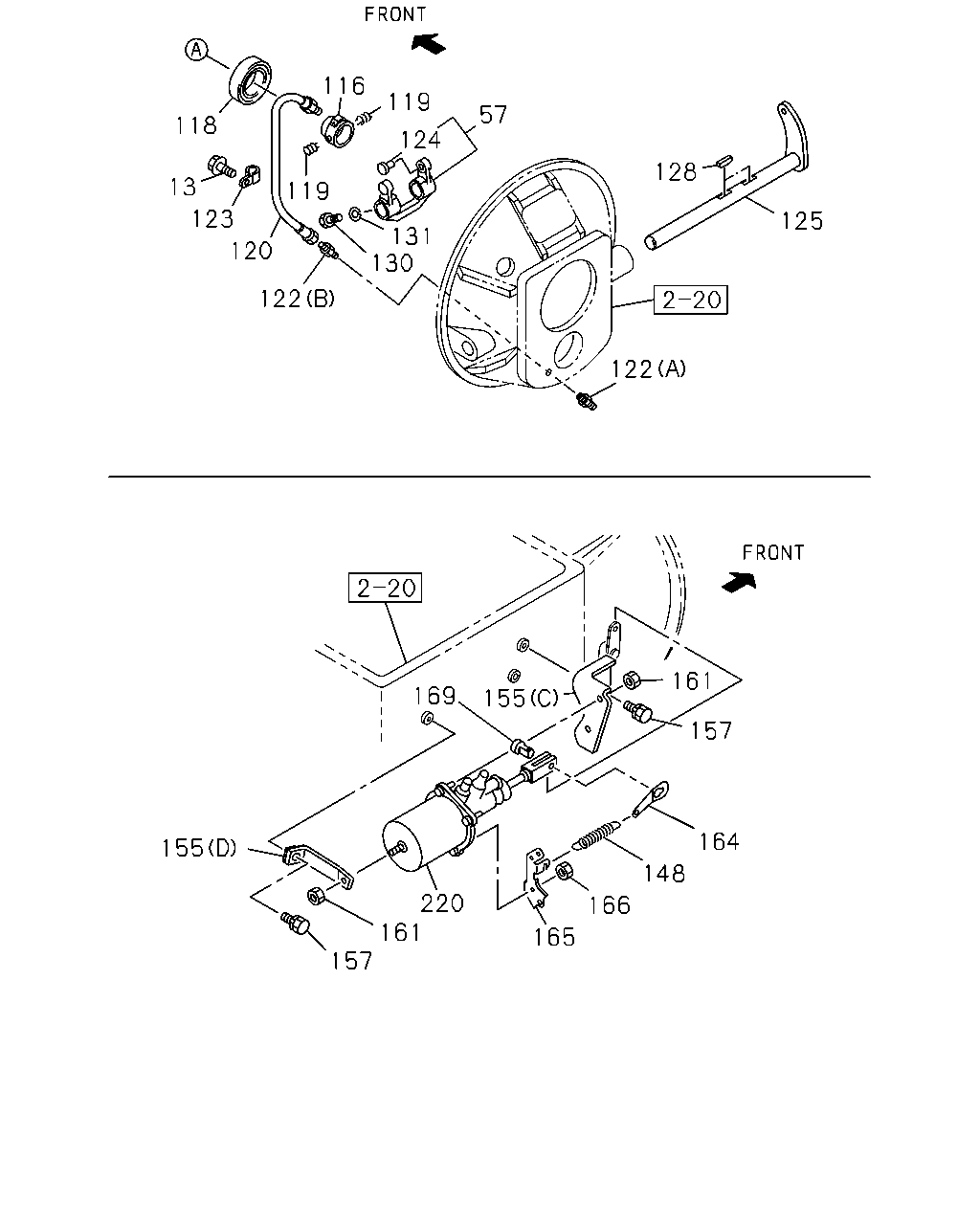

116 119 57 118 124 128 13 119 131 130 123 125 120 122 122 161 155 169 157 164 155 148 220 161 157 166 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0807-	●
57	FORK; SHIFT,CLU 14" CLUTCH(WF6)	1-31341-048-2	01	1	0803-		●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0807-1306	●
57	FORK; SHIFT,CLU	1-31340-077-0	01	1	1307-	●
116	BLOCK; SHIFT,CLU	1-31321-075-1	01	1	0807-1204	●
116	BLOCK; SHIFT,CLU	1-31321-113-0	01	1	1205-1306	●
116	BLOCK; SHIFT,CLU	1-31321-114-0	01	1	1307-	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0807-	●
118	BEARING; CLU RELEASE 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-109-0	01	1	0807-		●
118	BEARING; CLU RELEASE 14" CLUTCH(WF6)	1-31310-017-1	01	1	0803-0806		●
118	BEARING; CLU RELEASE 14" CLUTCH(WF6)	1-31310-026-0	01	1	0807-		●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0807-	●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	0807-	●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	0807-	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0807-	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0807-	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0807-	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0807-	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0807-	●
125	SHAFT; CLU 14" CLUTCH(WF6)	1-31342-335-0	01	1	0803-		●
125	SHAFT; CLU ASSISTOR SHIFT CONTROL<WX8>	1-31342-344-0	01	1	0807-	●
125	SHAFT; CLU EXC. ASSISTOR SHIFT CONTROL<WX8>	1-31342-346-0	01	1	0807-	●
128	KEY; FEATHER,CLU SHAFT 14" CLUTCH(WF6)	9-09867-008-0	02	1	0803-0806		●
128	KEY; FEATHER,CLU SHAFT 14" CLUTCH(WF6)	9-09867-008-0	02	1	0807-		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0807-	●
130	SCREW; SHIFT FORK 14" CLUTCH(WF6) M8X14	0-61200-814-0	01	1	0803-0806		●
130	SCREW; SHIFT FORK 14" CLUTCH(WF6) M8X14	0-61200-814-0	01	1	0807-		●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0807-	●
131	WASHER; LK,SHIFT FORK 14" CLUTCH(WF6) ID=8.2	0-91510-508-0	01	1	0803-0806		●
131	WASHER; LK,SHIFT FORK 14" CLUTCH(WF6) ID=8.2	0-91510-508-0	01	1	0807-		●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0807-	●
148	SPRING; CLU RETURN 14" CLUTCH(WF6) L=135	1-09583-305-0	01	1	0803-0806		●
148	SPRING; CLU RETURN 14" CLUTCH(WF6) L=135	1-09583-305-0	01	1	0807-		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0807-	●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (B)	1-31429-477-0	01	1	0803-		●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (A)	1-31429-474-1	01	1	0803-0806		●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (A)	1-31429-474-1	01	1	0807-		●
155	BRACKET; MINIPACK ASSISTOR SHIFT CONTROL<WX8> (A)	1-31429-474-1	01	1	0807-	●
155	BRACKET; MINIPACK ASSISTOR SHIFT CONTROL<WX8> (C)	1-31429-512-0	01	1	0807-	●
155	BRACKET; MINIPACK EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-31429-514-0	01	1	0807-	●
155	BRACKET; MINIPACK EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-31429-515-0	01	1	0807-	●
157	BOLT; BRKT 14" CLUTCH(WF6) M10X25 FLANGE	0-28751-025-0	03	1	0803-0806		●
157	BOLT; BRKT 14" CLUTCH(WF6) M10X25 FLANGE	0-28751-025-0	03	1	0807-		●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0807-	●
161	NUT; BRKT 14" CLUTCH(WF6) M8 FLANGE	0-91180-208-0	05	1	0803-		●
161	NUT; BRKT M8 FLANGE	0-91180-208-0	03	1	0807-	●
164	EYE; SPRING 14" CLUTCH(WF6)	1-31426-041-0	01	1	0803-0806		●
164	EYE; SPRING 14" CLUTCH(WF6)	1-31426-041-0	01	1	0807-		●
164	EYE; SPRING	1-31426-041-0	01	1	0807-	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE 14" CLUTCH(WF6)	1-47477-789-0	01	1	0803-0806		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE 14" CLUTCH(WF6)	1-47477-789-0	01	1	0807-		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0807-	●
166	NUT; SPRING EYE M8 FLANGE	0-91180-208-0	02	1	0807-	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	0807-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-159-0	01	1	0807-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6)	1-31800-510-2	01	1	0803-		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-525-1	01	1	0807-	●

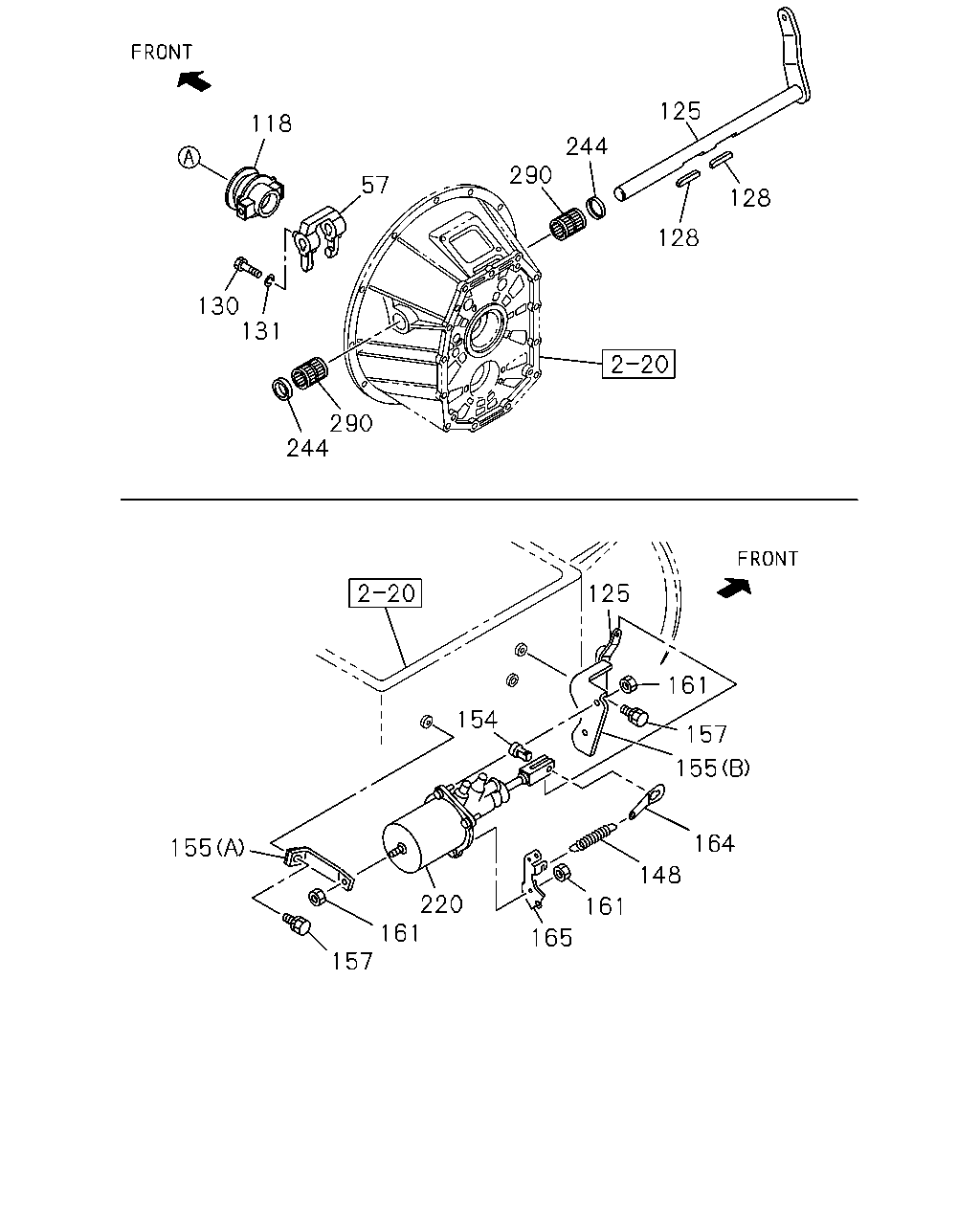

125 118 244 290 57 128 128 130 131 290 244 125 161 154 157 155 164 155 148 220 161 157 161 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
57	FORK; SHIFT,CLU 14" CLUTCH(WF6)	1-31341-048-2	01	1	0803-		●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0807-1306	●
57	FORK; SHIFT,CLU	1-31340-077-0	01	1	1307-	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0807-	●
118	BEARING; CLU RELEASE 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-109-0	01	1	0807-		●
118	BEARING; CLU RELEASE 14" CLUTCH(WF6)	1-31310-017-1	01	1	0803-0806		●
118	BEARING; CLU RELEASE 14" CLUTCH(WF6)	1-31310-026-0	01	1	0807-		●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0807-	●
125	SHAFT; CLU 14" CLUTCH(WF6)	1-31342-335-0	01	1	0803-		●
125	SHAFT; CLU ASSISTOR SHIFT CONTROL<WX8>	1-31342-344-0	01	1	0807-	●
125	SHAFT; CLU EXC. ASSISTOR SHIFT CONTROL<WX8>	1-31342-346-0	01	1	0807-	●
128	KEY; FEATHER,CLU SHAFT 14" CLUTCH(WF6)	9-09867-008-0	02	1	0803-0806		●
128	KEY; FEATHER,CLU SHAFT 14" CLUTCH(WF6)	9-09867-008-0	02	1	0807-		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0807-	●
130	SCREW; SHIFT FORK 14" CLUTCH(WF6) M8X14	0-61200-814-0	01	1	0803-0806		●
130	SCREW; SHIFT FORK 14" CLUTCH(WF6) M8X14	0-61200-814-0	01	1	0807-		●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0807-	●
131	WASHER; LK,SHIFT FORK 14" CLUTCH(WF6) ID=8.2	0-91510-508-0	01	1	0803-0806		●
131	WASHER; LK,SHIFT FORK 14" CLUTCH(WF6) ID=8.2	0-91510-508-0	01	1	0807-		●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0807-	●
148	SPRING; CLU RETURN 14" CLUTCH(WF6) L=135	1-09583-305-0	01	1	0803-0806		●
148	SPRING; CLU RETURN 14" CLUTCH(WF6) L=135	1-09583-305-0	01	1	0807-		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0807-	●
154	PIN; JAW JOINT 14" CLUTCH(WF6)	1-31424-009-0	01	1	0803-		●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (B)	1-31429-477-0	01	1	0803-		●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (A)	1-31429-474-1	01	1	0803-0806		●
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (A)	1-31429-474-1	01	1	0807-		●
155	BRACKET; MINIPACK ASSISTOR SHIFT CONTROL<WX8> (A)	1-31429-474-1	01	1	0807-	●
155	BRACKET; MINIPACK ASSISTOR SHIFT CONTROL<WX8> (C)	1-31429-512-0	01	1	0807-	●
155	BRACKET; MINIPACK EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-31429-514-0	01	1	0807-	●
155	BRACKET; MINIPACK EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-31429-515-0	01	1	0807-	●
157	BOLT; BRKT 14" CLUTCH(WF6) M10X25 FLANGE	0-28751-025-0	03	1	0803-0806		●
157	BOLT; BRKT 14" CLUTCH(WF6) M10X25 FLANGE	0-28751-025-0	03	1	0807-		●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0807-	●
161	NUT; BRKT 14" CLUTCH(WF6) M8 FLANGE	0-91180-208-0	05	1	0803-		●
161	NUT; BRKT M8 FLANGE	0-91180-208-0	03	1	0807-	●
164	EYE; SPRING 14" CLUTCH(WF6)	1-31426-041-0	01	1	0803-0806		●
164	EYE; SPRING 14" CLUTCH(WF6)	1-31426-041-0	01	1	0807-		●
164	EYE; SPRING	1-31426-041-0	01	1	0807-	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE 14" CLUTCH(WF6)	1-47477-789-0	01	1	0803-0806		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE 14" CLUTCH(WF6)	1-47477-789-0	01	1	0807-		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0807-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-159-0	01	1	0807-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6)	1-31800-510-2	01	1	0803-		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-525-1	01	1	0807-	●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6)	1-09625-002-0	02	1	0803-		●
290	BEARING; NEEDLE 14" CLUTCH(WF6) NTN	1-09811-002-1	02	1	0803-		●

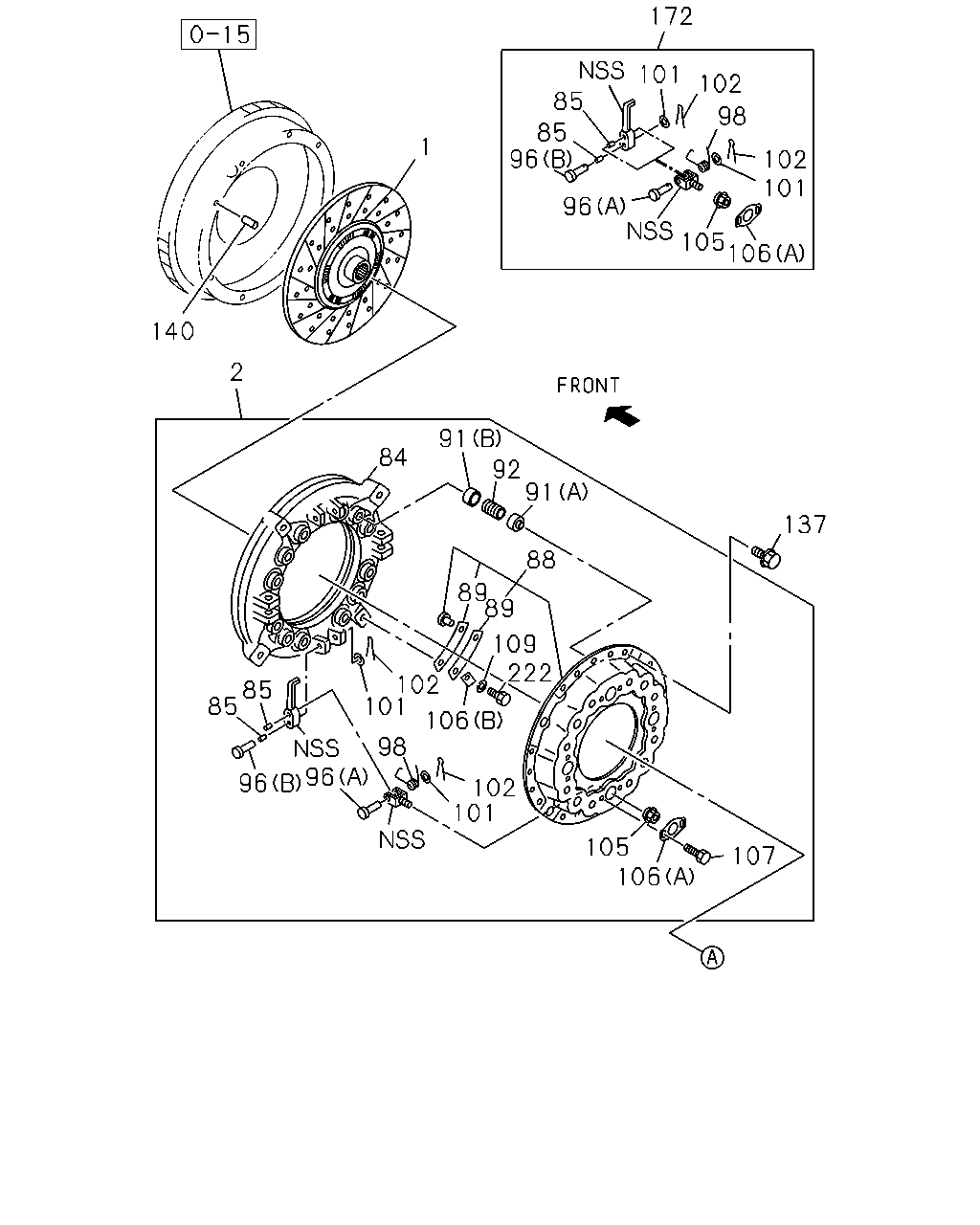

172 101 102 85 98 85 96 1 102 101 96 105 106 140 2 91 92 91 84 137 88 89 89 109 222 102 101 85 85 106 98 96 96 102 101 105 106 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-140-0	01	1	1411-	●	●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-971-1	01	1	0803-1401	●	●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31260-040-1	01	1	1402-	●	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-147-0	01	1	0803-	●	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-411-0	01	1	0803-	●	●
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-136-0	01	1	0803-	●	●
85	BUSHING; RELEASE LEVER 14" CLUTCH(WF6)	9-31239-116-0	08	1	0803-	●	●
88	COVER SUB ASM; CLU 14" CLUTCH(WF6)	1-31211-038-0	01	1	0803-	●	●
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	0803-	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	08	1	0803-	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	08	1	0803-	●	●
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-095-0	08	1	0803-	●	●
96	PIN; RELEASE LEVER 14" CLUTCH(WF6) (A) L=49.0	1-31232-005-0	04	1	0803-	●	●
96	PIN; RELEASE LEVER 14" CLUTCH(WF6) (B) L=57.0	1-31232-014-0	04	1	0803-	●	●
98	SPRING; RETURN 14" CLUTCH(WF6)	1-31233-003-0	04	1	0803-	●	●
101	WASHER; RELEASE LEVER 14" CLUTCH(WF6)	1-31239-058-0	08	1	0803-	●	●
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	0803-	●	●
105	NUT; SUPPORT 14" CLUTCH(WF6)	1-31235-014-0	04	1	0803-	●	●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	04	1	0803-	●	●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (A)	1-31239-019-0	04	1	0803-	●	●
107	BOLT; LK PLATE 14" CLUTCH(WF6)	1-31239-061-0	08	1	0803-	●	●
109	WASHER; LK,STRAP 14" CLUTCH(WF6) ID=10.2	0-91510-510-0	04	1	0803-	●	●
137	BOLT; CLU COVER 14" CLUTCH(WF6) M10X20 FLANGE	0-28151-020-0	12	1	0803-	●	●
140	PIN; STRAIGHT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25	8-94410-361-0	02	1	0803-	●	●
172	LEVER KIT; RELEASE,CLU 14" CLUTCH(WF6)	1-87831-170-1	01	1	0803-	●	●
222	BOLT; STRAP 14" CLUTCH(WF6)	1-31239-059-0	04	1	0803-	●	●

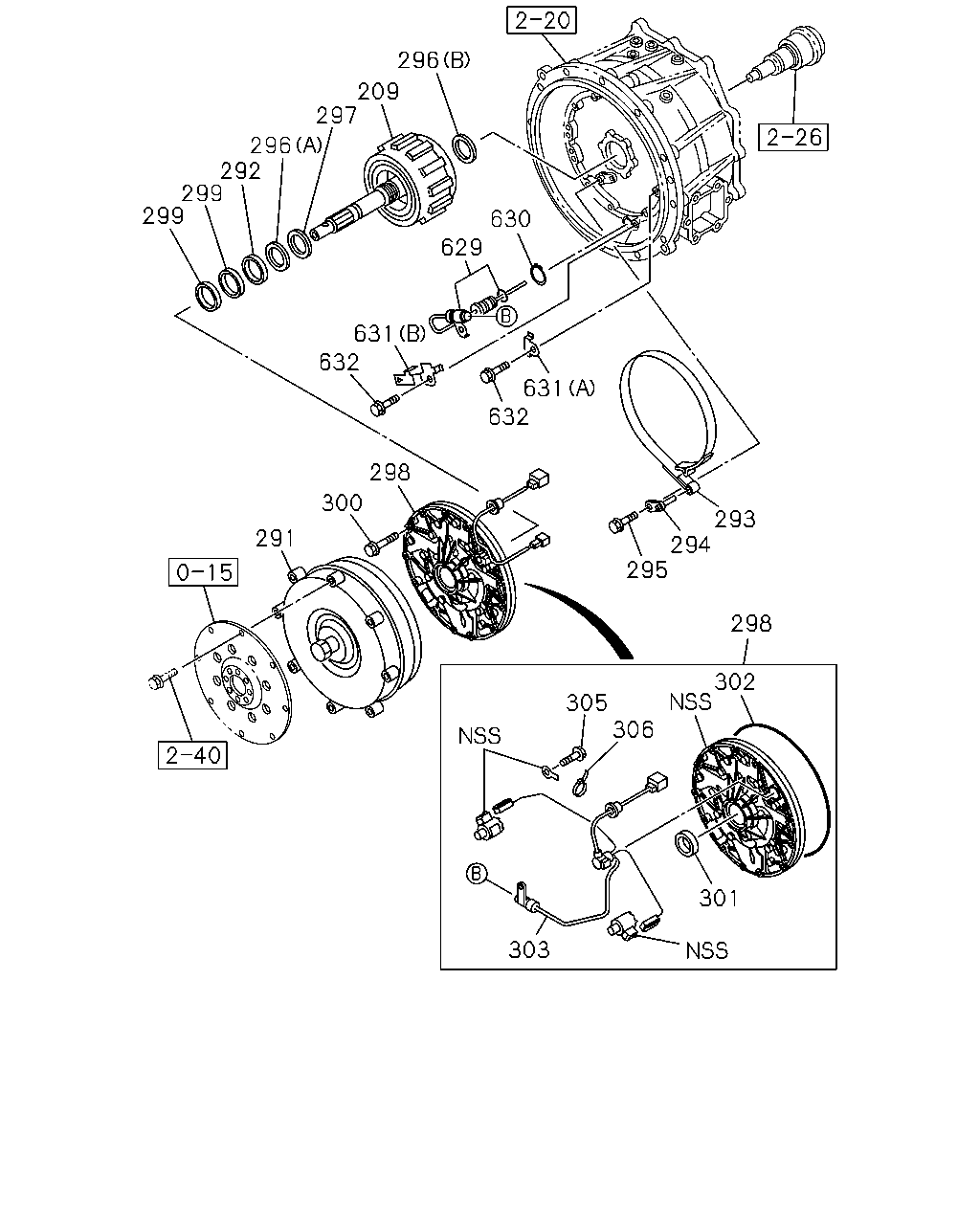

296 209 297 296 292 299 299 630 629 631 632 631 632 298 300 293 294 295 291 298 302 305 306 301 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
209	CLUTCH ASM TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98044-527-3	01	1	0803-1412	●
209	CLUTCH ASM TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98275-315-0	01	1	1501-	●
291	COUPLING; FLUID TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98009-304-2	01	1	0803-1308	●
291	COUPLING; FLUID TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98248-559-1	01	1	1309-	●
292	RING; SEAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-329-0	01	1	0803-	●
293	BAND; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-651-0	01	1	0803-	●
294	PIN; ANCHOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-703-0	01	1	0803-	●
295	BOLT; ANCHOR PIN TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●
296	BEARING; THRUST TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97255-688-0	01	1	0803-	●
296	BEARING; THRUST TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97255-689-0	01	1	0803-	●
297	WASHER; THRUST TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97300-070-0	01	1	0803-	●
298	PUMP ASM; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98041-299-0	01	1	0803-0803	●
298	PUMP ASM; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98107-925-2	01	1	0804-	●
299	RING; SEAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-330-0	02	1	0803-	●
300	BOLT; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X45 FLANGE	0-28050-845-0	11	1	0803-	●
301	SEAL; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-811-0	01	1	0803-	●
302	RING; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-188-0	01	1	0803-	●
303	HARNESS ASM; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-613-1	01	1	0803-	●
305	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	0-28050-612-0	01	1	0803-	●
305	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE	0-28650-616-0	01	1	0803-	●
306	CLIP; BAND TRANSMISSION CONTROL-SMOOTHER(8GF) L=100	8-94279-939-0	02	1	0803-	●
629	SENSOR; OIL TEMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-895-0	01	1	0803-	●
630	RING; SNAP TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17.5	9-09180-019-0	01	1	0803-	●
631	PLATE; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98021-285-0	02	1	0803-	●
631	PLATE; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98023-254-0	01	1	0803-	●
632	BOLT; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	03	1	0803-	●
