1-50 — EXHAUST PIPE AND SILENCER (#14766) — 265 parça

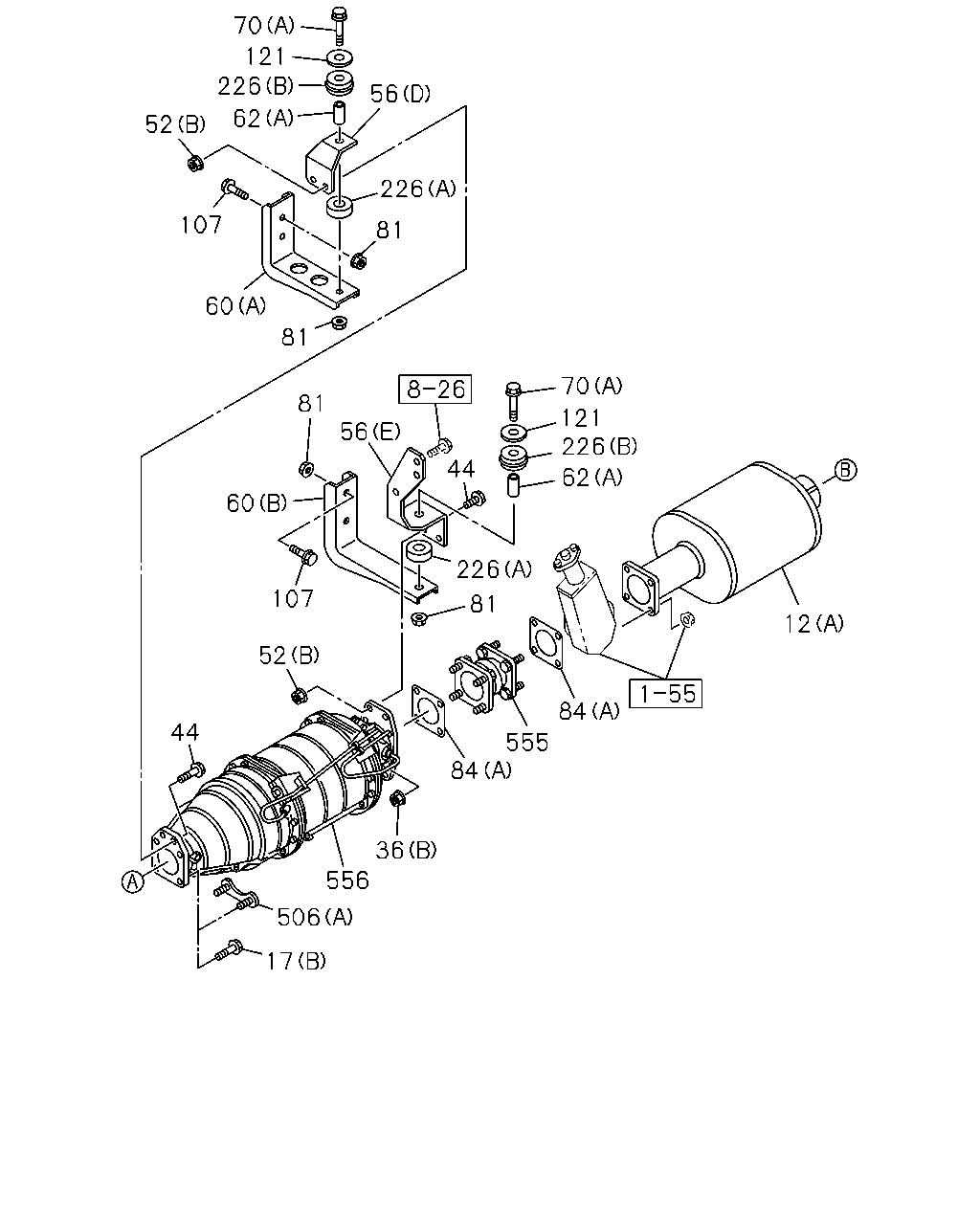

çizim 144562
70 121 226 56 62 52 226 107 81 60 81 70 81 121 226 56 44 62 60 226 107 81 12 52 84 44 555 84 36 556 506 17
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH
WHEEL BASE 3400MM(34W) (B) 		8-98070-098-2 01 1 0803-
12 SILENCER ASM; EXH
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) 		8-98041-921-0 01 1 0803-
17 BOLT; EXH PIPE
KD PREPARATORY PACK<6HF> (B) M12X35 FLANGE 		0-28051-235-0 04 1 1204-
17 BOLT; EXH PIPE
WHEEL BASE 3400MM(34W) (A) M10X35 FLANGE 		0-28651-035-0 02 1 0803-
36 NUT; EXH PIPE
WHEEL BASE 3400MM(34W) (D) M10 FLANGE 		0-91180-210-0 02 1 0803-
36 NUT; EXH PIPE
WHEEL BASE 3400MM(34W) (C) M12 FLANGE 		0-91180-212-0 04 1 0803-
36 NUT; EXH PIPE
(B) M10 		0-91110-510-0 04 1 0803-
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 0803-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 0803-
52 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) M10 FLANGE 		0-91180-210-0 02 1 0810-
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 08 1 0803-0809
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 06 1 0810-
52 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 04 1 0803-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3400MM(34W) (F) 		8-98070-631-0 01 1 0803-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3400MM(34W) (A) 		8-98074-822-1 01 1 0803-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3400MM(34W) (G) 		8-98074-823-0 01 1 0803-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) 		1-22131-584-0 01 1 0803-1309
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) 		8-98245-522-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (C) 		8-98059-755-0 01 1 0803-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (D) 		8-98074-824-1 01 1 0803-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (E) 		8-98074-825-0 01 1 0803-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3400MM(34W) (C) 		8-98059-710-1 01 1 0803-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3400MM(34W) (F) 		8-98072-015-0 01 1 0803-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) 		1-22152-274-1 01 1 0803-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (E) 		8-98059-753-1 01 1 0803-1309
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (E) 		8-98245-530-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (D) 		8-98070-640-0 01 1 0803-1309
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (D) 		8-98245-521-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0803-
62 TUBE; DIST,BRKT
WHEEL BASE 3400MM(34W) (A) L=39 		8-98060-852-0 04 1 0803-
62 TUBE; DIST,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) L=22 		1-22159-392-0 01 1 0803-0906
62 TUBE; DIST,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) L=22 		9-22159-024-0 01 1 0907-
62 TUBE; DIST,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) L=39 		8-98060-852-0 01 1 0803-
62 TUBE; DIST,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) L=39 		8-98060-852-0 01 1 0803-
62 TUBE; DIST,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) L=39 		8-98060-852-0 01 1 0803-
70 BOLT; BRKT
WHEEL BASE 3400MM(34W) (A) M10X70 FLANGE 		0-28051-070-0 04 1 0803-
70 BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) M10X50 FLANGE 		0-28051-050-0 01 1 0803-
70 BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0803-
70 BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0803-
70 BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0803-
81 NUT; BRKT
WHEEL BASE 3400MM(34W) M10 FLANGE 		0-91180-210-0 04 1 0803-
81 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) M10 FLANGE 		0-91180-210-0 01 1 0803-
81 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) M10 FLANGE 		0-91180-210-0 01 1 0803-
81 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) M10 FLANGE 		0-91180-210-0 01 1 0803-
81 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) M10 FLANGE 		0-91180-210-0 01 1 0803-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0803-
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0803-
84 GASKET; EXH PIPE
(A) ID=64 		8-97373-108-0 02 1 0803-
107 BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) M10X35 FLANGE 		0-28651-035-0 02 1 0803-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0803-
121 WASHER; PL,BRKT
WHEEL BASE 3400MM(34W) ID=11 OD=54 		1-09503-154-2 04 1 0803-
121 WASHER; PL,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ID=11 OD=54 		1-09503-154-2 01 1 0803-
121 WASHER; PL,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ID=11 OD=54 		1-09503-154-2 01 1 0803-
121 WASHER; PL,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ID=11 OD=54 		1-09503-154-2 01 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 3400MM(34W) (A) 		8-94457-277-1 04 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 3400MM(34W) (B) 		8-94457-278-1 04 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) 		8-94457-277-1 01 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) 		8-94457-277-1 01 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) 		8-94457-277-1 01 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) 		8-94457-278-1 01 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) 		8-94457-278-1 01 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) 		8-94457-278-1 01 1 0803-
506 BRACKET; STUD
WHEEL BASE 3400MM(34W) (B) 		1-22134-214-0 02 1 0803-
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0803-1203
506 BRACKET; STUD
EXC. KD PREPARATORY PACK<6HF> (A) M12X35 		1-22131-963-0 02 1 1204-
555 PIPE; EXH,DPD 8-98060-847-0 01 1 0803-
556 DPD ASM 8-97613-331-6 01 1 0803-1010
556 DPD ASM 8-97622-883-4 01 1 1011-

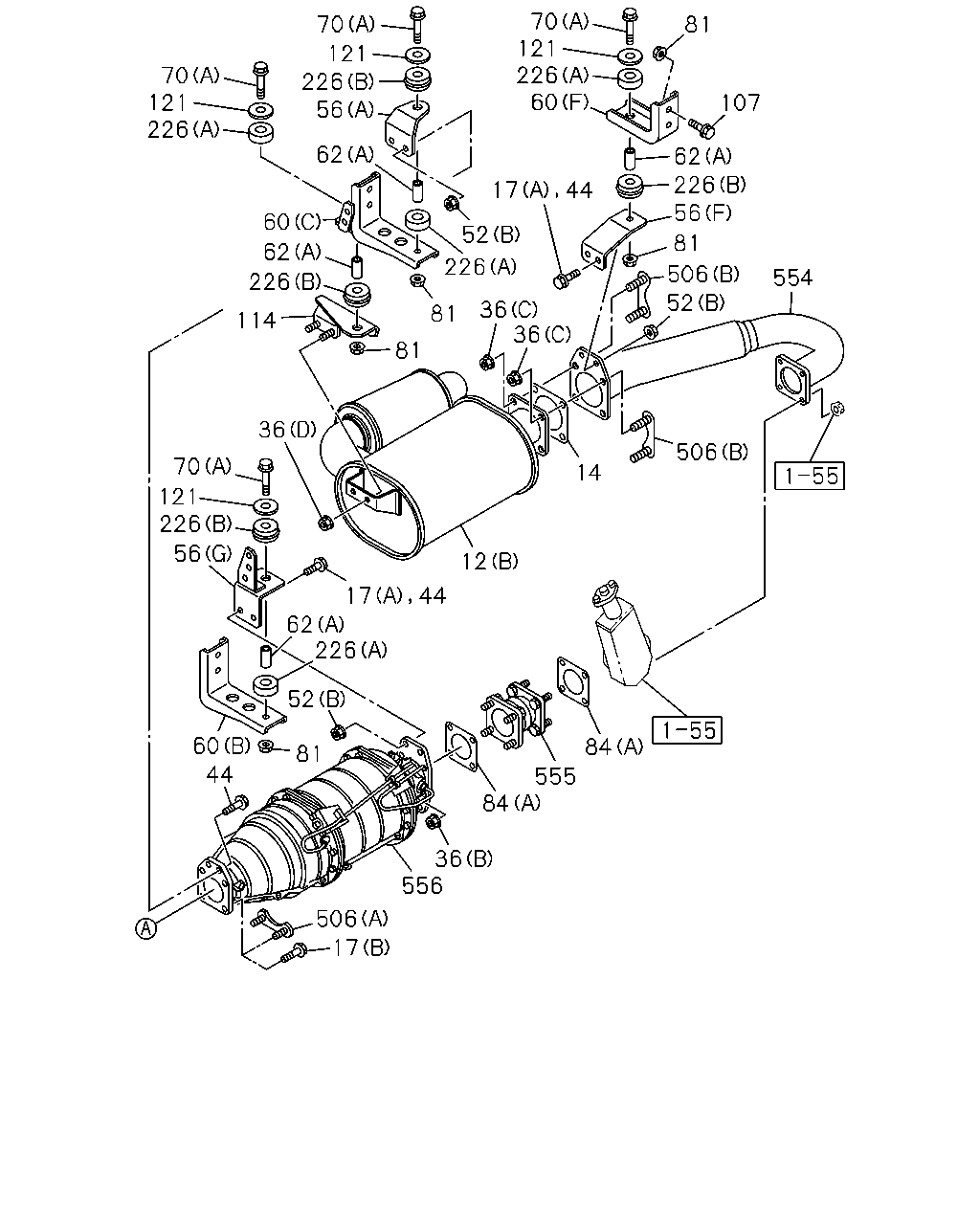

çizim 144567
70 121 226 60 70 81 121 226 56 70 121 226 107 62 62 226 56 17 44 60 52 81 62 226 506 554 226 52 36 36 81 114 81 36 506 70 14 121 226 56 12 17 44 62 226 52 60 84 81 44 555 84 36 556 506 17
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH
WHEEL BASE 3400MM(34W) (B) 		8-98070-098-2 01 1 0803-
12 SILENCER ASM; EXH
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) 		8-98041-921-0 01 1 0803-
14 GASKET; SILENCER TO EXH PIPE
WHEEL BASE 3400MM(34W) 		1-22116-042-0 01 1 0803-
17 BOLT; EXH PIPE
KD PREPARATORY PACK<6HF> (B) M12X35 FLANGE 		0-28051-235-0 04 1 1204-
17 BOLT; EXH PIPE
WHEEL BASE 3400MM(34W) (A) M10X35 FLANGE 		0-28651-035-0 02 1 0803-
36 NUT; EXH PIPE
WHEEL BASE 3400MM(34W) (D) M10 FLANGE 		0-91180-210-0 02 1 0803-
36 NUT; EXH PIPE
WHEEL BASE 3400MM(34W) (C) M12 FLANGE 		0-91180-212-0 04 1 0803-
36 NUT; EXH PIPE
(B) M10 		0-91110-510-0 04 1 0803-
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 0803-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 0803-
52 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) M10 FLANGE 		0-91180-210-0 02 1 0810-
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 08 1 0803-0809
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 06 1 0810-
52 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 04 1 0803-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3400MM(34W) (F) 		8-98070-631-0 01 1 0803-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3400MM(34W) (A) 		8-98074-822-1 01 1 0803-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3400MM(34W) (G) 		8-98074-823-0 01 1 0803-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) 		1-22131-584-0 01 1 0803-1309
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) 		8-98245-522-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (C) 		8-98059-755-0 01 1 0803-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (D) 		8-98074-824-1 01 1 0803-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (E) 		8-98074-825-0 01 1 0803-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3400MM(34W) (C) 		8-98059-710-1 01 1 0803-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3400MM(34W) (F) 		8-98072-015-0 01 1 0803-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) 		1-22152-274-1 01 1 0803-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (E) 		8-98059-753-1 01 1 0803-1309
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (E) 		8-98245-530-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (D) 		8-98070-640-0 01 1 0803-1309
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (D) 		8-98245-521-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0803-
62 TUBE; DIST,BRKT
WHEEL BASE 3400MM(34W) (A) L=39 		8-98060-852-0 04 1 0803-
62 TUBE; DIST,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) L=22 		1-22159-392-0 01 1 0803-0906
62 TUBE; DIST,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) L=22 		9-22159-024-0 01 1 0907-
62 TUBE; DIST,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) L=39 		8-98060-852-0 01 1 0803-
62 TUBE; DIST,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) L=39 		8-98060-852-0 01 1 0803-
62 TUBE; DIST,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) L=39 		8-98060-852-0 01 1 0803-
70 BOLT; BRKT
WHEEL BASE 3400MM(34W) (A) M10X70 FLANGE 		0-28051-070-0 04 1 0803-
70 BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) M10X50 FLANGE 		0-28051-050-0 01 1 0803-
70 BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0803-
70 BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0803-
70 BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0803-
81 NUT; BRKT
WHEEL BASE 3400MM(34W) M10 FLANGE 		0-91180-210-0 04 1 0803-
81 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) M10 FLANGE 		0-91180-210-0 01 1 0803-
81 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) M10 FLANGE 		0-91180-210-0 01 1 0803-
81 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) M10 FLANGE 		0-91180-210-0 01 1 0803-
81 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) M10 FLANGE 		0-91180-210-0 01 1 0803-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0803-
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0803-
84 GASKET; EXH PIPE
(A) ID=64 		8-97373-108-0 02 1 0803-
107 BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) M10X35 FLANGE 		0-28651-035-0 02 1 0803-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0803-
114 BRACKET; EXH SILENCER
WHEEL BASE 3400MM(34W) 		1-22139-285-0 01 1 0803-
121 WASHER; PL,BRKT
WHEEL BASE 3400MM(34W) ID=11 OD=54 		1-09503-154-2 04 1 0803-
121 WASHER; PL,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ID=11 OD=54 		1-09503-154-2 01 1 0803-
121 WASHER; PL,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ID=11 OD=54 		1-09503-154-2 01 1 0803-
121 WASHER; PL,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ID=11 OD=54 		1-09503-154-2 01 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 3400MM(34W) (A) 		8-94457-277-1 04 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 3400MM(34W) (B) 		8-94457-278-1 04 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) 		8-94457-277-1 01 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) 		8-94457-277-1 01 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) 		8-94457-277-1 01 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) 		8-94457-278-1 01 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) 		8-94457-278-1 01 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) 		8-94457-278-1 01 1 0803-
506 BRACKET; STUD
WHEEL BASE 3400MM(34W) (B) 		1-22134-214-0 02 1 0803-
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0803-1203
506 BRACKET; STUD
EXC. KD PREPARATORY PACK<6HF> (A) M12X35 		1-22131-963-0 02 1 1204-
554 PIPE; EXH,SILENCER
WHEEL BASE 3400MM(34W) 		8-98056-919-1 01 1 0803-
555 PIPE; EXH,DPD 8-98060-847-0 01 1 0803-
556 DPD ASM 8-97613-331-6 01 1 0803-1010
556 DPD ASM 8-97622-883-4 01 1 1011-

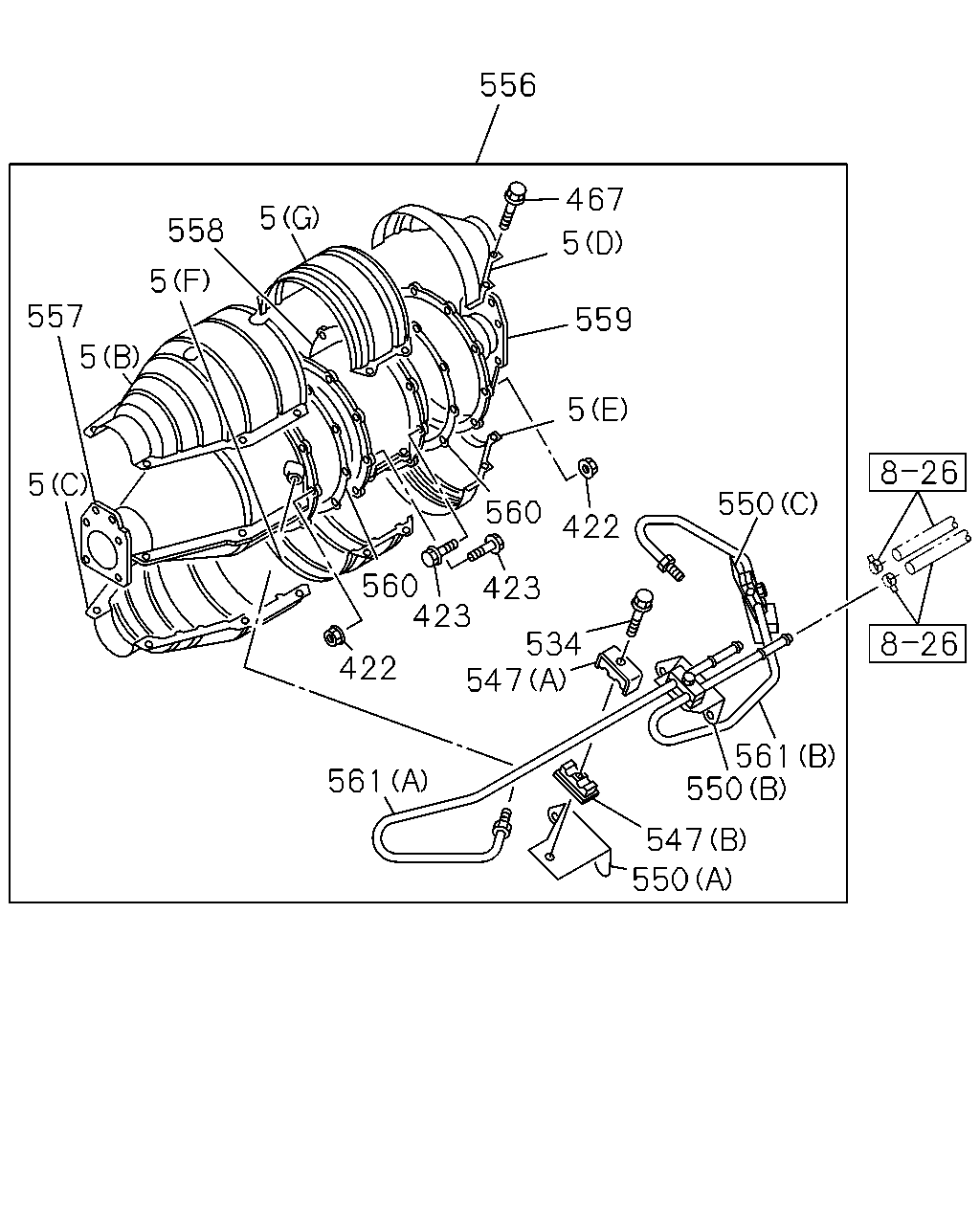

çizim 144569
556 467 5 558 5 5 557 559 5 5 5 550 560 422 560 423 423 534 547 422 561 550 561 547 550
BalonParca AdiParca NoAdetTipApplied Date
5 PROTECTOR; HEAT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98044-122-0 01 1 0803-
5 PROTECTOR; HEAT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98044-122-0 01 1 0803-
5 PROTECTOR; HEAT
(G) 		8-97605-172-0 01 1 0803-
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0803-
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0803-
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0803-
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0803-
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0803-
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0803-
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0803-
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0803-
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0803-
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0803-
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0803-
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 0803-
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 0803-
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0803-
556 DPD ASM 8-97613-331-6 01 1 0803-1010
556 DPD ASM 8-97622-883-4 01 1 1011-
557 CATALYST ASM 8-97608-055-8 01 1 0803-
558 FILTER ASM 8-97608-057-3 01 1 0803-
559 COVER; RR 8-97611-078-0 01 1 0803-1010
559 COVER; RR 8-97622-887-0 01 1 1011-
560 GASKET; DPD 8-97611-080-0 02 1 0803-
561 PIPE; DPD
(A) 		8-97611-081-0 01 1 0803-1010
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1011-
561 PIPE; DPD
(B) 		8-97611-082-0 01 1 0803-1010
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1011-

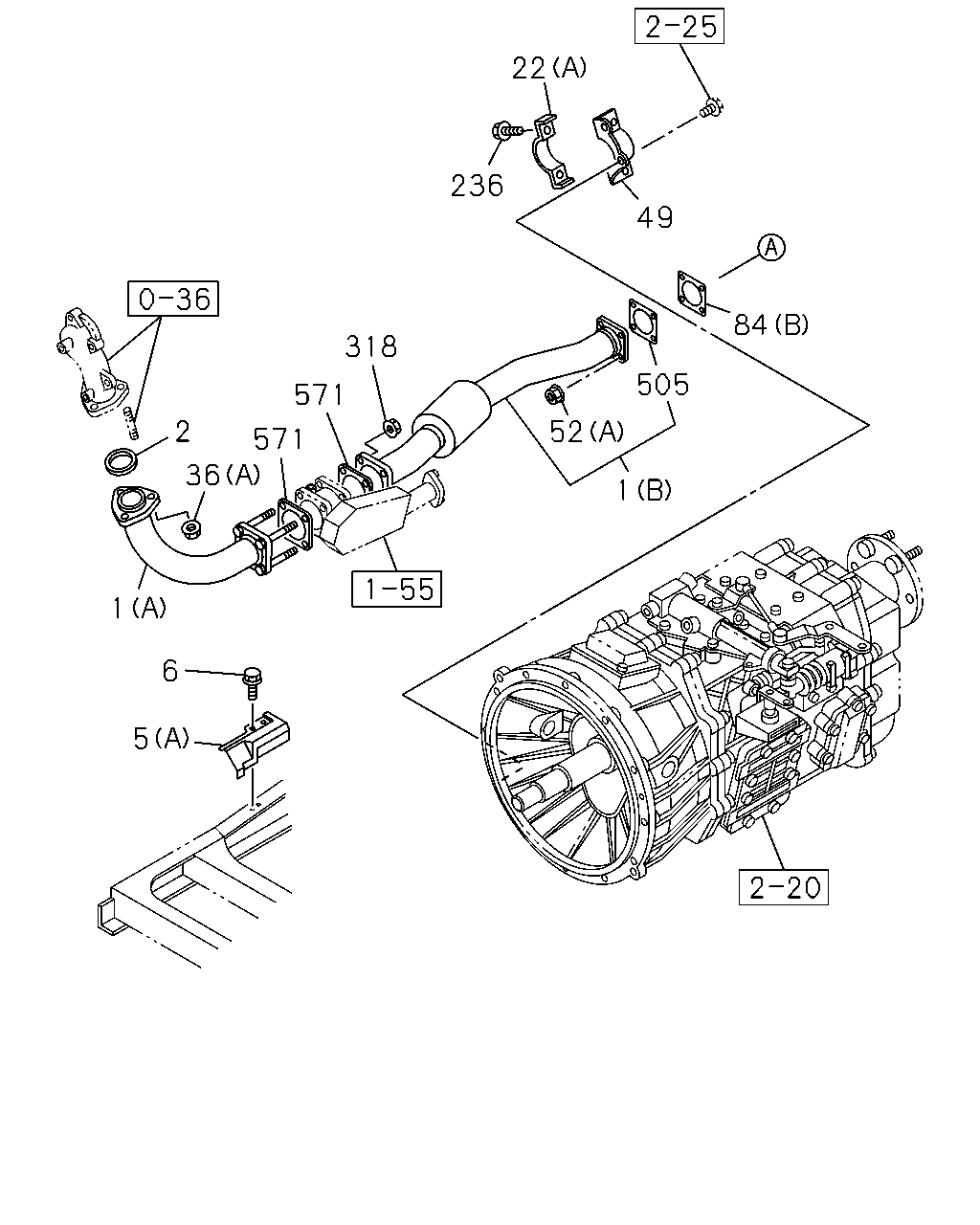

çizim 144571
22 236 49 84 318 505 571 2 52 571 36 1 1 6 5
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
WHEEL BASE 3400MM(34W) (B) 		8-98035-935-4 01 1 0803-1107
1 PIPE; EXH
WHEEL BASE 3400MM(34W) (B) 		8-98198-848-0 01 1 1108-
1 PIPE; EXH
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) 		8-98035-936-4 01 1 0803-1107
1 PIPE; EXH
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) 		8-98198-849-0 01 1 1108-
1 PIPE; EXH
(A) 		8-98043-016-3 01 1 0803-0912
1 PIPE; EXH
(A) 		8-98161-196-0 01 1 1001-1202
1 PIPE; EXH
(A) 		8-98208-160-0 01 1 1203-1303
1 PIPE; EXH
(A) 		8-98243-546-0 01 1 1304-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97381-455-0 01 1 0803-
5 PROTECTOR; HEAT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98044-122-0 01 1 0803-
5 PROTECTOR; HEAT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98044-122-0 01 1 0803-
5 PROTECTOR; HEAT
(G) 		8-97605-172-0 01 1 0803-
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0803-
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0803-
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0803-
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0803-
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0803-
6 BOLT; HEAT PROTECTOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0803-
6 BOLT; HEAT PROTECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE 		0-28650-825-0 02 1 0803-
22 CLAMP; EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) ID=80-84 		1-22133-233-0 02 1 0803-
22 CLAMP; EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) ID=80-84 		1-22133-233-0 02 1 0803-
22 CLAMP; EXH PIPE
(A) 		1-22133-295-0 01 1 0803-1309
22 CLAMP; EXH PIPE
(A) 		8-97646-674-0 01 1 1310-
36 NUT; EXH PIPE
WHEEL BASE 3400MM(34W) (D) M10 FLANGE 		0-91180-210-0 02 1 0803-
36 NUT; EXH PIPE
WHEEL BASE 3400MM(34W) (C) M12 FLANGE 		0-91180-212-0 04 1 0803-
36 NUT; EXH PIPE
(B) M10 		0-91110-510-0 04 1 0803-
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 0803-
49 BRACKET; EXH PIPE TO TRANS 8-98042-786-0 01 1 0803-1301
49 BRACKET; EXH PIPE TO TRANS 8-98234-530-0 01 1 1302-
52 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) M10 FLANGE 		0-91180-210-0 02 1 0810-
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 08 1 0803-0809
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 06 1 0810-
52 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 04 1 0803-
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0803-
84 GASKET; EXH PIPE
(A) ID=64 		8-97373-108-0 02 1 0803-
236 BOLT; PIPE CLAMP TO BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0803-
318 NUT; EXH PIPE,FRT
M8 W/LK WASHER 		8-97581-234-0 04 1 0803-
505 GASKET; CONV TO EXH PIPE
ID=87 		8-94394-391-0 01 1 0803-1107
571 GASKET
ID=64 		8-97373-108-0 02 1 0803-

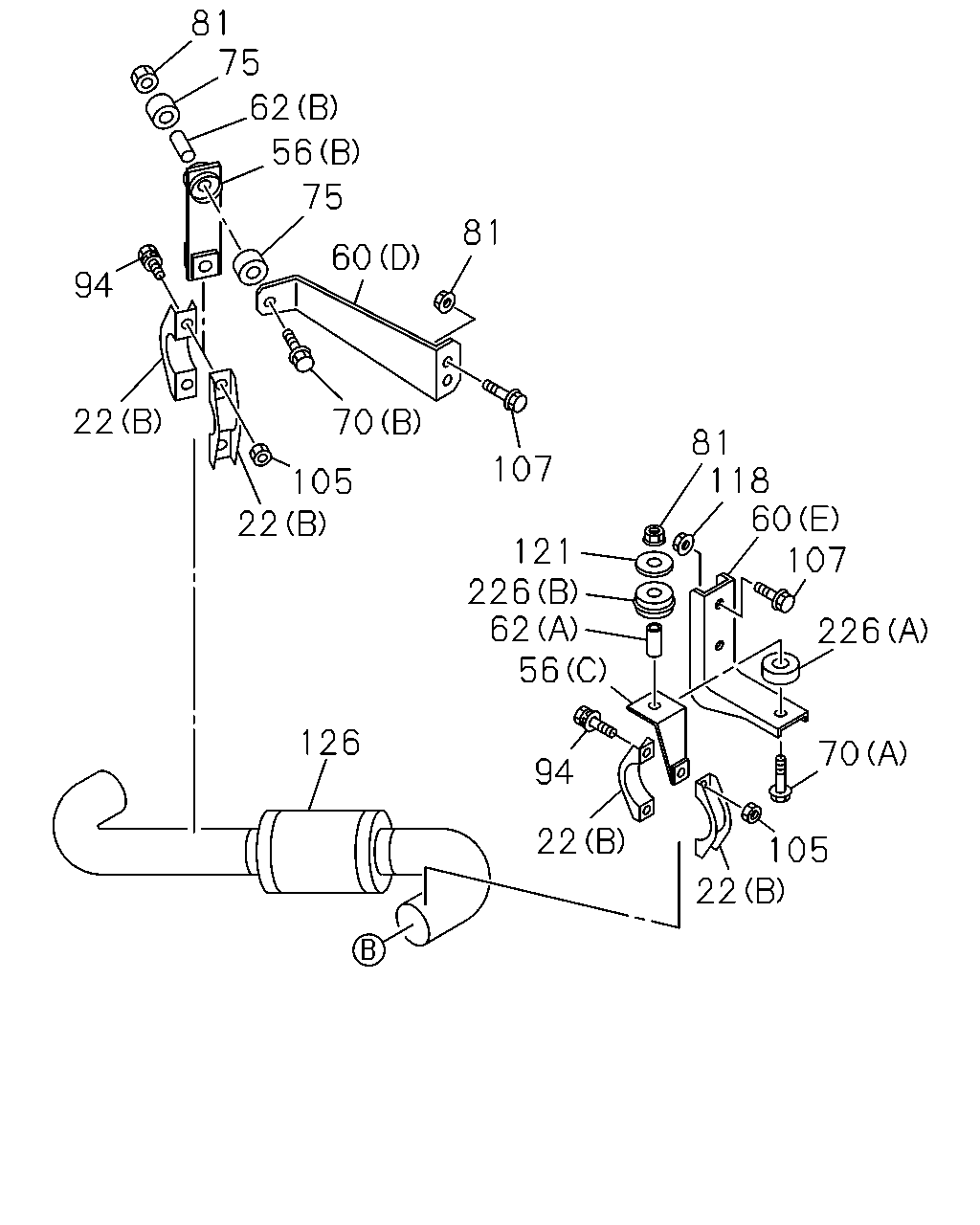

çizim 144573
81 75 62 56 75 81 60 94 22 70 81 118 60 107 107 105 22 121 226 62 56 226 126 70 94 105 22 22
BalonParca AdiParca NoAdetTipApplied Date
22 CLAMP; EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) ID=80-84 		1-22133-233-0 02 1 0803-
22 CLAMP; EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) ID=80-84 		1-22133-233-0 02 1 0803-
22 CLAMP; EXH PIPE
(A) 		1-22133-295-0 01 1 0803-1309
22 CLAMP; EXH PIPE
(A) 		8-97646-674-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3400MM(34W) (F) 		8-98070-631-0 01 1 0803-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3400MM(34W) (A) 		8-98074-822-1 01 1 0803-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3400MM(34W) (G) 		8-98074-823-0 01 1 0803-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) 		1-22131-584-0 01 1 0803-1309
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) 		8-98245-522-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (C) 		8-98059-755-0 01 1 0803-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (D) 		8-98074-824-1 01 1 0803-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (E) 		8-98074-825-0 01 1 0803-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3400MM(34W) (C) 		8-98059-710-1 01 1 0803-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3400MM(34W) (F) 		8-98072-015-0 01 1 0803-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) 		1-22152-274-1 01 1 0803-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (E) 		8-98059-753-1 01 1 0803-1309
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (E) 		8-98245-530-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (D) 		8-98070-640-0 01 1 0803-1309
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (D) 		8-98245-521-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0803-
62 TUBE; DIST,BRKT
WHEEL BASE 3400MM(34W) (A) L=39 		8-98060-852-0 04 1 0803-
62 TUBE; DIST,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) L=22 		1-22159-392-0 01 1 0803-0906
62 TUBE; DIST,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) L=22 		9-22159-024-0 01 1 0907-
62 TUBE; DIST,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) L=39 		8-98060-852-0 01 1 0803-
62 TUBE; DIST,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) L=39 		8-98060-852-0 01 1 0803-
62 TUBE; DIST,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) L=39 		8-98060-852-0 01 1 0803-
70 BOLT; BRKT
WHEEL BASE 3400MM(34W) (A) M10X70 FLANGE 		0-28051-070-0 04 1 0803-
70 BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) M10X50 FLANGE 		0-28051-050-0 01 1 0803-
70 BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0803-
70 BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0803-
70 BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0803-
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) OD=40 		1-22159-193-0 02 1 0803-
81 NUT; BRKT
WHEEL BASE 3400MM(34W) M10 FLANGE 		0-91180-210-0 04 1 0803-
81 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) M10 FLANGE 		0-91180-210-0 01 1 0803-
81 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) M10 FLANGE 		0-91180-210-0 01 1 0803-
81 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) M10 FLANGE 		0-91180-210-0 01 1 0803-
81 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) M10 FLANGE 		0-91180-210-0 01 1 0803-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0803-
94 BOLT; CLAMP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) M10X40 FLANGE 		0-28651-040-0 02 1 0803-
94 BOLT; CLAMP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) M10X40 FLANGE 		0-28651-040-0 02 1 0803-
105 NUT; CLAMP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) M10 FLANGE 		0-91180-210-0 02 1 0803-
105 NUT; CLAMP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) M10 FLANGE 		0-91180-210-0 02 1 0803-
107 BOLT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) M10X35 FLANGE 		0-28651-035-0 02 1 0803-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0803-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0803-
121 WASHER; PL,BRKT
WHEEL BASE 3400MM(34W) ID=11 OD=54 		1-09503-154-2 04 1 0803-
121 WASHER; PL,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ID=11 OD=54 		1-09503-154-2 01 1 0803-
121 WASHER; PL,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ID=11 OD=54 		1-09503-154-2 01 1 0803-
121 WASHER; PL,BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) ID=11 OD=54 		1-09503-154-2 01 1 0803-
126 PIPE; EXH,RR
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) 		8-98043-365-2 01 1 0803-1309
126 PIPE; EXH,RR
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) 		8-98245-503-0 01 1 1310-
226 RUBBER; CUSHION
WHEEL BASE 3400MM(34W) (A) 		8-94457-277-1 04 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 3400MM(34W) (B) 		8-94457-278-1 04 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) 		8-94457-277-1 01 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) 		8-94457-277-1 01 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) 		8-94457-277-1 01 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) 		8-94457-278-1 01 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) 		8-94457-278-1 01 1 0803-
226 RUBBER; CUSHION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B) 		8-94457-278-1 01 1 0803-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
