◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11137 - FRR-LHD(EU)SPACE EU4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#14751) — 63 parça

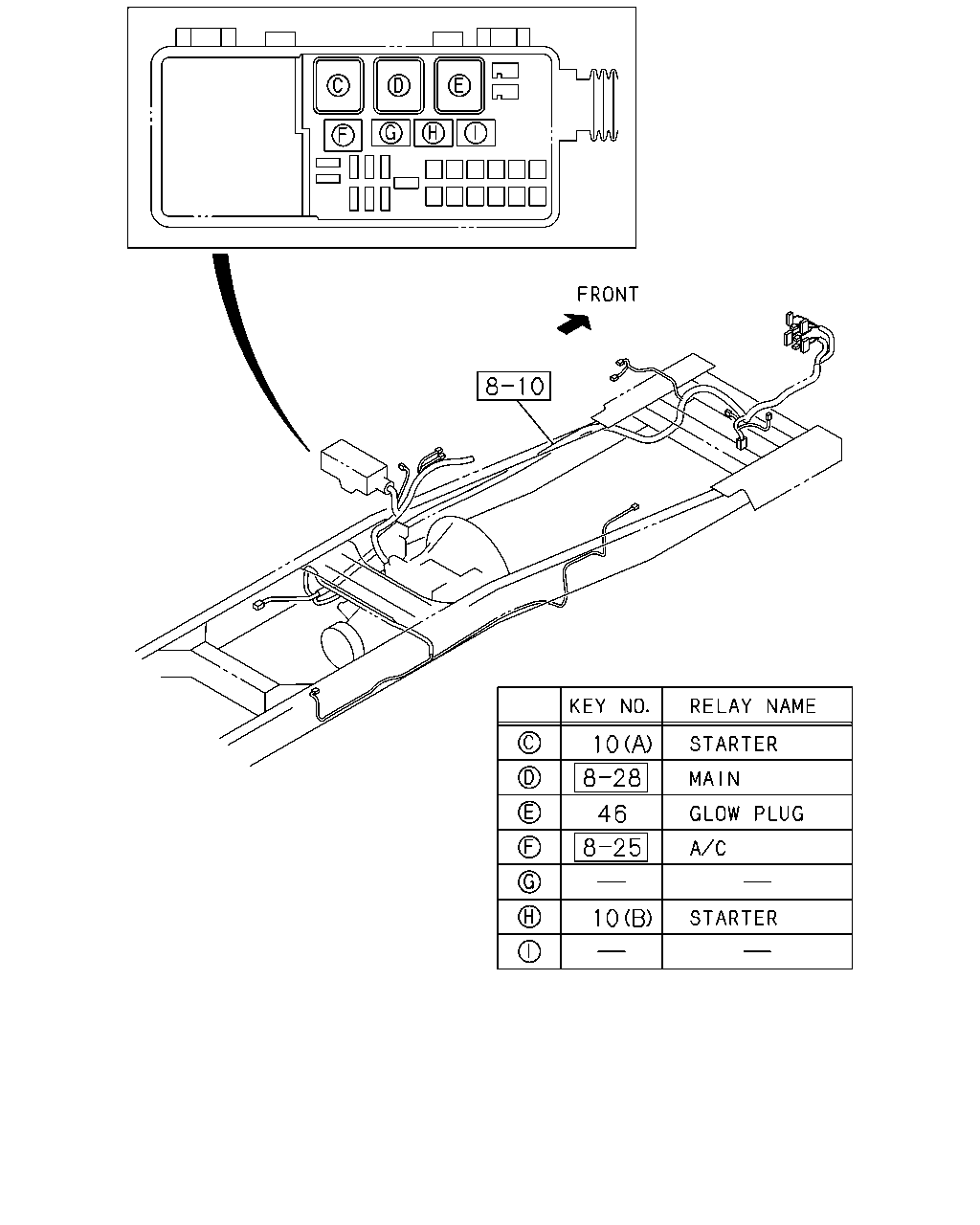

çizim 144539
10 46 10
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0803-1005
10 RELAY; STARTER
(B) 24V 10A PANASONIC 		8-98167-173-0 01 1 1006-
10 RELAY; STARTER
(A) 24V 50A 		8-97264-947-0 01 1 0803-
46 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0803-

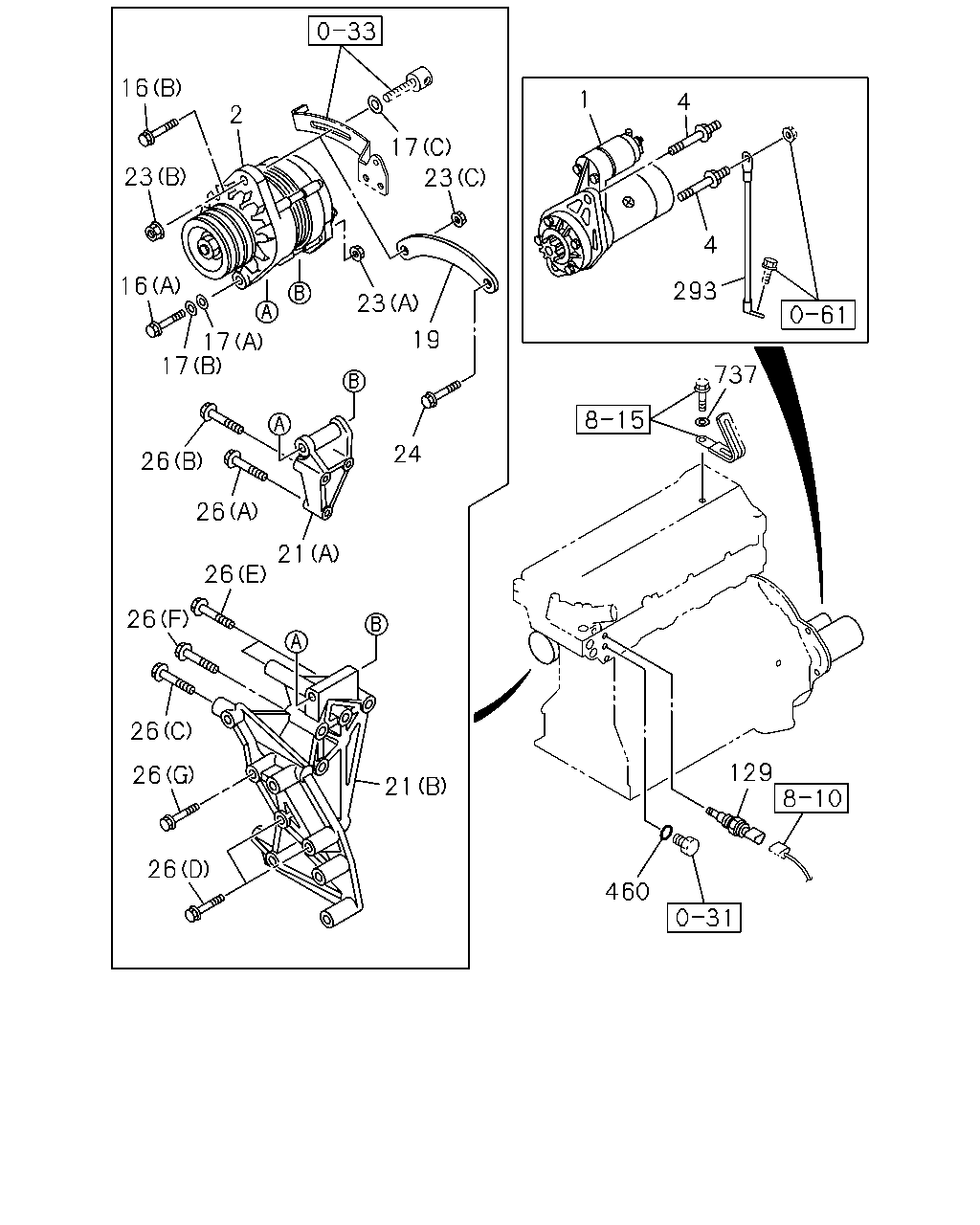

çizim 144540
16 1 4 2 17 23 23 4 16 293 23 19 17 17 737 24 26 26 21 26 26 26 129 26 21 26 460
BalonParca AdiParca NoAdetTipApplied Date
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0803-1010
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011-1207
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311-
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98009-043-2 01 1 0803-1207
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-023-0 01 1 1208-1311
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-260-1 01 1 1312-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-455-4 01 1 0803-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-456-4 01 1 0803-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO 		8-98013-459-3 01 1 0803-1508
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO 		8-98330-085-0 01 1 1509-
4 BOLT; STARTER
M10X15,M14X82 L=110 		8-98029-095-0 02 1 0803-
16 BOLT; GEN
GENERATOR 24V90A(K44) (B) M10X45 FLANGE 		0-28051-045-0 01 1 0803-
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 0803-
17 WASHER; PL,GEN
(A) ID=14.2 		0-91510-514-0 01 1 0803-
17 WASHER; PL,GEN
(B) ID=15 		0-91610-514-0 01 1 0803-
17 WASHER; PL,GEN
(C) ID=12.5 OD=32 		9-09160-712-0 01 1 0803-0803
17 WASHER; PL,GEN
EXC. GENERATOR 24V90A(K44) (C) ID=12.5 OD=32 		9-09160-712-0 01 1 0804-
19 BRACKET; GEN
GENERATOR 24V90A(K44) 		8-98032-273-0 01 1 0803-
21 BRACKET; GEN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-97381-404-0 01 1 0803-
21 BRACKET; GEN
GENERATOR 24V90A(K44) (B) 		8-98032-271-1 01 1 0803-1004
21 BRACKET; GEN
GENERATOR 24V90A(K44) (B) 		8-98075-340-0 01 1 1005-
23 NUT; GEN
GENERATOR 24V90A(K44) (C) M10 FLANGE 		8-97065-439-0 01 1 0803-
23 NUT; GEN
(A) M14 		0-91110-514-0 01 1 0803-
23 NUT; GEN
(B) M12 FLANGE 		0-91180-112-0 01 1 0803-0803
23 NUT; GEN
EXC. GENERATOR 24V90A(K44) (B) M12 FLANGE 		0-91180-112-0 01 1 0804-
24 BOLT; GEN BRKT
GENERATOR 24V90A(K44) M10X20 FLANGE 		0-28151-020-0 02 1 0803-0804
24 BOLT; GEN BRKT
GENERATOR 24V90A(K44) M10X20 FLANGE 		0-28151-020-0 01 1 0805-
26 BOLT; GEN BRKT
GENERATOR 24V90A(K44) (G) M10X25 FLANGE 		0-28751-025-0 02 1 0803-0803
26 BOLT; GEN BRKT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X50 FLANGE 		0-28151-050-0 01 1 0803-
26 BOLT; GEN BRKT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) M10X70 FLANGE 		0-28151-070-0 02 1 0803-
26 BOLT; GEN BRKT
GENERATOR 24V90A(K44) (C) M8X70 FLANGE 		0-28050-870-0 01 1 0803-
26 BOLT; GEN BRKT
GENERATOR 24V90A(K44) (D) M8X90 FLANGE 		0-28050-890-0 02 1 0803-1004
26 BOLT; GEN BRKT
GENERATOR 24V90A(K44) (E) M10X60 FLANGE 		0-28151-060-0 02 1 0803-
26 BOLT; GEN BRKT
GENERATOR 24V90A(K44) (F) M10X70 FLANGE 		0-28151-070-0 01 1 0803-
129 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 0803-1503
129 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1504-
293 CABLE; STARTER EARTH
L=410 		8-97620-375-0 01 1 0803-
460 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 		1-09630-086-0 01 1 0803-
737 WASHER; PL
ID=6.4 OD=18 		0-91610-706-0 01 1 1005-1009
737 WASHER; PL
ID=6.4 OD=18 		0-91610-706-0 02 1 1010-

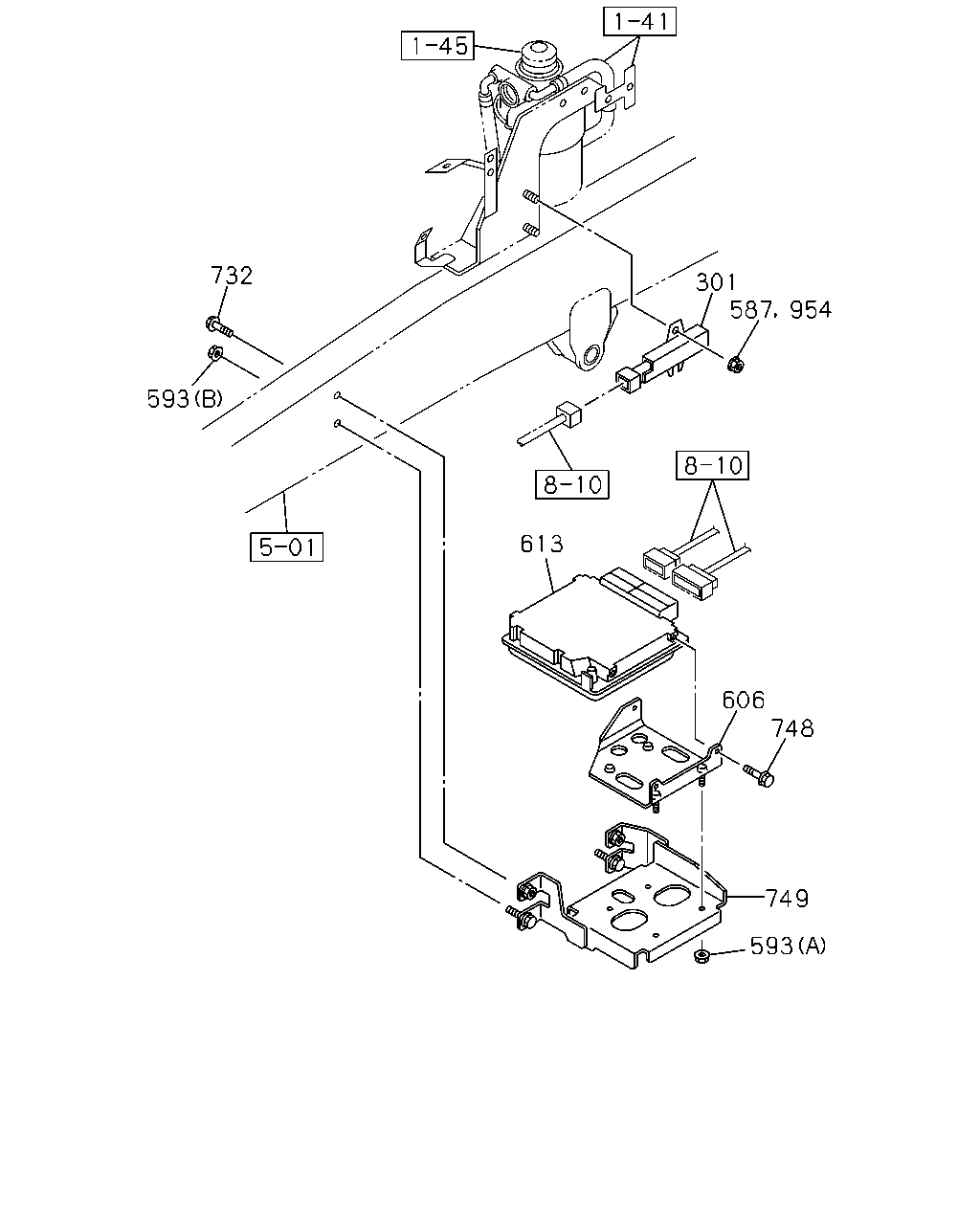

çizim 144541
732 301 587 954 593 613 606 748 749 593
BalonParca AdiParca NoAdetTipApplied Date
301 RESISTOR; DROPPING 8-97357-613-0 01 1 0803-
587 NUT; RESISTOR & RELAY
M6 FLANGE 		0-91180-106-0 02 1 0803-
593 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 04 1 0803-
593 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0803-
606 BRACKET; CONT UNIT 1-53194-675-0 01 1 0803-
613 CONTROL UNIT; ENG
AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98081-141-2 01 1 0803-0805
613 CONTROL UNIT; ENG
AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-414-2 01 1 0806-
613 CONTROL UNIT; ENG
AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-134-2 01 1 0803-0805
613 CONTROL UNIT; ENG
AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98122-411-1 01 1 0806-
613 CONTROL UNIT; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98081-138-2 01 1 0803-0805
613 CONTROL UNIT; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98122-413-1 01 1 0806-
613 CONTROL UNIT; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98101-295-1 01 1 0803-0805
613 CONTROL UNIT; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98122-412-2 01 1 0806-
732 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0803-0804
732 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0805-
748 BOLT; CONT UNIT
M6X12 FLANGE 		0-28050-612-0 03 1 0803-
749 STAY; CONT UNIT 8-98056-967-0 01 1 0803-
954 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 02 1 0803-1006
