Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10633 - FVZ-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-05 - FRONT PANEL
▶
6-05 — FRONT PANEL
(#1474) — 46 parça
◀

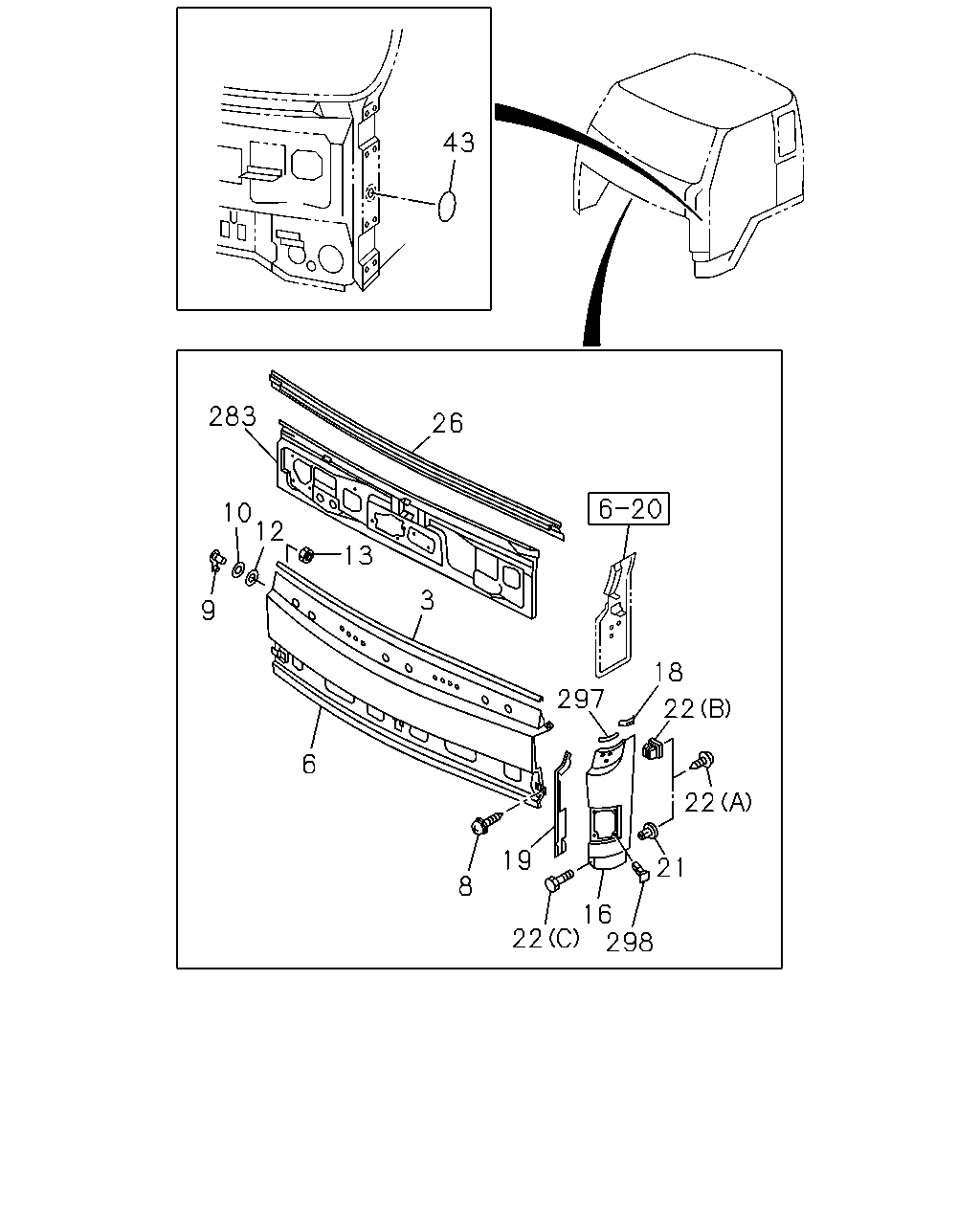

[605A] NO.1 (24 parça)

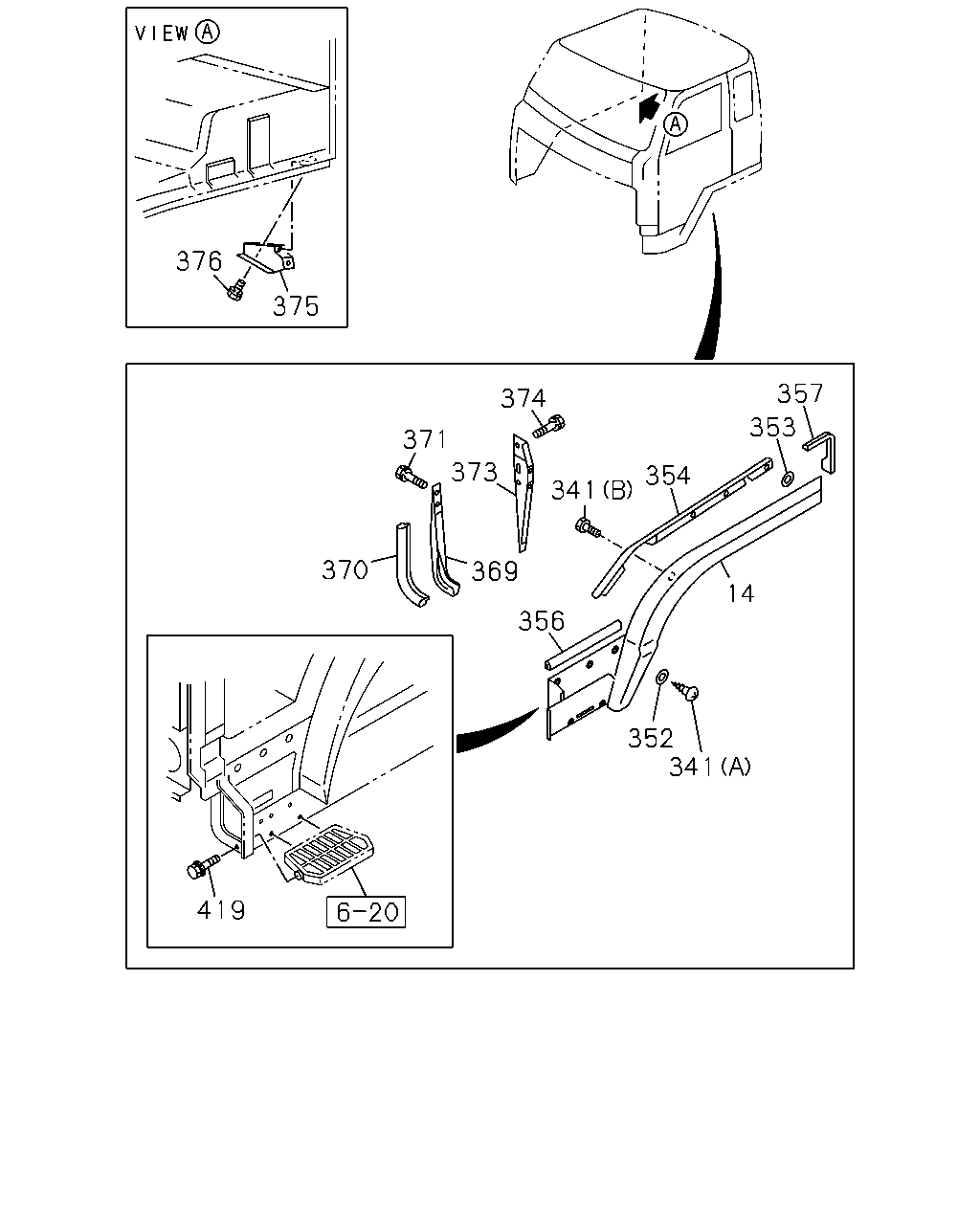

[605A] NO.2 (22 parça)
▶
43
283
26
10
9
12
13
3
6
297
18
22
22
21
19
8
16
22
298
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
FINISHER; FRT PANEL UPR
L=2100
1-71907-093-0
01
1
9203-
6
PANEL; FRONT
1-65480-910-0
01
1
9203-
8
SCREW; FRT PANEL
M6X16 W/LK&PL WASHER
1-09980-574-0
07
1
9203-
9
FASTENER; FRT PANEL TO SIDE PANEL
1-65570-152-1
02
1
9203-
10
WASHER; FRT PANEL TO SIDE PANEL
ID=9 OD=20
1-09985-145-0
02
1
9203-
12
WASHER; PL,FRT PANEL TO SIDE PANEL
ID=8.4 OD=22
9-09160-708-0
02
1
9203-
13
NUT; FRT PANEL TO SIDE PANEL
M8 FLANGE
1-09984-064-0
02
1
9203-
16
PANEL; FRONT,SIDE
1-65480-536-8
01
1
9203-
16
PANEL; FRONT,SIDE
1-65480-533-8
01
1
9203-
18
SEAL; A-POST UPR,FRT SIDE PANEL
1-65570-172-1
01
1
9203-
18
SEAL; A-POST UPR,FRT SIDE PANEL
1-65570-171-1
01
1
9203-
19
SEAL; FRT SIDE PANEL
1-65580-195-0
01
1
9203-
19
SEAL; FRT SIDE PANEL
1-65580-194-0
01
1
9203-
21
GROMMET; SCREW,FRT SIDE PANEL
D=10X10 L=8 M6
1-09983-119-0
02
1
9203-
22
SCREW; FRT PANEL SIDE
(C) M6X16 W/LK&PL WASHER
1-09980-574-0
02
1
9203-
22
SCREW; FRT PANEL SIDE
(A) M6X16 W/LK&PL WASHER
1-09981-426-0
04
1
9203-
22
SCREW; FRT PANEL SIDE
(B) D=10X16 L=8 M6
1-09983-118-0
02
1
9203-
26
PANEL; REINF,FRT PANEL CENTER,INNER
1-61480-408-5
01
1
9203-
43
GROMMET; LOCATION HOLE,A-POST
OD=36 BLACK
1-76798-018-0
02
1
9203-
283
PANEL ASM; FRT CENTER,INNER
1-61480-410-4
01
1
9203-9311
283
PANEL ASM; FRT CENTER,INNER
EXC. AUSTRALIA EQUIPMENT(RR3)
1-61480-410-4
01
1
9312-
283
PANEL ASM; FRT CENTER,INNER
AUSTRALIA EQUIPMENT(RR3)
1-61480-756-0
01
1
9312-
297
FINISHER; SIDE PANEL,CAB
L=190
1-71998-300-0
02
1
9203-
298
GROMMET; SCREW,LAMP,FRT SIDE PANEL
8-94279-039-0
08
1
9203-
376
375
374
373
371
370
369
341
354
353
357
14
356
352
341
419
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
FENDER; FRT
1-65480-727-4
01
1
9203-
14
FENDER; FRT
1-65480-726-4
01
1
9203-
341
BOLT; FENDER TO COWL
(A) M6X20 W/LK&PL WASHER
1-09980-493-0
06
1
9203-
341
BOLT; FENDER TO COWL
(B) M6X20 W/LK&PL WASHER
1-09980-495-0
12
1
9203-
352
WASHER; NYLON
1-09985-171-0
06
1
9203-
353
SPACER; FENDER TO CAB
ID=12.5
1-09503-171-0
02
1
9501-
354
SEAL; FENDER SIDE
1-71998-307-1
01
1
9203-
354
SEAL; FENDER SIDE
1-71998-306-1
01
1
9203-
356
FINISHER; STEP CLOSING,FENDER
1-71998-228-0
01
1
9203-
356
FINISHER; STEP CLOSING,FENDER
1-71998-148-1
01
1
9203-
357
FINISHER; WIDE FENDER RR
1-71998-311-0
01
1
9203-
357
FINISHER; WIDE FENDER RR
1-71998-310-0
01
1
9203-
369
SUPPORT; FENDER STEP FRT
1-65680-300-3
01
1
9203-
369
SUPPORT; FENDER STEP FRT
1-65680-299-3
01
1
9203-
370
PROTECTOR; NYLON TUBE
SERVICED BY L=240
1-71998-400-0
01
1
9203-
371
BOLT; SUPPORT,FENDER STEP FRT
M8X20 W/LK&PL WASHER
1-09980-496-0
04
1
9203-
373
SUPPORT; FENDER STEP REAR
1-65680-280-5
01
1
9203-
373
SUPPORT; FENDER STEP REAR
1-65680-279-5
01
1
9203-
374
BOLT; SUPPORT,FENDER STEP REAR
M8X20 W/LK&PL WASHER
1-09980-496-0
08
1
9203-
375
SUPPORT; FENDER REAR
1-65680-663-0
01
1
9203-
376
BOLT; SUPPORT,FENDER RR
M6X20 W/LK&PL WASHER
1-09980-495-0
01
1
9203-
419
BOLT; STEP
M8X20 W/LK&PL WASHER
1-09980-496-0
08
1
9203-
