◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51577 - UCR/UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#147356) — 54 parça

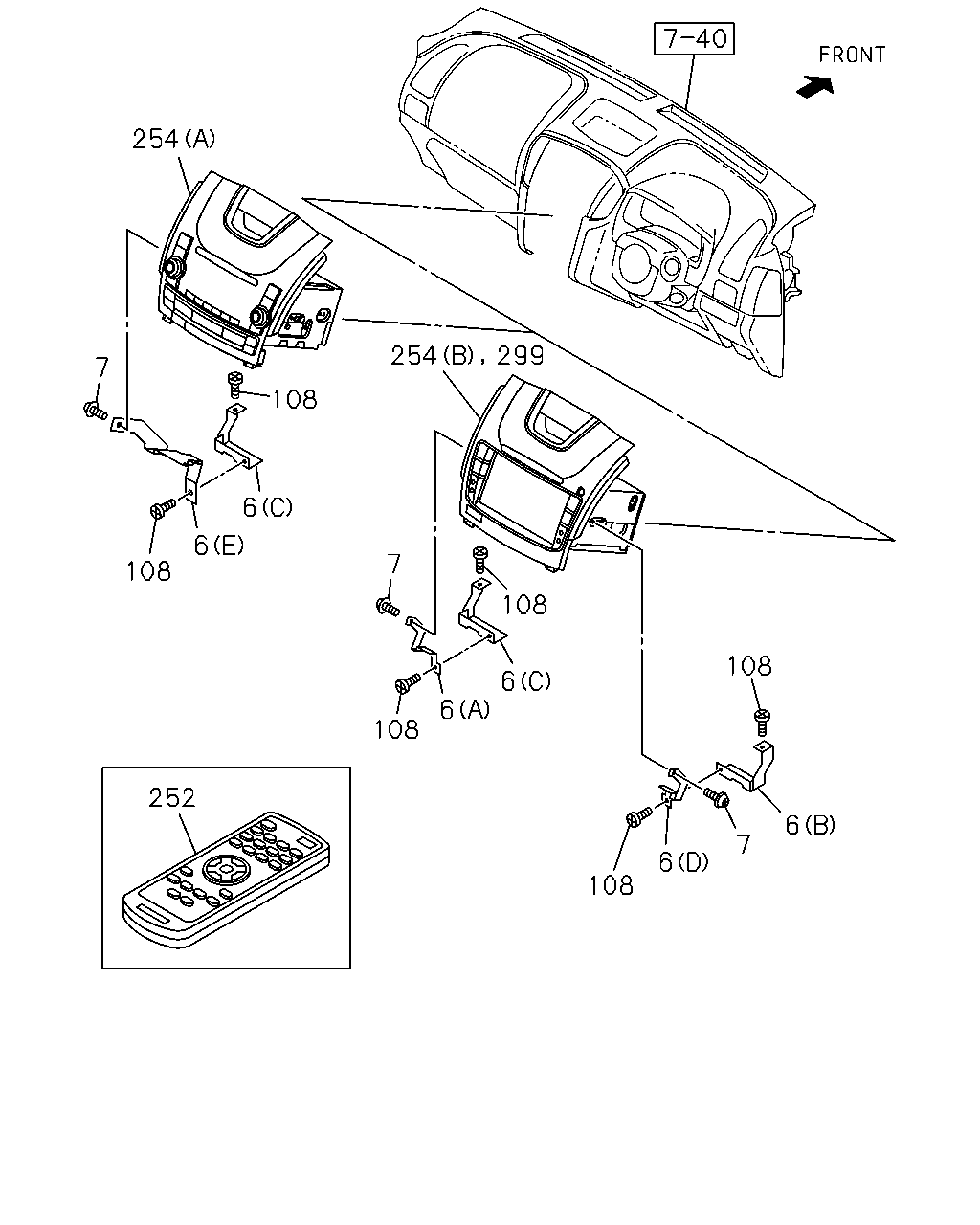

çizim 439543
254 108 6 6 108 7 252 108 7 6 6 108 254 299 108 6 7 6 108
BalonParca AdiParca NoAdetTipApplied Date A B
6 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (A) THA 		8-98102-186-2 01 1 1409- ● ●
6 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (B) THA 		8-98102-187-3 01 1 1409- ● ●
6 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (D) THA 		8-98109-822-2 01 1 1409- ● ●
6 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> (E) THA 		8-98227-139-1 01 1 1409- ●
6 BRACKET; RADIO TO PANEL
(C) THA 		8-98106-390-3 01 1 1409- ●
6 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (C) THA 		8-98106-390-3 01 1 1409- ●
7 SCREW; RADIO
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> M5X10 W/LK+PL WASHER IMA 		0-36230-510-0 02 1 1409- ● ●
7 SCREW; RADIO
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> M5X10 W/LK+PL WASHER IMA 		0-36230-510-0 01 1 1409- ●
108 SCREW; BRKT
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> M5X16 TAPPING THA 		8-98167-449-0 04 1 1409- ● ●
108 SCREW; BRKT
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> M5X16 TAPPING THA 		8-98167-449-0 02 1 1409- ●
252 REMOTE CONTROL UNIT; AUDIO
2ND SEAT DVD MONITOR<U48> THA 		8-98243-897-0 01 1 1409- ● ●
254 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> (A) THA 		8-98228-730-2 01 1 1409- ●
254 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (B) THA 		8-98223-105-3 01 1 1409- ● ●
299 DISPLAY; MULTI
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> THA 		8-98287-433-0 01 1 1409-1504 ● ●
299 DISPLAY; MULTI
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> THA 		8-98309-242-0 01 1 1505-1508 ● ●
299 DISPLAY; MULTI
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> THA 		8-98322-822-0 01 1 1509- ● ●

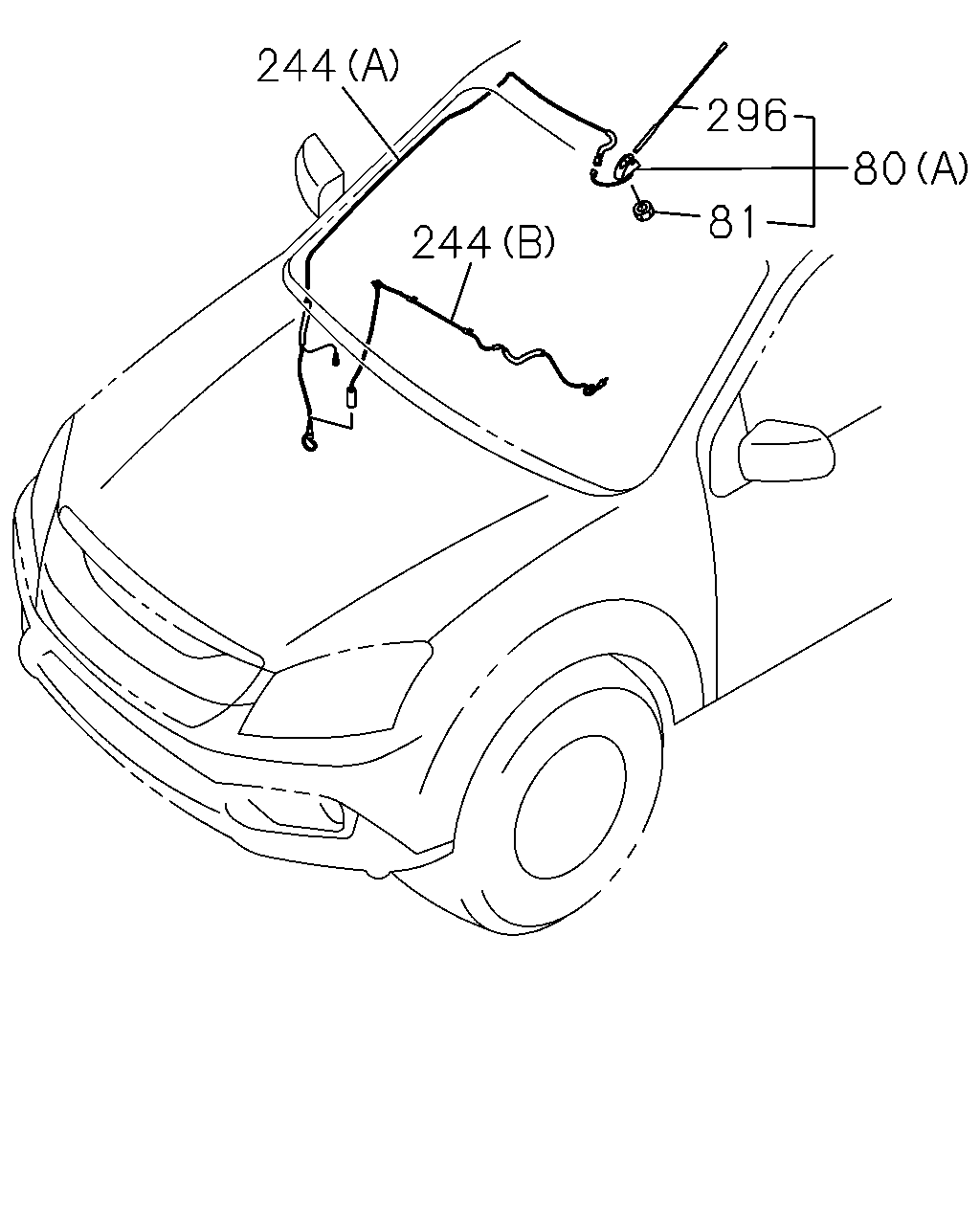

çizim 439559
296 81 80 244 244
BalonParca AdiParca NoAdetTipApplied Date A B
80 ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,AM/FM,CLOCK, BLUE TOOTH,DVD W/DISPLAY<UVA> (A) THA 		8-98053-048-0 01 1 1409- ●
80 ANTENNA
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (A) THA 		8-98053-048-0 01 1 1409- ●
80 ANTENNA
BODY COLOR COSMIC BLACK MICA<523> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (B) BLACK THA 		8-97424-303-1 01 1 1409- ● ●
80 ANTENNA
BODY COLOR TITANIUM SILVER MET<529> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (B) SILVER THA 		8-97424-305-1 01 1 1409- ● ●
80 ANTENNA
BODY COLOR SILKY WHITE PEARL<531> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (B) WHITE THA 		8-97424-306-1 01 1 1409- ● ●
80 ANTENNA
BODY COLOR ULURU BROWN MET<544> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (B) BROWN THA 		8-97424-307-1 01 1 1409- ● ●
80 ANTENNA
BODY COLOR FJORD BLUE MET<545> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (B) LIGHT BLUE THA 		8-97424-308-1 01 1 1409- ● ●
81 NUT; ANTENNA POLE
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,AM/FM,CLOCK, BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98165-971-0 01 1 1409- ●
81 NUT; ANTENNA POLE
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98165-971-0 01 1 1409- ●
244 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) THA 		8-98192-896-2 01 1 1409- ● ●
244 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> (B) THA 		8-98053-051-1 01 1 1409- ●
244 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,AM/FM,CLOCK, BLUE TOOTH,DVD W/DISPLAY<UVA> (A) THA 		8-98218-163-0 01 1 1409- ●
244 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (A) THA 		8-98218-163-0 01 1 1409- ●
244 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (B) THA 		8-98229-400-0 01 1 1409- ● ●
296 ROD; ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,AM/FM,CLOCK, BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98165-969-0 01 1 1409- ●
296 ROD; ANTENNA
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98165-969-0 01 1 1409- ●

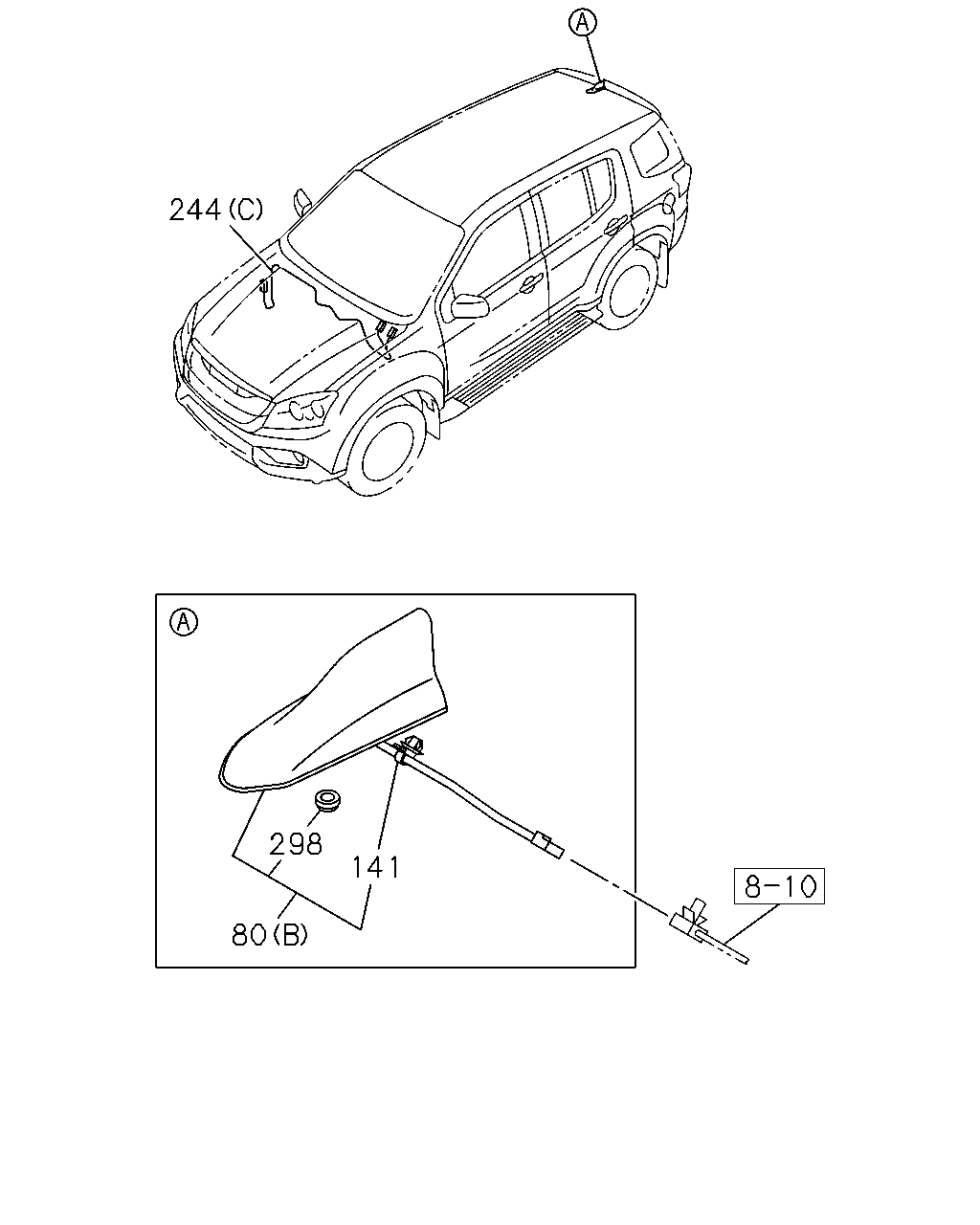

çizim 439561
244 298 141 80
BalonParca AdiParca NoAdetTipApplied Date A B
80 ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,AM/FM,CLOCK, BLUE TOOTH,DVD W/DISPLAY<UVA> (A) THA 		8-98053-048-0 01 1 1409- ●
80 ANTENNA
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (A) THA 		8-98053-048-0 01 1 1409- ●
80 ANTENNA
BODY COLOR COSMIC BLACK MICA<523> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (B) BLACK THA 		8-97424-303-1 01 1 1409- ● ●
80 ANTENNA
BODY COLOR TITANIUM SILVER MET<529> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (B) SILVER THA 		8-97424-305-1 01 1 1409- ● ●
80 ANTENNA
BODY COLOR SILKY WHITE PEARL<531> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (B) WHITE THA 		8-97424-306-1 01 1 1409- ● ●
80 ANTENNA
BODY COLOR ULURU BROWN MET<544> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (B) BROWN THA 		8-97424-307-1 01 1 1409- ● ●
80 ANTENNA
BODY COLOR FJORD BLUE MET<545> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (B) LIGHT BLUE THA 		8-97424-308-1 01 1 1409- ● ●
141 CLIP; ANTENNA CABLE
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> THA 		8-98224-054-0 01 1 1409- ● ●
244 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) THA 		8-98192-896-2 01 1 1409- ● ●
244 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> (B) THA 		8-98053-051-1 01 1 1409- ●
244 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,AM/FM,CLOCK, BLUE TOOTH,DVD W/DISPLAY<UVA> (A) THA 		8-98218-163-0 01 1 1409- ●
244 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (A) THA 		8-98218-163-0 01 1 1409- ●
244 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (B) THA 		8-98229-400-0 01 1 1409- ● ●
298 NUT; ANTENNA
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> THA 		8-98219-125-0 01 1 1409- ● ●

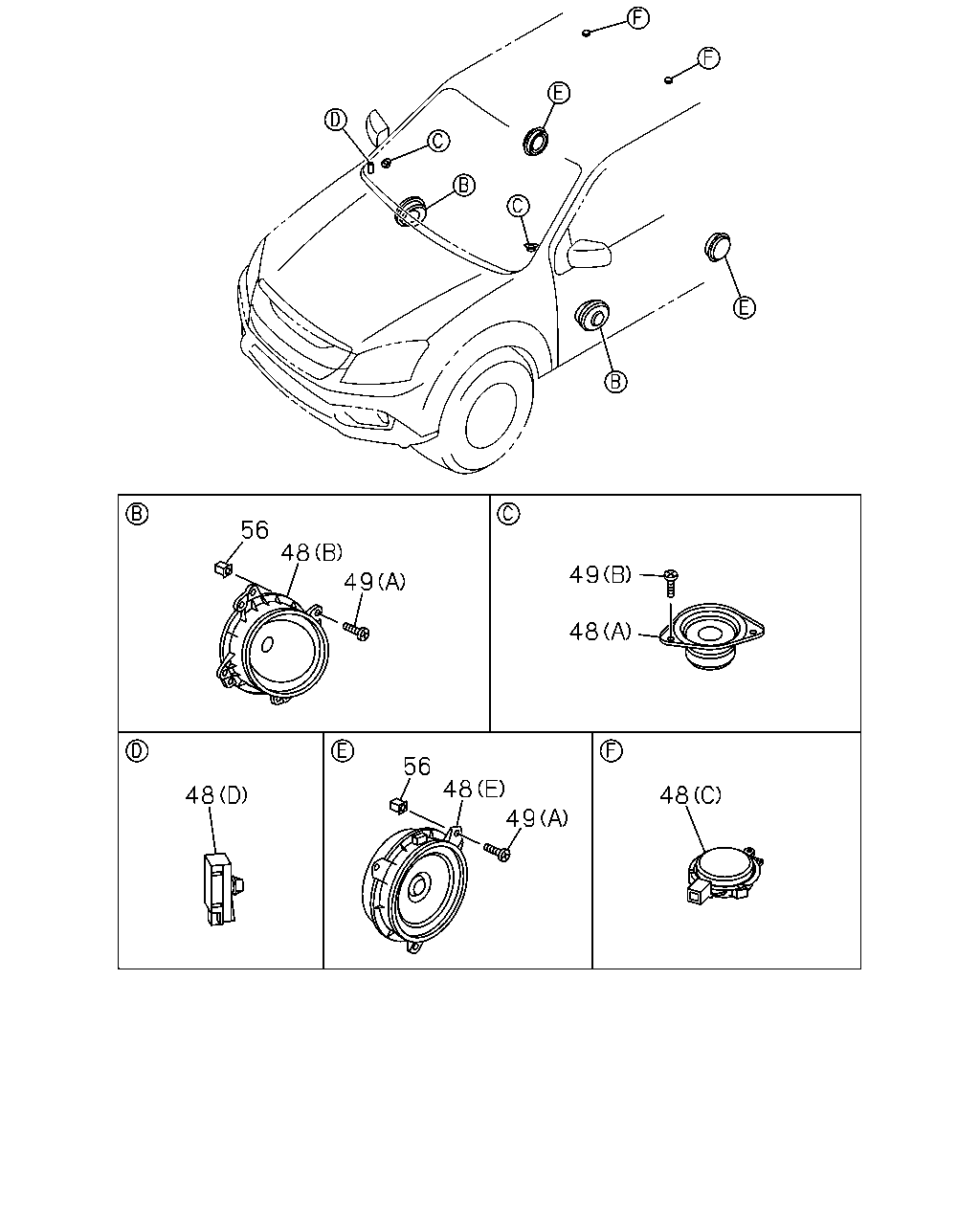

çizim 439562
56 48 49 48 56 48 49 49 48 48
BalonParca AdiParca NoAdetTipApplied Date A B
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> (B) THA 		8-98052-937-0 02 1 1409- ● ●
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> (A) THA 		8-98052-940-0 02 1 1409- ● ●
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> (E) THA 		8-98052-941-0 02 1 1409- ● ●
48 SPEAKER; AUDIO
8-SPEAKER SYSTEM CUSTOM<U87> (C) THA 		8-98052-942-0 02 1 1409- ● ●
48 SPEAKER; AUDIO
8-SPEAKER SYSTEM CUSTOM<U87> (D) THA 		8-98064-704-0 01 1 1409- ● ●
49 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> (B) M5X16 TAPPING THA 		8-98167-449-0 04 1 1409- ● ●
49 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> (A) M5X14 TAPPING THA 		8-98184-363-0 14 1 1409- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98163-895-0 14 1 1409- ● ●
