◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51577 - UCR/UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-85 - REAR WIPER AND WASHER ▶
8-85 — REAR WIPER AND WASHER (#147355) — 18 parça

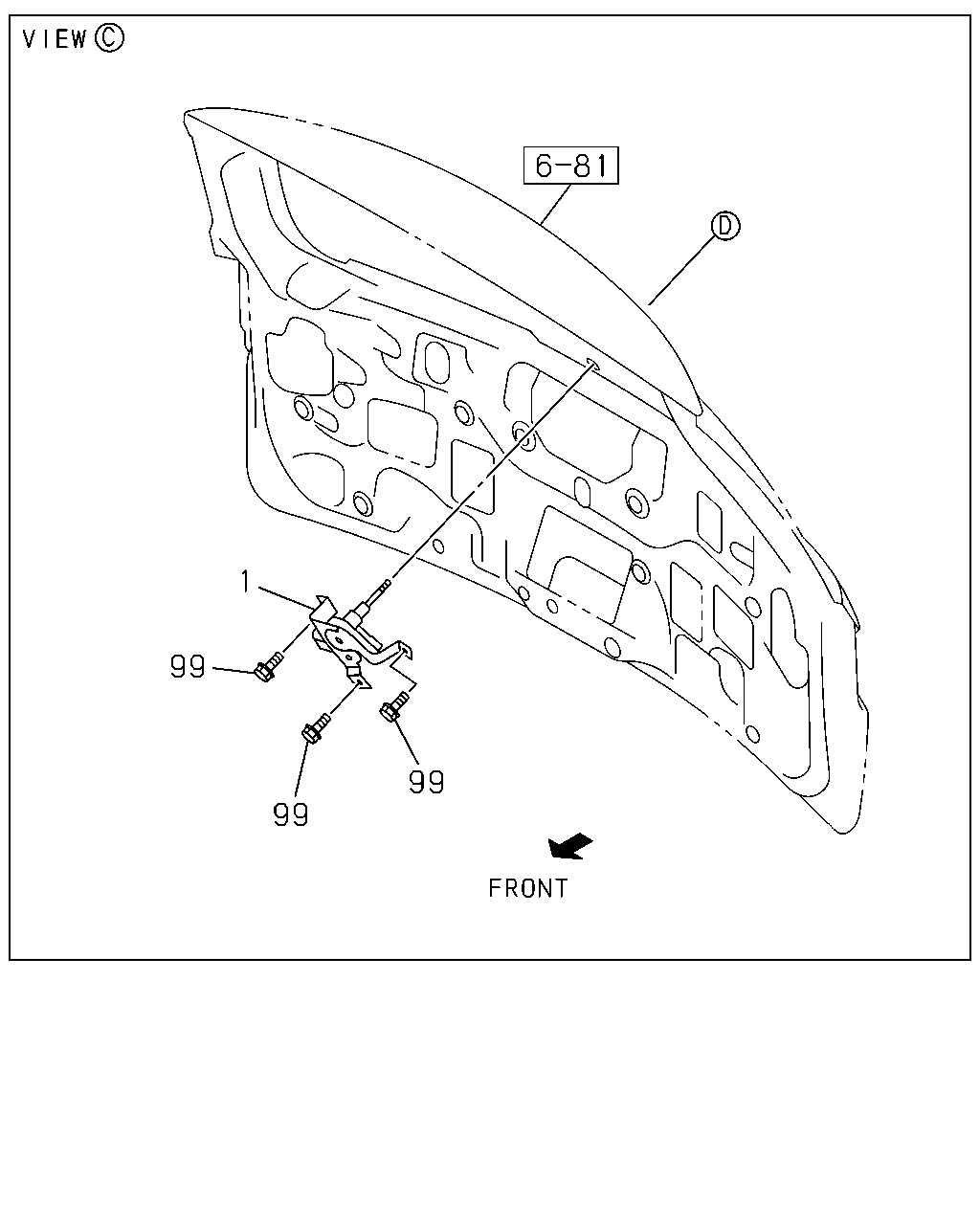

çizim 439388
99 99 1 99
BalonParca AdiParca NoAdetTipApplied Date A B
1 MOTOR ASM; RR WIPER
CONTINUOUS REAR WIPER<CD6> THA 		8-98187-251-0 01 1 1409- ●
1 MOTOR ASM; RR WIPER
THA 		8-98187-251-0 01 1 1409- ●
99 BOLT; WIPER MOTOR
CONTINUOUS REAR WIPER<CD6> M6X23.5 W/LK&PL WASHER IMA 		8-98164-723-0 03 1 1409- ●
99 BOLT; WIPER MOTOR
M6X23.5 W/LK&PL WASHER IMA 		8-98164-723-0 03 1 1409- ●

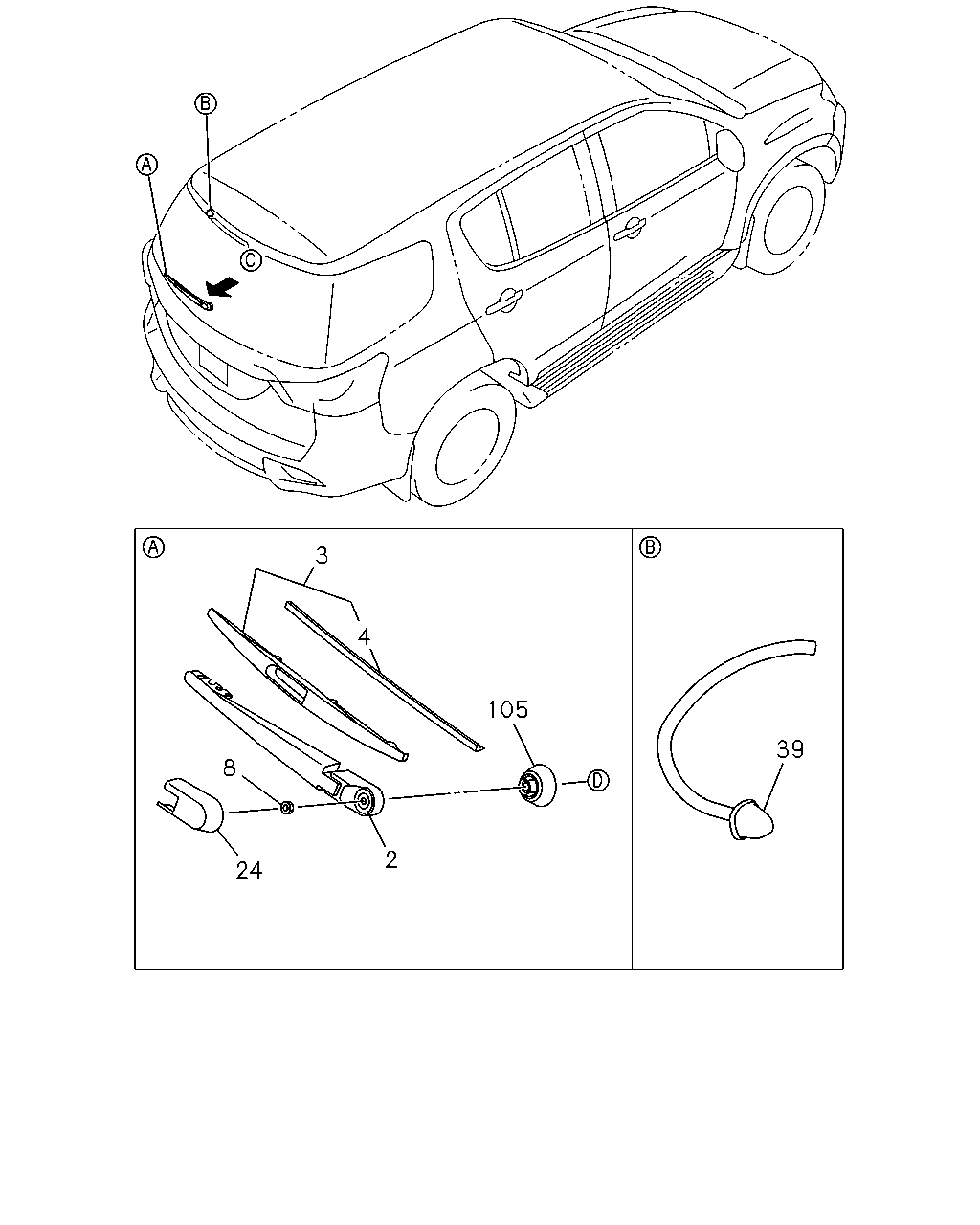

çizim 439520
39 105 4 3 2 24 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 ARM ASM; REAR WIPER
CONTINUOUS REAR WIPER<CD6> THA 		8-98222-258-0 01 1 1409- ●
2 ARM ASM; REAR WIPER
THA 		8-98222-258-0 01 1 1409- ●
3 BLADE ASM; REAR WIPER
CONTINUOUS REAR WIPER<CD6> THA 		8-98222-259-0 01 1 1409- ●
3 BLADE ASM; REAR WIPER
THA 		8-98222-259-0 01 1 1409- ●
4 RUBBER; BLADE,RR WIPER
CONTINUOUS REAR WIPER<CD6> THA 		8-98253-585-0 01 1 1409- ●
4 RUBBER; BLADE,RR WIPER
THA 		8-98253-585-0 01 1 1409- ●
8 NUT; RR WIPER ARM TO WIPER MOTOR
CONTINUOUS REAR WIPER<CD6> M6 IMA 		0-91111-506-0 01 1 1409- ●
8 NUT; RR WIPER ARM TO WIPER MOTOR
M6 IMA 		0-91111-506-0 01 1 1409- ●
24 CAP; WASHER TANK,RR
CONTINUOUS REAR WIPER<CD6> THA 		8-98210-717-0 01 1 1409- ●
24 CAP; WASHER TANK,RR
THA 		8-98210-717-0 01 1 1409- ●
39 NOZZLE; RR WINDSHIELD,WASHER
CONTINUOUS REAR WIPER<CD6> THA 		8-98201-496-1 01 1 1409- ●
39 NOZZLE; RR WINDSHIELD,WASHER
THA 		8-98201-496-1 01 1 1409- ●
105 GROMMET; RR WIPER MOTOR
CONTINUOUS REAR WIPER<CD6> THA 		8-98210-508-0 01 1 1409- ●
105 GROMMET; RR WIPER MOTOR
THA 		8-98210-508-0 01 1 1409- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
