Isuzu WW
▶
SUV
▶
UCR
▶
51577 - UCR/UCS(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶
8-80 — WINDSHIELD WIPER AND WASHER
(#147354) — 52 parça
Tümü
A - UCB5VC
B - UCS5VC
◀

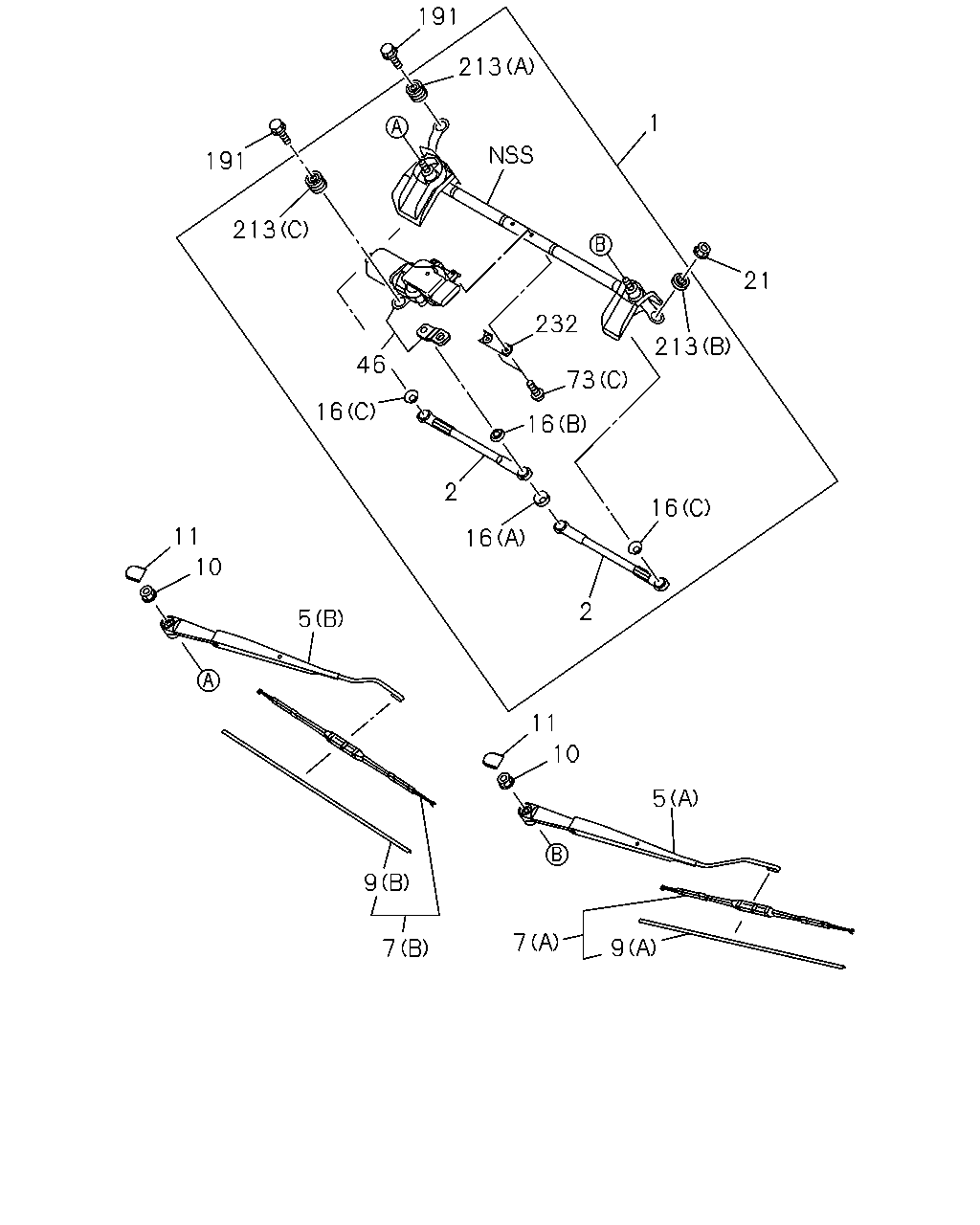

[880A] ARM AND MOTOR (24 parça)

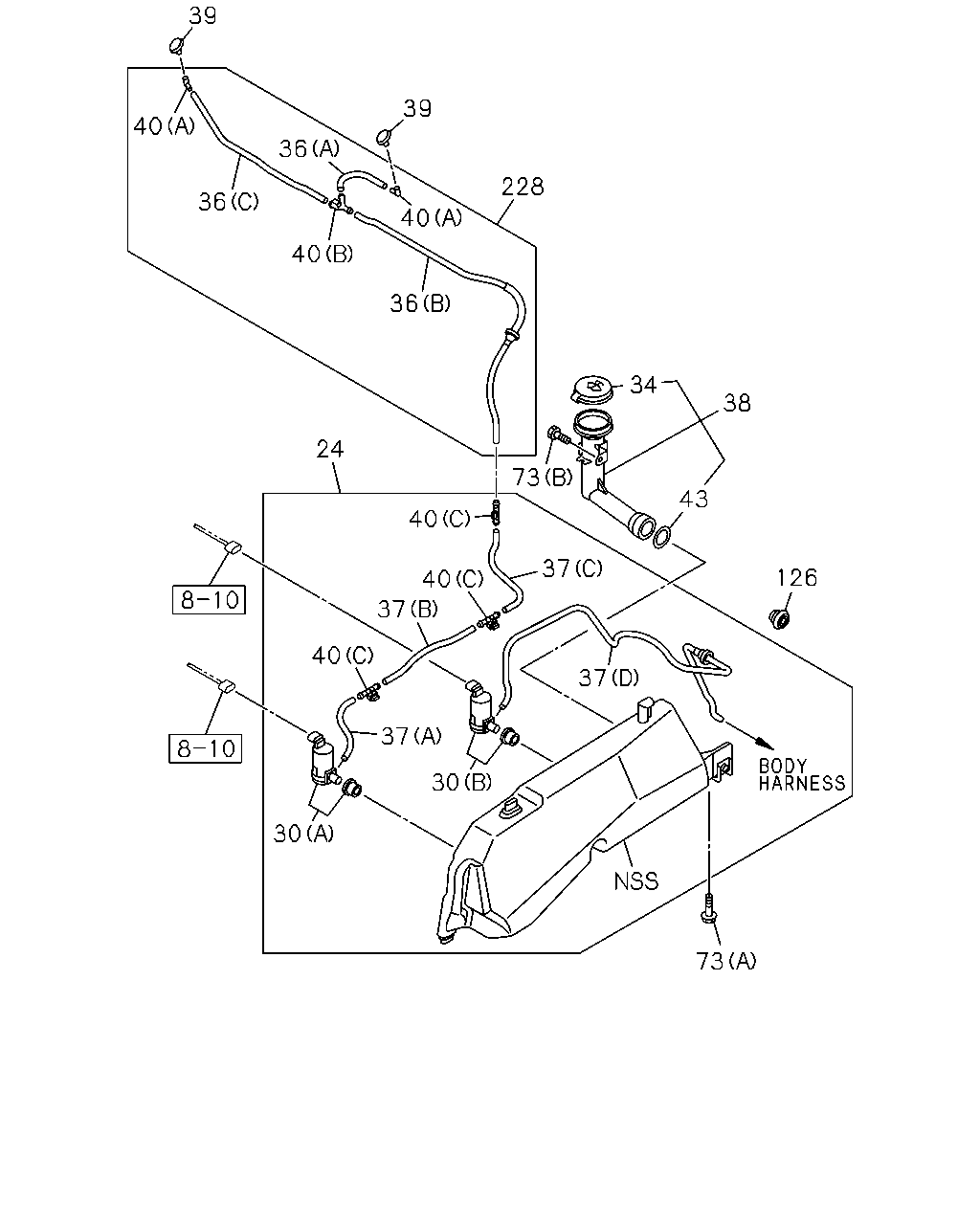

[880A] TANK AND NOZZLE (28 parça)
▶
191
213
11
10
5
2
16
46
213
191
1
21
213
232
73
16
16
2
16
11
10
5
9
7
7
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LINK ASM; FRT WIPER
THA
8-98057-449-1
01
1
1409-
●
●
2
LINK; FRT WIPER
THA
8-98193-801-0
01
1
1409-
●
●
2
LINK; FRT WIPER
THA
8-98193-802-0
01
1
1409-
●
●
5
ARM; WIPER
(B) THA
8-98193-629-0
01
1
1409-
●
●
5
ARM; WIPER
(A) THA
8-98193-813-0
01
1
1409-
●
●
7
BLADE; WIPER
(B) L=550 THA
8-97349-900-0
01
1
1409-
●
●
7
BLADE; WIPER
(A) L=450 THA
8-98193-815-0
01
1
1409-
●
●
9
RUBBER; FRT WIPER BLADE
(B) L=550 THA
8-97349-901-0
01
1
1409-
●
●
9
RUBBER; FRT WIPER BLADE
(A) L=450 THA
8-98193-819-0
01
1
1409-
●
●
10
NUT; WIPER ARM TO WIPER PIVOT
M10 FLANGE THA
8-98049-367-0
02
1
1409-
●
●
11
COVER; WIPER ARM
THA
8-98101-104-0
02
1
1409-
●
●
16
SEAL; BALL JOINT
(A) THA
8-98193-845-0
01
1
1409-
●
●
16
SEAL; BALL JOINT
(B) THA
8-98193-846-0
01
1
1409-
●
●
16
SEAL; BALL JOINT
(C) THA
8-98193-847-0
02
1
1409-
●
●
21
NUT; WIPER LINK PIVOT
M6 W/DISHED WASHER THA
8-98049-368-0
01
1
1409-
●
●
46
MOTOR ASM; FRT WINDSHIELD WIPER
THA
8-98142-507-0
01
1
1409-
●
●
73
BOLT
(A) M6X16 FLANGE THA
8-98049-357-0
01
1
1409-
●
●
73
BOLT
(B) M6X18 TAPPING W/LK&PL WASHER THA
8-98062-140-0
01
1
1409-
●
●
73
BOLT
(C) M6X32 THA
8-98193-851-0
02
1
1409-
●
●
191
BOLT; WIPER LINK
M6X33 W/PL WASHER THA
8-98048-997-0
02
1
1409-
●
●
213
RUBBER; MTG
(A) THA
8-98193-848-0
01
1
1409-
●
●
213
RUBBER; MTG
(B) THA
8-98193-849-0
01
1
1409-
●
●
213
RUBBER; MTG
(C) THA
8-98193-850-0
01
1
1409-
●
●
232
PLATE; FIXING
THA
8-98196-564-0
01
1
1409-
●
●
39
39
228
40
36
40
36
40
36
34
73
40
24
37
40
40
37
38
43
126
37
30
37
30
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
TANK ASM; WASHER
CONTINUOUS REAR WIPER<CD6> THA
8-98189-112-0
01
1
1409-
●
24
TANK ASM; WASHER
THA
8-98189-112-0
01
1
1409-
●
24
TANK ASM; WASHER
EXC. CONTINUOUS REAR WIPER<CD6> THA
8-98057-455-0
01
1
1409-
●
30
MOTOR ASM; FRT WASHER TANK
CONTINUOUS REAR WIPER<CD6> (B) THA
8-98268-427-0
01
1
1409-
●
30
MOTOR ASM; FRT WASHER TANK
(B) THA
8-98268-427-0
01
1
1409-
●
30
MOTOR ASM; FRT WASHER TANK
(A) THA
8-97314-350-0
01
1
1409-
●
●
34
CAP; WASHER TANK
THA
8-98194-286-0
01
1
1409-
●
●
36
HOSE; WASHER
(A) L=110 THA
8-98193-807-1
01
1
1409-
●
●
36
HOSE; WASHER
(B) L=630 THA
8-98193-808-1
01
1
1409-
●
●
36
HOSE; WASHER
(C) L=380 THA
8-98193-809-1
01
1
1409-
●
●
37
TUBE ASM; WASHER TANK
CONTINUOUS REAR WIPER<CD6> (D) THA
8-98268-278-0
01
1
1409-
●
37
TUBE ASM; WASHER TANK
(D) THA
8-98268-278-0
01
1
1409-
●
37
TUBE ASM; WASHER TANK
(A) L=130 THA
8-98193-853-0
01
1
1409-
●
●
37
TUBE ASM; WASHER TANK
(B) L=190 THA
8-98193-854-0
01
1
1409-
●
●
37
TUBE ASM; WASHER TANK
(C) L=200 THA
8-98193-855-0
01
1
1409-
●
●
38
HOSE; JOINT,TANK
THA
8-98057-456-0
01
1
1409-
●
●
39
NOZZLE; WINDSHIELD WASHER
THA
8-98067-859-3
02
1
1409-
●
●
40
JOINT; WASHER HOSE
CONTINUOUS REAR WIPER<CD6> (C) THA
8-97314-270-0
03
1
1409-
●
40
JOINT; WASHER HOSE
(C) THA
8-97314-270-0
03
1
1409-
●
40
JOINT; WASHER HOSE
(B) IMA
8-97855-163-0
01
1
1409-
●
●
40
JOINT; WASHER HOSE
(A) THA
8-98193-805-0
02
1
1409-
●
●
40
JOINT; WASHER HOSE
EXC. CONTINUOUS REAR WIPER<CD6> (C) THA
8-98193-811-0
03
1
1409-
●
43
RUBBER; GASKET,TANK
THA
8-98194-287-0
01
1
1409-
●
●
73
BOLT
(A) M6X16 FLANGE THA
8-98049-357-0
01
1
1409-
●
●
73
BOLT
(B) M6X18 TAPPING W/LK&PL WASHER THA
8-98062-140-0
01
1
1409-
●
●
73
BOLT
(C) M6X32 THA
8-98193-851-0
02
1
1409-
●
●
126
GROMMET; FRT WASHER TANK HOSE
EXC. CONTINUOUS REAR WIPER<CD6> OD=19 THA
8-97365-823-0
01
1
1409-
●
228
HOSE ASM; WASHER
THA
8-98057-506-1
01
1
1409-
●
●
