8-75 — CONDENSER (#147353) — 16 parça

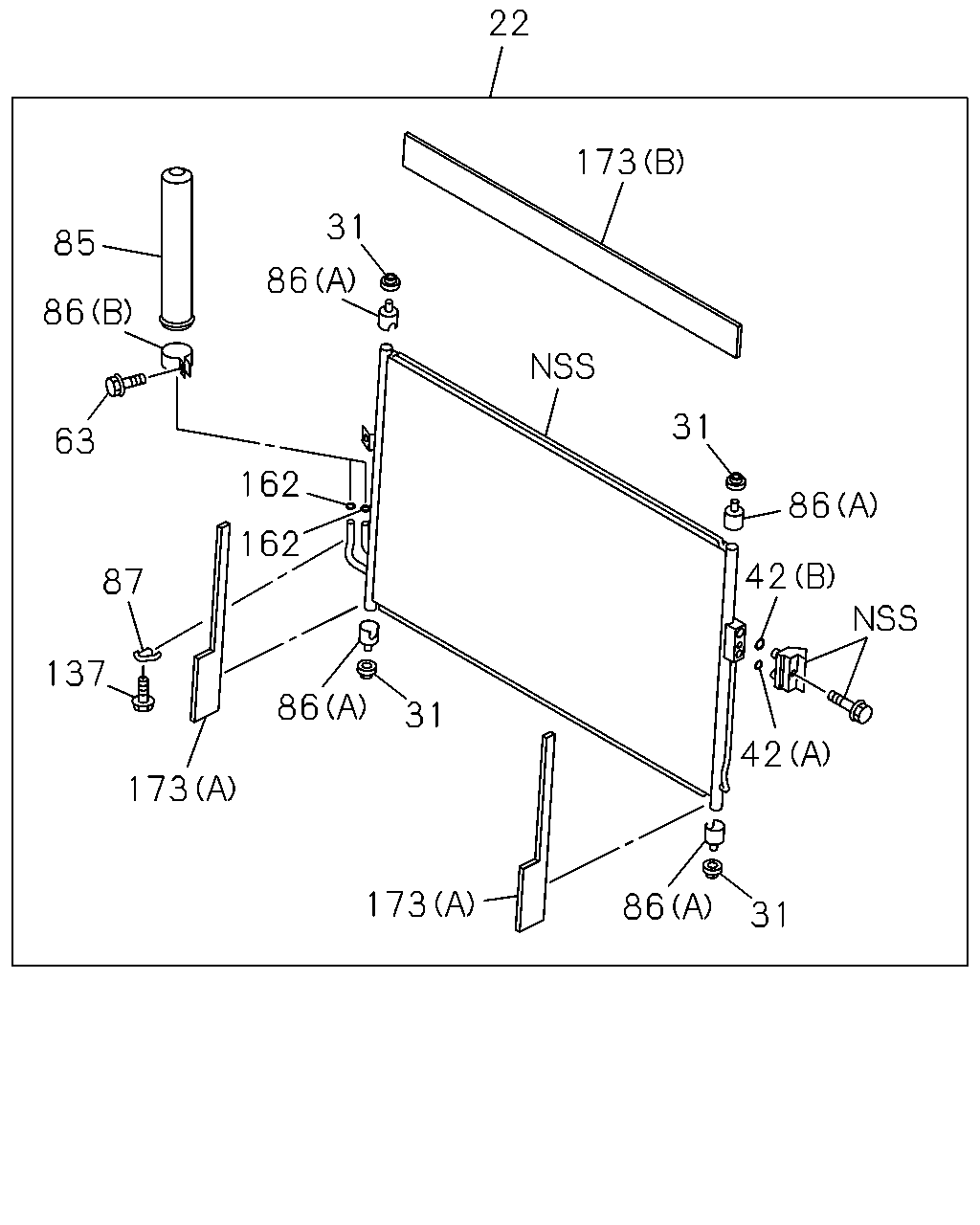

çizim 439487
22 173 31 86 42 42 31 86 173 173 86 31 137 87 162 162 63 86 85 86 31
BalonParca AdiParca NoAdetTipApplied Date A B
22 CONDENSER ASM; A/C
REAR COOLER WO/HEATER<C69> THA 		8-98235-191-0 01 1 1409- ●
22 CONDENSER ASM; A/C
THA 		8-98235-191-0 01 1 1409- ●
22 CONDENSER ASM; A/C
EXC. REAR COOLER WO/HEATER<C69> THA 		8-98052-634-3 01 1 1409- ●
31 RUBBER; MTG,CONDENSER
THA 		8-98193-616-0 04 1 1409- ● ●
42 GASKET; CONDENSER
(A) ID=8 THA 		8-98193-614-0 01 1 1409- ● ●
42 GASKET; CONDENSER
(B) ID=12 THA 		8-98193-615-0 01 1 1409- ● ●
63 BOLT; RECEIVER TANK
M5X16 THA 		8-98193-604-0 01 1 1409- ● ●
85 DRYER; RECEIVER
THA 		8-98233-381-0 01 1 1409- ● ●
86 BRACKET; RECEIVER DRYER
(B) THA 		8-98193-599-0 01 1 1409- ● ●
86 BRACKET; RECEIVER DRYER
(A) THA 		8-98193-618-0 04 1 1409- ● ●
87 BRACKET; RECEIVER DRYER
THA 		8-98193-602-0 01 1 1409- ● ●
137 BOLT; BRKT,DRYER
M6X12 THA 		8-98193-603-0 01 1 1409- ● ●
162 GASKET; PIPE TO DRYER
ID=8 THA 		8-98193-614-0 02 1 1409- ● ●
173 INSULATOR; CONDENSER
REAR COOLER WO/HEATER<C69> (A) THA 		8-98250-018-0 02 1 1409- ●
173 INSULATOR; CONDENSER
(A) THA 		8-98250-018-0 02 1 1409- ●
173 INSULATOR; CONDENSER
(B) THA 		8-98233-382-0 01 1 1409- ● ●
