8-72 — COOLER UNIT (#147351) — 58 parça

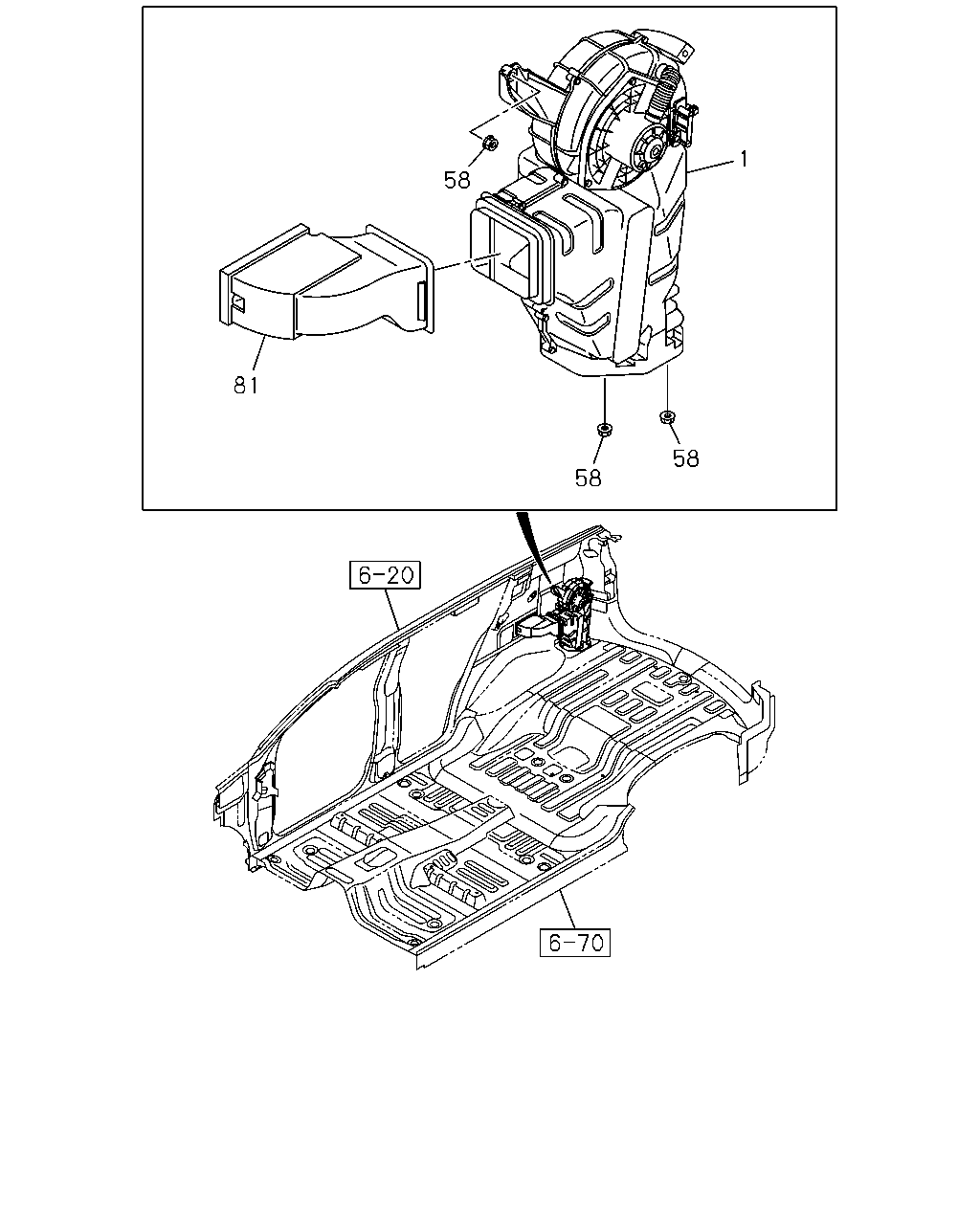

58 58 58 81 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COOLING UNIT; RR REAR COOLER WO/HEATER<C69> THA	8-98192-297-3	01	1	1409-	●
1	COOLING UNIT; RR THA	8-98192-297-3	01	1	1409-		●
58	NUT; CASE REAR COOLER WO/HEATER<C69> M6 FLANGE IMA	8-98055-704-0	03	1	1409-	●
58	NUT; CASE M6 FLANGE IMA	8-98055-704-0	03	1	1409-		●
81	DUCT; RR COOLER REAR COOLER WO/HEATER<C69> THA	8-98192-306-1	01	1	1409-	●
81	DUCT; RR COOLER THA	8-98192-306-1	01	1	1409-		●

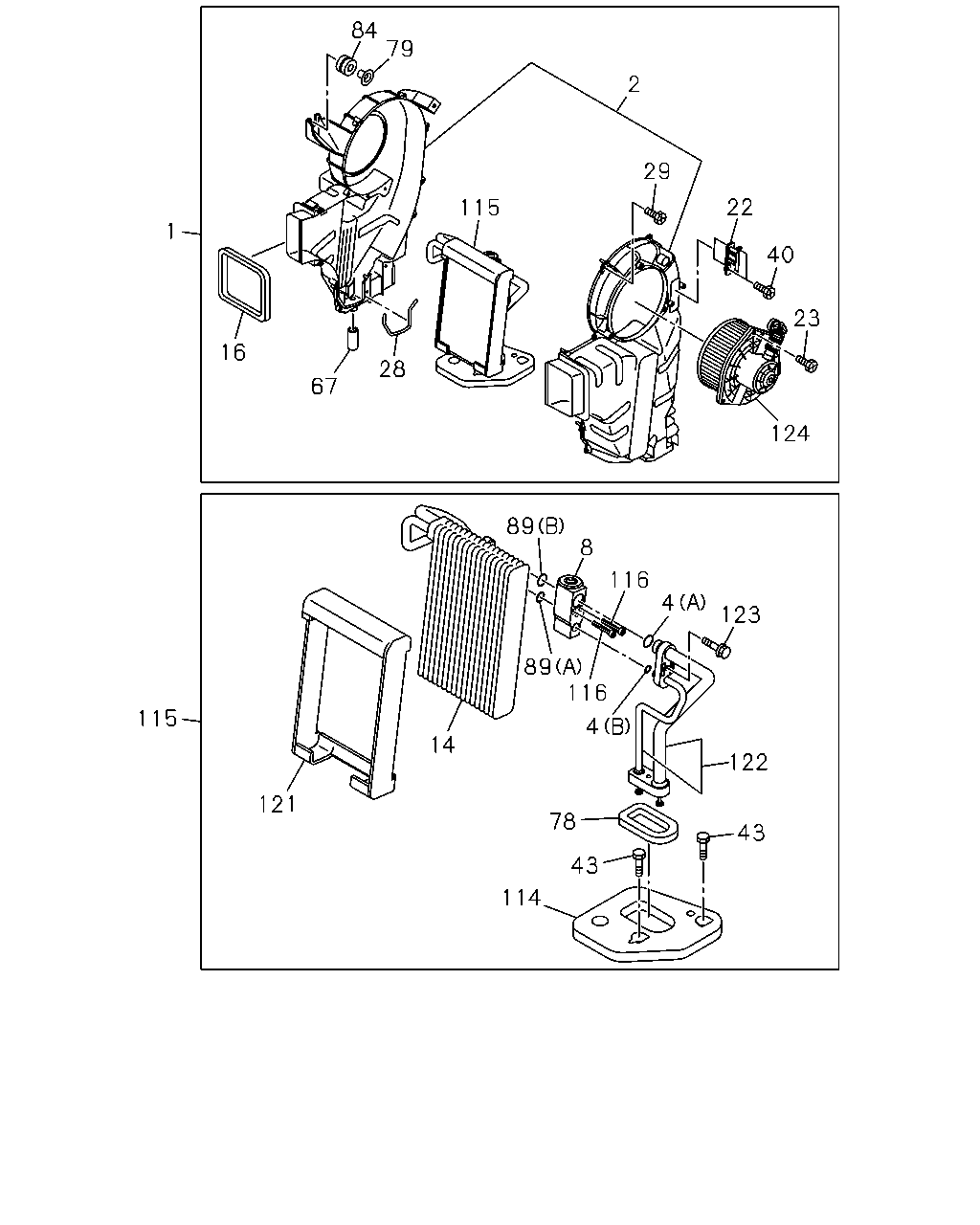

84 1 16 28 115 67 2 79 29 40 22 23 124 123 4 116 8 89 115 121 14 89 116 4 78 43 114 43 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COOLING UNIT; RR REAR COOLER WO/HEATER<C69> THA	8-98192-297-3	01	1	1409-	●
1	COOLING UNIT; RR THA	8-98192-297-3	01	1	1409-		●
2	CASE; RR COOLER REAR COOLER WO/HEATER<C69> THA	8-98249-810-0	01	1	1409-	●
2	CASE; RR COOLER THA	8-98249-810-0	01	1	1409-		●
4	GASKET; VLV TO PIPE REAR COOLER WO/HEATER<C69> (A) ID=13.6 THA	8-98249-825-0	01	1	1409-	●
4	GASKET; VLV TO PIPE (A) ID=13.6 THA	8-98249-825-0	01	1	1409-		●
4	GASKET; VLV TO PIPE REAR COOLER WO/HEATER<C69> (B) ID=6.8 THA	8-98249-826-0	01	1	1409-	●
4	GASKET; VLV TO PIPE (B) ID=6.8 THA	8-98249-826-0	01	1	1409-		●
8	VALVE; EXPANSION REAR COOLER WO/HEATER<C69> THA	8-98249-821-0	01	1	1409-	●
8	VALVE; EXPANSION THA	8-98249-821-0	01	1	1409-		●
14	EVAPORATOR; RR COOLER REAR COOLER WO/HEATER<C69> THA	8-98249-820-0	01	1	1409-	●
14	EVAPORATOR; RR COOLER THA	8-98249-820-0	01	1	1409-		●
16	LINING; CASE REAR COOLER WO/HEATER<C69> THA	8-98249-817-0	01	1	1409-	●
16	LINING; CASE THA	8-98249-817-0	01	1	1409-		●
22	RESISTOR; RR COOLER REAR COOLER WO/HEATER<C69> THA	8-97321-273-0	01	1	1409-	●
22	RESISTOR; RR COOLER THA	8-97321-273-0	01	1	1409-		●
23	SCREW; CASE TO MOTOR REAR COOLER WO/HEATER<C69> THA	8-98249-818-0	03	1	1409-	●
23	SCREW; CASE TO MOTOR THA	8-98249-818-0	03	1	1409-		●
28	LINING; CASE REAR COOLER WO/HEATER<C69> THA	8-98249-815-0	01	1	1409-	●
28	LINING; CASE THA	8-98249-815-0	01	1	1409-		●
29	SCREW; CASE REAR COOLER WO/HEATER<C69> THA	8-98249-818-0	13	1	1409-	●
29	SCREW; CASE THA	8-98249-818-0	13	1	1409-		●
40	SCREW; RESISTOR FIX,COOLER UNIT REAR COOLER WO/HEATER<C69> THA	8-98249-818-0	02	1	1409-	●
40	SCREW; RESISTOR FIX,COOLER UNIT THA	8-98249-818-0	02	1	1409-		●
43	BOLT; COOLER UNIT REAR COOLER WO/HEATER<C69> THA	8-98249-830-0	02	1	1409-	●
43	BOLT; COOLER UNIT THA	8-98249-830-0	02	1	1409-		●
67	HOSE; DRAIN REAR COOLER WO/HEATER<C69> THA	8-98249-814-0	01	1	1409-	●
67	HOSE; DRAIN THA	8-98249-814-0	01	1	1409-		●
78	GROMMET; COOLER UNIT REAR COOLER WO/HEATER<C69> THA	8-98249-827-0	01	1	1409-	●
78	GROMMET; COOLER UNIT THA	8-98249-827-0	01	1	1409-		●
79	COLLAR; COOLER UNIT REAR COOLER WO/HEATER<C69> THA	8-98249-813-0	01	1	1409-	●
79	COLLAR; COOLER UNIT THA	8-98249-813-0	01	1	1409-		●
84	RUBBER REAR COOLER WO/HEATER<C69> THA	8-98249-812-0	01	1	1409-	●
84	RUBBER THA	8-98249-812-0	01	1	1409-		●
89	GASKET; EVAP TO VLV REAR COOLER WO/HEATER<C69> (A) ID=10.7 THA	8-98249-823-0	01	1	1409-	●
89	GASKET; EVAP TO VLV (A) ID=10.7 THA	8-98249-823-0	01	1	1409-		●
89	GASKET; EVAP TO VLV REAR COOLER WO/HEATER<C69> (B) ID=14.3 THA	8-98249-824-0	01	1	1409-	●
89	GASKET; EVAP TO VLV (B) ID=14.3 THA	8-98249-824-0	01	1	1409-		●
114	SEAL; CASE REAR COOLER WO/HEATER<C69> THA	8-98249-816-0	01	1	1409-	●
114	SEAL; CASE THA	8-98249-816-0	01	1	1409-		●
115	EVAPORATOR ASM; COOLING UNIT REAR COOLER WO/HEATER<C69> THA	8-98249-819-0	01	1	1409-	●
115	EVAPORATOR ASM; COOLING UNIT THA	8-98249-819-0	01	1	1409-		●
116	BOLT; EXPANSION VALVE REAR COOLER WO/HEATER<C69> THA	8-98249-822-0	02	1	1409-	●
116	BOLT; EXPANSION VALVE THA	8-98249-822-0	02	1	1409-		●
121	INSULATOR; EVAP REAR COOLER WO/HEATER<C69> THA	8-98251-842-0	01	1	1409-	●
121	INSULATOR; EVAP THA	8-98251-842-0	01	1	1409-		●
122	PIPE ASM; EVAP REAR COOLER WO/HEATER<C69> THA	8-98251-843-0	01	1	1409-	●
122	PIPE ASM; EVAP THA	8-98251-843-0	01	1	1409-		●
123	SCREW REAR COOLER WO/HEATER<C69> THA	8-98249-828-0	01	1	1409-	●
123	SCREW THA	8-98249-828-0	01	1	1409-		●
124	BLOWER ASM REAR COOLER WO/HEATER<C69> THA	8-98249-829-0	01	1	1409-	●
124	BLOWER ASM THA	8-98249-829-0	01	1	1409-		●
