◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51577 - UCR/UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶
8-65 — CONTROL LEVER; HEATER AND AIR CON (#147349) — 46 parça
çizim 439426
23 103 69 69 103 105 94
BalonParca AdiParca NoAdetTipApplied Date A B
23 BEZEL; CONT LEVER
KNOB DECORATION W/CHROME RING<BY9> COOLER W/FRESH AIR<C65> (B) THA 		8-98103-517-4 01 1 1409- ● ●
23 BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98166-353-4 01 1 1409- ● ●
23 BEZEL; CONT LEVER
COOLER W/FRESH AIR<C65> EXC. KNOB DECORATION W/CHROME RING<BY9> (B) THA 		8-98052-641-4 01 1 1409- ● ●
23 BEZEL; CONT LEVER
REAR COOLER WO/HEATER<C69> (C) THA 		8-98198-067-0 01 1 1409- ●
23 BEZEL; CONT LEVER
(C) THA 		8-98198-067-0 01 1 1409- ●
23 BEZEL; CONT LEVER
REAR COOLER WO/HEATER<C69> (D) THA 		8-98250-024-0 01 1 1409- ●
23 BEZEL; CONT LEVER
(D) THA 		8-98250-024-0 01 1 1409- ●
69 SCREW; BEZEL BRKT
M4X10 TAPPING THA 		8-98164-986-0 04 1 1409- ● ●
94 PANEL; BEZEL
AUTO COOLER SYSTEM<CJ2> (B) THA 		8-98141-789-0 01 1 1409- ● ●
94 PANEL; BEZEL
COOLER W/FRESH AIR<C65> (A) THA 		8-98164-668-0 01 1 1409- ● ●
103 CLIP
REAR COOLER WO/HEATER<C69> (B) THA 		8-97386-832-0 02 1 1409- ●
103 CLIP
(B) THA 		8-97386-832-0 02 1 1409- ●
103 CLIP
(A) THA 		8-98164-677-0 04 1 1409- ● ●
105 SWITCH ASM; A/C
AUTO COOLER SYSTEM<CJ2> THA 		8-98168-138-0 01 1 1409- ● ●

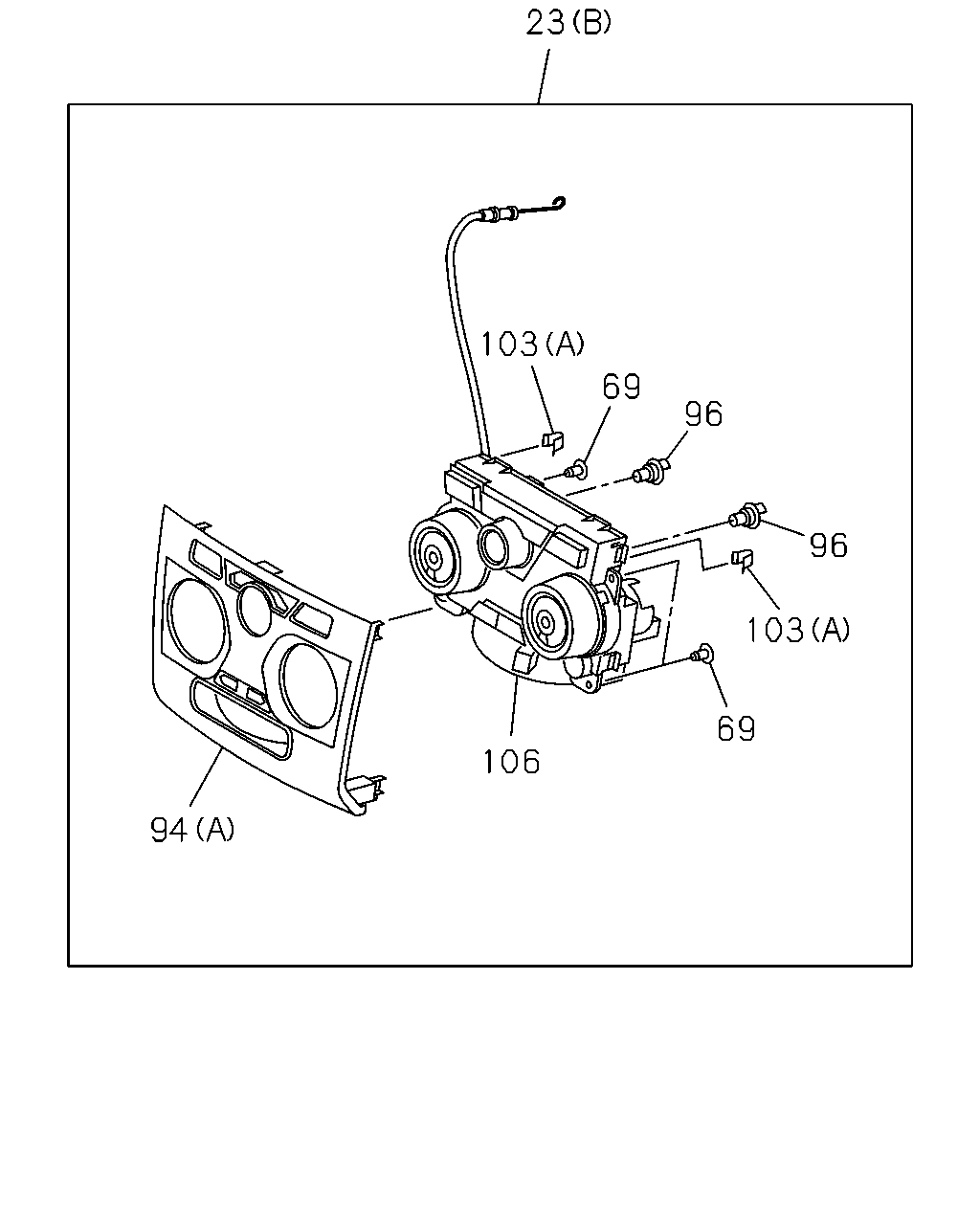

çizim 439427
23 103 96 69 96 103 69 106 94
BalonParca AdiParca NoAdetTipApplied Date A B
23 BEZEL; CONT LEVER
KNOB DECORATION W/CHROME RING<BY9> COOLER W/FRESH AIR<C65> (B) THA 		8-98103-517-4 01 1 1409- ● ●
23 BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98166-353-4 01 1 1409- ● ●
23 BEZEL; CONT LEVER
COOLER W/FRESH AIR<C65> EXC. KNOB DECORATION W/CHROME RING<BY9> (B) THA 		8-98052-641-4 01 1 1409- ● ●
23 BEZEL; CONT LEVER
REAR COOLER WO/HEATER<C69> (C) THA 		8-98198-067-0 01 1 1409- ●
23 BEZEL; CONT LEVER
(C) THA 		8-98198-067-0 01 1 1409- ●
23 BEZEL; CONT LEVER
REAR COOLER WO/HEATER<C69> (D) THA 		8-98250-024-0 01 1 1409- ●
23 BEZEL; CONT LEVER
(D) THA 		8-98250-024-0 01 1 1409- ●
69 SCREW; BEZEL BRKT
M4X10 TAPPING THA 		8-98164-986-0 04 1 1409- ● ●
94 PANEL; BEZEL
AUTO COOLER SYSTEM<CJ2> (B) THA 		8-98141-789-0 01 1 1409- ● ●
94 PANEL; BEZEL
COOLER W/FRESH AIR<C65> (A) THA 		8-98164-668-0 01 1 1409- ● ●
96 BULB ASM; BEZEL
COOLER W/FRESH AIR<C65> THA 		8-98156-188-0 02 1 1409- ● ●
103 CLIP
REAR COOLER WO/HEATER<C69> (B) THA 		8-97386-832-0 02 1 1409- ●
103 CLIP
(B) THA 		8-97386-832-0 02 1 1409- ●
103 CLIP
(A) THA 		8-98164-677-0 04 1 1409- ● ●
106 CONTROL SUB ASM; HTR & A/C
KNOB DECORATION W/CHROME RING<BY9> COOLER W/FRESH AIR<C65> THA 		8-98142-033-0 01 1 1409- ● ●
106 CONTROL SUB ASM; HTR & A/C
COOLER W/FRESH AIR<C65> EXC. KNOB DECORATION W/CHROME RING<BY9> THA 		8-98142-039-0 01 1 1409- ● ●
çizim 439436
68 61 61 103 73 23 23 50 103
BalonParca AdiParca NoAdetTipApplied Date A B
23 BEZEL; CONT LEVER
KNOB DECORATION W/CHROME RING<BY9> COOLER W/FRESH AIR<C65> (B) THA 		8-98103-517-4 01 1 1409- ● ●
23 BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98166-353-4 01 1 1409- ● ●
23 BEZEL; CONT LEVER
COOLER W/FRESH AIR<C65> EXC. KNOB DECORATION W/CHROME RING<BY9> (B) THA 		8-98052-641-4 01 1 1409- ● ●
23 BEZEL; CONT LEVER
REAR COOLER WO/HEATER<C69> (C) THA 		8-98198-067-0 01 1 1409- ●
23 BEZEL; CONT LEVER
(C) THA 		8-98198-067-0 01 1 1409- ●
23 BEZEL; CONT LEVER
REAR COOLER WO/HEATER<C69> (D) THA 		8-98250-024-0 01 1 1409- ●
23 BEZEL; CONT LEVER
(D) THA 		8-98250-024-0 01 1 1409- ●
50 KNOB; CONT PANEL
REAR COOLER WO/HEATER<C69> THA 		8-98250-549-0 01 1 1409- ●
50 KNOB; CONT PANEL
THA 		8-98250-549-0 01 1 1409- ●
61 BOLT; CONT LEVER
M6X16 FLANGE THA 		0-28650-616-0 02 1 1409- ● ●
68 BRACKET; BEZEL
THA 		8-98198-068-0 01 1 1409- ● ●
73 SWITCH; FAN,CONT PANEL
REAR COOLER WO/HEATER<C69> THA 		8-97386-830-0 01 1 1409- ●
73 SWITCH; FAN,CONT PANEL
THA 		8-97386-830-0 01 1 1409- ●
103 CLIP
REAR COOLER WO/HEATER<C69> (B) THA 		8-97386-832-0 02 1 1409- ●
103 CLIP
(B) THA 		8-97386-832-0 02 1 1409- ●
103 CLIP
(A) THA 		8-98164-677-0 04 1 1409- ● ●
