◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51577 - UCR/UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#147343) — 35 parça

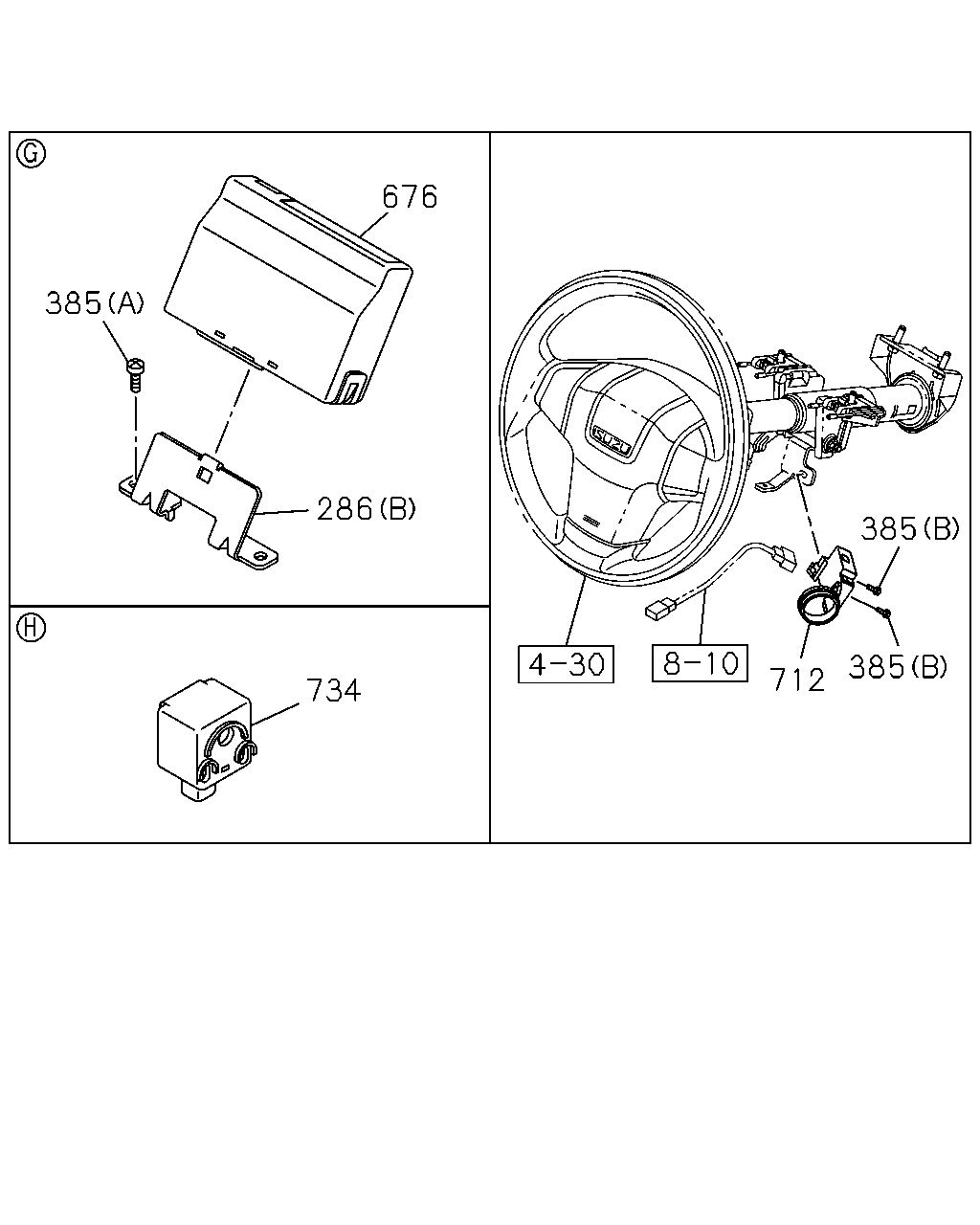

çizim 439283
385 676 286 734 385 385 712
BalonParca AdiParca NoAdetTipApplied Date A B
286 BRACKET
PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA 		8-98102-502-2 01 1 1409- ● ●
286 BRACKET
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) THA 		8-98102-503-0 01 1 1409- ● ●
385 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3> (A) M5X16 TAPPING THA 		8-98167-449-0 02 1 1409- ● ●
385 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) M5X16 TAPPING THA 		8-98167-449-0 01 1 1409- ● ●
385 BOLT; CONT UNIT
IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1409-1411 ● ●
385 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> (B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1412- ● ●
676 CONTROL UNIT; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98290-820-0 01 1 1409-1505 ● ●
676 CONTROL UNIT; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98306-213-0 01 1 1506- ● ●
712 CONTROL UNIT; ANTI THEFT
IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98123-260-5 01 1 1409-1411 ● ●
712 CONTROL UNIT; ANTI THEFT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98123-260-5 01 1 1412- ● ●
734 ALARM; MULTI
PASSIVE ENTRY AND START SYSTEM<AP3> IMA 		8-98192-897-0 01 1 1409- ● ●

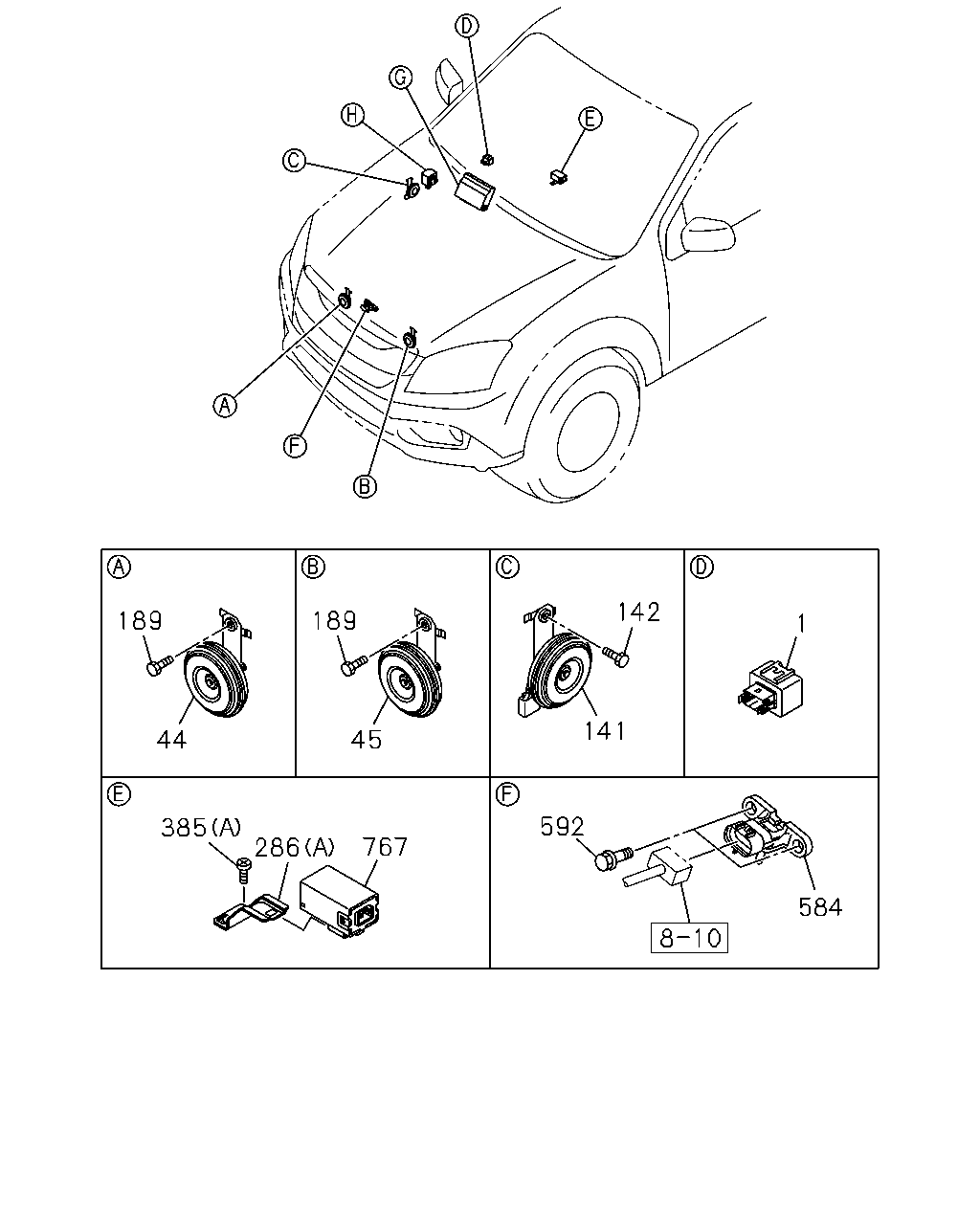

çizim 439435
1 142 141 45 189 189 44 385 286 767 592 584
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER
THA 		8-98080-978-0 01 1 1409- ● ●
44 HORN; HIGH NOTE
DUAL TONE HORN<U05> THA 		8-98084-022-1 01 1 1409- ●
44 HORN; HIGH NOTE
THA 		8-98084-022-1 01 1 1409- ●
45 HORN; LOW NOTE
THA 		8-98084-023-0 01 1 1409- ● ●
141 HORN; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98164-588-0 01 1 1409- ● ●
142 BOLT; HORN,ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/LK&PL WASHER THA 		8-97086-822-0 01 1 1409-1501 ● ●
142 BOLT; HORN,ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/PL WASHER IMA 		8-98164-836-0 01 1 1502- ● ●
189 BOLT; HORN
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 01 1 1409-1501 ● ●
189 BOLT; HORN
DUAL TONE HORN<U05> M6X14 W/LK&PL WASHER THA 		8-97086-822-0 01 1 1409-1501 ●
189 BOLT; HORN
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 01 1 1409-1501 ●
189 BOLT; HORN
M6X14 W/PL WASHER IMA 		8-98164-836-0 01 1 1502- ● ●
189 BOLT; HORN
DUAL TONE HORN<U05> M6X14 W/PL WASHER IMA 		8-98164-836-0 01 1 1502- ●
189 BOLT; HORN
M6X14 W/PL WASHER IMA 		8-98164-836-0 01 1 1502- ●
286 BRACKET
PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA 		8-98102-502-2 01 1 1409- ● ●
286 BRACKET
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) THA 		8-98102-503-0 01 1 1409- ● ●
385 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3> (A) M5X16 TAPPING THA 		8-98167-449-0 02 1 1409- ● ●
385 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) M5X16 TAPPING THA 		8-98167-449-0 01 1 1409- ● ●
385 BOLT; CONT UNIT
IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1409-1411 ● ●
385 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> (B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1412- ● ●
584 SENSOR; PRESSURE
IMA 		8-98020-514-0 01 1 1409- ● ●
592 BOLT; SENSOR
M6X16 FLANGE THA 		0-28650-616-0 02 1 1409- ● ●
767 RECEIVER ASM; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98076-337-1 01 1 1409-1506 ● ●
767 RECEIVER ASM; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98306-421-0 01 1 1507- ● ●
767 RECEIVER ASM; KEYLESS ENTRY
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98076-338-1 01 1 1409- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
