◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51577 - UCR/UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#147342) — 15 parça

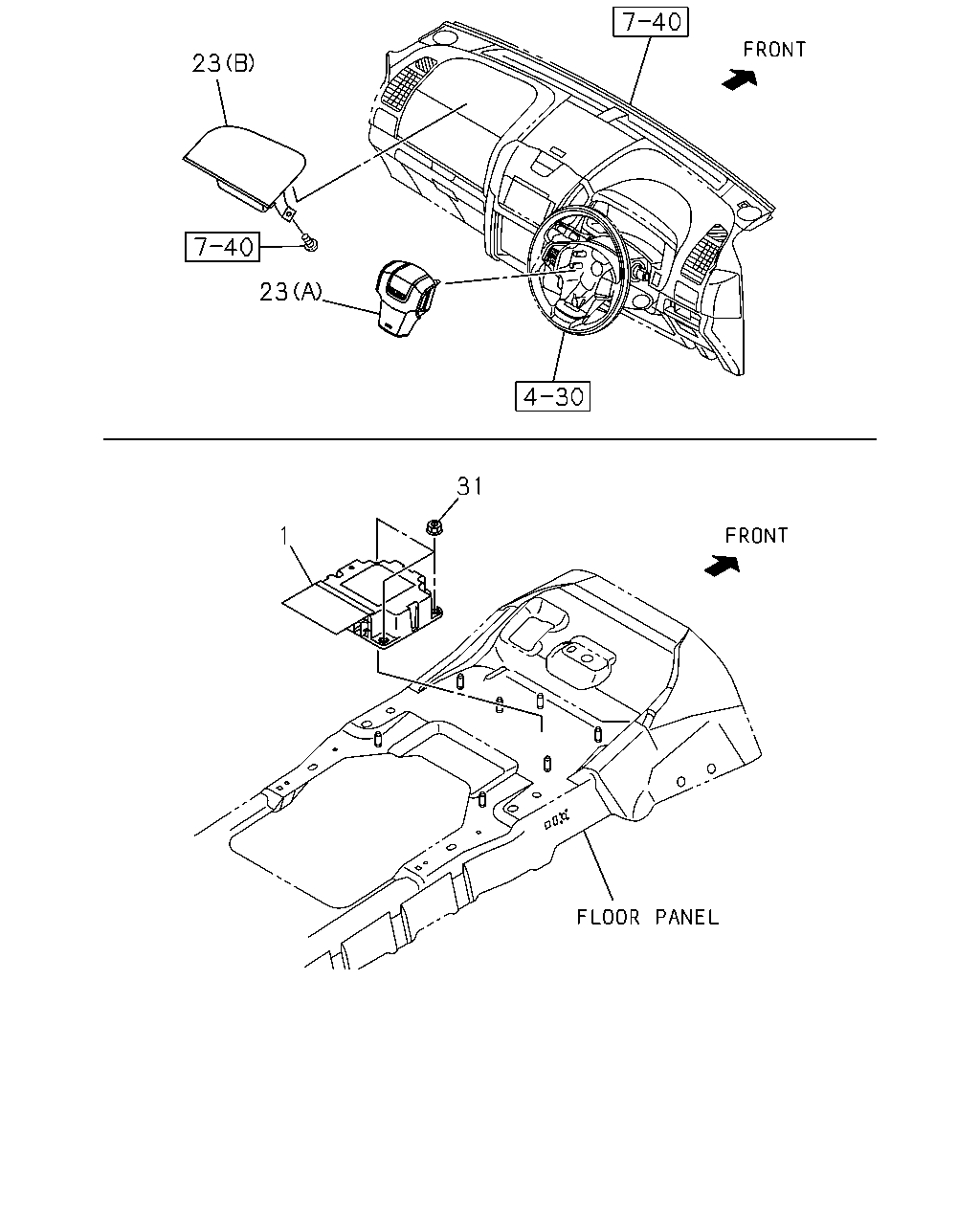

çizim 439354
23 23 1 31
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98220-041-1 01 1 1409- ● ●
1 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA 		8-98261-126-0 01 1 1409- ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (C) THA 		8-98187-777-0 01 1 1409- ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (C) THA 		8-98187-778-0 01 1 1409- ● ●
23 AIR BAG UNIT
(B) BLACK THA 		8-97416-642-7 01 1 1409- ● ●
23 AIR BAG UNIT
(A) BLACK THA 		8-97424-332-0 01 1 1409- ● ●
31 NUT
M6 FLANGE THA 		0-91180-206-0 03 1 1409- ● ●
çizim 439433
23 52 54 53
BalonParca AdiParca NoAdetTipApplied Date A B
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (C) THA 		8-98187-777-0 01 1 1409- ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (C) THA 		8-98187-778-0 01 1 1409- ● ●
23 AIR BAG UNIT
(B) BLACK THA 		8-97416-642-7 01 1 1409- ● ●
23 AIR BAG UNIT
(A) BLACK THA 		8-97424-332-0 01 1 1409- ● ●
52 BOLT; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> M6X20 FLANGE THA 		0-28650-620-0 06 1 1409- ● ●
53 PAD; PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA 		8-98232-399-0 01 1 1409- ● ●
53 PAD; PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA 		8-98232-400-0 01 1 1409- ● ●
54 CLIP; PAD
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> BLACK THA 		8-97416-699-0 02 1 1409- ● ●
