◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51577 - UCR/UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#147341) — 46 parça

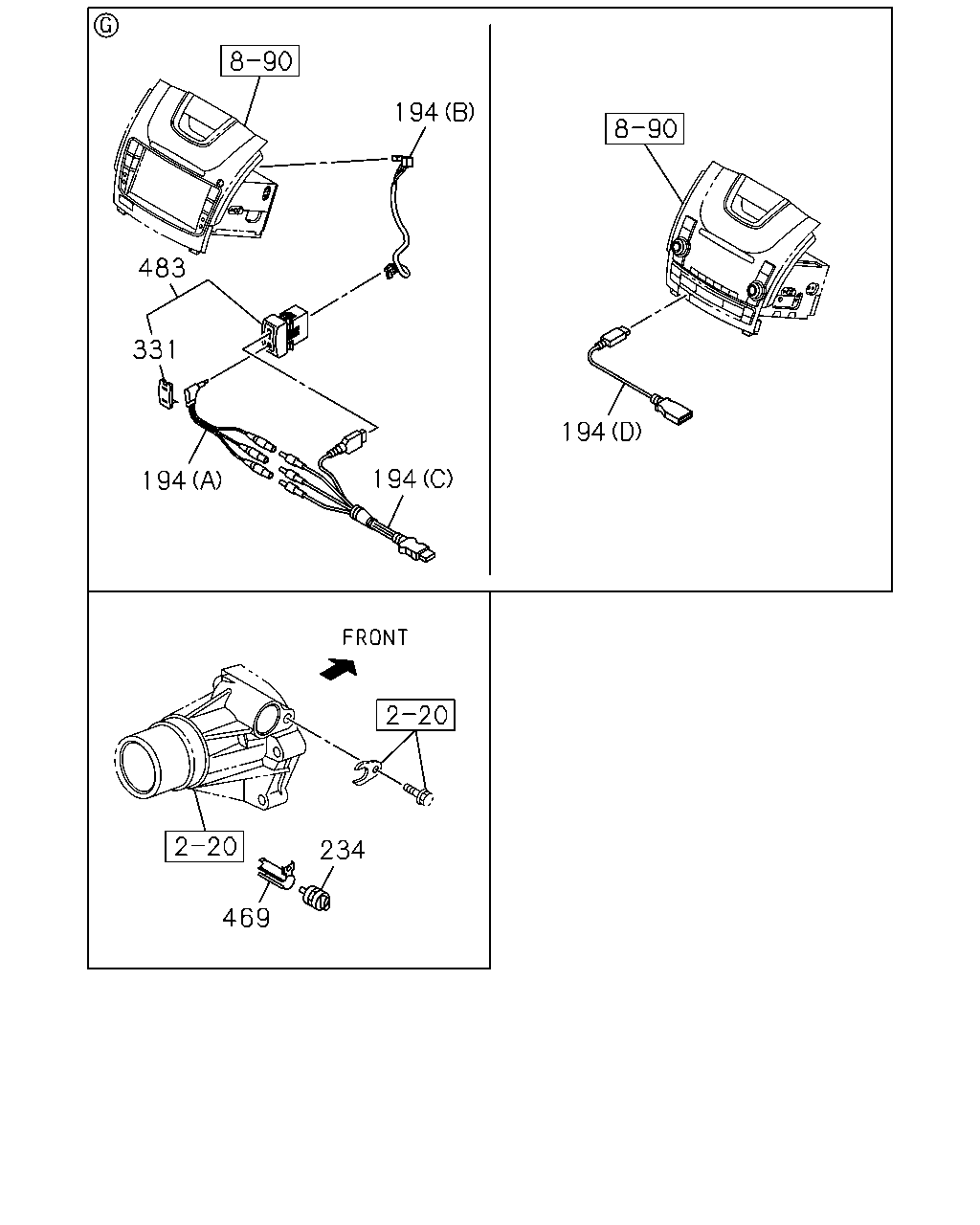

çizim 439416
194 194 194 194 331 483 234 469
BalonParca AdiParca NoAdetTipApplied Date A B
194 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (C) THA 		8-98235-372-0 01 1 1409- ● ●
194 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> (D) THA 		8-98193-631-0 01 1 1409- ●
194 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (B) THA 		8-98209-263-0 01 1 1409- ● ●
194 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (A) THA 		8-98209-351-0 01 1 1409- ● ●
234 SENSOR; VEHICLE SPD
A/T 5 SPEED-AISIN<MA1> EXC. ABS W/EBD BRAKE ASSIST<JE5> 4 PULSE PPS RESIN WHITE/BLACK THA 		8-98043-734-0 01 1 1409- ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ> EXC. ABS W/EBD BRAKE ASSIST<JE5> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 1409- ●
331 COVER; SW
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98217-463-0 01 1 1409- ● ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H<MWQ> EXC. ABS W/EBD BRAKE ASSIST<JE5> IMA 		8-98119-901-0 01 1 1409- ●
483 SWITCH
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98209-259-1 01 1 1409- ● ●

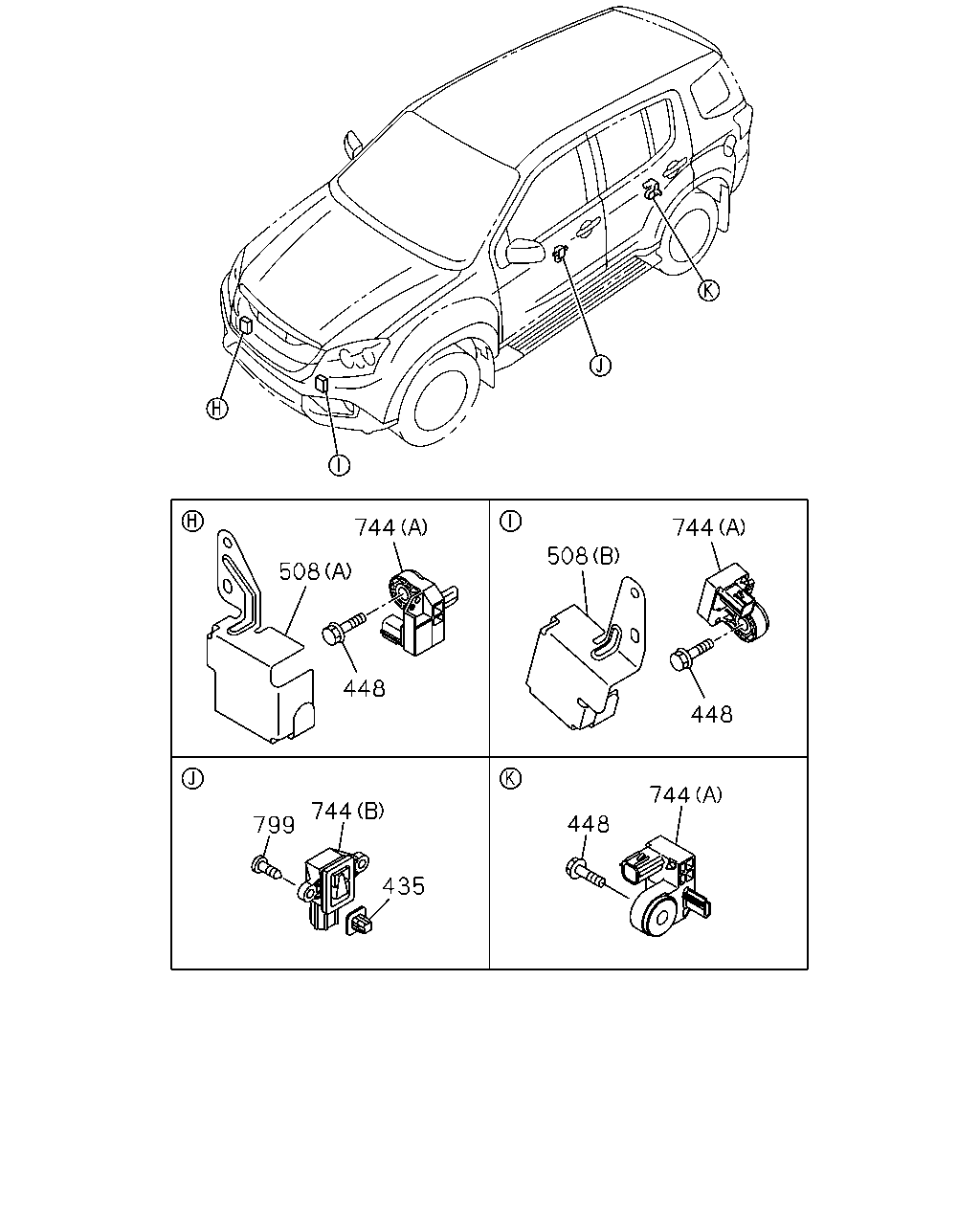

çizim 439423
508 744 448 744 448 744 435 799 448 508 744
BalonParca AdiParca NoAdetTipApplied Date A B
435 GROMMET
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> D=7.9X7.9 L=11.4 M5 IMA 		8-94367-528-0 04 1 1409- ● ●
448 BOLT; SENSOR
M6X25 FLANGE THA 		0-28650-625-0 02 1 1409- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> M6X25 FLANGE THA 		0-28650-625-0 02 1 1409- ● ●
508 PROTECTOR
(A) THA 		8-98165-179-0 01 1 1409- ● ●
508 PROTECTOR
(B) THA 		8-98165-180-0 01 1 1409- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> (A) THA 		8-98059-533-2 02 1 1409- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (B) THA 		8-98146-939-1 02 1 1409- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (A) THA 		8-98156-002-0 04 1 1409- ● ●
799 SCREW; SENSOR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> M5X16 TAPPING THA 		8-98167-449-0 04 1 1409- ● ●

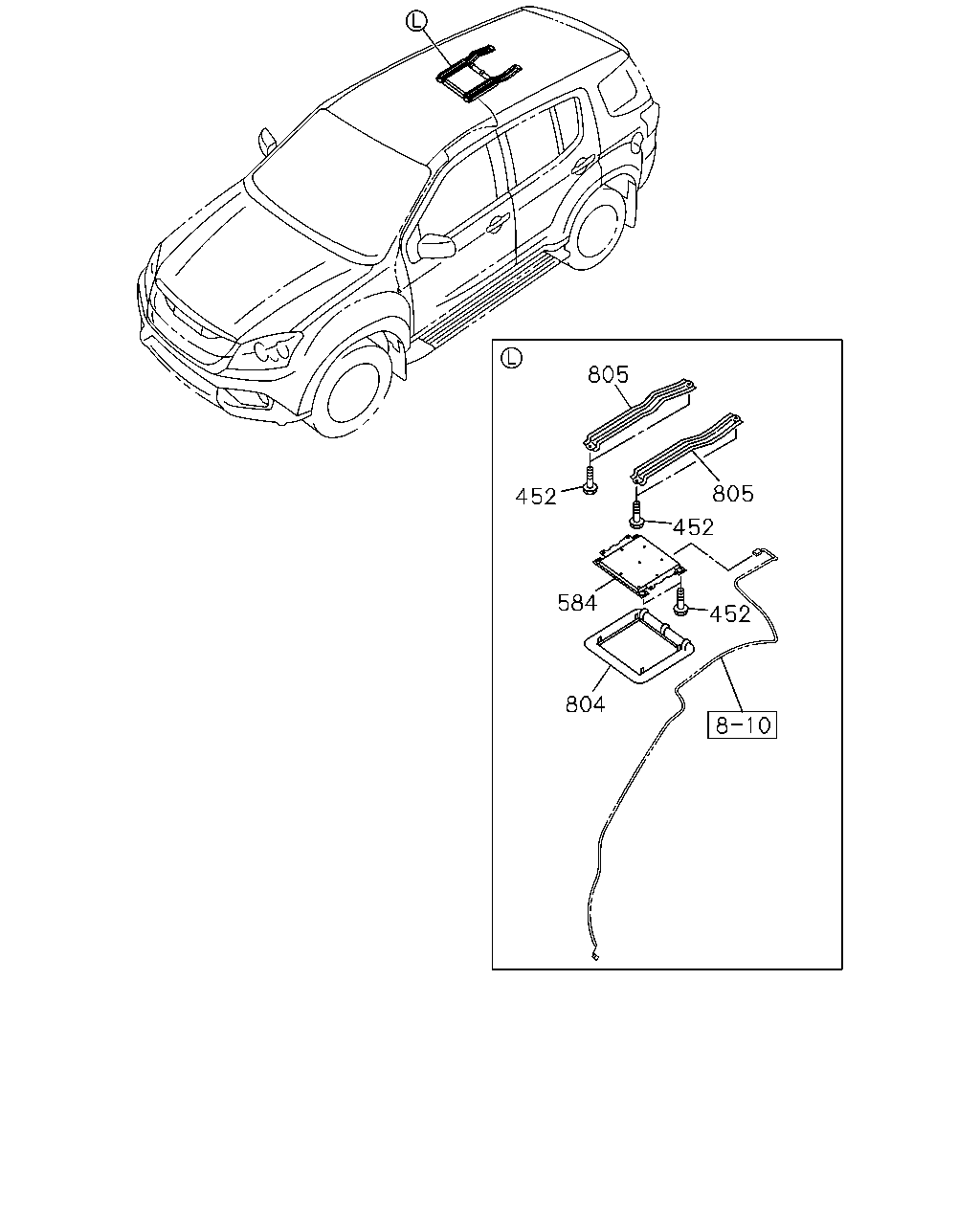

çizim 439424
805 805 452 452 452 584 804
BalonParca AdiParca NoAdetTipApplied Date A B
452 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 1409- ● ●
452 BOLT; BRKT
2ND SEAT DVD MONITOR<U48> M6X16 FLANGE THA 		0-28650-616-0 04 1 1409- ● ●
584 DISPLAY
2ND SEAT DVD MONITOR<U48> THA 		8-98197-955-2 01 1 1409-1409 ● ●
584 DISPLAY
2ND SEAT DVD MONITOR<U48> THA 		8-98291-255-0 01 1 1410- ● ●
804 BEZEL; DISPLAY
2ND SEAT DVD MONITOR<U48> THA 		8-98197-957-1 01 1 1409- ● ●
805 BRACKET; DISPLAY
THA 		8-98197-956-1 01 1 1409- ● ●
805 BRACKET; DISPLAY
THA 		8-98211-399-1 01 1 1409- ● ●
çizim 439432
501 803 587 501 580 587
BalonParca AdiParca NoAdetTipApplied Date A B
501 GROMMET; SCREW
THA 		8-98163-895-0 01 1 1409- ● ●
580 CAMERA; REAR
2ND SEAT DVD MONITOR<U48> THA 		8-98210-822-0 01 1 1409- ● ●
587 SCREW; CAMERA
M5X14 IMA 		8-94152-495-0 01 1 1409- ● ●
803 COVER; CAMERA
EXC. 2ND SEAT DVD MONITOR<U48> THA 		8-98210-821-0 01 1 1409- ● ●

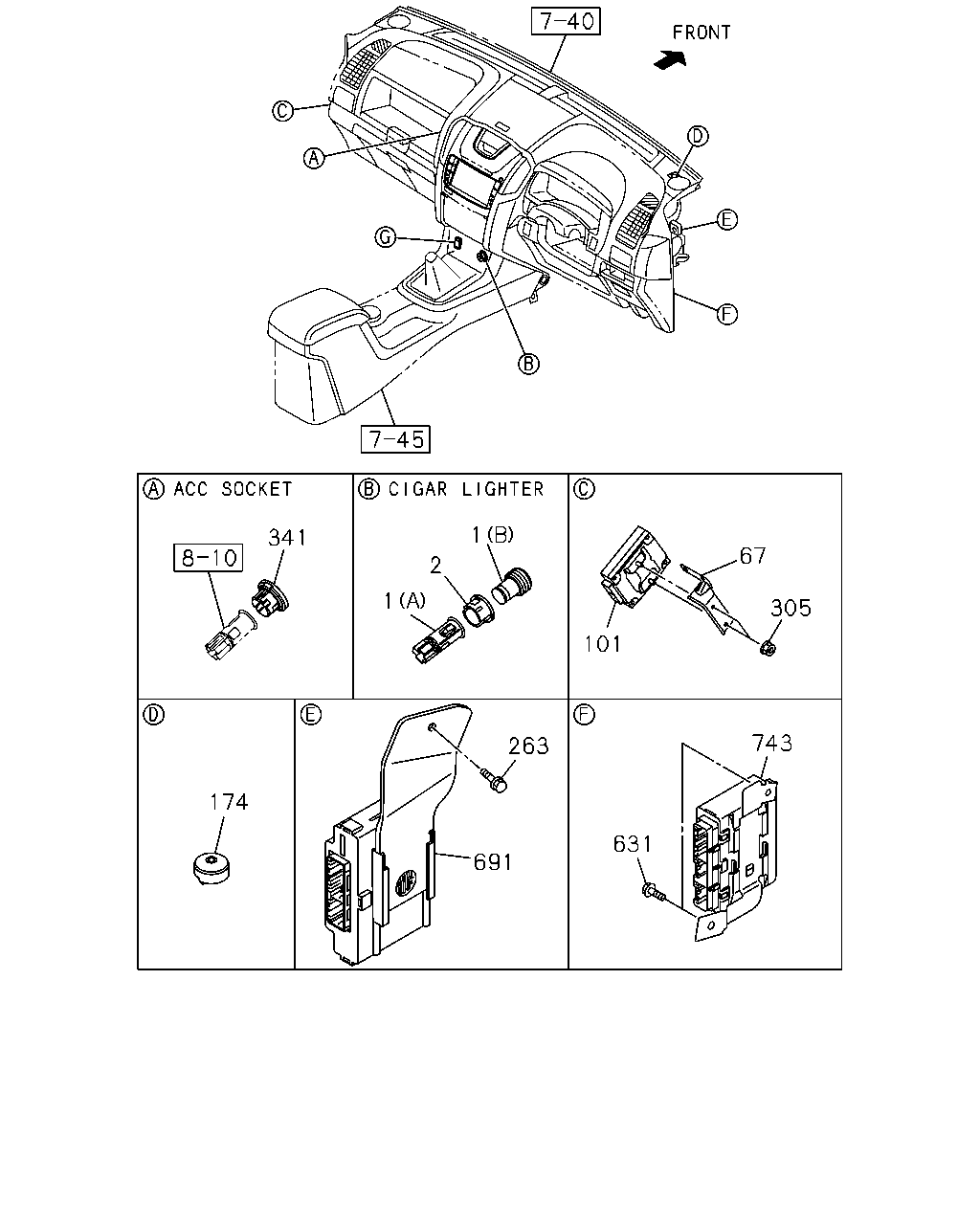

çizim 439597
174 263 691 631 743 305 67 101 1 2 1 341
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR
INTERIOR BASIC<RBA> (A) IMA 		8-98123-114-0 01 1 1409- ●
1 LIGHTER; CIGAR
INTERIOR BASIC<RBA> (B) IMA 		8-98123-117-0 01 1 1409- ●
2 BEZEL; CIGAR LIGHTER
INTERIOR BASIC<RBA> IMA 		8-98123-118-0 01 1 1409- ●
67 BRACKET; CONT UNIT
A/T 5 SPEED-AISIN<MA1> THA 		8-98113-342-0 01 1 1409- ● ●
101 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> THA 		8-98239-694-0 01 1 1409- ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> THA 		8-98239-693-0 01 1 1409-1502 ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> THA 		8-98239-696-0 01 1 1503- ● ●
174 INDICATOR; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98153-855-0 01 1 1409- ● ●
263 BOLT; CONT UNIT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1409- ●
305 NUT; CONT UNIT
A/T 5 SPEED-AISIN<MA1> M6 FLANGE THA 		0-91180-106-0 02 1 1409- ● ●
341 COVER ASM
I/P MOUNT OUTLET<KC5> IMA 		8-98123-123-0 01 1 1409- ●
341 COVER ASM
IMA 		8-98123-123-0 01 1 1409- ●
341 COVER ASM
EXC. I/P MOUNT OUTLET<KC5> THA 		8-98142-409-1 01 1 1409- ●
631 BOLT; CONT UNIT
M6X16 FLANGE THA 		0-28450-616-0 02 1 1409- ● ●
691 CONTROLLER; TRANSFER
THA 		8-98186-110-0 01 1 1409- ●
743 CONTROL UNIT; BCM
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98190-502-1 01 1 1409- ● ●
743 CONTROL UNIT; BCM
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98190-500-1 01 1 1409- ● ●
