◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51577 - UCR/UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#147339) — 20 parça

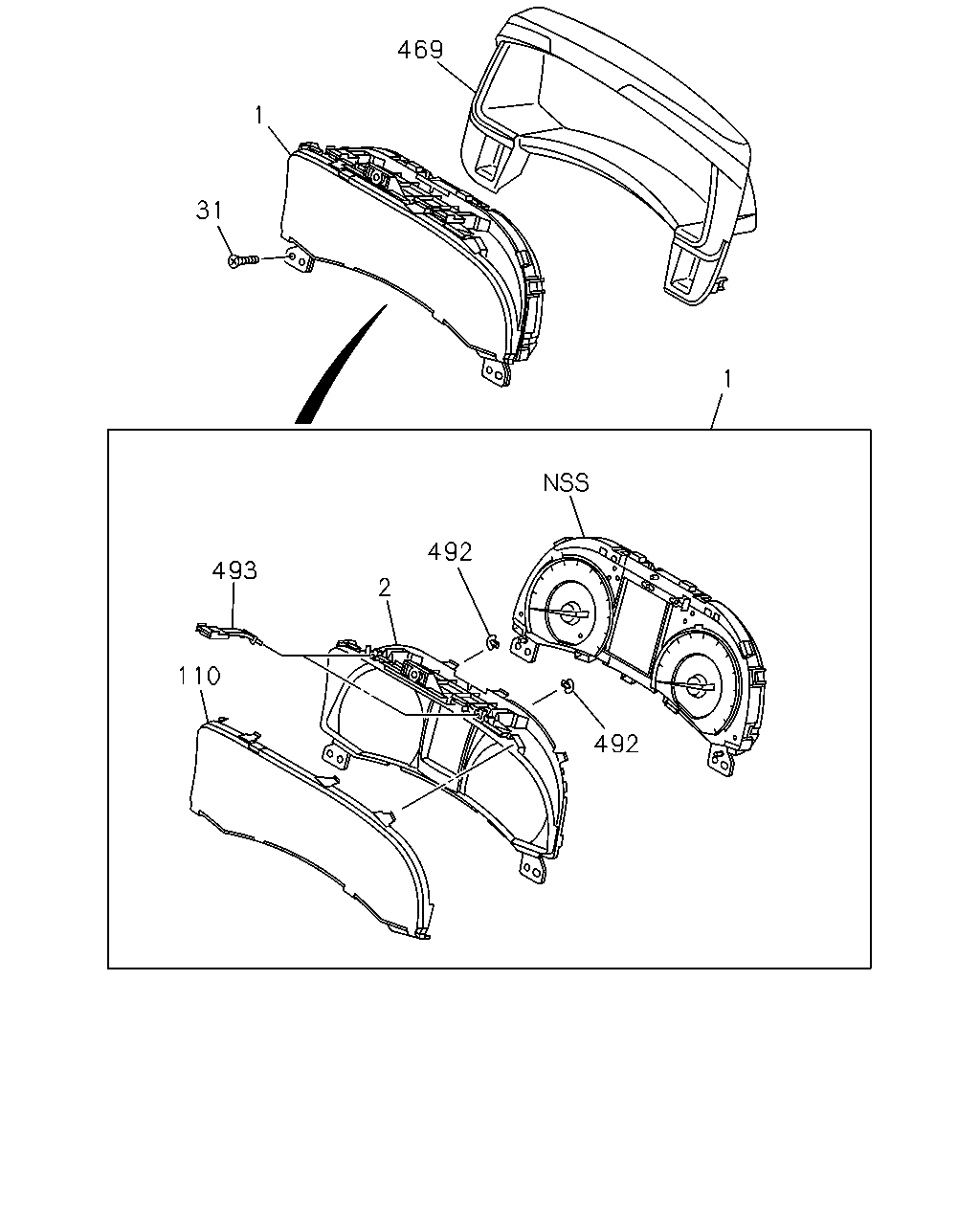

çizim 439570
1 469 1 31 493 110 2 492 492
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98250-808-1 01 1 1409- ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> THA 		8-98250-808-1 01 1 1409- ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN<MA1> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98196-940-0 01 1 1409- ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98250-807-1 01 1 1409- ●
1 METER COMPL; CLUSTER
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98250-807-1 01 1 1409- ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H<MWQ> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98196-941-0 01 1 1409- ●
2 PANEL; CLUSTER
A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98270-046-0 01 1 1409- ●
2 PANEL; CLUSTER
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98270-046-0 01 1 1409- ●
2 PANEL; CLUSTER
A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98163-885-0 01 1 1409- ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING THA 		8-98167-449-0 03 1 1409- ● ●
110 GLASS; CLUSTER METER
A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98270-045-0 01 1 1409- ●
110 GLASS; CLUSTER METER
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98270-045-0 01 1 1409- ●
110 GLASS; CLUSTER METER
A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98163-883-0 01 1 1409- ●
469 PLATE; INSTRUMENT PANEL
INTERIOR BASIC<RBA> BLACK THA 		8-97416-628-1 01 1 1409- ●
469 PLATE; INSTRUMENT PANEL
INTERIOR CUSTOM<RBD> BLACK THA 		8-97424-331-0 01 1 1409- ●
469 PLATE; INSTRUMENT PANEL
BLACK THA 		8-97424-331-0 01 1 1409- ●
492 PANEL; TURN LENS
A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98163-886-0 02 1 1409- ●
492 PANEL; TURN LENS
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98163-886-0 02 1 1409- ●
493 PANEL; TOP LIGHT PRISM
A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98163-887-0 02 1 1409- ●
493 PANEL; TOP LIGHT PRISM
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98163-887-0 02 1 1409- ●
