8-15 — FIXING PARTS; WIRING HARNESS (#147338) — 54 parça

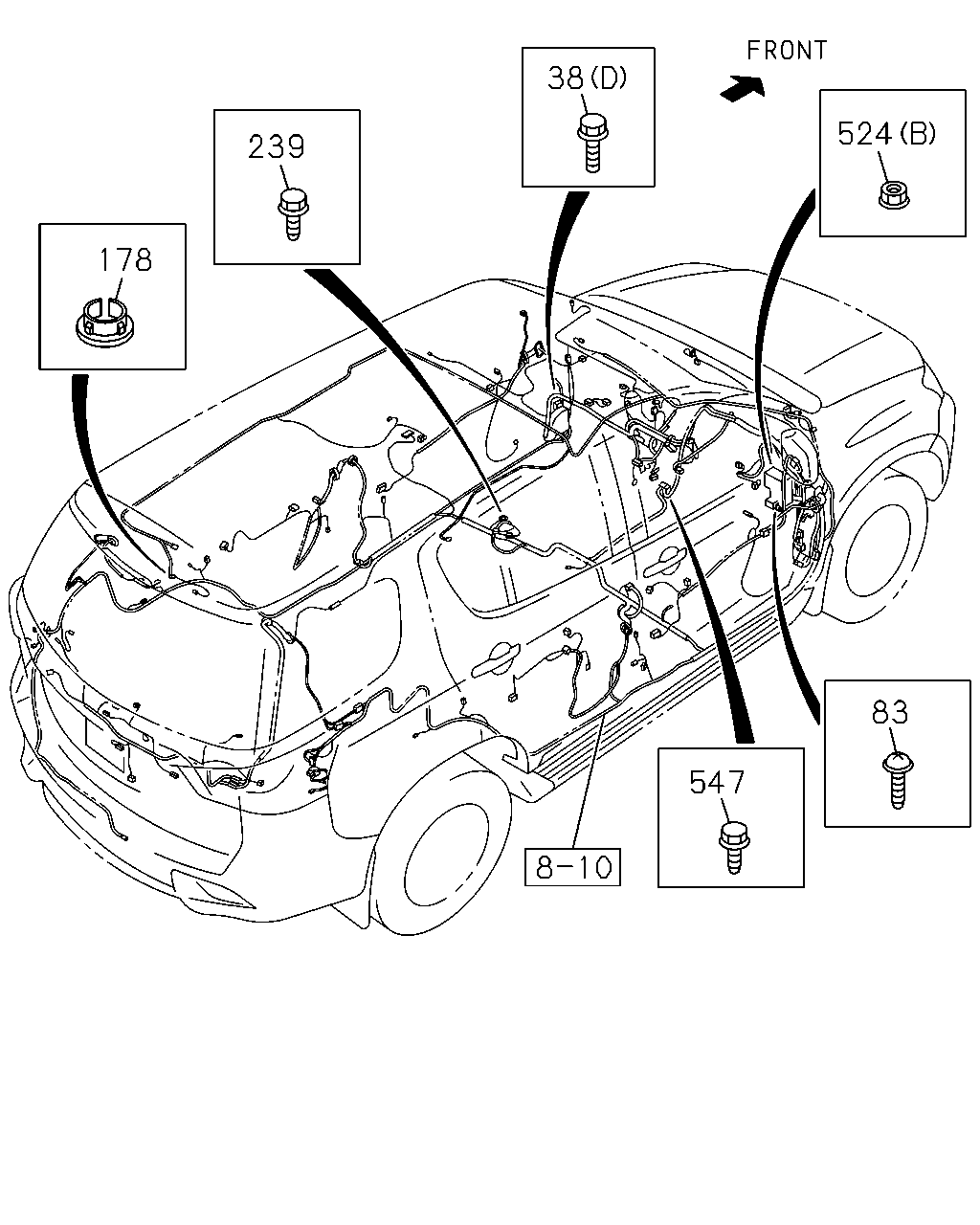

çizim 439538
178 239 38 524 83 547
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(A) M6X12 FLANGE THA 		0-28050-612-0 02 1 1409- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1409- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 1409- ● ●
38 BOLT; CLIP,HARNESS
(E) M10X12 FLANGE IMA 		0-28151-012-0 01 1 1409- ● ●
38 BOLT; CLIP,HARNESS
(D) M6X16 FLANGE THA 		0-28650-616-0 05 1 1409- ● ●
83 SCREW; HARNESS
M5X25 TAPPING W/PL WASHER THA 		0-74360-525-0 01 1 1409- ● ●
178 GROMMET; HARNESS
THA 		8-97027-381-0 01 1 1409- ● ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 07 1 1409-1501 ● ●
239 BOLT; GRAND
M6X14 W/PL WASHER IMA 		8-98164-836-0 07 1 1502- ● ●
524 NUT; HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1409- ● ●
524 NUT; HARNESS
(B) M6 FLANGE THA 		0-91180-106-0 01 1 1409- ● ●
547 BOLT
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 01 1 1409-1501 ● ●
547 BOLT
M6X14 W/PL WASHER IMA 		8-98164-836-0 01 1 1502- ● ●

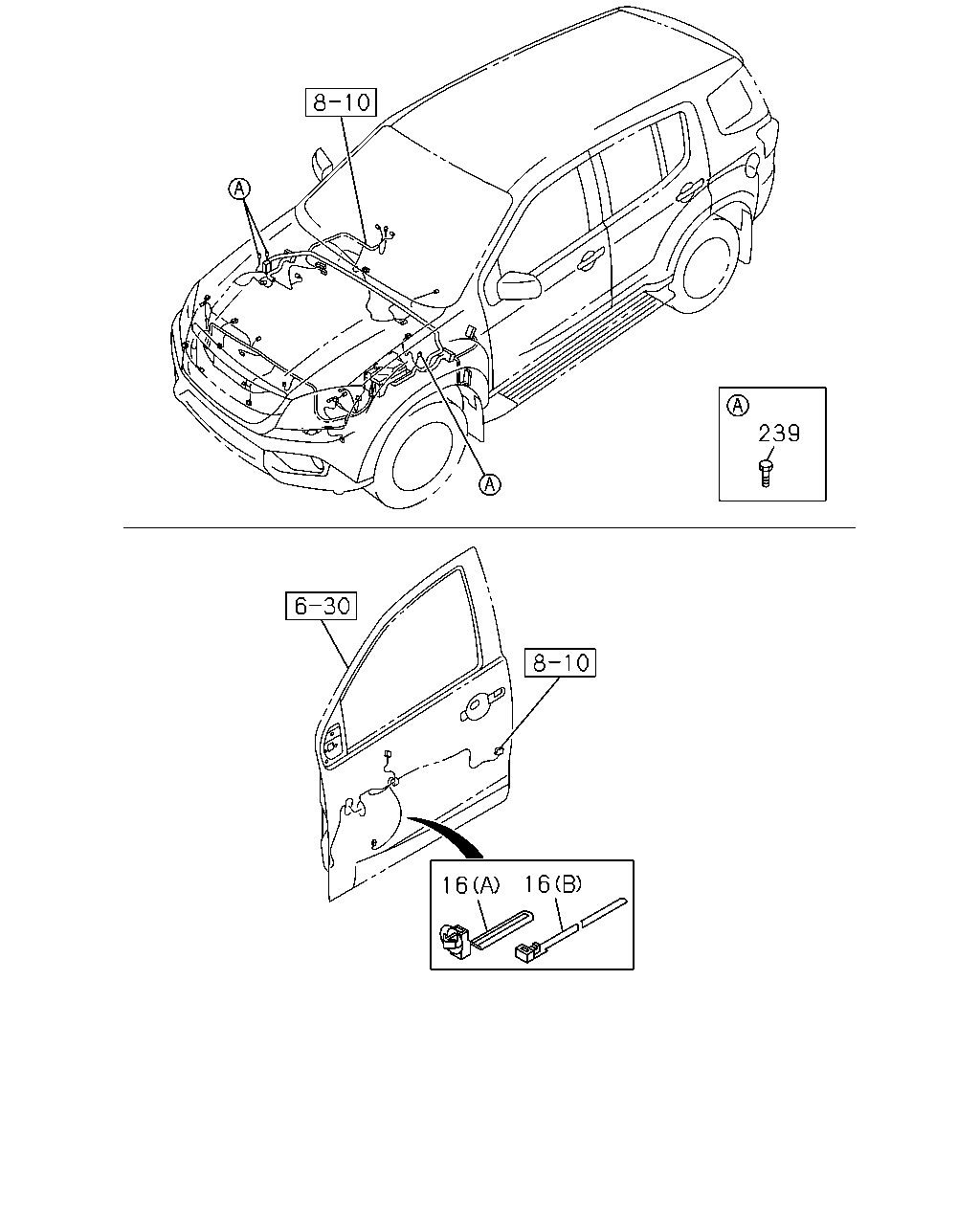

çizim 439553
239 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA 		8-97378-707-0 01 1 1409-1502 ● ●
16 CLIP; HARNESS
AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (B) L=140 THA 		8-97378-707-0 01 1 1409-1502 ● ●
16 CLIP; HARNESS
AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (B) L=140 THA 		8-97378-707-0 01 1 1409-1502 ● ●
16 CLIP; HARNESS
AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA 		8-97378-707-0 01 1 1503- ● ●
16 CLIP; HARNESS
AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA 		8-97378-707-0 01 1 1503- ● ●
16 CLIP; HARNESS
AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA 		8-97378-707-0 01 1 1503- ● ●
16 CLIP; HARNESS
AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (B) L=140 THA 		8-97378-707-0 01 1 1503- ● ●
16 CLIP; HARNESS
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA 		8-97378-707-0 03 1 1409-1502 ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (B) L=140 THA 		8-97378-707-0 03 1 1409-1502 ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA 		8-97378-707-0 03 1 1409-1502 ● ●
16 CLIP; HARNESS
PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA 		8-97378-707-0 03 1 1409-1502 ● ●
16 CLIP; HARNESS
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA 		8-97378-707-0 03 1 1503- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA 		8-97378-707-0 03 1 1503- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA 		8-97378-707-0 03 1 1503- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA 		8-97378-707-0 03 1 1503- ● ●
16 CLIP; HARNESS
PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA 		8-97378-707-0 03 1 1503- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (A) L=155 THA 		8-97173-307-0 02 1 1409-1502 ● ●
16 CLIP; HARNESS
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155 THA 		8-97173-307-0 02 1 1409-1502 ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155 THA 		8-97173-307-0 02 1 1409-1502 ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155 THA 		8-97173-307-0 02 1 1503- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155 THA 		8-97173-307-0 02 1 1503- ● ●
16 CLIP; HARNESS
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155 THA 		8-97173-307-0 02 1 1503- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155 THA 		8-97173-307-0 02 1 1503- ● ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 07 1 1409-1501 ● ●
239 BOLT; GRAND
M6X14 W/PL WASHER IMA 		8-98164-836-0 07 1 1502- ● ●

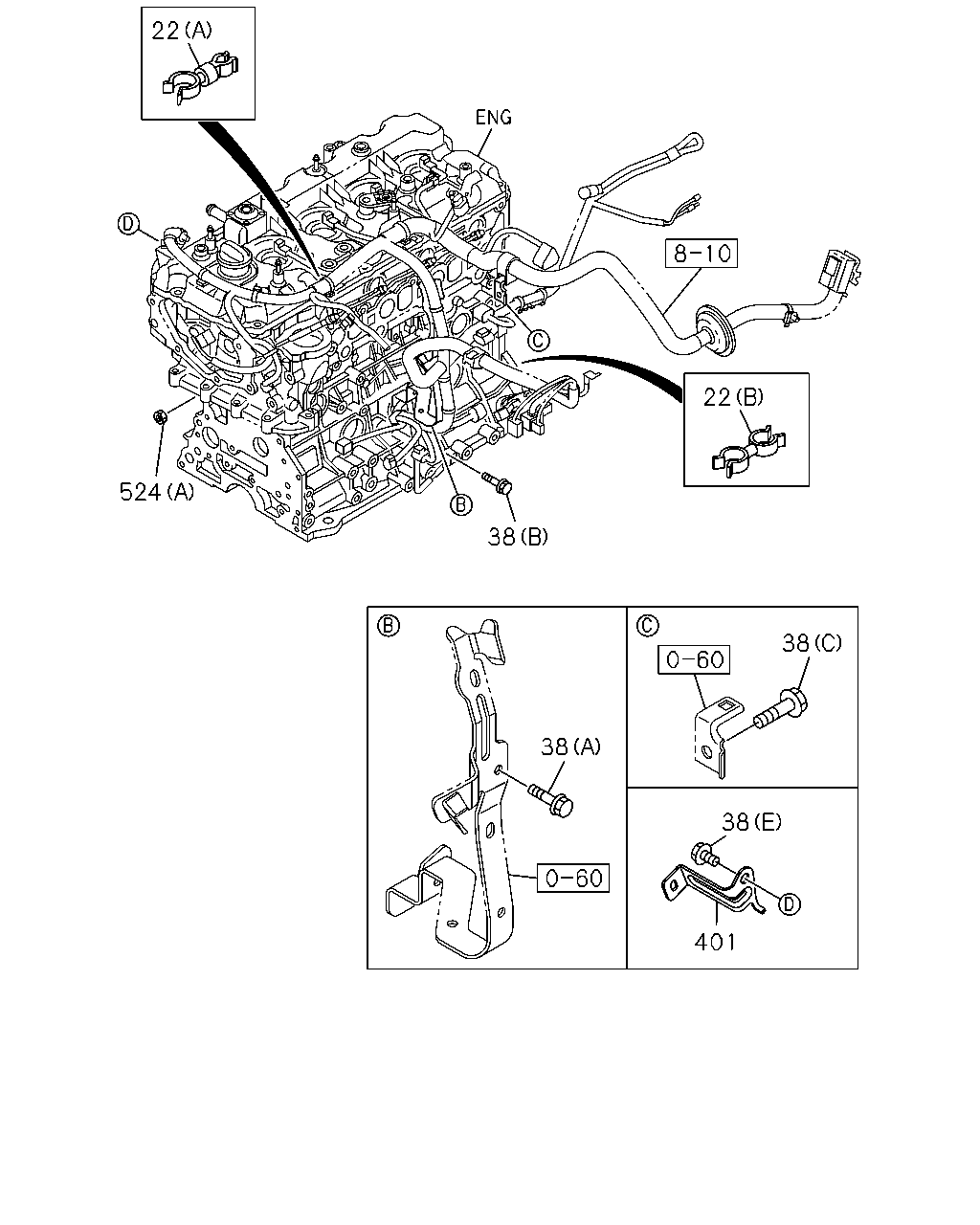

çizim 439555
22 524 38 22 38 38 401 38
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLIP; ENG HARNESS
(B) ID=7.5 & 7.5 THA 		8-98212-981-0 01 1 1409- ● ●
22 CLIP; ENG HARNESS
(A) ID=11.8 & 7.5 THA 		8-98212-982-0 01 1 1409- ● ●
38 BOLT; CLIP,HARNESS
(A) M6X12 FLANGE THA 		0-28050-612-0 02 1 1409- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1409- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 1409- ● ●
38 BOLT; CLIP,HARNESS
(E) M10X12 FLANGE IMA 		0-28151-012-0 01 1 1409- ● ●
38 BOLT; CLIP,HARNESS
(D) M6X16 FLANGE THA 		0-28650-616-0 05 1 1409- ● ●
401 BRACKET; HARNESS,GEN
THA 		8-98224-801-0 01 1 1409- ● ●
524 NUT; HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1409- ● ●
524 NUT; HARNESS
(B) M6 FLANGE THA 		0-91180-106-0 01 1 1409- ● ●

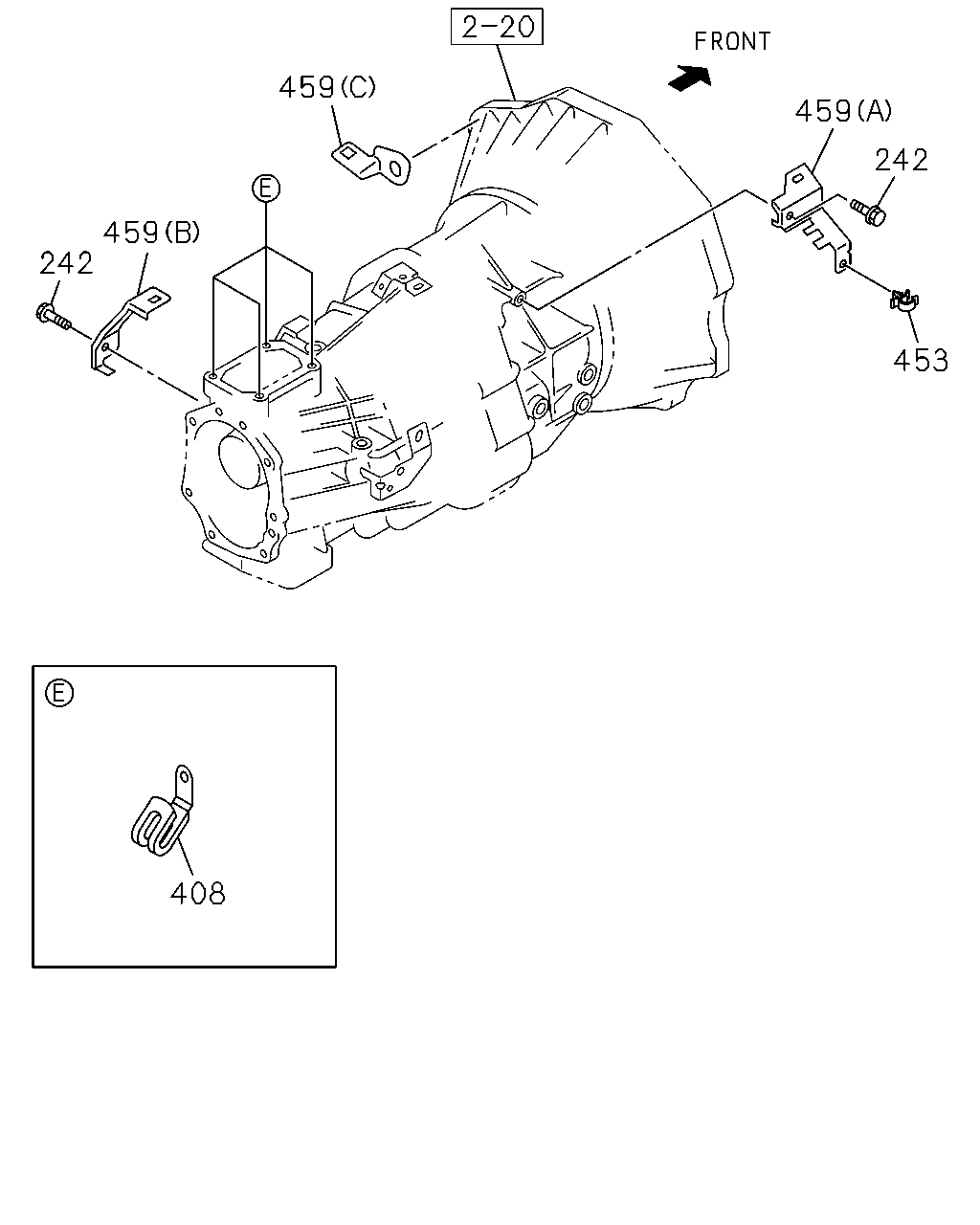

çizim 439556
242 453 459 459 242 408 459
BalonParca AdiParca NoAdetTipApplied Date A B
242 BOLT; BRKT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> M8X16 FLANGE THA 		0-28050-816-0 02 1 1409- ●
408 CLIP; TRANS HARNESS
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE IMA 		8-97367-984-1 04 1 1409- ●
453 CLIP; CABLE HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> ID=6.5 IMA 		5-09709-117-0 01 1 1409- ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (A) THA 		8-98035-740-0 01 1 1409- ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-98035-741-0 01 1 1409- ●
459 BRACKET; SUPPORT,HARNESS
M/T MUA 5 SPEED 5H<MWQ> (C) THA 		8-98050-882-0 01 1 1409- ●
