◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51577 - UCR/UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#147335) — 38 parça

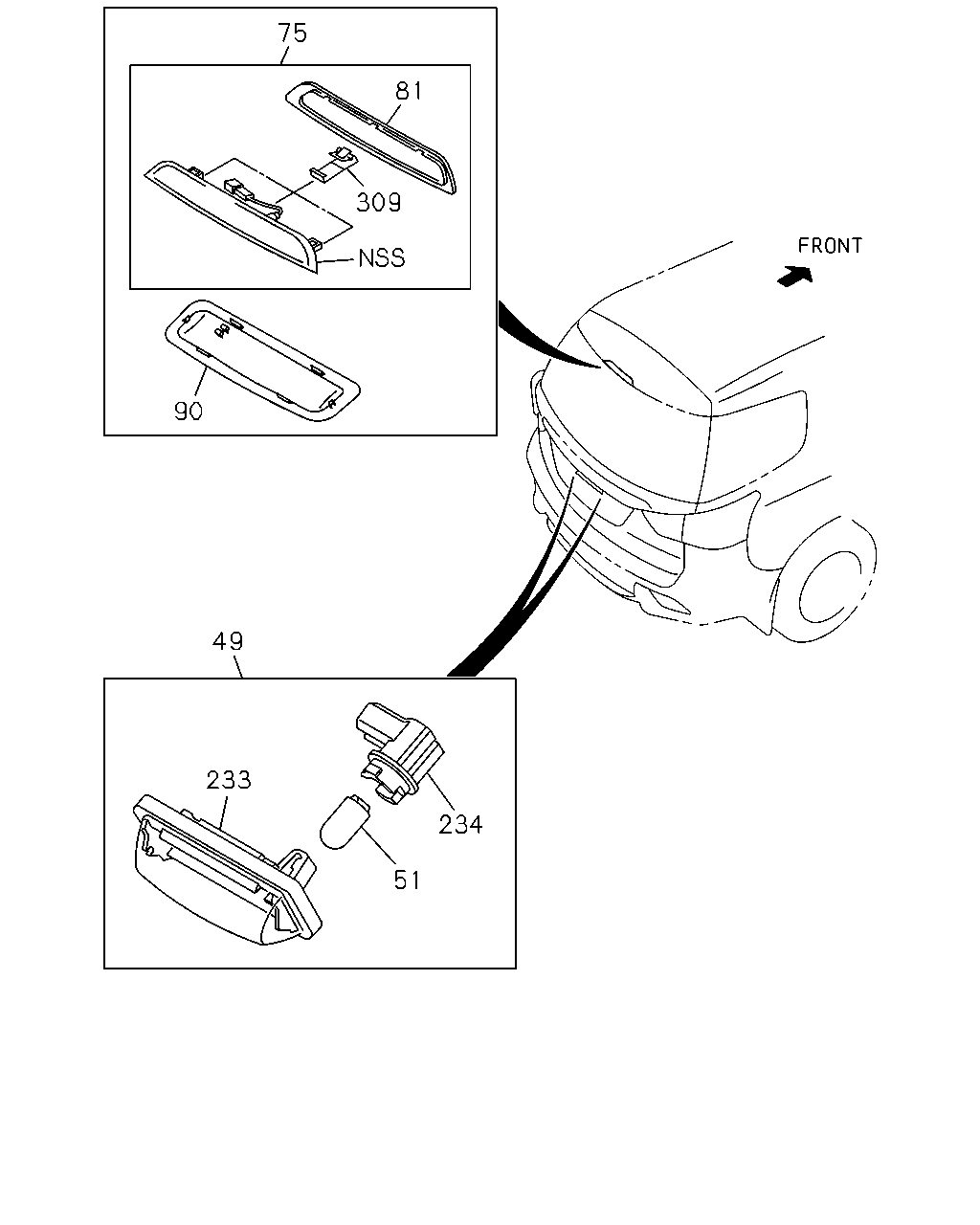

çizim 439254
75 81 309 90 49 234 233 51
BalonParca AdiParca NoAdetTipApplied Date A B
49 LAMP; LICENSE PLATE
THA 		8-98248-476-0 02 1 1409- ● ●
51 BULB; LICENSE PLATE LAMP
12V 5W THA 		8-94124-595-0 02 1 1409- ● ●
75 LAMP ASM; STOP,HIGHMOUNTED
THA 		8-98187-249-3 01 1 1409- ● ●
81 GASKET; STOP LAMP
THA 		8-98223-658-0 01 1 1409- ● ●
90 COVER; STOP LAMP
THA 		8-98203-808-1 01 1 1409- ● ●
233 LAMP UNIT; LICENSE PLATE
THA 		8-98251-881-0 02 1 1409- ● ●
234 SOCKET ASM; LICENSE PLATE LAMP
THA 		8-98251-882-0 02 1 1409- ● ●
309 STAY; STOP LAMP
THA 		8-98223-657-0 03 1 1409- ● ●

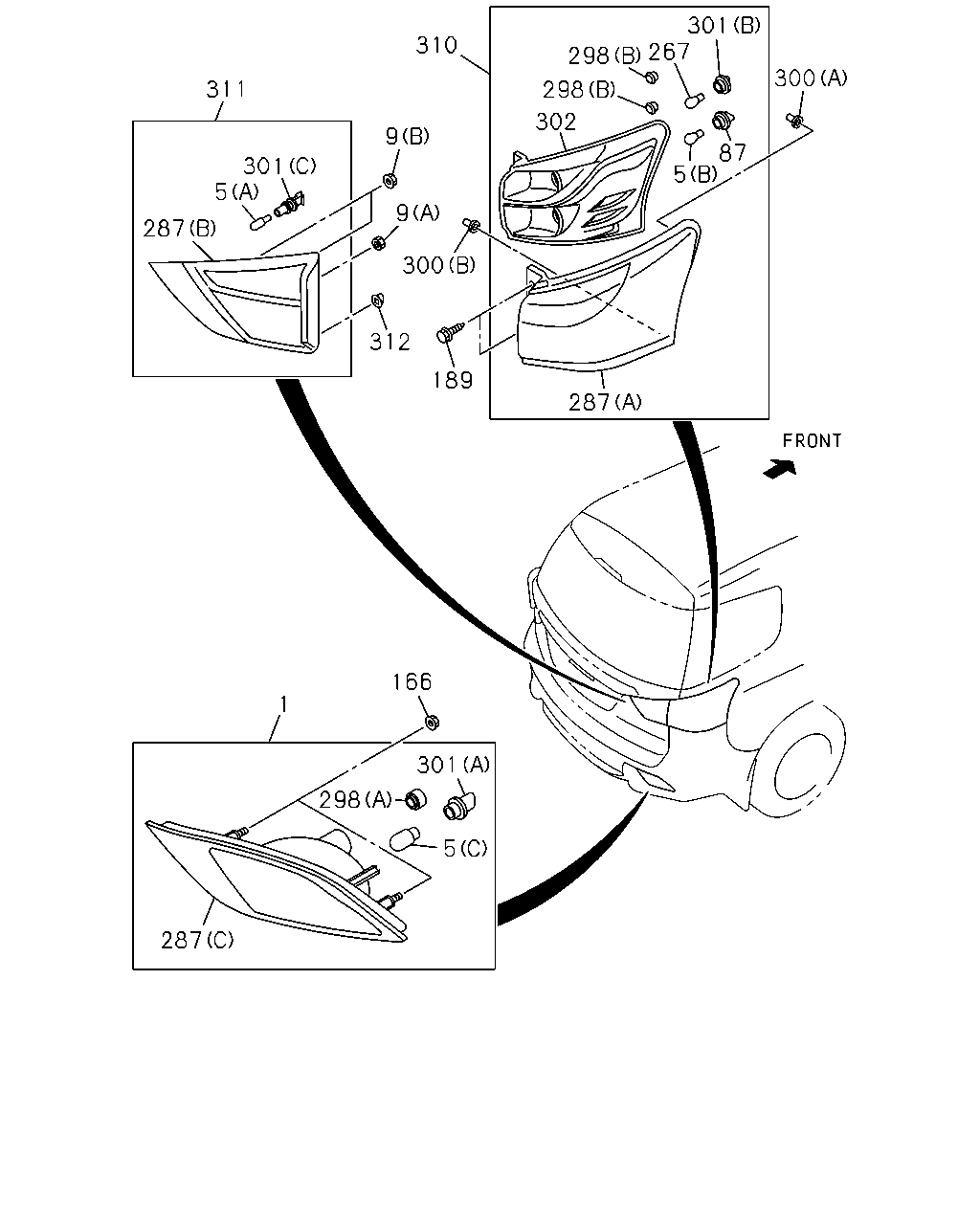

çizim 439473
311 310 9 9 301 5 287 300 312 189 287 300 87 5 301 267 298 298 302 166 1 298 301 5 287
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB
THA 		8-98187-247-1 01 1 1409- ● ●
1 LAMP ASM; RR COMB
THA 		8-98187-248-1 01 1 1409- ● ●
5 BULB; RR COMB LAMP
(A) 12V 5W THA 		8-98257-815-0 02 1 1409- ● ●
5 BULB; RR COMB LAMP
(B) 12V 21/5W THA 		8-94125-959-0 02 1 1409- ● ●
5 BULB; RR COMB LAMP
(C) 12V 18W THA 		8-94372-897-0 02 1 1409- ● ●
9 NUT; LAMP,RR COMB
(A) M6 CAP NUT THA 		8-98049-850-0 02 1 1409- ● ●
9 NUT; LAMP,RR COMB
(B) M6 FLANGE IMA 		8-98055-704-0 04 1 1409- ● ●
87 SOCKET; STOP LAMP
THA 		8-97332-380-0 02 1 1409- ● ●
166 NUT; BACKUP LAMP
M6 FLANGE IMA 		8-98055-704-0 04 1 1409- ● ●
189 BOLT; FIX
M6X18 W/LK&PL WASHER IMA 		8-98061-682-0 04 1 1409- ● ●
267 BULB; TURN SIGNAL
12V 21W THA 		8-97179-967-0 02 1 1409- ● ●
287 LAMP UNIT; RR COMB
(A) THA 		8-98218-264-0 01 1 1409- ● ●
287 LAMP UNIT; RR COMB
(A) THA 		8-98218-265-0 01 1 1409- ● ●
287 LAMP UNIT; RR COMB
(B) THA 		8-98218-266-0 01 1 1409- ● ●
287 LAMP UNIT; RR COMB
(B) THA 		8-98218-267-0 01 1 1409- ● ●
287 LAMP UNIT; RR COMB
(C) THA 		8-98218-505-0 01 1 1409- ● ●
287 LAMP UNIT; RR COMB
(C) THA 		8-98218-506-0 01 1 1409- ● ●
298 CAP; BREATHER,RR COMB LAMP
(B) THA 		8-98001-464-0 04 1 1409- ● ●
298 CAP; BREATHER,RR COMB LAMP
(A) THA 		8-98186-378-0 02 1 1409- ● ●
300 HOLDER; LAMP
(A) IMA 		8-97175-217-0 02 1 1409- ● ●
300 HOLDER; LAMP
(B) IMA 		8-98014-041-0 02 1 1409- ● ●
301 SOCKET ASM; RR COMB
(A) IMA 		8-97184-970-0 02 1 1409- ● ●
301 SOCKET ASM; RR COMB
(B) THA 		8-97332-446-0 02 1 1409- ● ●
301 SOCKET ASM; RR COMB
(C) THA 		8-98218-268-0 02 1 1409- ● ●
302 FILTER; BREATHER,RR COMB LAMP
THA 		8-98001-518-0 04 1 1409- ● ●
310 LAMP ASM; RR COMB,BODY SIDE
THA 		8-98187-243-2 01 1 1409- ● ●
310 LAMP ASM; RR COMB,BODY SIDE
THA 		8-98187-244-2 01 1 1409- ● ●
311 LAMP ASM; RR COMB,GATE SIDE
THA 		8-98187-245-0 01 1 1409- ● ●
311 LAMP ASM; RR COMB,GATE SIDE
THA 		8-98187-246-0 01 1 1409- ● ●
312 CLIP; RR COMB LAMP
IMA 		8-98014-041-0 02 1 1409- ● ●
