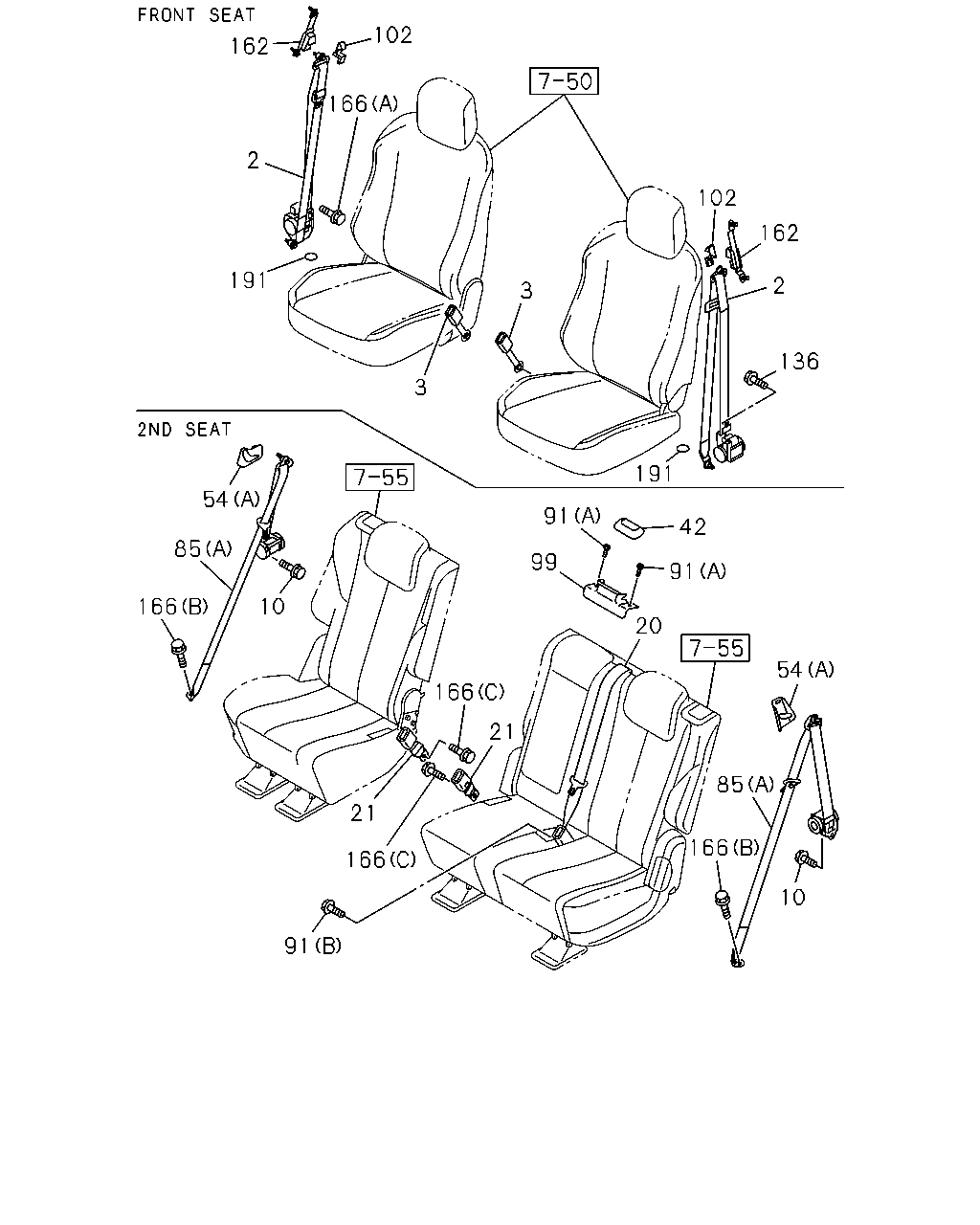

7-60 — SEAT BELT (#147333) — 62 parça

2 191 162 166 102 3 3 10 54 85 166 21 21 166 166 91 99 91 42 91 20 54 85 166 10 191 136 2 162 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BELT; SEAT,TONGUE SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> PASSENGER SIDE DARK GRAY THA	8-97428-403-0	01	1	1409-	●	●
2	BELT; SEAT,TONGUE SIDE DRIVER SIDE DARK GRAY THA	8-97428-402-0	01	1	1409-	●	●
3	BELT; SEAT,BUCKLE SIDE AIR BAG DRIVER & PASSENGER<AK5> BLACK THA	8-97426-632-0	01	1	1409-	●	●
3	BELT; SEAT,BUCKLE SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> BLACK THA	8-97426-631-0	01	1	1409-	●	●
3	BELT; SEAT,BUCKLE SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> BLACK THA	8-97426-631-0	01	1	1409-	●	●
3	BELT; SEAT,BUCKLE SIDE AIR BAG DRIVER & PASSENGER<AK5> BLACK THA	8-97416-839-0	01	1	1409-	●	●
3	BELT; SEAT,BUCKLE SIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> BLACK THA	8-97426-630-0	01	1	1409-	●	●
10	BOLT; RETRACTOR 3RD SEAT M12X27.5 W/PL WASHER THA	8-98050-319-0	02	1	1409-	●	●
10	BOLT; RETRACTOR 2ND SEAT M14X32 FLANGE THA	8-98056-276-0	02	1	1409-	●	●
20	BELT; RR SEAT CTR,TONGUE SIDE SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> DARK GRAY THA	8-97425-696-2	01	1	1409-	●	●
21	BELT; RR SEAT CTR,BUCKLE SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> DARK GRAY THA	8-97425-695-0	01	1	1507-	●	●
21	BELT; RR SEAT CTR,BUCKLE SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> DARK GRAY THA	8-97425-695-0	01	1	1507-	●	●
21	BELT; RR SEAT CTR,BUCKLE SIDE SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> DARK GRAY THA	8-97425-695-0	01	1	1409-1506	●	●
21	BELT; RR SEAT CTR,BUCKLE SIDE SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> DARK GRAY THA	8-97425-695-0	01	1	1409-1506	●	●
21	BELT; RR SEAT CTR,BUCKLE SIDE SEAT TRIM LEATHER<6TB> DARK GRAY THA	8-97425-695-0	02	1	1507-	●	●
42	COVER; SEAT BELT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97429-757-0	01	1	1409-	●	●
54	BEZEL; SEAT BELT (A) GRAY THA	8-97424-343-0	01	1	1409-	●	●
54	BEZEL; SEAT BELT (A) GRAY THA	8-97424-344-0	01	1	1409-	●	●
54	BEZEL; SEAT BELT (B) GRAY THA	8-97424-353-0	01	1	1409-	●	●
54	BEZEL; SEAT BELT (B) GRAY THA	8-97424-354-0	01	1	1409-	●	●
85	BELT; SEAT,RR OUTER (A) DARK GRAY THA	8-97424-345-1	01	1	1409-	●	●
85	BELT; SEAT,RR OUTER (A) DARK GRAY THA	8-97424-346-1	01	1	1409-	●	●
85	BELT; SEAT,RR OUTER (B) DARK GRAY THA	8-97424-349-1	01	1	1409-1410	●	●
85	BELT; SEAT,RR OUTER (B) DARK GRAY THA	8-97466-246-0	01	1	1411-	●	●
85	BELT; SEAT,RR OUTER (B) DARK GRAY THA	8-97424-350-1	01	1	1409-1410	●	●
85	BELT; SEAT,RR OUTER (B) DARK GRAY THA	8-97466-247-0	01	1	1411-	●	●
91	BOLT; RR SEAT BELT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98253-633-0	01	1	1409-	●	●
91	BOLT; RR SEAT BELT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA	8-98253-636-0	02	1	1409-	●	●
99	BRACKET; SEAT BELT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-602-0	01	1	1409-	●	●
102	COVER; SHOULDER ANCHOR BLACK THA	8-97416-646-2	02	1	1409-	●	●
136	BOLT; SEAT BELT M6X16 FLANGE THA	0-28650-616-0	01	1	1409-	●	●
162	ADJUSTER; SEAT BELT BLACK THA	8-97416-645-1	02	1	1409-	●	●
166	BOLT; SEAT BELT ANCHOR SEAT TRIM HIGH GRADE CLOTH<8LM> (C) THA	8-98253-633-0	01	1	1507-	●	●
166	BOLT; SEAT BELT ANCHOR SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (C) THA	8-98253-633-0	01	1	1507-	●	●
166	BOLT; SEAT BELT ANCHOR SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) THA	8-98253-633-0	01	1	1409-1506	●	●
166	BOLT; SEAT BELT ANCHOR SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) THA	8-98253-633-0	01	1	1409-1506	●	●
166	BOLT; SEAT BELT ANCHOR SEAT TRIM LEATHER<6TB> (C) THA	8-98253-633-0	02	1	1507-	●	●
166	BOLT; SEAT BELT ANCHOR (B) M14X32 FLANGE THA	8-98056-276-0	02	1	1409-	●	●
166	BOLT; SEAT BELT ANCHOR (B) M14X32 FLANGE THA	8-98056-276-0	02	1	1409-	●	●
166	BOLT; SEAT BELT ANCHOR (A) M6X16 FLANGE THA	0-28650-616-0	01	1	1409-	●	●
191	SEAL; SEAT BELT OD=32 BLACK IMA	8-98031-126-0	02	1	1409-	●	●

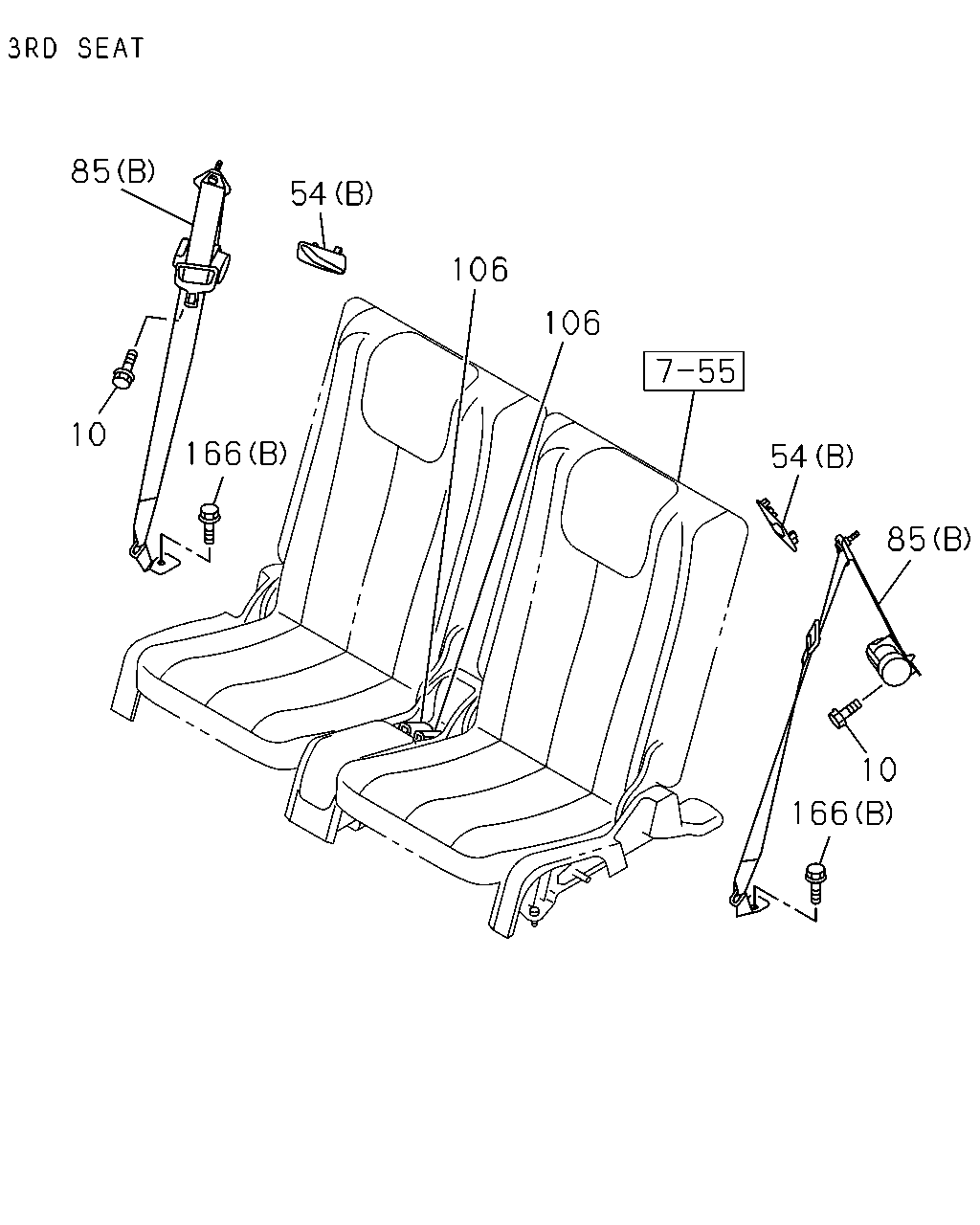

85 54 106 54 106 85 166 10 166 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	BOLT; RETRACTOR 3RD SEAT M12X27.5 W/PL WASHER THA	8-98050-319-0	02	1	1409-	●	●
10	BOLT; RETRACTOR 2ND SEAT M14X32 FLANGE THA	8-98056-276-0	02	1	1409-	●	●
54	BEZEL; SEAT BELT (A) GRAY THA	8-97424-343-0	01	1	1409-	●	●
54	BEZEL; SEAT BELT (A) GRAY THA	8-97424-344-0	01	1	1409-	●	●
54	BEZEL; SEAT BELT (B) GRAY THA	8-97424-353-0	01	1	1409-	●	●
54	BEZEL; SEAT BELT (B) GRAY THA	8-97424-354-0	01	1	1409-	●	●
85	BELT; SEAT,RR OUTER (A) DARK GRAY THA	8-97424-345-1	01	1	1409-	●	●
85	BELT; SEAT,RR OUTER (A) DARK GRAY THA	8-97424-346-1	01	1	1409-	●	●
85	BELT; SEAT,RR OUTER (B) DARK GRAY THA	8-97424-349-1	01	1	1409-1410	●	●
85	BELT; SEAT,RR OUTER (B) DARK GRAY THA	8-97466-246-0	01	1	1411-	●	●
85	BELT; SEAT,RR OUTER (B) DARK GRAY THA	8-97424-350-1	01	1	1409-1410	●	●
85	BELT; SEAT,RR OUTER (B) DARK GRAY THA	8-97466-247-0	01	1	1411-	●	●
106	BELT; SEAT,3RD SEAT,BUCKLE SIDE SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97425-499-1	02	1	1409-	●	●
166	BOLT; SEAT BELT ANCHOR SEAT TRIM HIGH GRADE CLOTH<8LM> (C) THA	8-98253-633-0	01	1	1507-	●	●
166	BOLT; SEAT BELT ANCHOR SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (C) THA	8-98253-633-0	01	1	1507-	●	●
166	BOLT; SEAT BELT ANCHOR SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) THA	8-98253-633-0	01	1	1409-1506	●	●
166	BOLT; SEAT BELT ANCHOR SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) THA	8-98253-633-0	01	1	1409-1506	●	●
166	BOLT; SEAT BELT ANCHOR SEAT TRIM LEATHER<6TB> (C) THA	8-98253-633-0	02	1	1507-	●	●
166	BOLT; SEAT BELT ANCHOR (B) M14X32 FLANGE THA	8-98056-276-0	02	1	1409-	●	●
166	BOLT; SEAT BELT ANCHOR (B) M14X32 FLANGE THA	8-98056-276-0	02	1	1409-	●	●
166	BOLT; SEAT BELT ANCHOR (A) M6X16 FLANGE THA	0-28650-616-0	01	1	1409-	●	●
