Sayfa 7-55 - Isuzu EPC

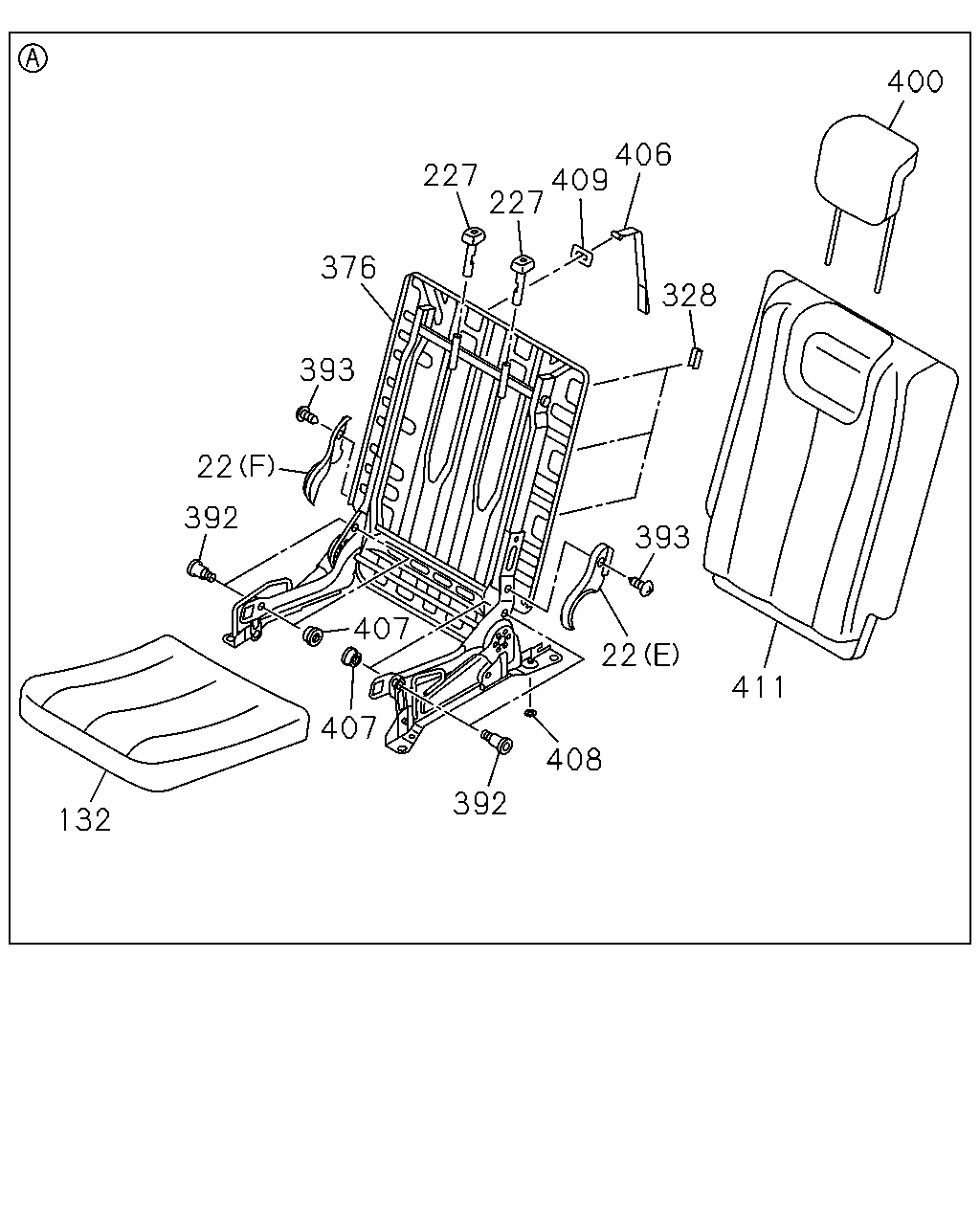

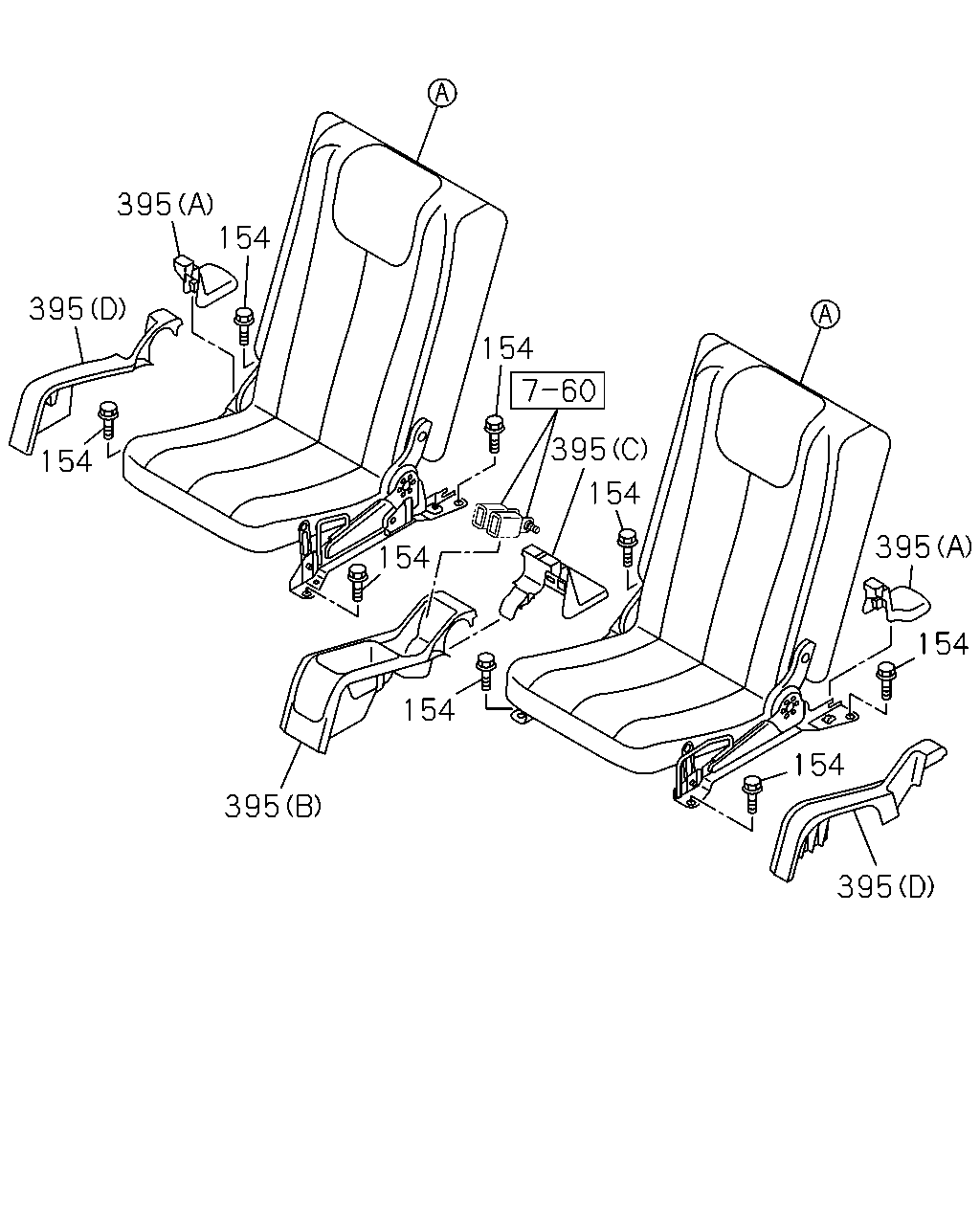

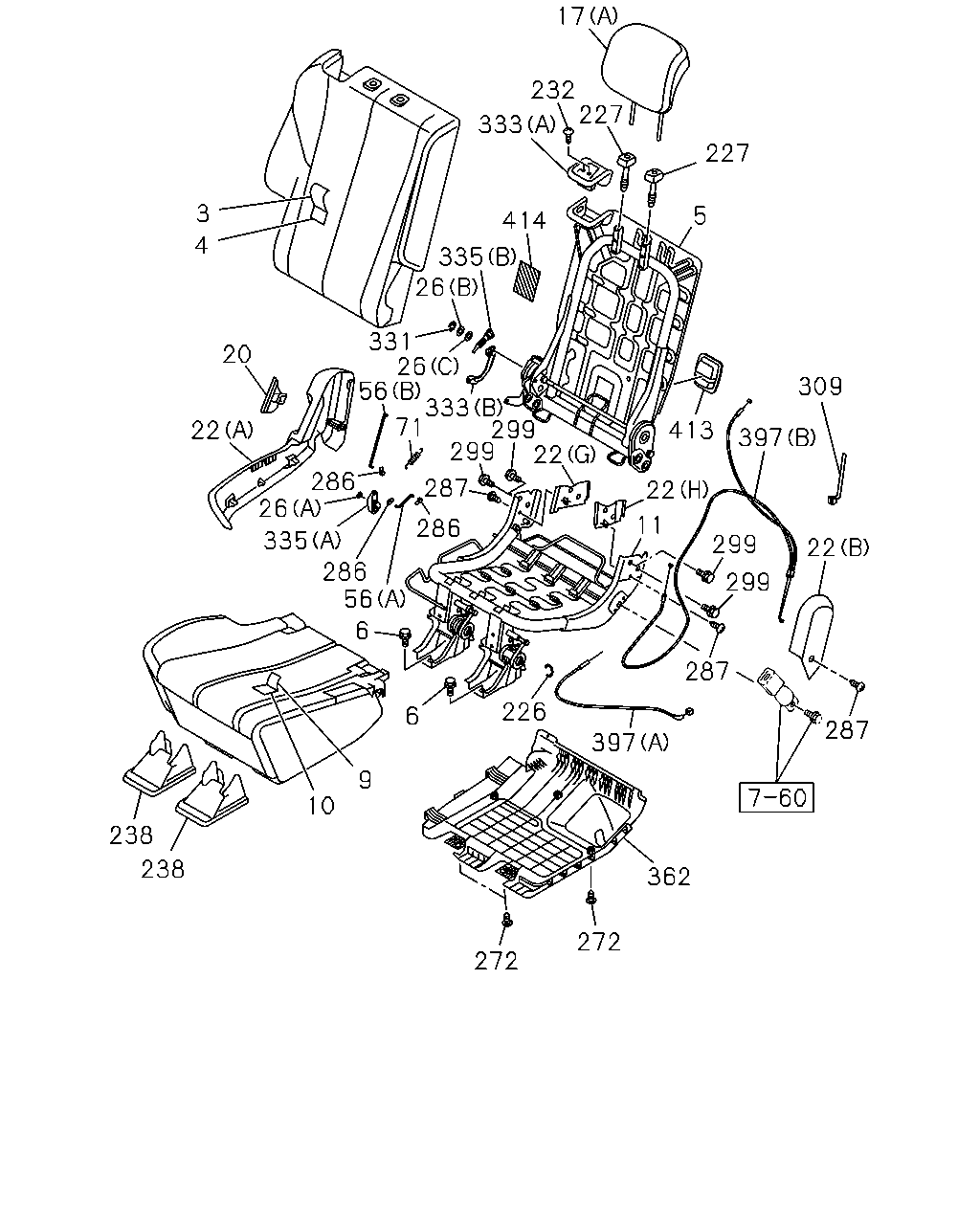

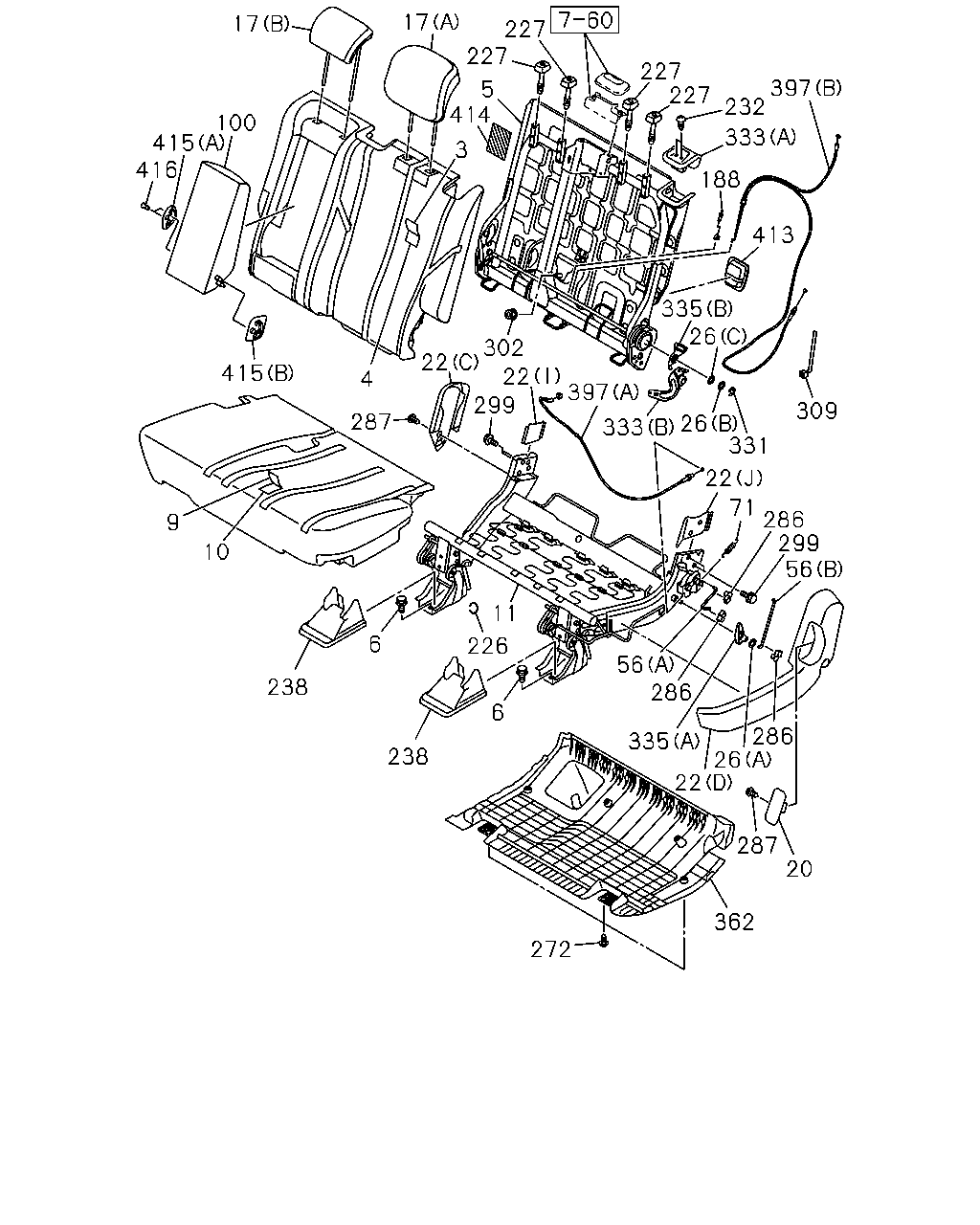

7-55 — REAR SEAT (#147332) — 455 parça

272 362 287 20 286 26 22 335 286 56 6 226 238 238 10 9 415 4 22 287 299 302 333 397 22 26 22 309 331 71 56 286 299 26 335 413 188 333 232 397 227 227 227 227 414 5 3 17 17 100 415 416 11 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	COVER; TRIM,RR SEAT BACK SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-260-0	01	1	1409-	●	●
3	COVER; TRIM,RR SEAT BACK SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-261-0	01	1	1409-	●	●
3	COVER; TRIM,RR SEAT BACK SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-243-0	01	1	1409-	●	●
3	COVER; TRIM,RR SEAT BACK SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-244-0	01	1	1409-	●	●
3	COVER; TRIM,RR SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97428-230-0	01	1	1409-1506	●	●
3	COVER; TRIM,RR SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-230-0	01	1	1507-	●	●
3	COVER; TRIM,RR SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97428-231-0	01	1	1409-	●	●
4	PAD; RR,SEAT BACK SEAT TRIM LEATHER<6TB> THA	8-98253-599-0	01	1	1409-	●	●
4	PAD; RR,SEAT BACK SEAT TRIM LEATHER<6TB> THA	8-98253-600-0	01	1	1409-	●	●
4	PAD; RR,SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-597-0	01	1	1409-1506	●	●
4	PAD; RR,SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98253-597-0	01	1	1507-	●	●
4	PAD; RR,SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-598-0	01	1	1409-	●	●
5	FRAME ASM; RR SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-595-2	01	1	1409-1506	●	●
5	FRAME ASM; RR SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98253-595-2	01	1	1507-	●	●
5	FRAME ASM; RR SEAT BACK SEAT TRIM LEATHER<6TB> THA	8-98253-595-2	01	1	1507-	●	●
5	FRAME ASM; RR SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-596-2	01	1	1409-	●	●
6	BOLT; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> M12X27.5 W/PL WASHER THA	8-98050-319-0	08	1	1409-	●	●
9	COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97465-784-0	01	1	1409-	●	●
9	COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97465-790-0	01	1	1409-	●	●
9	COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97465-783-0	01	1	1409-	●	●
9	COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97465-789-0	01	1	1409-	●	●
9	COVER ASM; TRIM,RR,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97465-782-0	01	1	1409-1506	●	●
9	COVER ASM; TRIM,RR,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97465-782-0	01	1	1507-	●	●
9	COVER ASM; TRIM,RR,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97465-788-0	01	1	1409-	●	●
10	PAD; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB> THA	8-98286-542-0	01	1	1409-1506	●	●
10	PAD; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB> THA	8-98322-998-0	01	1	1507-	●	●
10	PAD; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB> THA	8-98286-544-0	01	1	1409-	●	●
10	PAD; CUSHION,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98286-541-0	01	1	1409-1506	●	●
10	PAD; CUSHION,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98322-997-0	01	1	1507-	●	●
10	PAD; CUSHION,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98286-543-0	01	1	1409-	●	●
11	FRAME ASM; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98286-539-0	01	1	1409-1506	●	●
11	FRAME ASM; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98322-994-0	01	1	1507-	●	●
11	FRAME ASM; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98286-540-0	01	1	1409-1506	●	●
11	FRAME ASM; CUSHION,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98322-993-0	01	1	1507-	●	●
11	FRAME ASM; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB> THA	8-98322-993-0	01	1	1507-	●	●
17	REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY THA	8-97428-266-0	01	1	1409-1506	●	●
17	REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY THA	8-97428-266-0	01	1	1409-1506	●	●
17	REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY THA	8-97428-266-0	02	1	1507-	●	●
17	REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (B) GRAY THA	8-97428-268-0	01	1	1409-	●	●
17	REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK THA	8-97428-249-0	01	1	1409-1506	●	●
17	REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK THA	8-97428-249-0	01	1	1409-1506	●	●
17	REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK THA	8-97428-249-0	02	1	1507-	●	●
17	REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (B) BLACK THA	8-97428-251-0	01	1	1409-	●	●
17	REST; HD,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY THA	8-97428-212-0	01	1	1409-1506	●	●
17	REST; HD,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY THA	8-97428-212-0	01	1	1409-1506	●	●
17	REST; HD,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY THA	8-97428-212-0	01	1	1507-	●	●
17	REST; HD,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (A) LIGHT GRAY THA	8-97428-212-0	01	1	1507-	●	●
17	REST; HD,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (B) LIGHT GRAY THA	8-97428-214-0	01	1	1409-	●	●
20	KNOB; RECLINING DEVICE SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97429-755-0	01	1	1409-1506	●	●
20	KNOB; RECLINING DEVICE SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97429-755-0	01	1	1507-	●	●
20	KNOB; RECLINING DEVICE SEAT TRIM LEATHER<6TB> BLACK THA	8-97429-755-0	01	1	1507-	●	●
20	KNOB; RECLINING DEVICE SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97429-756-0	01	1	1409-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (E) 3RD BLACK THA	8-97428-149-0	02	1	1409-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (F) 3RD BLACK THA	8-97428-150-0	02	1	1409-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (G) 2ND BLACK THA	8-97428-192-0	01	1	1409-1506	●	●
22	COVER; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (G) 2ND BLACK THA	8-97428-192-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB> (G) 2ND BLACK THA	8-97428-192-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (J) 2ND BLACK THA	8-97428-193-0	01	1	1409-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (H) 2ND BLACK THA	8-97428-194-0	01	1	1409-1506	●	●
22	COVER; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (H) 2ND BLACK THA	8-97428-194-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB> (H) 2ND BLACK THA	8-97428-194-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (I) 2ND BLACK THA	8-97428-195-0	01	1	1409-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) 2ND BLACK THA	8-97428-216-0	01	1	1409-1506	●	●
22	COVER; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (A) 2ND BLACK THA	8-97428-216-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB> (A) 2ND BLACK THA	8-97428-216-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (D) 2ND BLACK THA	8-97428-217-0	01	1	1409-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) 2ND BLACK THA	8-97428-218-0	01	1	1409-1506	●	●
22	COVER; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (B) 2ND BLACK THA	8-97428-218-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB> (B) 2ND BLACK THA	8-97428-218-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) 2ND BLACK THA	8-97428-219-0	01	1	1409-	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA	8-98253-645-0	01	1	1507-	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (A) THA	8-98253-645-0	01	1	1507-	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98271-947-0	01	1	1507-	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (B) THA	8-98271-947-0	01	1	1507-	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (C) THA	8-98271-948-0	01	1	1507-	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (C) THA	8-98271-948-0	01	1	1507-	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA	8-98253-645-0	01	1	1409-1506	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA	8-98253-645-0	01	1	1409-1506	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM LEATHER<6TB> (A) THA	8-98253-645-0	02	1	1507-	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98271-947-0	01	1	1409-1506	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98271-947-0	01	1	1409-1506	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM LEATHER<6TB> (B) THA	8-98271-947-0	02	1	1507-	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) THA	8-98271-948-0	01	1	1409-1506	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) THA	8-98271-948-0	01	1	1409-1506	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM LEATHER<6TB> (C) THA	8-98271-948-0	02	1	1507-	●	●
56	WIRE; RELEASE,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA	8-98253-644-0	01	1	1507-	●	●
56	WIRE; RELEASE,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (A) THA	8-98253-644-0	01	1	1507-	●	●
56	WIRE; RELEASE,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98271-613-0	01	1	1507-	●	●
56	WIRE; RELEASE,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (B) THA	8-98271-613-0	01	1	1507-	●	●
56	WIRE; RELEASE,RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA	8-98253-644-0	01	1	1409-1506	●	●
56	WIRE; RELEASE,RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA	8-98253-644-0	01	1	1409-1506	●	●
56	WIRE; RELEASE,RR SEAT SEAT TRIM LEATHER<6TB> (A) THA	8-98253-644-0	02	1	1507-	●	●
56	WIRE; RELEASE,RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98271-613-0	01	1	1409-1506	●	●
56	WIRE; RELEASE,RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98271-613-0	01	1	1409-1506	●	●
56	WIRE; RELEASE,RR SEAT SEAT TRIM LEATHER<6TB> (B) THA	8-98271-613-0	02	1	1507-	●	●
71	SPRING; HOOK,FLOOR LOCK,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98255-645-0	01	1	1507-	●	●
71	SPRING; HOOK,FLOOR LOCK,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98255-645-0	01	1	1507-	●	●
71	SPRING; HOOK,FLOOR LOCK,RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98255-645-0	01	1	1409-1506	●	●
71	SPRING; HOOK,FLOOR LOCK,RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98255-645-0	01	1	1409-1506	●	●
71	SPRING; HOOK,FLOOR LOCK,RR SEAT SEAT TRIM LEATHER<6TB> THA	8-98255-645-0	02	1	1507-	●	●
100	REST; ARM,RR SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-262-0	01	1	1409-	●	●
100	REST; ARM,RR SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-245-0	01	1	1409-	●	●
100	REST; ARM,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY THA	8-97428-232-0	01	1	1409-	●	●
188	WIRE ASM; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-613-1	01	1	1409-	●	●
226	RING; HOG SEAT TRIM LEATHER<6TB> THA	8-98220-068-0	16	1	1409-1506	●	●
226	RING; HOG SEAT TRIM LEATHER<6TB> THA	8-98220-068-0	37	1	1507-	●	●
226	RING; HOG SEAT TRIM LEATHER<6TB> THA	8-98220-068-0	21	1	1409-1506	●	●
226	RING; HOG SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98220-068-0	12	1	1507-	●	●
226	RING; HOG SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98220-068-0	12	1	1409-1506	●	●
226	RING; HOG SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98220-068-0	17	1	1409-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> 2ND SEAT LOCK BLACK THA	8-97428-205-0	01	1	1507-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> 2ND SEAT FREE BLACK THA	8-97429-754-0	01	1	1507-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> 3RD SEAT FREE BLACK THA	8-97428-147-0	02	1	1409-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> 3RD SEAT LOCK BLACK THA	8-97428-148-0	02	1	1409-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> 2ND SEAT LOCK BLACK THA	8-97428-205-0	01	1	1409-1506	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB> 2ND SEAT LOCK BLACK THA	8-97428-205-0	03	1	1507-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> 2ND SEAT LOCK BLACK THA	8-97428-205-0	02	1	1409-1506	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM HIGH GRADE CLOTH<8LM> 2ND SEAT LOCK BLACK THA	8-97428-205-0	02	1	1507-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> 2ND SEAT FREE BLACK THA	8-97429-754-0	01	1	1409-1506	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB> 2ND SEAT FREE BLACK THA	8-97429-754-0	03	1	1507-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> 2ND SEAT FREE BLACK THA	8-97429-754-0	02	1	1409-1506	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM HIGH GRADE CLOTH<8LM> 2ND SEAT FREE BLACK THA	8-97429-754-0	02	1	1507-	●	●
232	SCREW; RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-634-0	02	1	1507-	●	●
232	SCREW; RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98253-634-0	02	1	1507-	●	●
232	SCREW; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-634-0	02	1	1409-1506	●	●
232	SCREW; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-634-0	02	1	1409-1506	●	●
232	SCREW; RR SEAT SEAT TRIM LEATHER<6TB> THA	8-98253-634-0	04	1	1507-	●	●
238	COVER; LEG SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97424-474-1	04	1	1409-	●	●
272	SCREW; COVER SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98253-634-0	05	1	1507-	●	●
272	SCREW; COVER SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-634-0	05	1	1409-1506	●	●
272	SCREW; COVER SEAT TRIM LEATHER<6TB> THA	8-98253-634-0	11	1	1507-	●	●
272	SCREW; COVER SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-634-0	06	1	1409-1506	●	●
272	SCREW; COVER SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-634-0	06	1	1507-	●	●
286	COVER; HINGE SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-646-0	03	1	1507-	●	●
286	COVER; HINGE SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98253-646-0	03	1	1507-	●	●
286	COVER; HINGE SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-646-0	03	1	1409-1506	●	●
286	COVER; HINGE SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-646-0	03	1	1409-1506	●	●
286	COVER; HINGE SEAT TRIM LEATHER<6TB> THA	8-98253-646-0	06	1	1507-	●	●
287	SCREW; COVER SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98253-634-0	04	1	1507-	●	●
287	SCREW; COVER SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-634-0	02	1	1409-1506	●	●
287	SCREW; COVER SEAT TRIM LEATHER<6TB> THA	8-98253-634-0	06	1	1507-	●	●
287	SCREW; COVER SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-634-0	04	1	1409-1506	●	●
287	SCREW; COVER SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-634-0	02	1	1507-	●	●
299	BOLT; LEG SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-643-0	04	1	1507-	●	●
299	BOLT; LEG SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98253-643-0	04	1	1507-	●	●
299	BOLT; LEG SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-643-0	04	1	1409-1506	●	●
299	BOLT; LEG SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-643-0	04	1	1409-1506	●	●
299	BOLT; LEG SEAT TRIM LEATHER<6TB> THA	8-98253-643-0	08	1	1507-	●	●
302	NUT; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-635-0	01	1	1409-	●	●
309	CLIP; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98220-048-0	01	1	1507-	●	●
309	CLIP; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98220-048-0	01	1	1507-	●	●
309	CLIP; SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98220-048-0	01	1	1409-1506	●	●
309	CLIP; SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98220-048-0	01	1	1409-1506	●	●
309	CLIP; SEAT SEAT TRIM LEATHER<6TB> THA	8-98220-048-0	02	1	1507-	●	●
331	RING; SNAP,PIN SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98271-945-0	01	1	1507-	●	●
331	RING; SNAP,PIN SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98271-945-0	01	1	1507-	●	●
331	RING; SNAP,PIN SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98271-945-0	01	1	1409-1506	●	●
331	RING; SNAP,PIN SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98271-945-0	01	1	1409-1506	●	●
331	RING; SNAP,PIN SEAT TRIM LEATHER<6TB> THA	8-98271-945-0	02	1	1507-	●	●
333	LEVER ASM; RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (A) BLACK THA	8-97428-206-0	01	1	1507-	●	●
333	LEVER ASM; RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK THA	8-97428-206-0	01	1	1507-	●	●
333	LEVER ASM; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) BLACK THA	8-97428-206-0	01	1	1409-1506	●	●
333	LEVER ASM; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) BLACK THA	8-97428-206-0	01	1	1409-1506	●	●
333	LEVER ASM; RR SEAT SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97428-206-0	02	1	1507-	●	●
333	LEVER ASM; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98271-923-0	01	1	1409-1506	●	●
333	LEVER ASM; RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (B) THA	8-98271-923-0	01	1	1507-	●	●
333	LEVER ASM; RR SEAT SEAT TRIM LEATHER<6TB> (B) THA	8-98271-923-0	01	1	1507-	●	●
333	LEVER ASM; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98271-924-0	01	1	1409-	●	●
335	LINK ASM; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA	8-98253-647-0	01	1	1409-1506	●	●
335	LINK ASM; RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (A) THA	8-98253-647-0	01	1	1507-	●	●
335	LINK ASM; RR SEAT SEAT TRIM LEATHER<6TB> (A) THA	8-98253-647-0	01	1	1507-	●	●
335	LINK ASM; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA	8-98253-648-0	01	1	1409-	●	●
335	LINK ASM; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98271-616-0	01	1	1409-	●	●
335	LINK ASM; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98271-617-0	01	1	1409-1506	●	●
335	LINK ASM; RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (B) THA	8-98271-617-0	01	1	1507-	●	●
335	LINK ASM; RR SEAT SEAT TRIM LEATHER<6TB> (B) THA	8-98271-617-0	01	1	1507-	●	●
362	COVER; REAR SEAT LATCH SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97428-198-0	01	1	1409-1506	●	●
362	COVER; REAR SEAT LATCH SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-198-0	01	1	1507-	●	●
362	COVER; REAR SEAT LATCH SEAT TRIM LEATHER<6TB> BLACK THA	8-97428-198-0	01	1	1507-	●	●
362	COVER; REAR SEAT LATCH SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97428-199-0	01	1	1409-	●	●
397	CABLE; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98253-601-0	01	1	1507-	●	●
397	CABLE; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (B) THA	8-98253-601-0	01	1	1507-	●	●
397	CABLE; SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98253-601-0	01	1	1409-1506	●	●
397	CABLE; SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98253-601-0	01	1	1409-1506	●	●
397	CABLE; SEAT SEAT TRIM LEATHER<6TB> (B) THA	8-98253-601-0	02	1	1507-	●	●
397	CABLE; SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA	8-98253-553-0	01	1	1409-1506	●	●
397	CABLE; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (A) THA	8-98253-553-0	01	1	1507-	●	●
397	CABLE; SEAT SEAT TRIM LEATHER<6TB> (A) THA	8-98253-553-0	01	1	1507-	●	●
397	CABLE; SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA	8-98253-554-0	01	1	1409-	●	●
413	COVER; TETHER SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-208-0	01	1	1507-	●	●
413	COVER; TETHER SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97428-208-0	01	1	1409-1506	●	●
413	COVER; TETHER SEAT TRIM LEATHER<6TB> BLACK THA	8-97428-208-0	03	1	1507-	●	●
413	COVER; TETHER SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97428-208-0	02	1	1409-1506	●	●
413	COVER; TETHER SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97428-208-0	02	1	1507-	●	●
414	INSULATOR; RR SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-631-0	01	1	1507-	●	●
414	INSULATOR; RR SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98253-631-0	01	1	1507-	●	●
414	INSULATOR; RR SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-631-0	01	1	1409-1506	●	●
414	INSULATOR; RR SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-631-0	01	1	1409-1506	●	●
414	INSULATOR; RR SEAT BACK SEAT TRIM LEATHER<6TB> THA	8-98253-631-0	02	1	1507-	●	●
415	COVER; ARM REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA	8-98253-628-0	01	1	1409-	●	●
415	COVER; ARM REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98253-629-0	01	1	1409-	●	●
416	BOLT; ARM REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-642-0	02	1	1409-	●	●

362 272 272 10 6 9 238 238 26 335 286 56 286 299 287 22 22 11 299 299 397 309 22 287 397 226 413 5 227 227 232 333 414 335 26 331 56 26 333 71 299 286 22 20 287 17 3 4 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	COVER; TRIM,RR SEAT BACK SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-260-0	01	1	1409-	●	●
3	COVER; TRIM,RR SEAT BACK SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-261-0	01	1	1409-	●	●
3	COVER; TRIM,RR SEAT BACK SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-243-0	01	1	1409-	●	●
3	COVER; TRIM,RR SEAT BACK SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-244-0	01	1	1409-	●	●
3	COVER; TRIM,RR SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97428-230-0	01	1	1409-1506	●	●
3	COVER; TRIM,RR SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-230-0	01	1	1507-	●	●
3	COVER; TRIM,RR SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97428-231-0	01	1	1409-	●	●
4	PAD; RR,SEAT BACK SEAT TRIM LEATHER<6TB> THA	8-98253-599-0	01	1	1409-	●	●
4	PAD; RR,SEAT BACK SEAT TRIM LEATHER<6TB> THA	8-98253-600-0	01	1	1409-	●	●
4	PAD; RR,SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-597-0	01	1	1409-1506	●	●
4	PAD; RR,SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98253-597-0	01	1	1507-	●	●
4	PAD; RR,SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-598-0	01	1	1409-	●	●
5	FRAME ASM; RR SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-595-2	01	1	1409-1506	●	●
5	FRAME ASM; RR SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98253-595-2	01	1	1507-	●	●
5	FRAME ASM; RR SEAT BACK SEAT TRIM LEATHER<6TB> THA	8-98253-595-2	01	1	1507-	●	●
5	FRAME ASM; RR SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-596-2	01	1	1409-	●	●
6	BOLT; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> M12X27.5 W/PL WASHER THA	8-98050-319-0	08	1	1409-	●	●
9	COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97465-784-0	01	1	1409-	●	●
9	COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97465-790-0	01	1	1409-	●	●
9	COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97465-783-0	01	1	1409-	●	●
9	COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97465-789-0	01	1	1409-	●	●
9	COVER ASM; TRIM,RR,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97465-782-0	01	1	1409-1506	●	●
9	COVER ASM; TRIM,RR,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97465-782-0	01	1	1507-	●	●
9	COVER ASM; TRIM,RR,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97465-788-0	01	1	1409-	●	●
10	PAD; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB> THA	8-98286-542-0	01	1	1409-1506	●	●
10	PAD; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB> THA	8-98322-998-0	01	1	1507-	●	●
10	PAD; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB> THA	8-98286-544-0	01	1	1409-	●	●
10	PAD; CUSHION,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98286-541-0	01	1	1409-1506	●	●
10	PAD; CUSHION,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98322-997-0	01	1	1507-	●	●
10	PAD; CUSHION,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98286-543-0	01	1	1409-	●	●
11	FRAME ASM; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98286-539-0	01	1	1409-1506	●	●
11	FRAME ASM; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98322-994-0	01	1	1507-	●	●
11	FRAME ASM; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98286-540-0	01	1	1409-1506	●	●
11	FRAME ASM; CUSHION,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98322-993-0	01	1	1507-	●	●
11	FRAME ASM; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB> THA	8-98322-993-0	01	1	1507-	●	●
17	REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY THA	8-97428-266-0	01	1	1409-1506	●	●
17	REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY THA	8-97428-266-0	01	1	1409-1506	●	●
17	REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY THA	8-97428-266-0	02	1	1507-	●	●
17	REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (B) GRAY THA	8-97428-268-0	01	1	1409-	●	●
17	REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK THA	8-97428-249-0	01	1	1409-1506	●	●
17	REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK THA	8-97428-249-0	01	1	1409-1506	●	●
17	REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK THA	8-97428-249-0	02	1	1507-	●	●
17	REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (B) BLACK THA	8-97428-251-0	01	1	1409-	●	●
17	REST; HD,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY THA	8-97428-212-0	01	1	1409-1506	●	●
17	REST; HD,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY THA	8-97428-212-0	01	1	1409-1506	●	●
17	REST; HD,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY THA	8-97428-212-0	01	1	1507-	●	●
17	REST; HD,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (A) LIGHT GRAY THA	8-97428-212-0	01	1	1507-	●	●
17	REST; HD,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (B) LIGHT GRAY THA	8-97428-214-0	01	1	1409-	●	●
20	KNOB; RECLINING DEVICE SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97429-755-0	01	1	1409-1506	●	●
20	KNOB; RECLINING DEVICE SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97429-755-0	01	1	1507-	●	●
20	KNOB; RECLINING DEVICE SEAT TRIM LEATHER<6TB> BLACK THA	8-97429-755-0	01	1	1507-	●	●
20	KNOB; RECLINING DEVICE SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97429-756-0	01	1	1409-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (E) 3RD BLACK THA	8-97428-149-0	02	1	1409-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (F) 3RD BLACK THA	8-97428-150-0	02	1	1409-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (G) 2ND BLACK THA	8-97428-192-0	01	1	1409-1506	●	●
22	COVER; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (G) 2ND BLACK THA	8-97428-192-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB> (G) 2ND BLACK THA	8-97428-192-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (J) 2ND BLACK THA	8-97428-193-0	01	1	1409-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (H) 2ND BLACK THA	8-97428-194-0	01	1	1409-1506	●	●
22	COVER; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (H) 2ND BLACK THA	8-97428-194-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB> (H) 2ND BLACK THA	8-97428-194-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (I) 2ND BLACK THA	8-97428-195-0	01	1	1409-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) 2ND BLACK THA	8-97428-216-0	01	1	1409-1506	●	●
22	COVER; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (A) 2ND BLACK THA	8-97428-216-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB> (A) 2ND BLACK THA	8-97428-216-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (D) 2ND BLACK THA	8-97428-217-0	01	1	1409-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) 2ND BLACK THA	8-97428-218-0	01	1	1409-1506	●	●
22	COVER; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (B) 2ND BLACK THA	8-97428-218-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB> (B) 2ND BLACK THA	8-97428-218-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) 2ND BLACK THA	8-97428-219-0	01	1	1409-	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA	8-98253-645-0	01	1	1507-	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (A) THA	8-98253-645-0	01	1	1507-	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98271-947-0	01	1	1507-	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (B) THA	8-98271-947-0	01	1	1507-	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (C) THA	8-98271-948-0	01	1	1507-	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (C) THA	8-98271-948-0	01	1	1507-	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA	8-98253-645-0	01	1	1409-1506	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA	8-98253-645-0	01	1	1409-1506	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM LEATHER<6TB> (A) THA	8-98253-645-0	02	1	1507-	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98271-947-0	01	1	1409-1506	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98271-947-0	01	1	1409-1506	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM LEATHER<6TB> (B) THA	8-98271-947-0	02	1	1507-	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) THA	8-98271-948-0	01	1	1409-1506	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) THA	8-98271-948-0	01	1	1409-1506	●	●
26	WASHER; LK,RECLINING TO SEAT SEAT TRIM LEATHER<6TB> (C) THA	8-98271-948-0	02	1	1507-	●	●
56	WIRE; RELEASE,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA	8-98253-644-0	01	1	1507-	●	●
56	WIRE; RELEASE,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (A) THA	8-98253-644-0	01	1	1507-	●	●
56	WIRE; RELEASE,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98271-613-0	01	1	1507-	●	●
56	WIRE; RELEASE,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (B) THA	8-98271-613-0	01	1	1507-	●	●
56	WIRE; RELEASE,RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA	8-98253-644-0	01	1	1409-1506	●	●
56	WIRE; RELEASE,RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA	8-98253-644-0	01	1	1409-1506	●	●
56	WIRE; RELEASE,RR SEAT SEAT TRIM LEATHER<6TB> (A) THA	8-98253-644-0	02	1	1507-	●	●
56	WIRE; RELEASE,RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98271-613-0	01	1	1409-1506	●	●
56	WIRE; RELEASE,RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98271-613-0	01	1	1409-1506	●	●
56	WIRE; RELEASE,RR SEAT SEAT TRIM LEATHER<6TB> (B) THA	8-98271-613-0	02	1	1507-	●	●
71	SPRING; HOOK,FLOOR LOCK,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98255-645-0	01	1	1507-	●	●
71	SPRING; HOOK,FLOOR LOCK,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98255-645-0	01	1	1507-	●	●
71	SPRING; HOOK,FLOOR LOCK,RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98255-645-0	01	1	1409-1506	●	●
71	SPRING; HOOK,FLOOR LOCK,RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98255-645-0	01	1	1409-1506	●	●
71	SPRING; HOOK,FLOOR LOCK,RR SEAT SEAT TRIM LEATHER<6TB> THA	8-98255-645-0	02	1	1507-	●	●
226	RING; HOG SEAT TRIM LEATHER<6TB> THA	8-98220-068-0	16	1	1409-1506	●	●
226	RING; HOG SEAT TRIM LEATHER<6TB> THA	8-98220-068-0	37	1	1507-	●	●
226	RING; HOG SEAT TRIM LEATHER<6TB> THA	8-98220-068-0	21	1	1409-1506	●	●
226	RING; HOG SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98220-068-0	12	1	1507-	●	●
226	RING; HOG SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98220-068-0	12	1	1409-1506	●	●
226	RING; HOG SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98220-068-0	17	1	1409-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> 2ND SEAT LOCK BLACK THA	8-97428-205-0	01	1	1507-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> 2ND SEAT FREE BLACK THA	8-97429-754-0	01	1	1507-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> 3RD SEAT FREE BLACK THA	8-97428-147-0	02	1	1409-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> 3RD SEAT LOCK BLACK THA	8-97428-148-0	02	1	1409-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> 2ND SEAT LOCK BLACK THA	8-97428-205-0	01	1	1409-1506	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB> 2ND SEAT LOCK BLACK THA	8-97428-205-0	03	1	1507-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> 2ND SEAT LOCK BLACK THA	8-97428-205-0	02	1	1409-1506	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM HIGH GRADE CLOTH<8LM> 2ND SEAT LOCK BLACK THA	8-97428-205-0	02	1	1507-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> 2ND SEAT FREE BLACK THA	8-97429-754-0	01	1	1409-1506	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB> 2ND SEAT FREE BLACK THA	8-97429-754-0	03	1	1507-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> 2ND SEAT FREE BLACK THA	8-97429-754-0	02	1	1409-1506	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM HIGH GRADE CLOTH<8LM> 2ND SEAT FREE BLACK THA	8-97429-754-0	02	1	1507-	●	●
232	SCREW; RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-634-0	02	1	1507-	●	●
232	SCREW; RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98253-634-0	02	1	1507-	●	●
232	SCREW; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-634-0	02	1	1409-1506	●	●
232	SCREW; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-634-0	02	1	1409-1506	●	●
232	SCREW; RR SEAT SEAT TRIM LEATHER<6TB> THA	8-98253-634-0	04	1	1507-	●	●
238	COVER; LEG SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97424-474-1	04	1	1409-	●	●
272	SCREW; COVER SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98253-634-0	05	1	1507-	●	●
272	SCREW; COVER SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-634-0	05	1	1409-1506	●	●
272	SCREW; COVER SEAT TRIM LEATHER<6TB> THA	8-98253-634-0	11	1	1507-	●	●
272	SCREW; COVER SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-634-0	06	1	1409-1506	●	●
272	SCREW; COVER SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-634-0	06	1	1507-	●	●
286	COVER; HINGE SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-646-0	03	1	1507-	●	●
286	COVER; HINGE SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98253-646-0	03	1	1507-	●	●
286	COVER; HINGE SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-646-0	03	1	1409-1506	●	●
286	COVER; HINGE SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-646-0	03	1	1409-1506	●	●
286	COVER; HINGE SEAT TRIM LEATHER<6TB> THA	8-98253-646-0	06	1	1507-	●	●
287	SCREW; COVER SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98253-634-0	04	1	1507-	●	●
287	SCREW; COVER SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-634-0	02	1	1409-1506	●	●
287	SCREW; COVER SEAT TRIM LEATHER<6TB> THA	8-98253-634-0	06	1	1507-	●	●
287	SCREW; COVER SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-634-0	04	1	1409-1506	●	●
287	SCREW; COVER SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-634-0	02	1	1507-	●	●
299	BOLT; LEG SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-643-0	04	1	1507-	●	●
299	BOLT; LEG SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98253-643-0	04	1	1507-	●	●
299	BOLT; LEG SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-643-0	04	1	1409-1506	●	●
299	BOLT; LEG SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-643-0	04	1	1409-1506	●	●
299	BOLT; LEG SEAT TRIM LEATHER<6TB> THA	8-98253-643-0	08	1	1507-	●	●
309	CLIP; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98220-048-0	01	1	1507-	●	●
309	CLIP; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98220-048-0	01	1	1507-	●	●
309	CLIP; SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98220-048-0	01	1	1409-1506	●	●
309	CLIP; SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98220-048-0	01	1	1409-1506	●	●
309	CLIP; SEAT SEAT TRIM LEATHER<6TB> THA	8-98220-048-0	02	1	1507-	●	●
331	RING; SNAP,PIN SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98271-945-0	01	1	1507-	●	●
331	RING; SNAP,PIN SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98271-945-0	01	1	1507-	●	●
331	RING; SNAP,PIN SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98271-945-0	01	1	1409-1506	●	●
331	RING; SNAP,PIN SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98271-945-0	01	1	1409-1506	●	●
331	RING; SNAP,PIN SEAT TRIM LEATHER<6TB> THA	8-98271-945-0	02	1	1507-	●	●
333	LEVER ASM; RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (A) BLACK THA	8-97428-206-0	01	1	1507-	●	●
333	LEVER ASM; RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK THA	8-97428-206-0	01	1	1507-	●	●
333	LEVER ASM; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) BLACK THA	8-97428-206-0	01	1	1409-1506	●	●
333	LEVER ASM; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) BLACK THA	8-97428-206-0	01	1	1409-1506	●	●
333	LEVER ASM; RR SEAT SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97428-206-0	02	1	1507-	●	●
333	LEVER ASM; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98271-923-0	01	1	1409-1506	●	●
333	LEVER ASM; RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (B) THA	8-98271-923-0	01	1	1507-	●	●
333	LEVER ASM; RR SEAT SEAT TRIM LEATHER<6TB> (B) THA	8-98271-923-0	01	1	1507-	●	●
333	LEVER ASM; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98271-924-0	01	1	1409-	●	●
335	LINK ASM; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA	8-98253-647-0	01	1	1409-1506	●	●
335	LINK ASM; RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (A) THA	8-98253-647-0	01	1	1507-	●	●
335	LINK ASM; RR SEAT SEAT TRIM LEATHER<6TB> (A) THA	8-98253-647-0	01	1	1507-	●	●
335	LINK ASM; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA	8-98253-648-0	01	1	1409-	●	●
335	LINK ASM; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98271-616-0	01	1	1409-	●	●
335	LINK ASM; RR SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98271-617-0	01	1	1409-1506	●	●
335	LINK ASM; RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (B) THA	8-98271-617-0	01	1	1507-	●	●
335	LINK ASM; RR SEAT SEAT TRIM LEATHER<6TB> (B) THA	8-98271-617-0	01	1	1507-	●	●
362	COVER; REAR SEAT LATCH SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97428-198-0	01	1	1409-1506	●	●
362	COVER; REAR SEAT LATCH SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-198-0	01	1	1507-	●	●
362	COVER; REAR SEAT LATCH SEAT TRIM LEATHER<6TB> BLACK THA	8-97428-198-0	01	1	1507-	●	●
362	COVER; REAR SEAT LATCH SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97428-199-0	01	1	1409-	●	●
397	CABLE; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98253-601-0	01	1	1507-	●	●
397	CABLE; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (B) THA	8-98253-601-0	01	1	1507-	●	●
397	CABLE; SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98253-601-0	01	1	1409-1506	●	●
397	CABLE; SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) THA	8-98253-601-0	01	1	1409-1506	●	●
397	CABLE; SEAT SEAT TRIM LEATHER<6TB> (B) THA	8-98253-601-0	02	1	1507-	●	●
397	CABLE; SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA	8-98253-553-0	01	1	1409-1506	●	●
397	CABLE; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (A) THA	8-98253-553-0	01	1	1507-	●	●
397	CABLE; SEAT SEAT TRIM LEATHER<6TB> (A) THA	8-98253-553-0	01	1	1507-	●	●
397	CABLE; SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA	8-98253-554-0	01	1	1409-	●	●
413	COVER; TETHER SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-208-0	01	1	1507-	●	●
413	COVER; TETHER SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97428-208-0	01	1	1409-1506	●	●
413	COVER; TETHER SEAT TRIM LEATHER<6TB> BLACK THA	8-97428-208-0	03	1	1507-	●	●
413	COVER; TETHER SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97428-208-0	02	1	1409-1506	●	●
413	COVER; TETHER SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97428-208-0	02	1	1507-	●	●
414	INSULATOR; RR SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-631-0	01	1	1507-	●	●
414	INSULATOR; RR SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> THA	8-98253-631-0	01	1	1507-	●	●
414	INSULATOR; RR SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-631-0	01	1	1409-1506	●	●
414	INSULATOR; RR SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-631-0	01	1	1409-1506	●	●
414	INSULATOR; RR SEAT BACK SEAT TRIM LEATHER<6TB> THA	8-98253-631-0	02	1	1507-	●	●

154 395 395 154 395 154 154 154 395 154 395 154 154 395

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
154	BOLT; STRIKER TO FLOOR M12X27.5 W/PL WASHER THA	8-98050-319-0	08	1	1409-	●	●
395	COVER; 3RD SEAT (A) BLACK THA	8-97424-468-3	01	1	1409-	●	●
395	COVER; 3RD SEAT (A) BLACK THA	8-97424-469-3	01	1	1409-	●	●
395	COVER; 3RD SEAT (B) BLACK THA	8-97424-470-2	01	1	1409-	●	●
395	COVER; 3RD SEAT (C) BLACK THA	8-97424-471-2	01	1	1409-	●	●
395	COVER; 3RD SEAT (D) BLACK THA	8-97424-472-2	01	1	1409-	●	●
395	COVER; 3RD SEAT (D) BLACK THA	8-97424-473-2	01	1	1409-	●	●

227 376 393 22 392 132 407 407 22 393 411 408 392 400 328 406 409 227

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (E) 3RD BLACK THA	8-97428-149-0	02	1	1409-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (F) 3RD BLACK THA	8-97428-150-0	02	1	1409-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (G) 2ND BLACK THA	8-97428-192-0	01	1	1409-1506	●	●
22	COVER; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (G) 2ND BLACK THA	8-97428-192-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB> (G) 2ND BLACK THA	8-97428-192-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (J) 2ND BLACK THA	8-97428-193-0	01	1	1409-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (H) 2ND BLACK THA	8-97428-194-0	01	1	1409-1506	●	●
22	COVER; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (H) 2ND BLACK THA	8-97428-194-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB> (H) 2ND BLACK THA	8-97428-194-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (I) 2ND BLACK THA	8-97428-195-0	01	1	1409-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) 2ND BLACK THA	8-97428-216-0	01	1	1409-1506	●	●
22	COVER; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (A) 2ND BLACK THA	8-97428-216-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB> (A) 2ND BLACK THA	8-97428-216-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (D) 2ND BLACK THA	8-97428-217-0	01	1	1409-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) 2ND BLACK THA	8-97428-218-0	01	1	1409-1506	●	●
22	COVER; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> (B) 2ND BLACK THA	8-97428-218-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB> (B) 2ND BLACK THA	8-97428-218-0	01	1	1507-	●	●
22	COVER; RECLINING ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) 2ND BLACK THA	8-97428-219-0	01	1	1409-	●	●
132	CUSHION; RR SEAT,3RD SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-171-0	02	1	1409-	●	●
132	CUSHION; RR SEAT,3RD SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-163-0	02	1	1409-	●	●
132	CUSHION; RR SEAT,3RD SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97428-157-0	02	1	1409-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> 2ND SEAT LOCK BLACK THA	8-97428-205-0	01	1	1507-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM HIGH GRADE CLOTH<8LM> EXC. SEAT TRIM COLOR IVORY<8PS> 2ND SEAT FREE BLACK THA	8-97429-754-0	01	1	1507-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> 3RD SEAT FREE BLACK THA	8-97428-147-0	02	1	1409-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> 3RD SEAT LOCK BLACK THA	8-97428-148-0	02	1	1409-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> 2ND SEAT LOCK BLACK THA	8-97428-205-0	01	1	1409-1506	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB> 2ND SEAT LOCK BLACK THA	8-97428-205-0	03	1	1507-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> 2ND SEAT LOCK BLACK THA	8-97428-205-0	02	1	1409-1506	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM HIGH GRADE CLOTH<8LM> 2ND SEAT LOCK BLACK THA	8-97428-205-0	02	1	1507-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> 2ND SEAT FREE BLACK THA	8-97429-754-0	01	1	1409-1506	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB> 2ND SEAT FREE BLACK THA	8-97429-754-0	03	1	1507-	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> 2ND SEAT FREE BLACK THA	8-97429-754-0	02	1	1409-1506	●	●
227	HOLDER; GUIDE,RR HD REST SEAT TRIM HIGH GRADE CLOTH<8LM> 2ND SEAT FREE BLACK THA	8-97429-754-0	02	1	1507-	●	●
328	FASTENER; MAGIC SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-019-0	12	1	1409-	●	●
376	FRAME ASM; 3RD SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-001-0	01	1	1409-	●	●
376	FRAME ASM; 3RD SEAT BACK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-002-0	01	1	1409-	●	●
392	BOLT; 3RD SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-079-0	08	1	1409-	●	●
393	SCREW; 3RD SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-008-0	04	1	1409-	●	●
400	REST; HD,3RD SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-166-0	02	1	1409-	●	●
400	REST; HD,3RD SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-158-0	02	1	1409-	●	●
400	REST; HD,3RD SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97428-152-0	02	1	1409-	●	●
406	STRAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97428-139-0	02	1	1409-	●	●
407	COLLAR; CUSHION SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT THA	8-98253-021-0	04	1	1409-	●	●
407	COLLAR; CUSHION SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> REAR THA	8-98253-022-0	04	1	1409-	●	●
408	SPONGE SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA	8-98253-023-0	02	1	1409-	●	●
409	COVER; STRAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97428-151-0	02	1	1409-	●	●
411	PAD & TRIM; 3RD SEAT BACK SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-169-0	01	1	1409-	●	●
411	PAD & TRIM; 3RD SEAT BACK SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-184-0	01	1	1409-	●	●
411	PAD & TRIM; 3RD SEAT BACK SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-161-0	01	1	1409-	●	●
411	PAD & TRIM; 3RD SEAT BACK SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-181-0	01	1	1409-	●	●
411	PAD & TRIM; 3RD SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97428-155-0	01	1	1409-	●	●
411	PAD & TRIM; 3RD SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA	8-97428-178-0	01	1	1409-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
