Sayfa 7-50 - Isuzu EPC

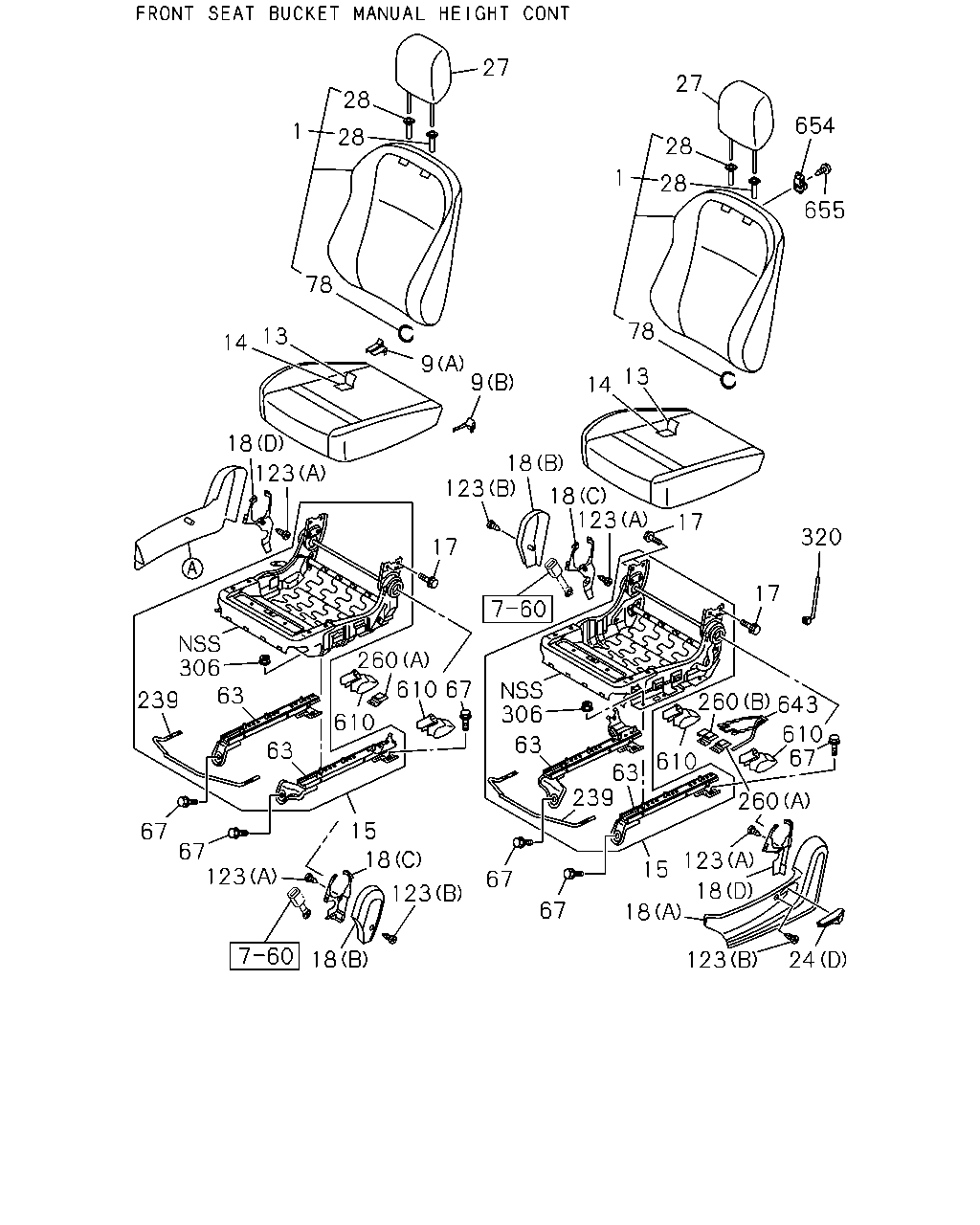

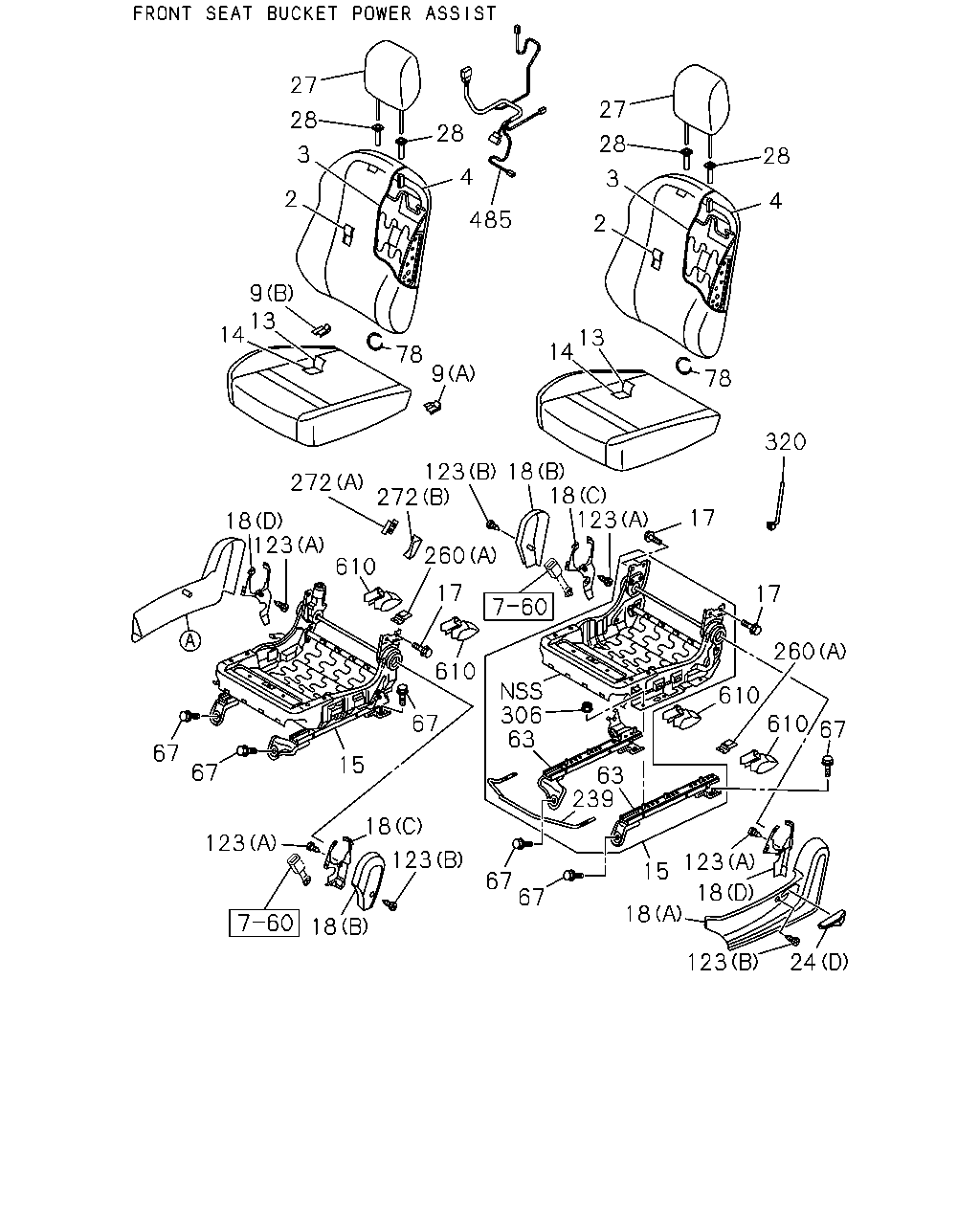

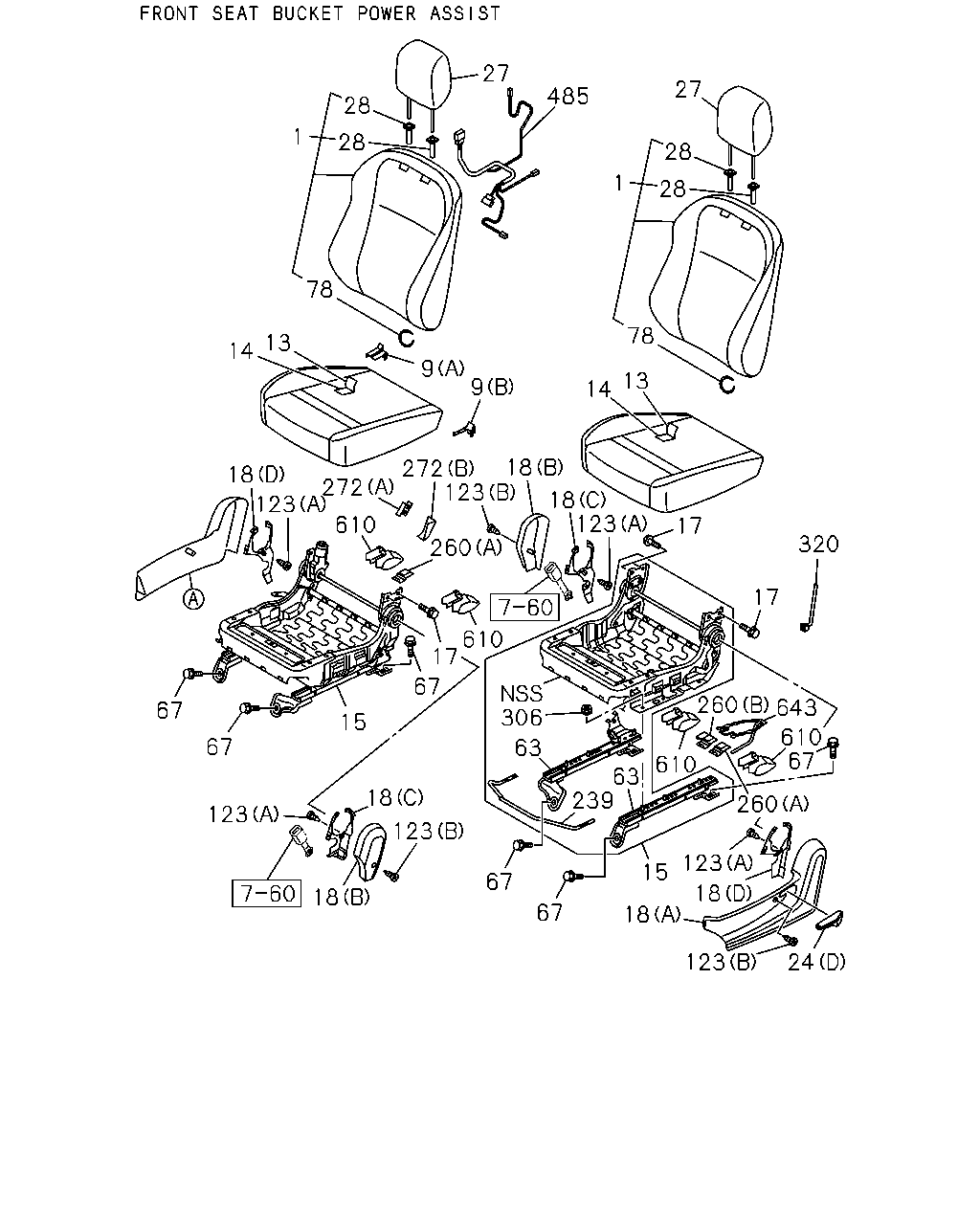

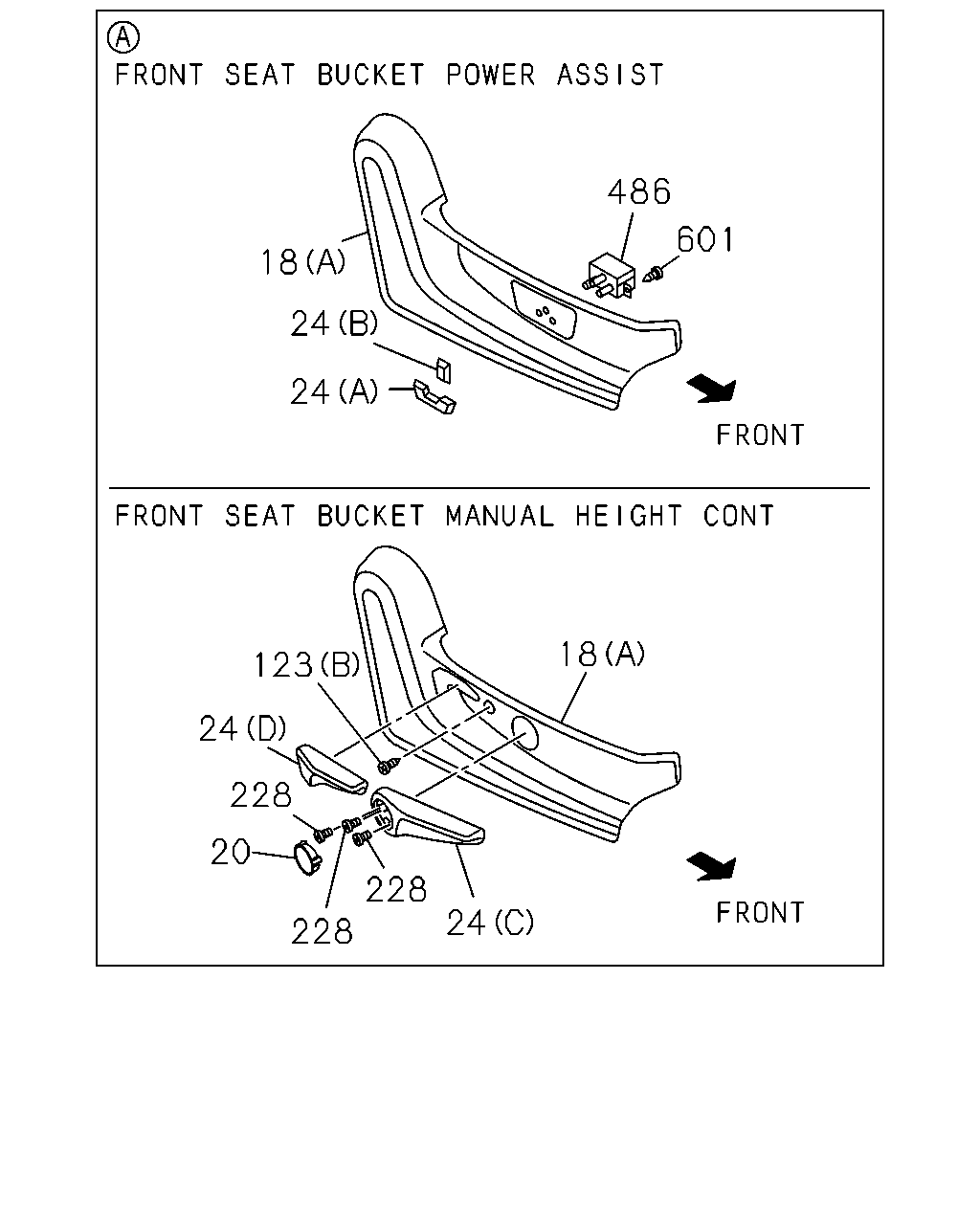

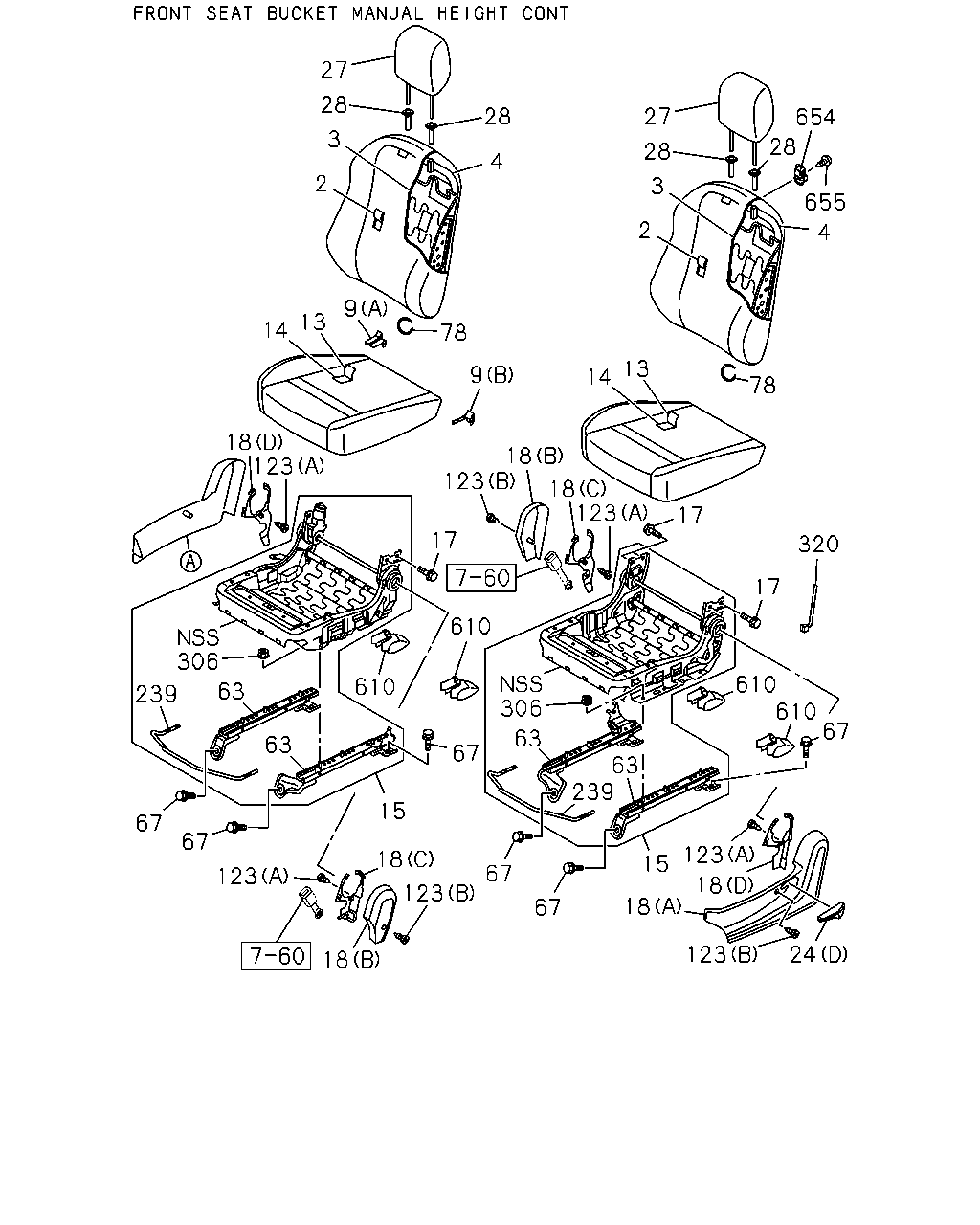

7-50 — FRONT SEAT (#147331) — 449 parça

1 28 27 28 27 28 28 654 655 1 78 13 14 320 17 17 123 18 18 123 9 78 13 14 18 123 260 17 610 67 610 15 18 123 18 123 67 67 239 63 63 306 306 63 67 67 239 260 610 63 643 610 260 123 18 15 18 123 24 9 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-323-0	01	1	1409-	●	●
1	BACK ASM; SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-349-0	01	1	1409-	●	●
1	BACK ASM; SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-324-0	01	1	1409-	●	●
1	BACK ASM; SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-350-0	01	1	1409-	●	●
1	BACK ASM; SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-293-0	01	1	1409-	●	●
1	BACK ASM; SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-291-0	01	1	1409-	●	●
9	COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) OUTER BLACK THA	8-97428-377-0	01	1	1409-	●	●
9	COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) INNER BLACK THA	8-97428-379-0	01	1	1409-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (A) OUTER BLACK THA	8-97428-373-0	01	1	1409-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (B) INNER BLACK THA	8-97428-375-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-340-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-366-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-341-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-367-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-343-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-369-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-344-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-370-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-311-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-310-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-314-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-313-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-564-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98187-561-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98187-711-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-560-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-702-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> THA	8-98187-559-0	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98187-571-1	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98187-718-2	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> THA	8-98187-568-2	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA	8-98187-715-3	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-569-2	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-716-3	01	1	1409-	●	●
17	BOLT; RECLINING THA	8-98220-045-0	04	1	1409-	●	●
17	BOLT; RECLINING THA	8-98220-045-0	04	1	1409-	●	●
18	COVER; RECLINING (B) BLACK THA	8-97424-579-0	01	1	1409-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97424-097-0	01	1	1409-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (D) BLACK THA	8-97424-607-0	01	1	1409-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (C) BLACK THA	8-97424-609-0	01	1	1409-	●	●
18	COVER; RECLINING (A) BLACK THA	8-97424-092-0	01	1	1409-	●	●
18	COVER; RECLINING (D) BLACK THA	8-97424-515-0	01	1	1409-	●	●
18	COVER; RECLINING (C) BLACK THA	8-97424-516-0	01	1	1409-	●	●
18	COVER; RECLINING (B) BLACK THA	8-97424-517-0	01	1	1409-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (A) BLACK THA	8-97424-094-0	01	1	1409-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (D) BLACK THA	8-97424-582-0	01	1	1409-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (C) BLACK THA	8-97424-585-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97424-611-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) BLACK THA	8-97424-612-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT (D) BLACK THA	8-97424-518-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (D) BLACK THA	8-97424-591-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (C) BLACK THA	8-97424-595-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-315-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-315-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97424-639-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97424-639-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-316-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-316-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97426-524-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97426-524-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> LIGHT GRAY THA	8-97424-645-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> LIGHT GRAY THA	8-97424-645-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> LIGHT GRAY THA	8-97424-664-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> LIGHT GRAY THA	8-97424-664-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5> LOCK BLACK THA	8-97424-499-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5> LOCK BLACK THA	8-97424-499-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5> FREE BLACK THA	8-97424-500-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5> FREE BLACK THA	8-97424-500-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> LOCK BLACK THA	8-97424-665-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> LOCK BLACK THA	8-97424-665-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FREE BLACK THA	8-97424-666-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FREE BLACK THA	8-97424-666-0	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER<AK5> INNER THA	8-98220-096-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER<AK5> OUTER THA	8-98220-097-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> OUTER THA	8-98224-310-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> INNER THA	8-98224-312-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> OUTER THA	8-98224-186-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> INNER THA	8-98224-188-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> OUTER THA	8-98224-309-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> INNER THA	8-98224-313-1	01	1	1409-	●	●
67	BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER THA	8-98050-319-0	08	1	1409-	●	●
78	RING; SNAP THA	8-98220-068-0	17	1	1409-	●	●
78	RING; SNAP AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98220-068-0	17	1	1409-	●	●
78	RING; SNAP SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98220-068-0	16	1	1409-	●	●
78	RING; SNAP AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98220-068-0	18	1	1409-	●	●
123	SCREW; COVER,RECLINING (A) M4X8 THA	8-98220-085-0	02	1	1409-	●	●
123	SCREW; COVER,RECLINING (A) M4X8 THA	8-98220-085-0	02	1	1409-	●	●
123	SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) M4X10 THA	8-98220-086-0	04	1	1409-	●	●
123	SCREW; COVER,RECLINING (B) M4X10 THA	8-98220-086-0	03	1	1409-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (B) M4X10 THA	8-98220-086-0	05	1	1409-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT THA	8-98220-104-0	01	1	1409-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98220-104-0	01	1	1409-	●	●
260	CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> (A) THA	8-98224-267-0	01	1	1409-	●	●
260	CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> (A) THA	8-98224-267-0	01	1	1409-	●	●
260	CLIP; HARNESS FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) THA	8-98224-267-0	01	1	1409-	●	●
260	CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (B) THA	8-98224-497-0	01	1	1409-	●	●
306	NUT; SEAT ADJ M8 FLANGE THA	8-98220-087-0	07	1	1409-	●	●
306	NUT; SEAT ADJ FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> M8 FLANGE THA	8-98220-087-0	07	1	1409-	●	●
320	CLIP; BAND,SEAT THA	8-98220-048-0	02	1	1409-	●	●
320	CLIP; BAND,SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98220-048-0	01	1	1409-	●	●
610	COVER; LEG,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97416-785-4	04	1	1409-	●	●
643	SENSOR; REMINDER AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA	8-98184-734-0	01	1	1409-	●	●
654	HOOK; STOPPER AIR BAG DRIVER & PASSENGER<AK5> BLACK THA	8-97424-637-0	01	1	1409-	●	●
655	BOLT; HOOK AIR BAG DRIVER & PASSENGER<AK5> M5X15 THA	8-98224-171-0	01	1	1409-	●	●

27 28 1 28 78 13 14 18 123 67 67 123 18 123 18 15 67 17 610 610 272 272 9 485 9 123 260 18 18 123 306 63 67 67 18 123 15 18 24 123 260 239 67 63 610 610 260 643 17 320 17 14 13 78 28 1 28 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-323-0	01	1	1409-	●	●
1	BACK ASM; SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-349-0	01	1	1409-	●	●
1	BACK ASM; SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-324-0	01	1	1409-	●	●
1	BACK ASM; SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-350-0	01	1	1409-	●	●
1	BACK ASM; SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-293-0	01	1	1409-	●	●
1	BACK ASM; SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-291-0	01	1	1409-	●	●
9	COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) OUTER BLACK THA	8-97428-377-0	01	1	1409-	●	●
9	COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) INNER BLACK THA	8-97428-379-0	01	1	1409-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (A) OUTER BLACK THA	8-97428-373-0	01	1	1409-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (B) INNER BLACK THA	8-97428-375-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-340-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-366-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-341-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-367-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-343-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-369-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-344-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-370-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-311-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-310-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-314-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-313-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-564-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98187-561-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98187-711-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-560-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-702-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> THA	8-98187-559-0	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98187-571-1	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98187-718-2	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> THA	8-98187-568-2	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA	8-98187-715-3	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-569-2	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-716-3	01	1	1409-	●	●
17	BOLT; RECLINING THA	8-98220-045-0	04	1	1409-	●	●
17	BOLT; RECLINING THA	8-98220-045-0	04	1	1409-	●	●
18	COVER; RECLINING (B) BLACK THA	8-97424-579-0	01	1	1409-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97424-097-0	01	1	1409-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (D) BLACK THA	8-97424-607-0	01	1	1409-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (C) BLACK THA	8-97424-609-0	01	1	1409-	●	●
18	COVER; RECLINING (A) BLACK THA	8-97424-092-0	01	1	1409-	●	●
18	COVER; RECLINING (D) BLACK THA	8-97424-515-0	01	1	1409-	●	●
18	COVER; RECLINING (C) BLACK THA	8-97424-516-0	01	1	1409-	●	●
18	COVER; RECLINING (B) BLACK THA	8-97424-517-0	01	1	1409-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (A) BLACK THA	8-97424-094-0	01	1	1409-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (D) BLACK THA	8-97424-582-0	01	1	1409-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (C) BLACK THA	8-97424-585-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97424-611-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) BLACK THA	8-97424-612-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT (D) BLACK THA	8-97424-518-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (D) BLACK THA	8-97424-591-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (C) BLACK THA	8-97424-595-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-315-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-315-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97424-639-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97424-639-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-316-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-316-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97426-524-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97426-524-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> LIGHT GRAY THA	8-97424-645-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> LIGHT GRAY THA	8-97424-645-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> LIGHT GRAY THA	8-97424-664-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> LIGHT GRAY THA	8-97424-664-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5> LOCK BLACK THA	8-97424-499-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5> LOCK BLACK THA	8-97424-499-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5> FREE BLACK THA	8-97424-500-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5> FREE BLACK THA	8-97424-500-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> LOCK BLACK THA	8-97424-665-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> LOCK BLACK THA	8-97424-665-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FREE BLACK THA	8-97424-666-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FREE BLACK THA	8-97424-666-0	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER<AK5> INNER THA	8-98220-096-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER<AK5> OUTER THA	8-98220-097-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> OUTER THA	8-98224-310-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> INNER THA	8-98224-312-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> OUTER THA	8-98224-186-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> INNER THA	8-98224-188-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> OUTER THA	8-98224-309-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> INNER THA	8-98224-313-1	01	1	1409-	●	●
67	BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER THA	8-98050-319-0	08	1	1409-	●	●
78	RING; SNAP THA	8-98220-068-0	17	1	1409-	●	●
78	RING; SNAP AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98220-068-0	17	1	1409-	●	●
78	RING; SNAP SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98220-068-0	16	1	1409-	●	●
78	RING; SNAP AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98220-068-0	18	1	1409-	●	●
123	SCREW; COVER,RECLINING (A) M4X8 THA	8-98220-085-0	02	1	1409-	●	●
123	SCREW; COVER,RECLINING (A) M4X8 THA	8-98220-085-0	02	1	1409-	●	●
123	SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) M4X10 THA	8-98220-086-0	04	1	1409-	●	●
123	SCREW; COVER,RECLINING (B) M4X10 THA	8-98220-086-0	03	1	1409-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (B) M4X10 THA	8-98220-086-0	05	1	1409-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT THA	8-98220-104-0	01	1	1409-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98220-104-0	01	1	1409-	●	●
260	CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> (A) THA	8-98224-267-0	01	1	1409-	●	●
260	CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> (A) THA	8-98224-267-0	01	1	1409-	●	●
260	CLIP; HARNESS FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) THA	8-98224-267-0	01	1	1409-	●	●
260	CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (B) THA	8-98224-497-0	01	1	1409-	●	●
272	COVER; SEAT RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97428-381-0	01	1	1409-	●	●
272	COVER; SEAT RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) BLACK THA	8-97428-383-0	01	1	1409-	●	●
306	NUT; SEAT ADJ M8 FLANGE THA	8-98220-087-0	07	1	1409-	●	●
306	NUT; SEAT ADJ FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> M8 FLANGE THA	8-98220-087-0	07	1	1409-	●	●
320	CLIP; BAND,SEAT THA	8-98220-048-0	02	1	1409-	●	●
320	CLIP; BAND,SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98220-048-0	01	1	1409-	●	●
485	HARNESS; FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98224-265-0	01	1	1409-	●	●
610	COVER; LEG,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97416-785-4	04	1	1409-	●	●
643	SENSOR; REMINDER AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA	8-98184-734-0	01	1	1409-	●	●

123 24 18 18 123 15 67 67 123 18 123 15 18 67 67 63 610 67 239 63 67 610 610 17 320 17 123 18 18 123 17 610 306 63 63 239 306 123 18 14 13 9 78 9 14 13 78 4 655 28 654 27 28 3 2 28 4 3 2 28 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-326-0	01	1	1409-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-352-0	01	1	1409-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-327-0	01	1	1409-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-353-0	01	1	1409-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-295-0	01	1	1409-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-294-0	01	1	1409-	●	●
3	PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98187-527-0	01	1	1409-	●	●
3	PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-530-0	01	1	1409-	●	●
3	PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-526-0	01	1	1409-	●	●
3	PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-525-0	01	1	1409-	●	●
4	FRAME ASM; FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> THA	8-98187-533-0	01	1	1409-	●	●
4	FRAME ASM; FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> THA	8-98187-534-0	01	1	1409-	●	●
9	COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) OUTER BLACK THA	8-97428-377-0	01	1	1409-	●	●
9	COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) INNER BLACK THA	8-97428-379-0	01	1	1409-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (A) OUTER BLACK THA	8-97428-373-0	01	1	1409-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (B) INNER BLACK THA	8-97428-375-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-340-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-366-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-341-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-367-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-343-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-369-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-344-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-370-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-311-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-310-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-314-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-313-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-564-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98187-561-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98187-711-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-560-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-702-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> THA	8-98187-559-0	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98187-571-1	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98187-718-2	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> THA	8-98187-568-2	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA	8-98187-715-3	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-569-2	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-716-3	01	1	1409-	●	●
17	BOLT; RECLINING THA	8-98220-045-0	04	1	1409-	●	●
17	BOLT; RECLINING THA	8-98220-045-0	04	1	1409-	●	●
18	COVER; RECLINING (B) BLACK THA	8-97424-579-0	01	1	1409-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97424-097-0	01	1	1409-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (D) BLACK THA	8-97424-607-0	01	1	1409-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (C) BLACK THA	8-97424-609-0	01	1	1409-	●	●
18	COVER; RECLINING (A) BLACK THA	8-97424-092-0	01	1	1409-	●	●
18	COVER; RECLINING (D) BLACK THA	8-97424-515-0	01	1	1409-	●	●
18	COVER; RECLINING (C) BLACK THA	8-97424-516-0	01	1	1409-	●	●
18	COVER; RECLINING (B) BLACK THA	8-97424-517-0	01	1	1409-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (A) BLACK THA	8-97424-094-0	01	1	1409-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (D) BLACK THA	8-97424-582-0	01	1	1409-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (C) BLACK THA	8-97424-585-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97424-611-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) BLACK THA	8-97424-612-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT (D) BLACK THA	8-97424-518-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (D) BLACK THA	8-97424-591-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (C) BLACK THA	8-97424-595-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-315-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-315-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97424-639-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97424-639-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-316-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-316-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97426-524-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97426-524-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> LIGHT GRAY THA	8-97424-645-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> LIGHT GRAY THA	8-97424-645-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> LIGHT GRAY THA	8-97424-664-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> LIGHT GRAY THA	8-97424-664-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5> LOCK BLACK THA	8-97424-499-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5> LOCK BLACK THA	8-97424-499-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5> FREE BLACK THA	8-97424-500-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5> FREE BLACK THA	8-97424-500-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> LOCK BLACK THA	8-97424-665-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> LOCK BLACK THA	8-97424-665-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FREE BLACK THA	8-97424-666-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FREE BLACK THA	8-97424-666-0	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER<AK5> INNER THA	8-98220-096-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER<AK5> OUTER THA	8-98220-097-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> OUTER THA	8-98224-310-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> INNER THA	8-98224-312-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> OUTER THA	8-98224-186-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> INNER THA	8-98224-188-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> OUTER THA	8-98224-309-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> INNER THA	8-98224-313-1	01	1	1409-	●	●
67	BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER THA	8-98050-319-0	08	1	1409-	●	●
78	RING; SNAP THA	8-98220-068-0	17	1	1409-	●	●
78	RING; SNAP AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98220-068-0	17	1	1409-	●	●
78	RING; SNAP SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98220-068-0	16	1	1409-	●	●
78	RING; SNAP AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98220-068-0	18	1	1409-	●	●
123	SCREW; COVER,RECLINING (A) M4X8 THA	8-98220-085-0	02	1	1409-	●	●
123	SCREW; COVER,RECLINING (A) M4X8 THA	8-98220-085-0	02	1	1409-	●	●
123	SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) M4X10 THA	8-98220-086-0	04	1	1409-	●	●
123	SCREW; COVER,RECLINING (B) M4X10 THA	8-98220-086-0	03	1	1409-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (B) M4X10 THA	8-98220-086-0	05	1	1409-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT THA	8-98220-104-0	01	1	1409-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98220-104-0	01	1	1409-	●	●
306	NUT; SEAT ADJ M8 FLANGE THA	8-98220-087-0	07	1	1409-	●	●
306	NUT; SEAT ADJ FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> M8 FLANGE THA	8-98220-087-0	07	1	1409-	●	●
320	CLIP; BAND,SEAT THA	8-98220-048-0	02	1	1409-	●	●
320	CLIP; BAND,SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98220-048-0	01	1	1409-	●	●
610	COVER; LEG,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97416-785-4	04	1	1409-	●	●
654	HOOK; STOPPER AIR BAG DRIVER & PASSENGER<AK5> BLACK THA	8-97424-637-0	01	1	1409-	●	●
655	BOLT; HOOK AIR BAG DRIVER & PASSENGER<AK5> M5X15 THA	8-98224-171-0	01	1	1409-	●	●

24 123 18 15 18 123 610 610 67 260 17 17 320 78 4 28 27 28 2 3 13 14 485 4 28 28 27 3 2 9 14 13 78 123 9 18 272 272 18 260 123 17 610 123 18 610 67 15 67 67 123 18 123 67 67 18 63 63 239 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-326-0	01	1	1409-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-352-0	01	1	1409-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-327-0	01	1	1409-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-353-0	01	1	1409-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-295-0	01	1	1409-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-294-0	01	1	1409-	●	●
3	PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98187-527-0	01	1	1409-	●	●
3	PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-530-0	01	1	1409-	●	●
3	PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-526-0	01	1	1409-	●	●
3	PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-525-0	01	1	1409-	●	●
4	FRAME ASM; FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> THA	8-98187-533-0	01	1	1409-	●	●
4	FRAME ASM; FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> THA	8-98187-534-0	01	1	1409-	●	●
9	COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) OUTER BLACK THA	8-97428-377-0	01	1	1409-	●	●
9	COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) INNER BLACK THA	8-97428-379-0	01	1	1409-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (A) OUTER BLACK THA	8-97428-373-0	01	1	1409-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (B) INNER BLACK THA	8-97428-375-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-340-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-366-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-341-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-367-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-343-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-369-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-344-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-370-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-311-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-310-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-314-0	01	1	1409-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97428-313-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-564-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98187-561-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98187-711-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-560-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-702-0	01	1	1409-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> THA	8-98187-559-0	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98187-571-1	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98187-718-2	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> THA	8-98187-568-2	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA	8-98187-715-3	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-569-2	01	1	1409-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98187-716-3	01	1	1409-	●	●
17	BOLT; RECLINING THA	8-98220-045-0	04	1	1409-	●	●
17	BOLT; RECLINING THA	8-98220-045-0	04	1	1409-	●	●
18	COVER; RECLINING (B) BLACK THA	8-97424-579-0	01	1	1409-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97424-097-0	01	1	1409-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (D) BLACK THA	8-97424-607-0	01	1	1409-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (C) BLACK THA	8-97424-609-0	01	1	1409-	●	●
18	COVER; RECLINING (A) BLACK THA	8-97424-092-0	01	1	1409-	●	●
18	COVER; RECLINING (D) BLACK THA	8-97424-515-0	01	1	1409-	●	●
18	COVER; RECLINING (C) BLACK THA	8-97424-516-0	01	1	1409-	●	●
18	COVER; RECLINING (B) BLACK THA	8-97424-517-0	01	1	1409-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (A) BLACK THA	8-97424-094-0	01	1	1409-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (D) BLACK THA	8-97424-582-0	01	1	1409-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (C) BLACK THA	8-97424-585-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97424-611-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) BLACK THA	8-97424-612-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT (D) BLACK THA	8-97424-518-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (D) BLACK THA	8-97424-591-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (C) BLACK THA	8-97424-595-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-315-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-315-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97424-639-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97424-639-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-316-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-316-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97426-524-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97426-524-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> LIGHT GRAY THA	8-97424-645-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> LIGHT GRAY THA	8-97424-645-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> LIGHT GRAY THA	8-97424-664-0	01	1	1409-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> LIGHT GRAY THA	8-97424-664-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5> LOCK BLACK THA	8-97424-499-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5> LOCK BLACK THA	8-97424-499-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5> FREE BLACK THA	8-97424-500-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5> FREE BLACK THA	8-97424-500-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> LOCK BLACK THA	8-97424-665-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> LOCK BLACK THA	8-97424-665-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FREE BLACK THA	8-97424-666-0	01	1	1409-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FREE BLACK THA	8-97424-666-0	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER<AK5> INNER THA	8-98220-096-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER<AK5> OUTER THA	8-98220-097-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> OUTER THA	8-98224-310-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> INNER THA	8-98224-312-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> OUTER THA	8-98224-186-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> INNER THA	8-98224-188-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> OUTER THA	8-98224-309-1	01	1	1409-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> INNER THA	8-98224-313-1	01	1	1409-	●	●
67	BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER THA	8-98050-319-0	08	1	1409-	●	●
78	RING; SNAP THA	8-98220-068-0	17	1	1409-	●	●
78	RING; SNAP AIR BAG DRIVER & PASSENGER<AK5> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98220-068-0	17	1	1409-	●	●
78	RING; SNAP SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98220-068-0	16	1	1409-	●	●
78	RING; SNAP AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98220-068-0	18	1	1409-	●	●
123	SCREW; COVER,RECLINING (A) M4X8 THA	8-98220-085-0	02	1	1409-	●	●
123	SCREW; COVER,RECLINING (A) M4X8 THA	8-98220-085-0	02	1	1409-	●	●
123	SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) M4X10 THA	8-98220-086-0	04	1	1409-	●	●
123	SCREW; COVER,RECLINING (B) M4X10 THA	8-98220-086-0	03	1	1409-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (B) M4X10 THA	8-98220-086-0	05	1	1409-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT THA	8-98220-104-0	01	1	1409-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98220-104-0	01	1	1409-	●	●
260	CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> (A) THA	8-98224-267-0	01	1	1409-	●	●
260	CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> (A) THA	8-98224-267-0	01	1	1409-	●	●
260	CLIP; HARNESS FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) THA	8-98224-267-0	01	1	1409-	●	●
260	CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (B) THA	8-98224-497-0	01	1	1409-	●	●
272	COVER; SEAT RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97428-381-0	01	1	1409-	●	●
272	COVER; SEAT RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) BLACK THA	8-97428-383-0	01	1	1409-	●	●
306	NUT; SEAT ADJ M8 FLANGE THA	8-98220-087-0	07	1	1409-	●	●
306	NUT; SEAT ADJ FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> M8 FLANGE THA	8-98220-087-0	07	1	1409-	●	●
320	CLIP; BAND,SEAT THA	8-98220-048-0	02	1	1409-	●	●
320	CLIP; BAND,SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98220-048-0	01	1	1409-	●	●
485	HARNESS; FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98224-265-0	01	1	1409-	●	●
610	COVER; LEG,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97416-785-4	04	1	1409-	●	●

18 24 24 486 601 123 18 228 24 228 20 228 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	COVER; RECLINING (B) BLACK THA	8-97424-579-0	01	1	1409-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97424-097-0	01	1	1409-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (D) BLACK THA	8-97424-607-0	01	1	1409-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (C) BLACK THA	8-97424-609-0	01	1	1409-	●	●
18	COVER; RECLINING (A) BLACK THA	8-97424-092-0	01	1	1409-	●	●
18	COVER; RECLINING (D) BLACK THA	8-97424-515-0	01	1	1409-	●	●
18	COVER; RECLINING (C) BLACK THA	8-97424-516-0	01	1	1409-	●	●
18	COVER; RECLINING (B) BLACK THA	8-97424-517-0	01	1	1409-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (A) BLACK THA	8-97424-094-0	01	1	1409-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (D) BLACK THA	8-97424-582-0	01	1	1409-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (C) BLACK THA	8-97424-585-0	01	1	1409-	●	●
20	CAP; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> BLACK THA	8-97424-598-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97424-611-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) BLACK THA	8-97424-612-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT (D) BLACK THA	8-97424-518-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (D) BLACK THA	8-97424-591-0	01	1	1409-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (C) BLACK THA	8-97424-595-0	01	1	1409-	●	●
123	SCREW; COVER,RECLINING (A) M4X8 THA	8-98220-085-0	02	1	1409-	●	●
123	SCREW; COVER,RECLINING (A) M4X8 THA	8-98220-085-0	02	1	1409-	●	●
123	SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) M4X10 THA	8-98220-086-0	04	1	1409-	●	●
123	SCREW; COVER,RECLINING (B) M4X10 THA	8-98220-086-0	03	1	1409-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (B) M4X10 THA	8-98220-086-0	05	1	1409-	●	●
228	SCREW; KNOB SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> M5X10 THA	8-98224-268-0	03	1	1409-	●	●
486	SWITCH; POWER SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98224-262-0	01	1	1409-	●	●
601	SCREW; SWITCH FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> M4X12 THA	8-98224-269-0	02	1	1409-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
