7-43 — SUN VISOR AND ASSIST GRIP (#147329) — 26 parça

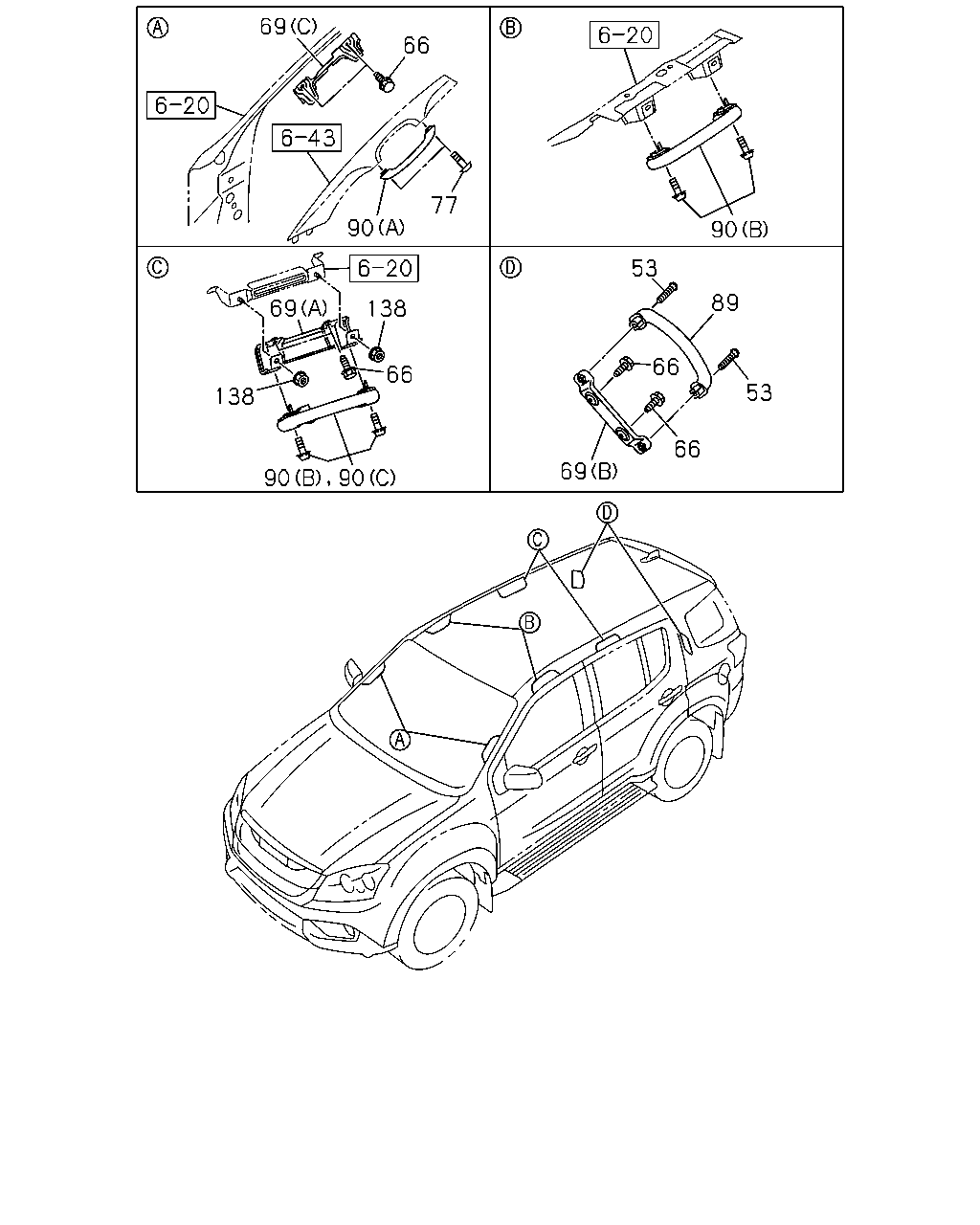

çizim 439600
69 66 77 90 90 89 53 66 53 66 69 69 138 66 138 90 90
BalonParca AdiParca NoAdetTipApplied Date A B
53 SCREW; ASSIST HANDLE
M6X32 IMA 		8-97811-323-0 04 1 1409- ● ●
66 BOLT; ASSIST GRIP BRKT
M6X16 FLANGE THA 		8-98050-320-0 04 1 1409- ● ●
66 BOLT; ASSIST GRIP BRKT
M6X16 FLANGE THA 		8-98050-320-0 08 1 1409- ● ●
69 BRACKET; ASSIST GRIP
(A) THA 		8-98198-262-0 02 1 1409- ● ●
69 BRACKET; ASSIST GRIP
(B) THA 		8-98198-281-0 01 1 1409- ● ●
69 BRACKET; ASSIST GRIP
(B) THA 		8-98198-282-0 01 1 1409- ● ●
69 BRACKET; ASSIST GRIP
(C) THA 		8-98220-691-0 01 1 1409- ● ●
69 BRACKET; ASSIST GRIP
(C) THA 		8-98220-692-0 01 1 1409- ● ●
77 SCREW; ASSIST GRIP
M6X25 THA 		0-36230-625-0 04 1 1409- ● ●
89 HANDLE; ASSIST
GRAY IMA 		8-97424-381-0 02 1 1409- ● ●
90 GRIP; ASSIST,ROOF
(B) GRAY THA 		8-97419-356-5 02 1 1409- ● ●
90 GRIP; ASSIST,ROOF
INTERIOR BASIC<RBA> (B) GRAY THA 		8-97419-356-5 02 1 1409- ●
90 GRIP; ASSIST,ROOF
INTERIOR CUSTOM<RBD> (C) GRAY THA 		8-97419-357-6 01 1 1409- ●
90 GRIP; ASSIST,ROOF
(C) GRAY THA 		8-97419-357-6 01 1 1409- ●
90 GRIP; ASSIST,ROOF
INTERIOR CUSTOM<RBD> (C) GRAY THA 		8-97423-347-4 01 1 1409- ●
90 GRIP; ASSIST,ROOF
(C) GRAY THA 		8-97423-347-4 01 1 1409- ●
90 GRIP; ASSIST,ROOF
(A) GRAY THA 		8-97416-698-4 02 1 1409- ● ●
138 NUT; BRKT,HEADER SHELF
M6 FLANGE THA 		0-91180-106-0 04 1 1409- ● ●

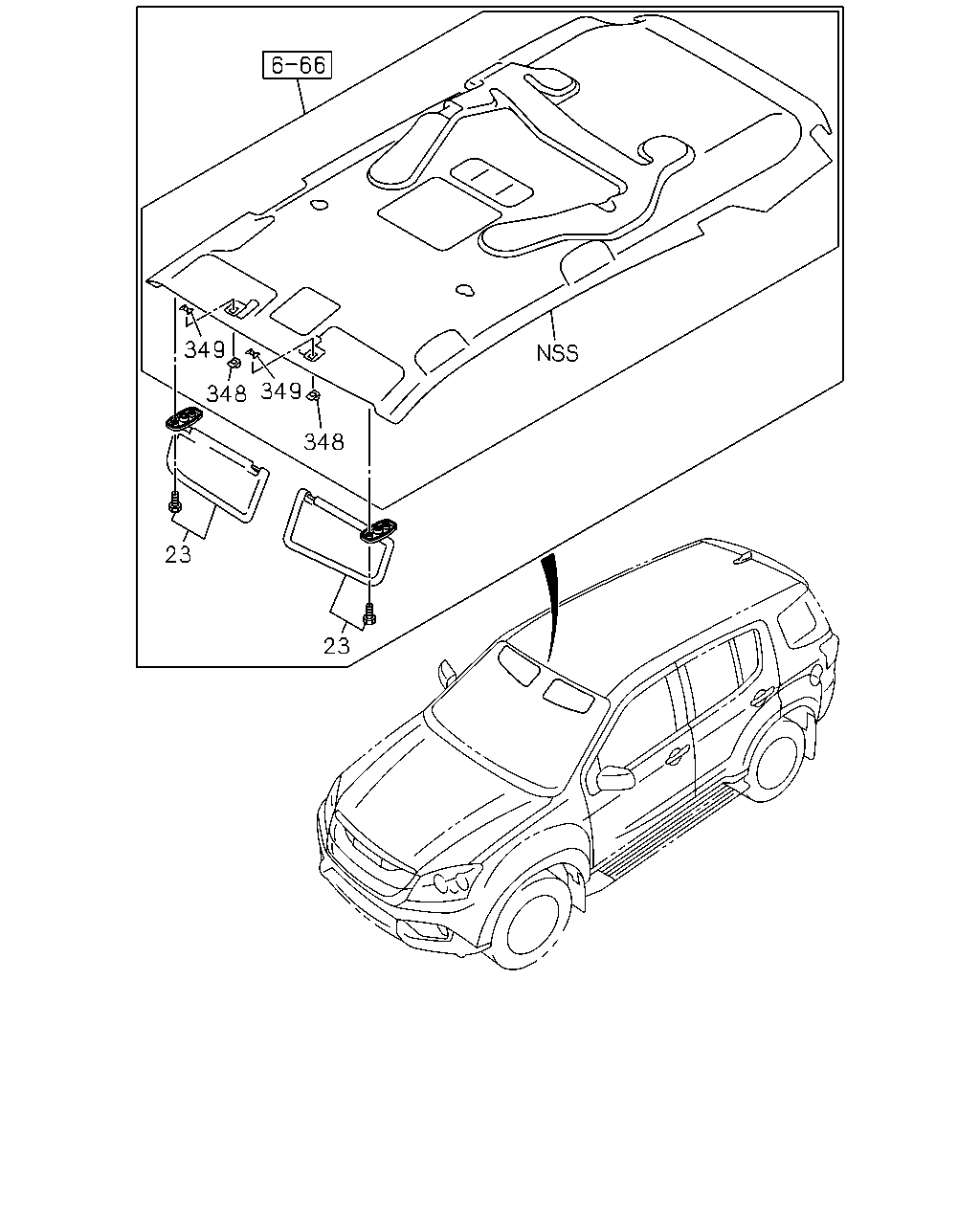

çizim 439601
23 349 348 349 348 23
BalonParca AdiParca NoAdetTipApplied Date A B
23 SUN VISOR
SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA 		8-97416-683-2 01 1 1409- ●
23 SUN VISOR
SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA 		8-97416-686-3 01 1 1409- ●
23 SUN VISOR
GRAY THA 		8-97416-686-3 01 1 1409- ●
23 SUN VISOR
EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA 		8-97416-682-2 01 1 1409- ●
23 SUN VISOR
EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA 		8-97429-637-0 01 1 1409- ●
23 SUN VISOR
GRAY THA 		8-97416-687-2 01 1 1409- ●
348 RETAINER; SUNSHADE
GRAY THA 		8-97403-990-0 02 1 1409- ● ●
349 CLIP; RETAINER SUNSHADE
THA 		8-97307-749-0 02 1 1409- ● ●
