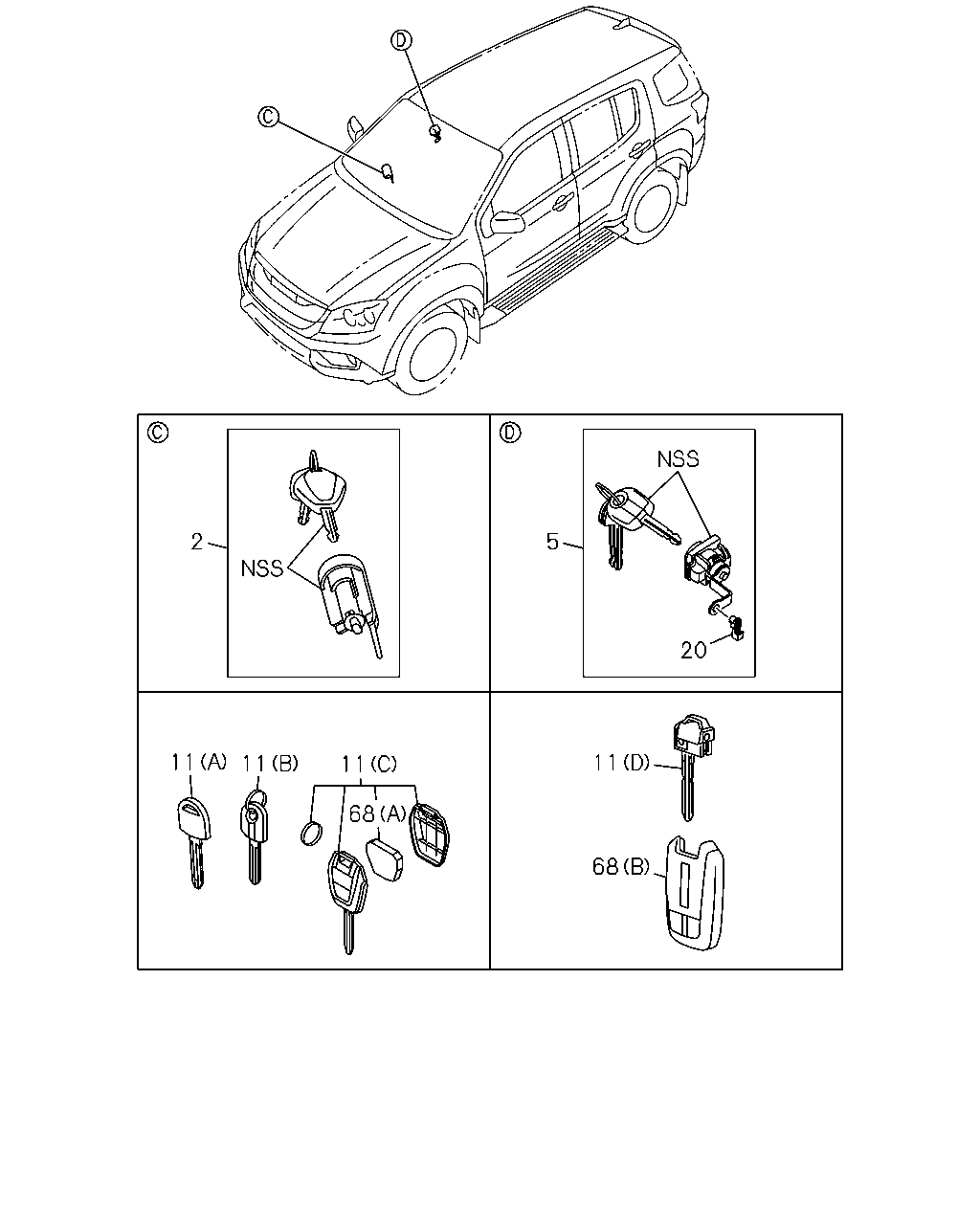

7-30 — LOCK CYLINDER SET (#147327) — 20 parça

20 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER SET; CAR LOCK PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> THA	8-98258-072-0	01	1	1409-	●	●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> THA	8-98274-619-0	01	1	1409-	●	●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA	8-98247-630-0	01	1	1409-	●	●
20	SNAP; DOOR LOCK CYL PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> WHITE THA	8-97350-044-0	01	1	1409-	●	●
20	SNAP; DOOR LOCK CYL REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> WHITE THA	8-97350-044-0	01	1	1409-	●	●

5 2 20 11 68 68 11 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> THA	8-98274-647-0	01	1	1409-	●	●
2	BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA	8-98193-734-0	01	1	1409-	●	●
5	CYLINDER ASM; DOOR LOCK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> THA	8-98274-649-0	01	1	1409-	●	●
5	CYLINDER ASM; DOOR LOCK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA	8-98193-736-0	01	1	1409-	●	●
5	CYLINDER ASM; DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> THA	8-98193-736-0	01	1	1409-	●	●
11	KEY; BLANK PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER THA	8-98007-939-2	AR	1	1409-	●	●
11	KEY; BLANK PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> (D) THA	8-98257-831-0	AR	1	1409-	●	●
11	KEY; BLANK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) THA	8-97350-352-0	AR	1	1409-	●	●
11	KEY; BLANK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER THA	8-98274-338-0	AR	1	1409-	●	●
11	KEY; BLANK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. IMMOBILIZER SYSTEM<7KC> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER THA	8-98136-339-0	AR	1	1409-	●	●
20	SNAP; DOOR LOCK CYL PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> WHITE THA	8-97350-044-0	01	1	1409-	●	●
20	SNAP; DOOR LOCK CYL REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> WHITE THA	8-97350-044-0	01	1	1409-	●	●
68	TRANSMITTER; DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA	8-98243-995-0	02	1	1409-1505	●	●
68	TRANSMITTER; DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA	8-98306-420-0	02	1	1506-	●	●
68	TRANSMITTER; DOOR LOCK REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) THA	8-98102-844-1	01	1	1409-	●	●
