◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51577 - UCR/UCS(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#147326) — 22 parça

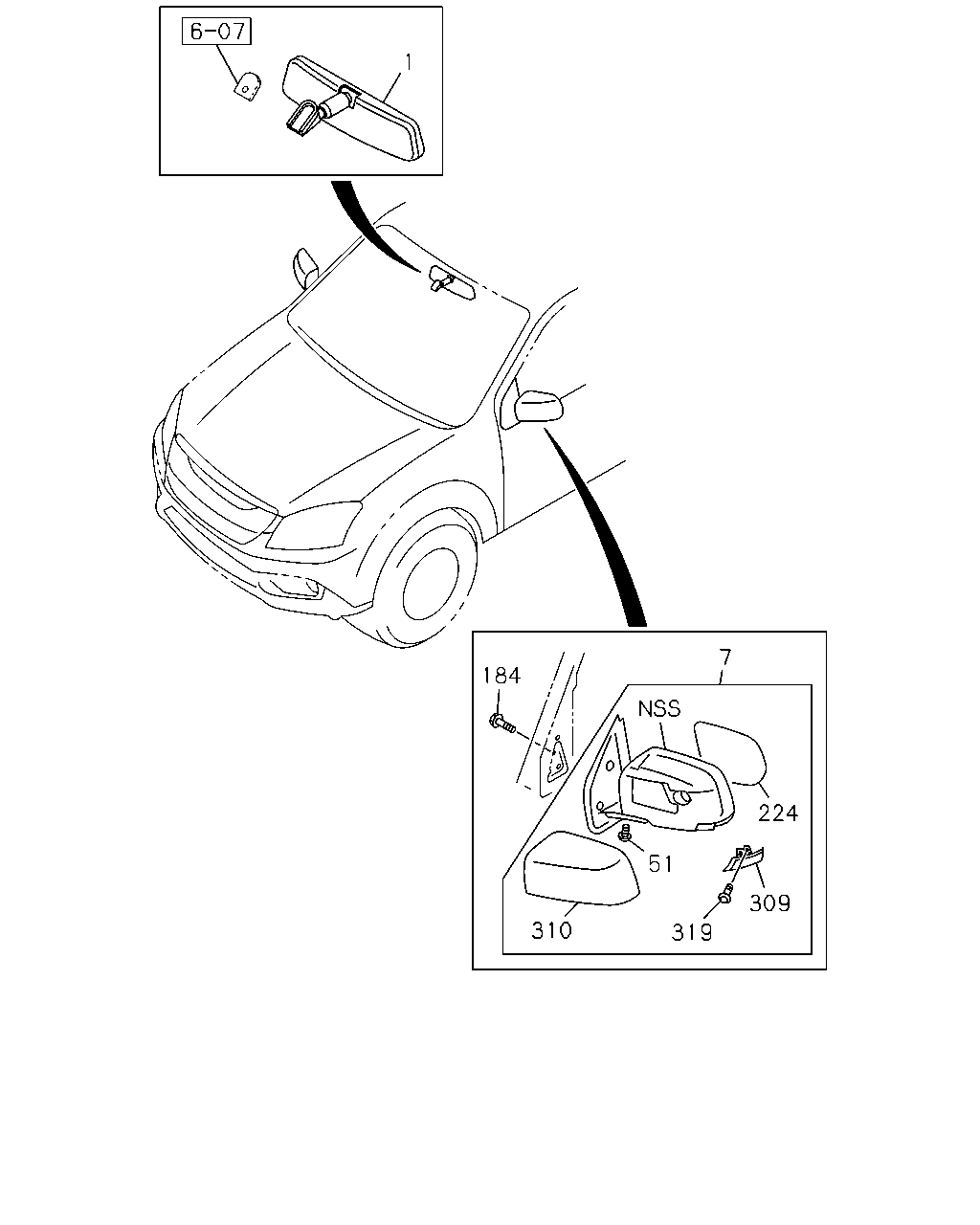

çizim 439529
1 184 7 224 51 310 319 309
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
THA 		8-97237-560-0 01 1 1409- ● ●
7 MIRROR ASM; DOOR
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3> THA 		8-98065-333-4 01 1 1409- ● ●
7 MIRROR ASM; DOOR
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3> THA 		8-98065-334-4 01 1 1409- ● ●
7 MIRROR ASM; DOOR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA 		8-98193-672-0 01 1 1409- ● ●
7 MIRROR ASM; DOOR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA 		8-98200-733-0 01 1 1409- ● ●
51 SCREW; MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3> THA 		8-98193-685-0 02 1 1409- ● ●
51 SCREW; MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA 		8-98193-685-0 02 1 1409- ● ●
184 BOLT; MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> M6X14 FLANGE THA 		8-97247-698-0 06 1 1409- ● ●
224 MIRROR; DOOR
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3> THA 		8-98193-681-0 01 1 1409- ● ●
224 MIRROR; DOOR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA 		8-98193-681-0 01 1 1409- ● ●
224 MIRROR; DOOR
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3> THA 		8-98193-682-0 01 1 1409- ● ●
224 MIRROR; DOOR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA 		8-98193-682-0 01 1 1409- ● ●
309 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3> THA 		8-98193-683-0 01 1 1409- ● ●
309 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA 		8-98193-683-0 01 1 1409- ● ●
309 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3> THA 		8-98193-684-0 01 1 1409- ● ●
309 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA 		8-98193-684-0 01 1 1409- ● ●
310 COVER; DOOR MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3> THA 		8-98193-686-0 01 1 1409- ● ●
310 COVER; DOOR MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3> THA 		8-98193-687-0 01 1 1409- ● ●
310 COVER; DOOR MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA 		8-98203-335-0 01 1 1409- ● ●
310 COVER; DOOR MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA 		8-98203-336-0 01 1 1409- ● ●
319 SCREW; SIDE TURN LAMP
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3> THA 		8-98193-685-0 02 1 1409- ● ●
319 SCREW; SIDE TURN LAMP
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA 		8-98193-685-0 02 1 1409- ● ●
