◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51577 - UCR/UCS(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#147325) — 24 parça

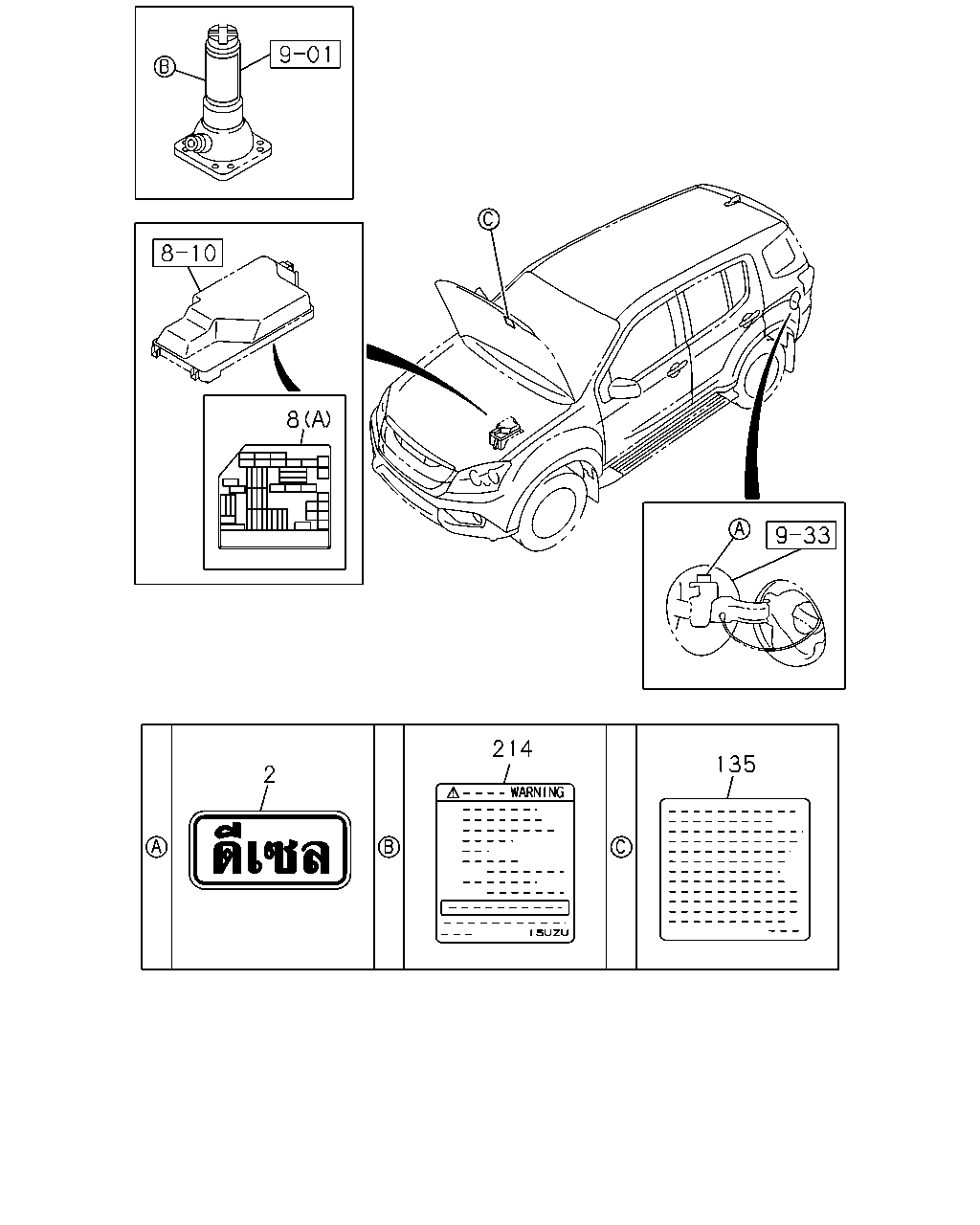

çizim 439507
2 214 135 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 LABEL; FUEL CAUTION
THA 		8-97944-098-0 01 1 1409- ● ●
8 LABEL; FUSE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA 		8-98281-098-0 01 1 1409- ● ●
8 LABEL; FUSE
PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA 		8-98281-137-0 01 1 1409- ● ●
8 LABEL; FUSE
PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA 		8-98281-135-0 01 1 1409- ● ●
8 LABEL; FUSE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA 		8-98281-133-0 01 1 1409- ● ●
135 PLATE; CAUTION,ENGINE
4JK1-TCX ENG<LR0> THA 		8-98199-210-0 01 1 1409- ● ●
135 PLATE; CAUTION,ENGINE
4JJ1-TCX ENG<LS0> THA 		8-98199-209-0 01 1 1409- ● ●
214 LABEL; JACK
THA 		8-97942-649-0 01 1 1409- ● ●

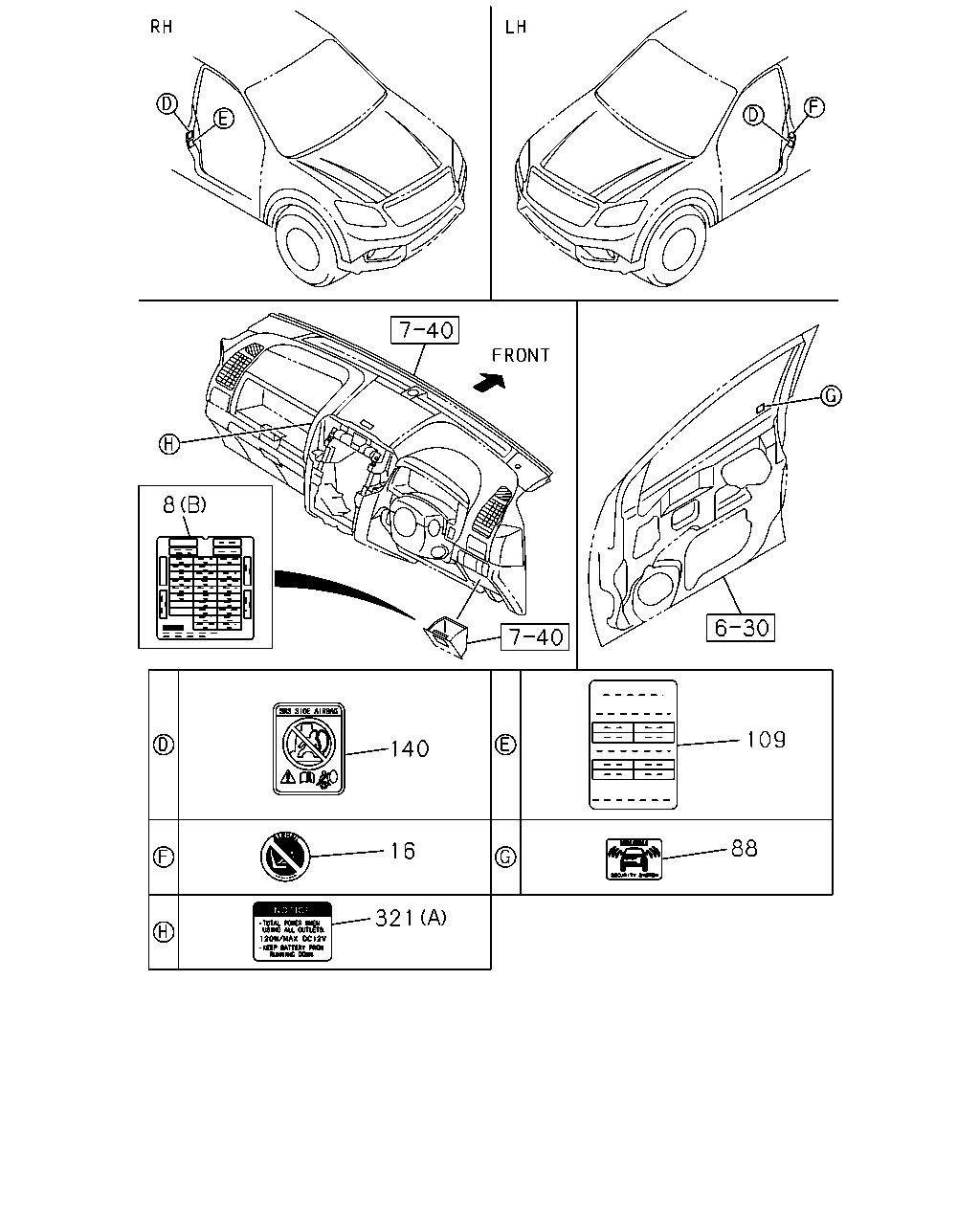

çizim 439526
8 140 16 321 109 88
BalonParca AdiParca NoAdetTipApplied Date A B
8 LABEL; FUSE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA 		8-98281-098-0 01 1 1409- ● ●
8 LABEL; FUSE
PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA 		8-98281-137-0 01 1 1409- ● ●
8 LABEL; FUSE
PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA 		8-98281-135-0 01 1 1409- ● ●
8 LABEL; FUSE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA 		8-98281-133-0 01 1 1409- ● ●
16 PLATE; CAUTION,SIR
THA 		8-97378-569-0 01 1 1409- ● ●
88 LABEL; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98141-993-2 02 1 1409- ● ●
109 PLATE; CAUTION,TIRE PLACARD
THA 		8-98100-754-0 01 1 1409- ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA 		8-98179-251-2 02 1 1409- ● ●
321 LABEL; WARNING,POWER
I/P MOUNT OUTLET<KC5> (A) THA 		8-98183-494-1 01 1 1409- ●
321 LABEL; WARNING,POWER
(A) THA 		8-98183-494-1 01 1 1409- ●
321 LABEL; WARNING,POWER
I/P MOUNT OUTLET<KC5> (B) THA 		8-98215-396-0 01 1 1409- ●
321 LABEL; WARNING,POWER
(B) THA 		8-98215-396-0 01 1 1409- ●
çizim 439527
321
BalonParca AdiParca NoAdetTipApplied Date A B
321 LABEL; WARNING,POWER
I/P MOUNT OUTLET<KC5> (A) THA 		8-98183-494-1 01 1 1409- ●
321 LABEL; WARNING,POWER
(A) THA 		8-98183-494-1 01 1 1409- ●
321 LABEL; WARNING,POWER
I/P MOUNT OUTLET<KC5> (B) THA 		8-98215-396-0 01 1 1409- ●
321 LABEL; WARNING,POWER
(B) THA 		8-98215-396-0 01 1 1409- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
