6-78 — FLOOR HOLE PLUG (#147315) — 17 parça

çizim 439364

12 12

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	12	GROMMET; DRAIN HOLE,ROCKER RR (B) OD=15.0 IMA	8-94279-040-0	04	1	1409-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (A) OD=35 THA	8-97320-908-0	10	1	1409-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (D) THA	8-97324-563-0	07	1	1409-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (E) THA	8-98233-151-0	01	1	1409-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (F) THA	8-98233-595-1	02	1	1409-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (C) OD=12 THA	9-09956-122-0	01	1	1409-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (A) OD=35 THA	8-97320-908-0	06	1	1409-	●	●

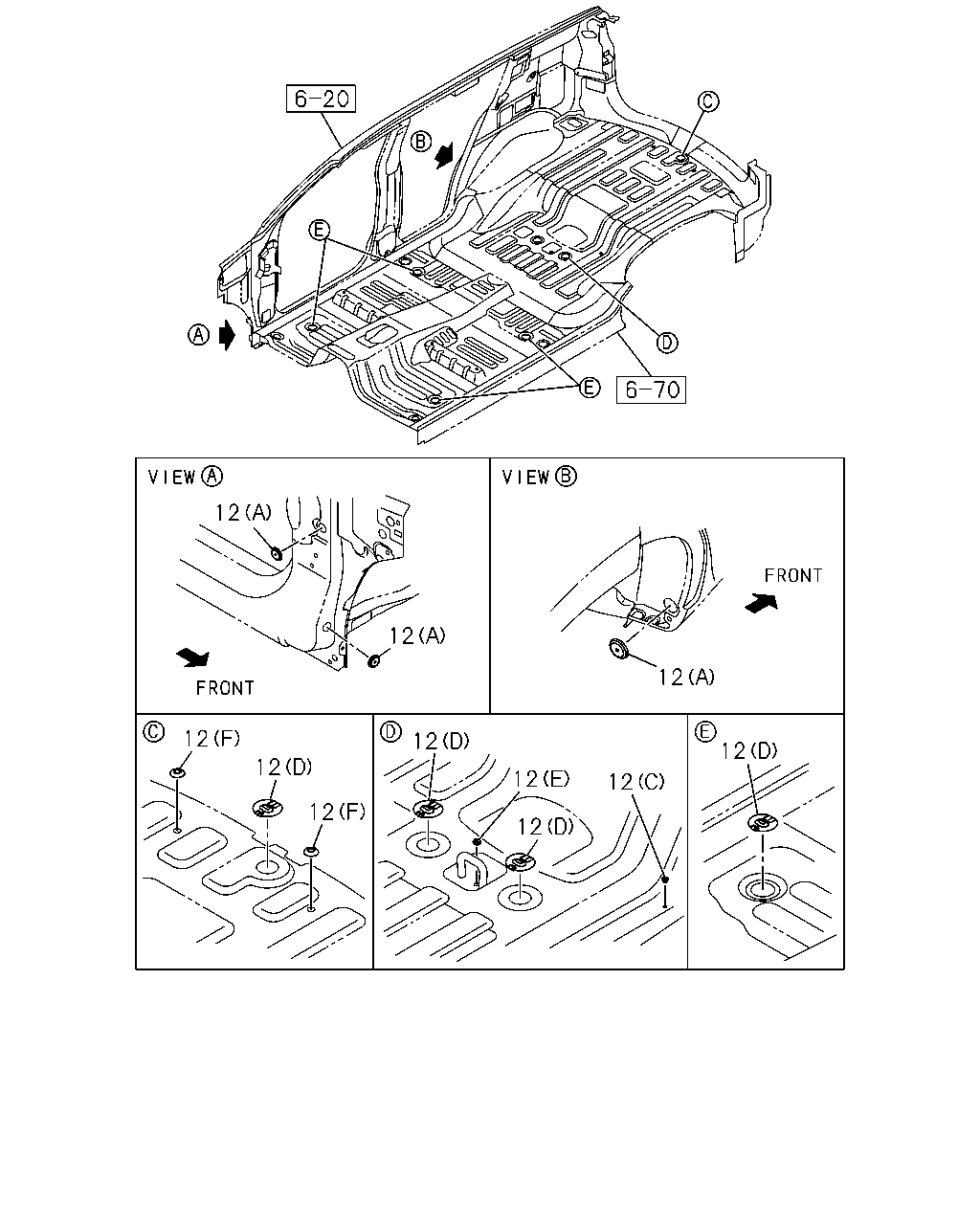

çizim 439579

12 12 12 12 12 12 12 12 12 12 12

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	12	GROMMET; DRAIN HOLE,ROCKER RR (B) OD=15.0 IMA	8-94279-040-0	04	1	1409-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (A) OD=35 THA	8-97320-908-0	10	1	1409-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (D) THA	8-97324-563-0	07	1	1409-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (E) THA	8-98233-151-0	01	1	1409-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (F) THA	8-98233-595-1	02	1	1409-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (C) OD=12 THA	9-09956-122-0	01	1	1409-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (A) OD=35 THA	8-97320-908-0	06	1	1409-	●	●

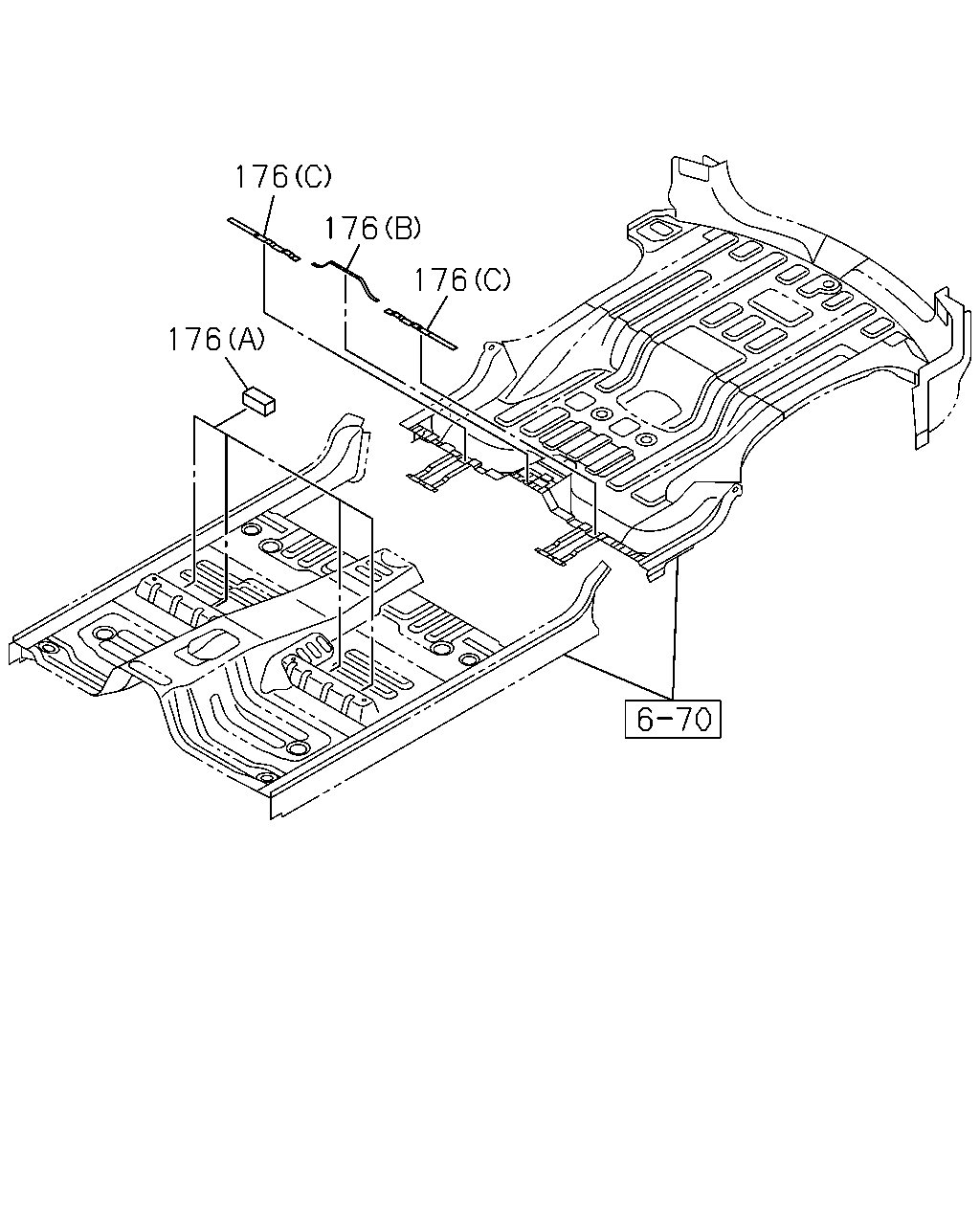

çizim 439580

176 176 176 176

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	176	SEAL; FLOOR PANEL (B) THA	8-94336-915-0	01	1	1409-	●	●
	176	SEAL; FLOOR PANEL (C) THA	8-98178-885-0	02	1	1409-	●	●
	176	SEAL; FLOOR PANEL (A) THA	8-98244-503-0	04	1	1409-	●	●
