◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51577 - UCR/UCS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#147312) — 46 parça

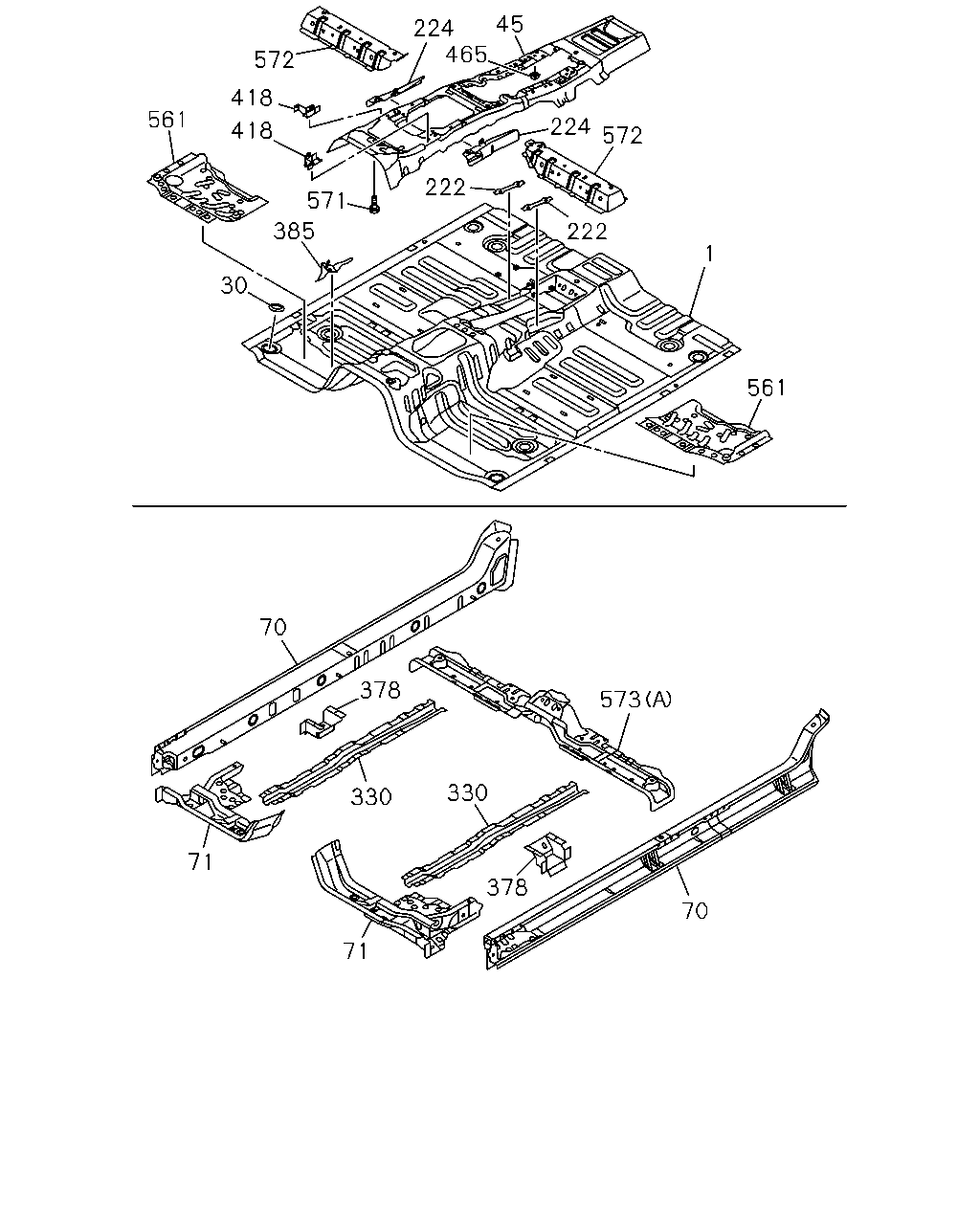

çizim 439534
1 561 573 378 330 70 330 378 70 71 71 30 385 571 222 222 572 224 45 465 224 572 418 561 418
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
THA 		8-98199-516-0 01 1 1409- ● ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 THA 		8-98202-803-0 04 1 1409- ● ●
45 REINFORCEMENT; TUNNEL,FRT
THA 		8-98101-032-5 01 1 1409- ● ●
70 PANEL; ROCKER INNER
THA 		8-98198-996-0 01 1 1409- ● ●
70 PANEL; ROCKER INNER
THA 		8-98198-998-0 01 1 1409- ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-98199-785-3 01 1 1409- ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-98199-786-3 01 1 1409- ● ●
222 PATCH; BRKT
THA 		8-98136-850-0 02 1 1409- ● ●
224 PATCH; FLOOR PANEL FRT
A/T 5 SPEED-AISIN<MA1> THA 		8-98241-943-0 01 1 1409- ● ●
224 PATCH; FLOOR PANEL FRT
A/T 5 SPEED-AISIN<MA1> THA 		8-98241-944-0 01 1 1409- ● ●
330 REINFORCEMENT; FLOOR
THA 		8-98199-922-1 02 1 1409- ● ●
378 GASSET; LWR
THA 		8-98101-037-0 02 1 1409- ● ●
385 BRACKET
THA 		8-98101-039-3 01 1 1409- ● ●
418 BRACKET; CONSOLE
THA 		8-98110-695-0 01 1 1409- ● ●
418 BRACKET; CONSOLE
THA 		8-98110-696-0 01 1 1409- ● ●
465 NUT; REINFORCEMENT
M6 THA 		9-09114-086-0 06 1 1409- ● ●
561 REINFORCEMENT; FLOOR FRT
THA 		8-98199-929-0 01 1 1409- ● ●
561 REINFORCEMENT; FLOOR FRT
THA 		8-98199-930-0 01 1 1409- ● ●
571 STUD
M6X18 THA 		8-98154-159-0 07 1 1409- ● ●
572 SILL; FLOOR,FRT
THA 		8-98101-019-3 01 1 1409- ● ●
572 SILL; FLOOR,FRT
THA 		8-98101-020-3 01 1 1409- ● ●
573 SILL; FLOOR,RR
(A) THA 		8-98220-501-1 01 1 1409- ● ●
573 SILL; FLOOR,RR
(B) THA 		8-98199-823-1 01 1 1409- ● ●
573 SILL; FLOOR,RR
(C) THA 		8-98199-825-0 01 1 1409- ● ●
573 SILL; FLOOR,RR
(D) THA 		8-98199-826-1 01 1 1409- ● ●
573 SILL; FLOOR,RR
(E) THA 		8-98199-827-2 01 1 1409- ● ●
573 SILL; FLOOR,RR
(F) THA 		8-98207-470-3 01 1 1409- ● ●

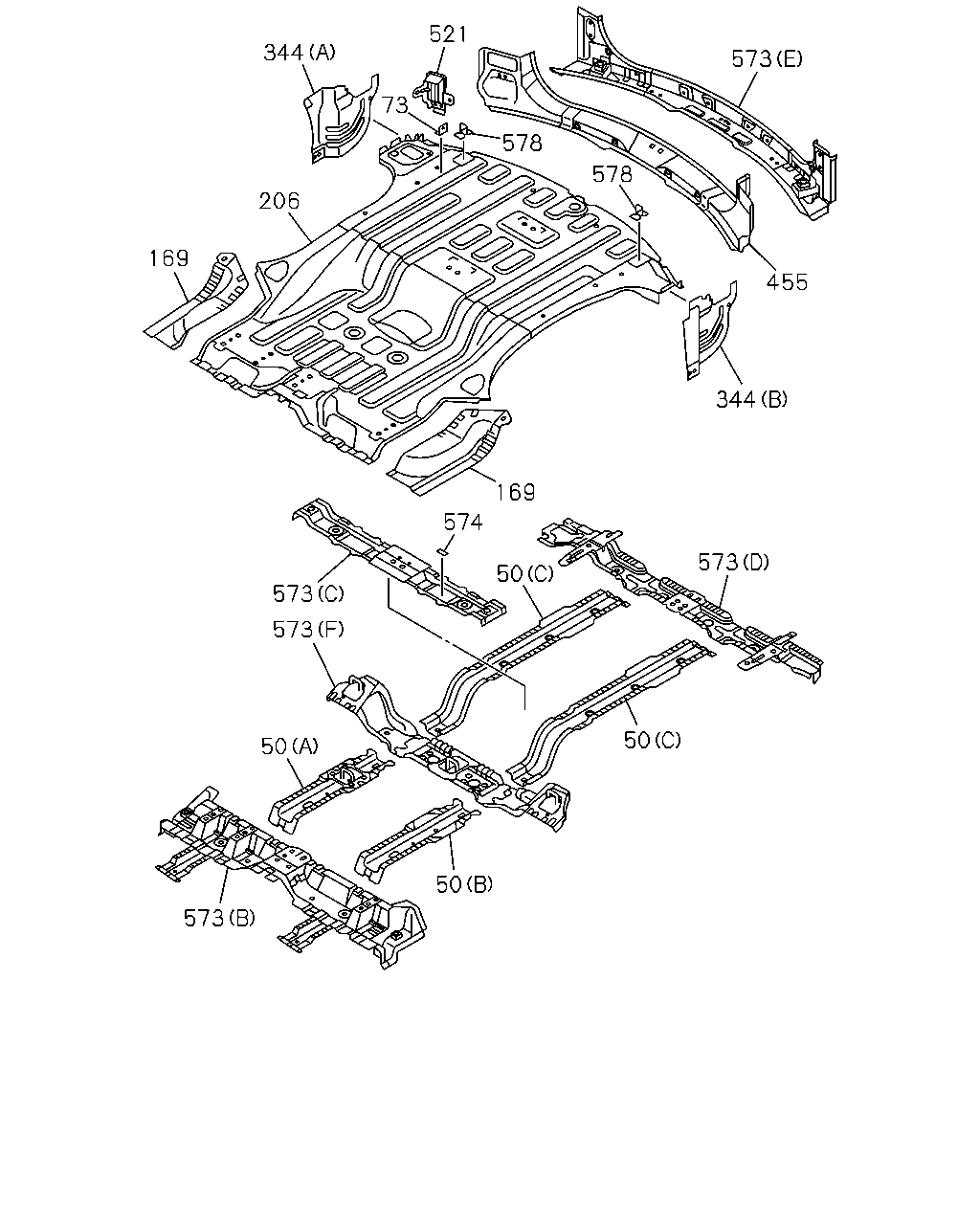

çizim 439550
344 521 573 578 578 455 344 73 206 169 169 573 50 50 574 573 573 50 573 50
BalonParca AdiParca NoAdetTipApplied Date A B
50 RAIL; FLOOR PANEL
(A) THA 		8-98199-880-3 01 1 1409- ● ●
50 RAIL; FLOOR PANEL
(B) THA 		8-98199-881-1 01 1 1409- ● ●
50 RAIL; FLOOR PANEL
(C) THA 		8-98199-882-1 02 1 1409- ● ●
73 BRACKET; SUPPORT,FLOOR PANEL
THA 		8-98200-372-0 01 1 1409- ● ●
169 EXTENSION
THA 		8-98199-809-0 01 1 1409- ● ●
169 EXTENSION
THA 		8-98199-810-0 01 1 1409- ● ●
206 PANEL; FLOOR BOARD RR
THA 		8-98199-512-5 01 1 1409- ● ●
344 BRACKET; FRT PNL SIDE,LWR
(A) THA 		8-98199-514-1 01 1 1409- ● ●
344 BRACKET; FRT PNL SIDE,LWR
(B) THA 		8-98199-515-1 01 1 1409- ● ●
455 BAR; RR FLOOR
THA 		8-98199-473-1 01 1 1409- ● ●
521 BRACKET; RR STORAGE
THA 		8-98207-966-0 01 1 1409- ● ●
573 SILL; FLOOR,RR
(A) THA 		8-98220-501-1 01 1 1409- ● ●
573 SILL; FLOOR,RR
(B) THA 		8-98199-823-1 01 1 1409- ● ●
573 SILL; FLOOR,RR
(C) THA 		8-98199-825-0 01 1 1409- ● ●
573 SILL; FLOOR,RR
(D) THA 		8-98199-826-1 01 1 1409- ● ●
573 SILL; FLOOR,RR
(E) THA 		8-98199-827-2 01 1 1409- ● ●
573 SILL; FLOOR,RR
(F) THA 		8-98207-470-3 01 1 1409- ● ●
574 TAPE; ADHESIVE
THA 		8-98229-444-0 04 1 1409- ● ●
578 LOOP
THA 		8-98199-860-0 02 1 1409- ● ●
