◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51577 - UCR/UCS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-55 - REAR DOOR TRIM ▶
6-55 — REAR DOOR TRIM (#147309) — 78 parça

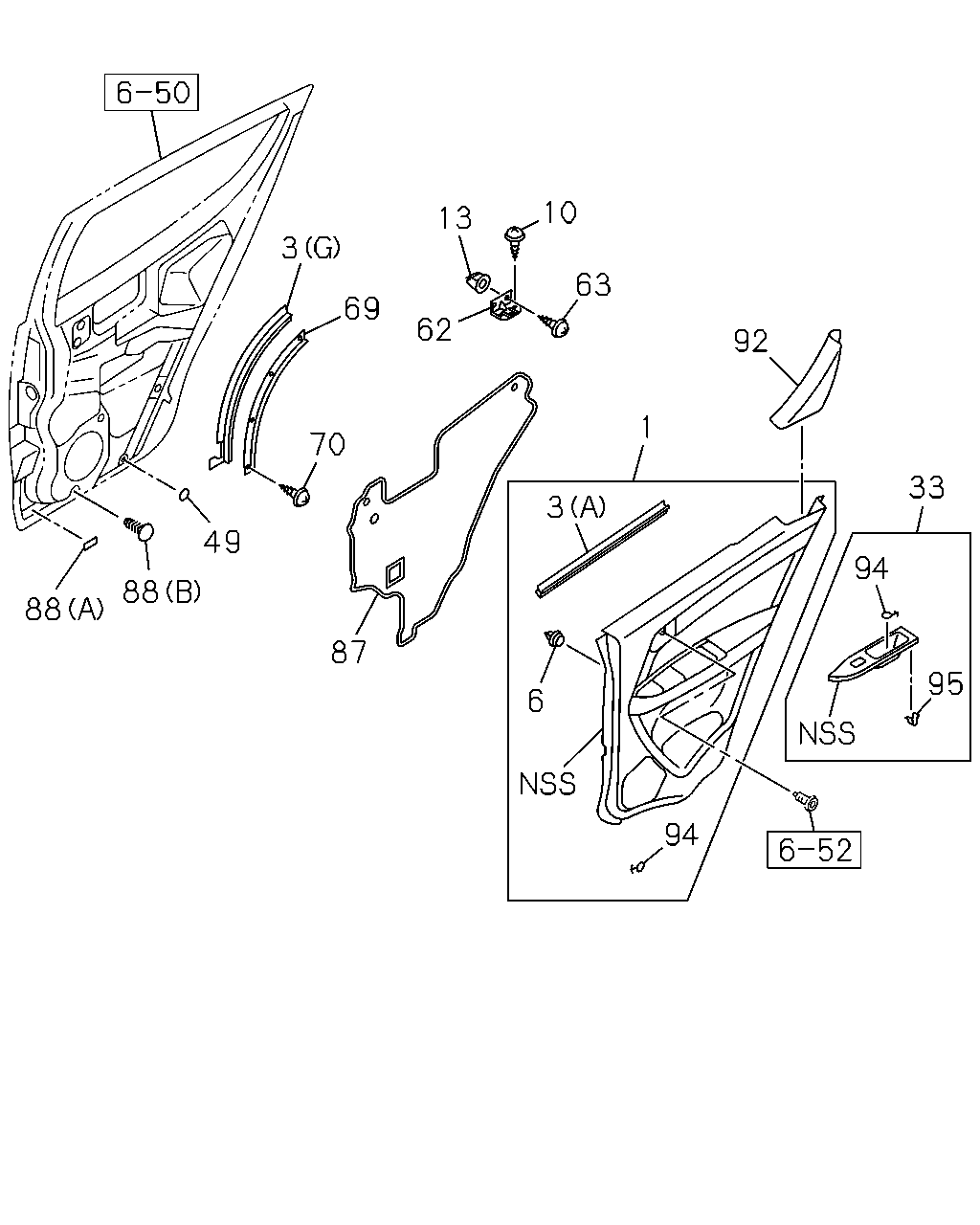

çizim 439471
3 69 62 13 10 63 92 33 94 95 1 3 6 94 87 70 49 88 88
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,RR DOOR
INTERIOR BASIC<RBA> SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA 		8-97424-407-2 01 1 1409- ●
1 PAD; TRIM,RR DOOR
INTERIOR BASIC<RBA> SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA 		8-97424-408-2 01 1 1409- ●
1 PAD; TRIM,RR DOOR
INTERIOR CUSTOM<RBD> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97424-409-2 01 1 1409- ●
1 PAD; TRIM,RR DOOR
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97424-409-2 01 1 1409- ●
1 PAD; TRIM,RR DOOR
INTERIOR CUSTOM<RBD> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97424-410-2 01 1 1409- ●
1 PAD; TRIM,RR DOOR
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97424-410-2 01 1 1409- ●
1 PAD; TRIM,RR DOOR
INTERIOR CUSTOM<RBD> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97424-403-2 01 1 1409- ●
1 PAD; TRIM,RR DOOR
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97424-403-2 01 1 1409- ●
1 PAD; TRIM,RR DOOR
INTERIOR CUSTOM<RBD> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97424-404-2 01 1 1409- ●
1 PAD; TRIM,RR DOOR
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97424-404-2 01 1 1409- ●
1 PAD; TRIM,RR DOOR
INTERIOR CUSTOM<RBD> SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY THA 		8-97424-405-2 01 1 1409- ●
1 PAD; TRIM,RR DOOR
SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY THA 		8-97424-405-2 01 1 1409- ●
1 PAD; TRIM,RR DOOR
INTERIOR CUSTOM<RBD> SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY THA 		8-97424-406-2 01 1 1409- ●
1 PAD; TRIM,RR DOOR
SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY THA 		8-97424-406-2 01 1 1409- ●
3 WEATHERSTRIP; RR DOOR
INTERIOR CUSTOM<RBD> (F) THA 		8-98190-209-1 01 1 1409- ●
3 WEATHERSTRIP; RR DOOR
(F) THA 		8-98190-209-1 01 1 1409- ●
3 WEATHERSTRIP; RR DOOR
INTERIOR CUSTOM<RBD> (F) THA 		8-98190-210-1 01 1 1409- ●
3 WEATHERSTRIP; RR DOOR
(F) THA 		8-98190-210-1 01 1 1409- ●
3 WEATHERSTRIP; RR DOOR
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA 		8-98189-419-0 01 1 1409- ● ●
3 WEATHERSTRIP; RR DOOR
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA 		8-98189-420-0 01 1 1409- ● ●
3 WEATHERSTRIP; RR DOOR
(G) THA 		8-98188-231-4 01 1 1409- ● ●
3 WEATHERSTRIP; RR DOOR
(G) THA 		8-98188-232-4 01 1 1409- ● ●
3 WEATHERSTRIP; RR DOOR
(E) THA 		8-98188-274-2 01 1 1409- ● ●
3 WEATHERSTRIP; RR DOOR
(E) THA 		8-98188-275-2 01 1 1409- ● ●
3 WEATHERSTRIP; RR DOOR
(B) THA 		8-98189-416-0 02 1 1409- ● ●
3 WEATHERSTRIP; RR DOOR
(C) THA 		8-98190-162-1 01 1 1409- ● ●
3 WEATHERSTRIP; RR DOOR
(C) THA 		8-98190-163-1 01 1 1409- ● ●
3 WEATHERSTRIP; RR DOOR
(D) THA 		8-98190-342-1 01 1 1409- ● ●
3 WEATHERSTRIP; RR DOOR
(D) THA 		8-98190-343-1 01 1 1409- ● ●
6 CLIP; DOOR PAD
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> THA 		8-98160-729-0 18 1 1409- ● ●
10 SCREW; ARM REST
M5X14 TAPPING THA 		8-98184-363-0 02 1 1409- ● ●
13 GROMMET; SCREW,ARM REST
THA 		8-94152-494-0 04 1 1409- ● ●
33 BOX; RR DOOR
BLACK THA 		8-97424-414-2 01 1 1409- ● ●
33 BOX; RR DOOR
BLACK THA 		8-97424-415-2 01 1 1409- ● ●
49 SEAL; DOOR
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> OD=25 BLACK THA 		1-76798-019-0 02 1 1409- ● ●
62 BRACKET
THA 		8-98117-091-1 02 1 1409- ● ●
63 BOLT
M5X14 TAPPING THA 		8-98184-363-0 04 1 1409- ● ●
69 COVER; WHEEL ARCH
THA 		8-98198-271-0 01 1 1409- ● ●
69 COVER; WHEEL ARCH
THA 		8-98198-272-0 01 1 1409- ● ●
70 SCREW; COVER
THA 		8-98248-243-0 08 1 1409- ● ●
87 DEFLECTOR; RR DOOR
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98189-945-0 01 1 1409- ● ●
87 DEFLECTOR; RR DOOR
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98189-946-0 01 1 1409- ● ●
88 PLUG; DOOR
INTERIOR BASIC<RBA> (B) IMA 		8-94279-922-0 12 1 1409- ●
88 PLUG; DOOR
(A) THA 		8-98197-448-0 02 1 1409- ● ●
92 PANEL; RR DOOR
GRAY THA 		8-97424-412-4 01 1 1409- ● ●
92 PANEL; RR DOOR
GRAY THA 		8-97424-413-4 01 1 1409- ● ●
94 COVER; HOLDER,BOLT
BLACK THA 		8-97416-610-0 02 1 1409-1509 ● ●
94 COVER; HOLDER,BOLT
INTERIOR CUSTOM<RBD> BLACK THA 		8-97416-610-0 02 1 1409-1509 ● ●
94 COVER; HOLDER,BOLT
BLACK THA 		8-97416-610-0 02 1 1510- ● ●
94 COVER; HOLDER,BOLT
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA 		8-97416-610-0 02 1 1510- ● ●
95 CLIP; DOOR TRIM
THA 		8-98164-677-0 02 1 1409- ● ●

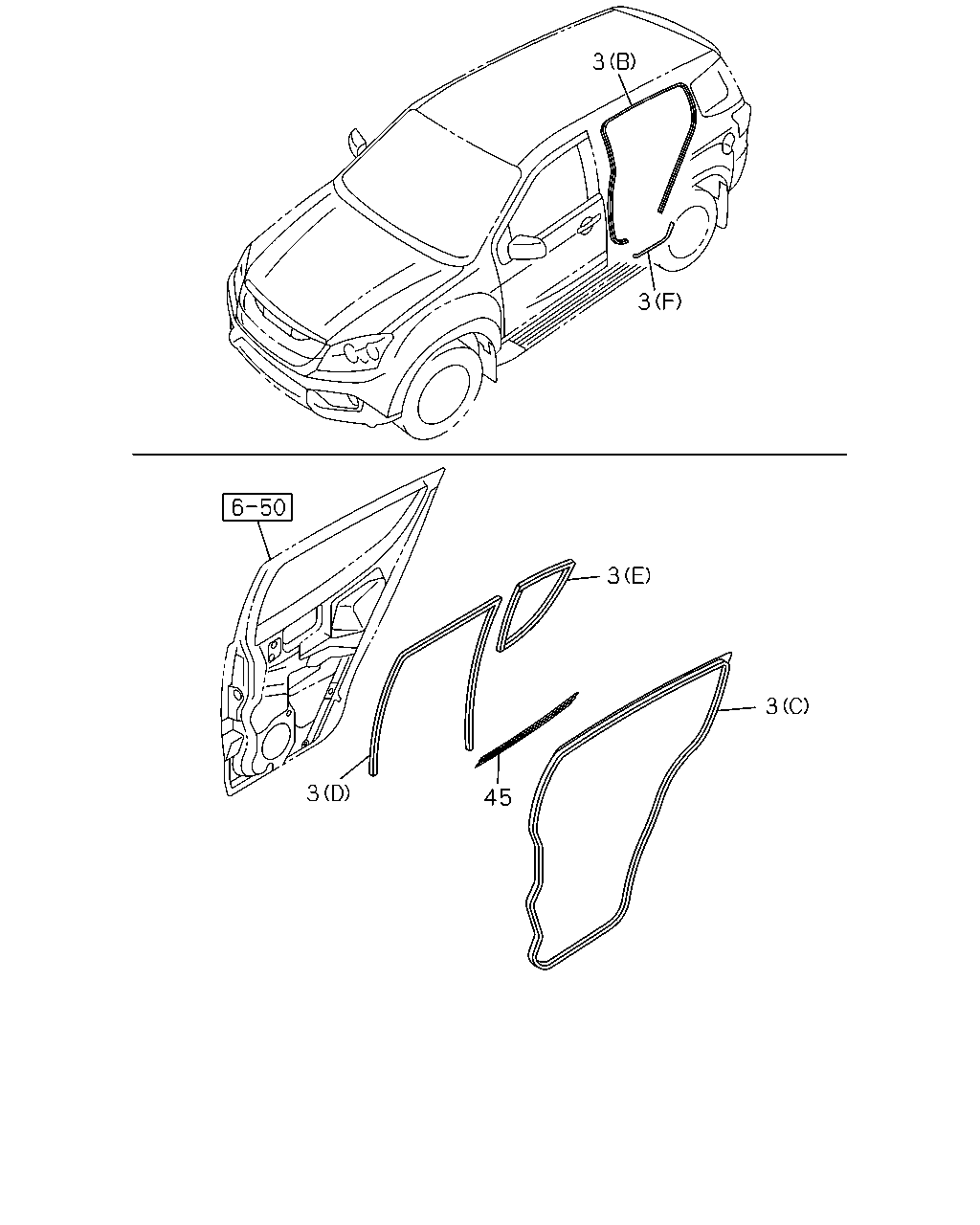

çizim 439480
3 3 3 3 45 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 WEATHERSTRIP; RR DOOR
INTERIOR CUSTOM<RBD> (F) THA 		8-98190-209-1 01 1 1409- ●
3 WEATHERSTRIP; RR DOOR
(F) THA 		8-98190-209-1 01 1 1409- ●
3 WEATHERSTRIP; RR DOOR
INTERIOR CUSTOM<RBD> (F) THA 		8-98190-210-1 01 1 1409- ●
3 WEATHERSTRIP; RR DOOR
(F) THA 		8-98190-210-1 01 1 1409- ●
3 WEATHERSTRIP; RR DOOR
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA 		8-98189-419-0 01 1 1409- ● ●
3 WEATHERSTRIP; RR DOOR
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) THA 		8-98189-420-0 01 1 1409- ● ●
3 WEATHERSTRIP; RR DOOR
(G) THA 		8-98188-231-4 01 1 1409- ● ●
3 WEATHERSTRIP; RR DOOR
(G) THA 		8-98188-232-4 01 1 1409- ● ●
3 WEATHERSTRIP; RR DOOR
(E) THA 		8-98188-274-2 01 1 1409- ● ●
3 WEATHERSTRIP; RR DOOR
(E) THA 		8-98188-275-2 01 1 1409- ● ●
3 WEATHERSTRIP; RR DOOR
(B) THA 		8-98189-416-0 02 1 1409- ● ●
3 WEATHERSTRIP; RR DOOR
(C) THA 		8-98190-162-1 01 1 1409- ● ●
3 WEATHERSTRIP; RR DOOR
(C) THA 		8-98190-163-1 01 1 1409- ● ●
3 WEATHERSTRIP; RR DOOR
(D) THA 		8-98190-342-1 01 1 1409- ● ●
3 WEATHERSTRIP; RR DOOR
(D) THA 		8-98190-343-1 01 1 1409- ● ●
45 FINISHER; RR DOOR
THA 		8-98188-342-2 01 1 1409-1508 ● ●
45 FINISHER; RR DOOR
THA 		8-98322-878-0 01 1 1509- ● ●
45 FINISHER; RR DOOR
THA 		8-98188-343-2 01 1 1409-1508 ● ●
45 FINISHER; RR DOOR
THA 		8-98322-879-0 01 1 1509- ● ●
çizim 439481
91 91 96
BalonParca AdiParca NoAdetTipApplied Date A B
91 TAPE
EXC. SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (A) THA 		8-98165-205-1 01 1 1409- ● ●
91 TAPE
EXC. SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (A) THA 		8-98165-206-1 01 1 1409- ● ●
91 TAPE
EXC. SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (B) THA 		8-98230-112-0 01 1 1409- ● ●
91 TAPE
EXC. SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (B) THA 		8-98230-113-0 01 1 1409- ● ●
96 DECAL; DOOR FRAME
INTERIOR CUSTOM<RBD> THA 		8-98190-440-3 01 1 1409- ●
96 DECAL; DOOR FRAME
THA 		8-98190-440-3 01 1 1409- ●
96 DECAL; DOOR FRAME
INTERIOR CUSTOM<RBD> THA 		8-98190-441-3 01 1 1409- ●
96 DECAL; DOOR FRAME
THA 		8-98190-441-3 01 1 1409- ●
