◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51577 - UCR/UCS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-52 - REAR DOOR LOCK AND HANDLE ▶
6-52 — REAR DOOR LOCK AND HANDLE (#147308) — 60 parça

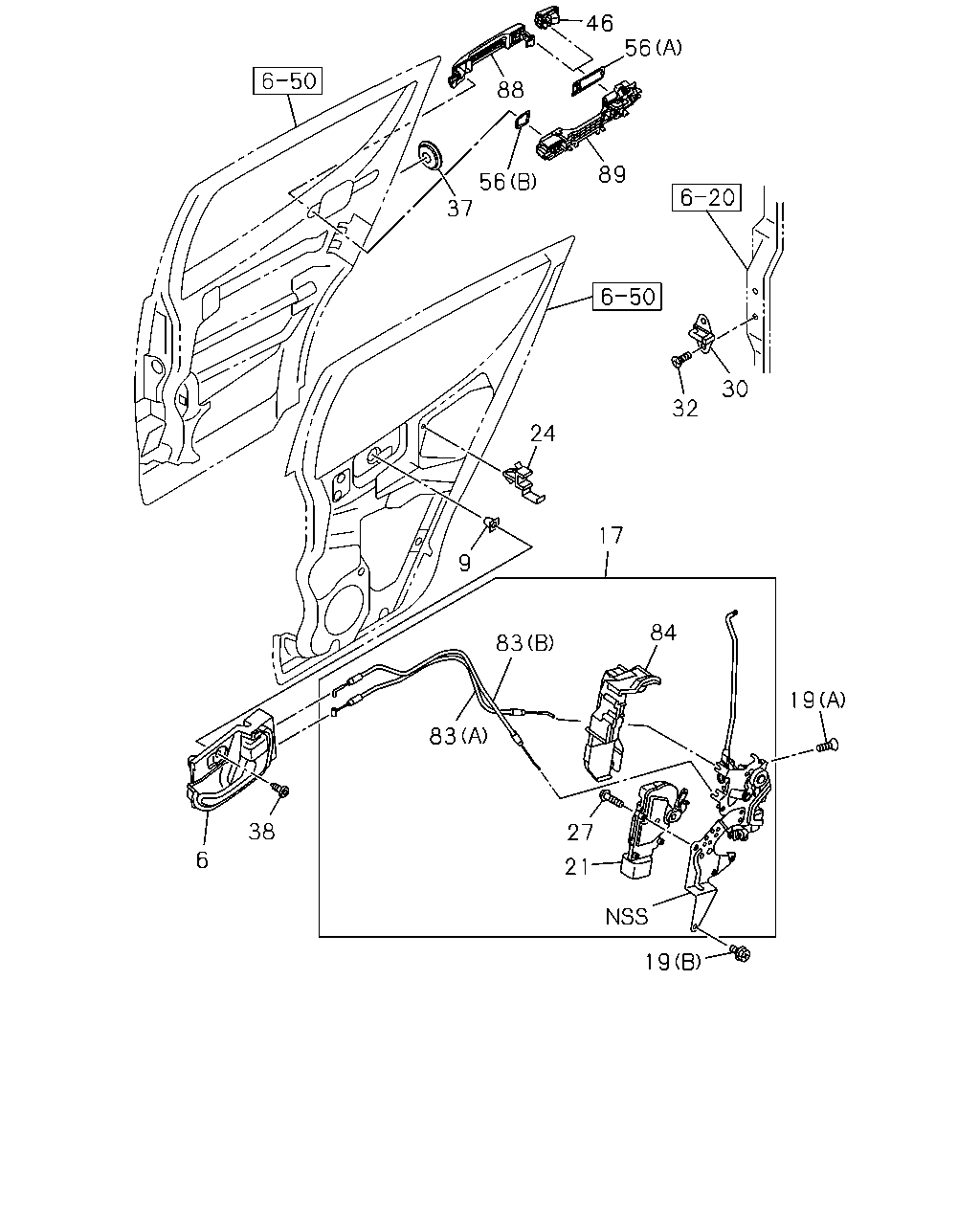

çizim 439460
88 46 89 56 56 37 24 32 30 17 9 83 83 38 6 19 84 27 21 19
BalonParca AdiParca NoAdetTipApplied Date A B
6 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR BASIC<RBA> BLACK THA 		8-97416-726-4 01 1 1409- ●
6 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR BASIC<RBA> BLACK THA 		8-97416-728-4 01 1 1409- ●
6 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR CUSTOM<RBD> BLACK THA 		8-97416-730-3 01 1 1409- ●
6 BEZEL; INSIDE HANDLE,DOOR LOCK
BLACK THA 		8-97416-730-3 01 1 1409- ●
6 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR CUSTOM<RBD> BLACK THA 		8-97416-732-3 01 1 1409- ●
6 BEZEL; INSIDE HANDLE,DOOR LOCK
BLACK THA 		8-97416-732-3 01 1 1409- ●
9 GROMMET; SCREW,INSIDE HANDLE
THA 		8-94152-494-0 02 1 1409- ● ●
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98190-064-0 01 1 1409-1502 ● ●
17 LOCK; DOOR,RR DOOR
PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98190-064-1 01 1 1503- ● ●
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98190-064-1 01 1 1503- ● ●
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98190-065-0 01 1 1409-1502 ● ●
17 LOCK; DOOR,RR DOOR
PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98190-065-1 01 1 1503- ● ●
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98190-065-1 01 1 1503- ● ●
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98190-062-0 01 1 1409-1502 ● ●
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98190-062-1 01 1 1503- ● ●
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98190-063-0 01 1 1409-1502 ● ●
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98190-063-1 01 1 1503- ● ●
19 BOLT; RR DOOR LOCK
AUTO DOOR LOCK<AU4> (A) M6X14.5 THA 		8-98004-342-0 06 1 1409- ● ●
19 BOLT; RR DOOR LOCK
AUTO DOOR LOCK<AU4> (B) M6X8 FLANGE THA 		8-98048-996-0 02 1 1409- ● ●
21 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-97351-083-0 01 1 1409-1502 ● ●
21 ACTUATOR; RR DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98292-020-0 01 1 1503- ● ●
21 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98292-020-0 01 1 1503- ● ●
21 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-97351-084-0 01 1 1409-1502 ● ●
21 ACTUATOR; RR DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98292-019-0 01 1 1503- ● ●
21 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98292-019-0 01 1 1503- ● ●
21 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-97351-081-0 01 1 1409-1502 ● ●
21 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98292-018-0 01 1 1503- ● ●
21 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-97351-082-0 01 1 1409-1502 ● ●
21 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98292-017-0 01 1 1503- ● ●
24 ANTIRATTLER; DOOR INSIDE HANDLE
THA 		8-97251-932-0 02 1 1409- ● ●
27 SCREW; RR DOOR LOCK
AUTO DOOR LOCK<AU4> THA 		8-97349-997-0 04 1 1409- ● ●
30 STRIKER; RR DOOR
THA 		8-98012-203-0 02 1 1409- ● ●
32 SCREW; DOOR STRIKER
M8X35 THA 		8-98049-360-0 04 1 1409- ● ●
37 GROMMET; RR DOOR
OD=26 THA 		8-94141-484-0 02 1 1409- ● ●
38 SCREW; INSIDE LEVER,RR DOOR LK
M5X14 TAPPING THA 		8-98184-363-0 02 1 1409- ● ●
46 COVER; OUTSIDE HANDLE
HANDLE O/S DOOR CHROME<E20> PLATED THA 		8-98176-465-1 02 1 1409- ● ●
46 COVER; OUTSIDE HANDLE
BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> BLACK THA 		8-97422-454-1 02 1 1409- ● ●
46 COVER; OUTSIDE HANDLE
BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA 		8-97422-456-1 02 1 1409- ● ●
46 COVER; OUTSIDE HANDLE
BODY COLOR SILKY WHITE PEARL<531> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97422-464-1 02 1 1409- ● ●
46 COVER; OUTSIDE HANDLE
BODY COLOR ULURU BROWN MET<544> HANDLE O/S DOOR BODY COLOR<D75> BROWN THA 		8-97424-510-1 02 1 1409- ● ●
46 COVER; OUTSIDE HANDLE
BODY COLOR FJORD BLUE MET<545> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BLUE THA 		8-97424-512-1 02 1 1409- ● ●
46 COVER; OUTSIDE HANDLE
EXC. HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20> BLACK THA 		8-98176-463-1 02 1 1409- ● ●
56 GASKET; HANDLE,RR DOOR
(A) THA 		8-98176-466-0 02 1 1409- ● ●
56 GASKET; HANDLE,RR DOOR
(B) THA 		8-98176-467-2 02 1 1409- ● ●
83 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (B) THA 		8-98248-211-0 01 1 1409- ● ●
83 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (A) THA 		8-98248-212-0 02 1 1409- ● ●
83 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (B) THA 		8-98248-213-0 01 1 1409- ● ●
84 COVER; DOOR LOCK
AUTO DOOR LOCK<AU4> THA 		8-97351-079-0 01 1 1409- ● ●
84 COVER; DOOR LOCK
AUTO DOOR LOCK<AU4> THA 		8-97351-080-0 01 1 1409- ● ●
88 GRIP; RR DOOR
HANDLE O/S DOOR CHROME<E20> PLATED THA 		8-98176-458-0 02 1 1409- ● ●
88 GRIP; RR DOOR
BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> BLACK THA 		8-97422-427-0 02 1 1409- ● ●
88 GRIP; RR DOOR
BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA 		8-97422-429-0 02 1 1409- ● ●
88 GRIP; RR DOOR
BODY COLOR SILKY WHITE PEARL<531> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97422-437-0 02 1 1409- ● ●
88 GRIP; RR DOOR
BODY COLOR ULURU BROWN MET<544> HANDLE O/S DOOR BODY COLOR<D75> BROWN THA 		8-97424-504-0 02 1 1409- ● ●
88 GRIP; RR DOOR
BODY COLOR FJORD BLUE MET<545> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BLUE THA 		8-97424-507-0 02 1 1409- ● ●
88 GRIP; RR DOOR
EXC. HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20> THA 		8-98176-456-0 02 1 1409- ● ●
89 BRACKET; GRIP,DOOR
THA 		8-98229-455-0 01 1 1409-1510 ● ●
89 BRACKET; GRIP,DOOR
THA 		8-98331-502-0 01 1 1511- ● ●
89 BRACKET; GRIP,DOOR
THA 		8-98229-456-0 01 1 1409-1510 ● ●
89 BRACKET; GRIP,DOOR
THA 		8-98331-503-0 01 1 1511- ● ●
