6-43 — SIDE TRIM (#147303) — 67 parça

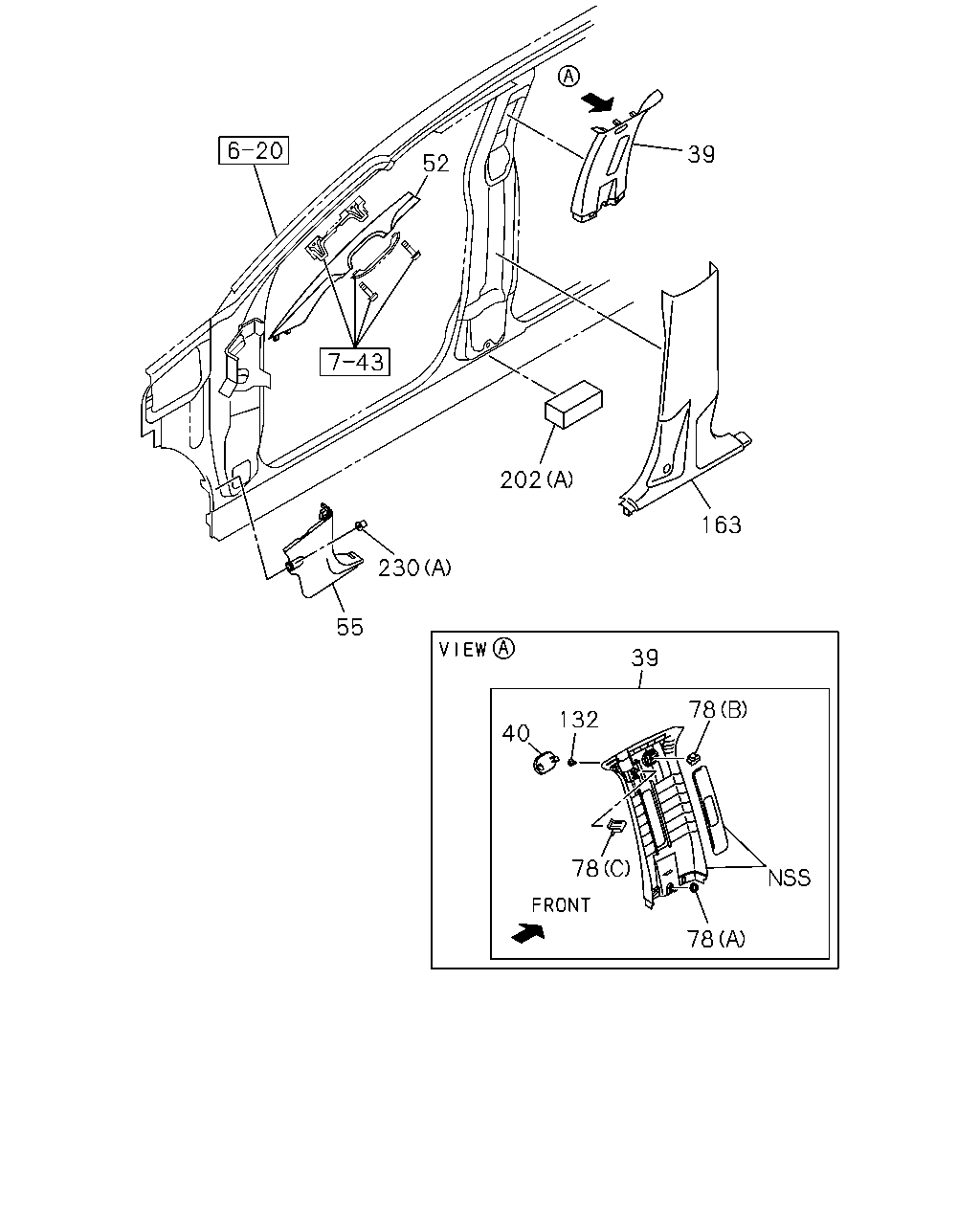

çizim 439577
52 230 55 202 39 163 78 39 132 40 78 78
BalonParca AdiParca NoAdetTipApplied Date A B
39 COVER; TRIM,CENTER PILLAR
AIR BAG DRIVER & PASSENGER<AK5> GRAY THA 		8-97424-382-1 01 1 1409- ● ●
39 COVER; TRIM,CENTER PILLAR
AIR BAG DRIVER & PASSENGER<AK5> GRAY THA 		8-97424-383-1 01 1 1409- ● ●
39 COVER; TRIM,CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> GRAY THA 		8-97424-932-1 01 1 1409- ● ●
39 COVER; TRIM,CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> GRAY THA 		8-97424-933-1 01 1 1409- ● ●
40 COVER; TRIM,CENTER PILLAR,CTR
AIR BAG DRIVER & PASSENGER<AK5> W/O MARK GRAY THA 		8-97427-705-0 02 1 1409- ● ●
40 COVER; TRIM,CENTER PILLAR,CTR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> W/MARK GRAY THA 		8-97427-707-0 02 1 1409- ● ●
52 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97424-370-1 01 1 1409- ● ●
52 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97424-371-1 01 1 1409- ● ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97416-673-3 01 1 1409- ● ●
55 PAD; TRIM,DASH SIDE
BLACK THA 		8-97424-004-0 01 1 1409- ● ●
78 CLIP; TRIM PAD,SIDE PANEL
(A) THA 		8-97351-983-0 02 1 1409- ● ●
78 CLIP; TRIM PAD,SIDE PANEL
(B) THA 		8-98215-475-0 02 1 1409- ● ●
78 CLIP; TRIM PAD,SIDE PANEL
(C) THA 		8-98215-476-0 02 1 1409- ● ●
132 SCREW; COVER
THA 		8-98216-145-0 02 1 1409- ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
BLACK THA 		8-97416-961-4 01 1 1409- ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
BLACK THA 		8-97416-963-4 01 1 1409- ● ●
202 SEAL; CENTER PILLAR
(A) THA 		8-97350-306-0 02 1 1409- ● ●
202 SEAL; CENTER PILLAR
(C) THA 		8-98179-381-3 02 1 1409- ● ●
202 SEAL; CENTER PILLAR
(B) THA 		8-98269-733-0 02 1 1409- ● ●
230 RETAINER; TRIM
REAR COOLER WO/HEATER<C69> (B) GRAY THA 		8-97416-696-0 04 1 1409- ●
230 RETAINER; TRIM
(B) GRAY THA 		8-97416-696-0 04 1 1409- ●
230 RETAINER; TRIM
(A) BLACK THA 		8-97416-808-0 02 1 1409- ● ●

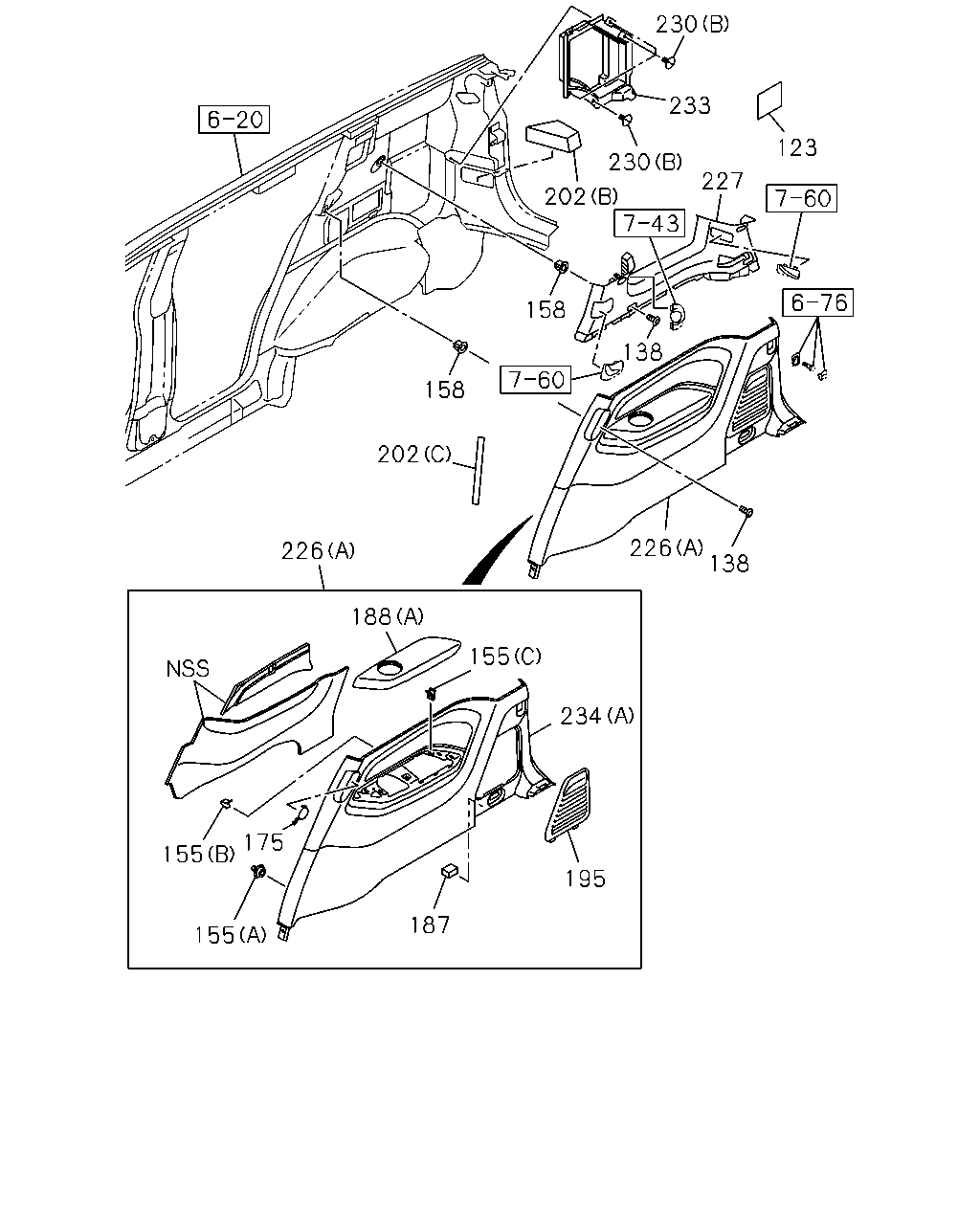

çizim 439586
195 234 155 188 155 138 226 202 226 158 158 138 202 230 233 230 123 227 187 155 75
BalonParca AdiParca NoAdetTipApplied Date A B
123 SEAL; RR QUARTER
THA 		8-98317-384-0 01 1 1506- ● ●
138 SCREW; TRIM COVER
M5X14 TAPPING THA 		8-98184-363-0 04 1 1409- ● ●
155 CLIP; TRIM,QUARTER
(A) THA 		8-97351-983-0 11 1 1409- ● ●
155 CLIP; TRIM,QUARTER
(B) THA 		8-98164-677-0 10 1 1409- ● ●
155 CLIP; TRIM,QUARTER
(C) THA 		8-98217-477-0 09 1 1409- ● ●
158 GROMMET; SCREW,TRIM
THA 		8-94152-494-0 04 1 1409- ● ●
187 SPACER
THA 		8-98249-760-0 01 1 1409- ● ●
188 BAR; GUARD
(B) BLACK THA 		8-97427-709-0 01 1 1409- ● ●
188 BAR; GUARD
(A) BLACK THA 		8-97427-711-0 01 1 1409- ● ●
195 LID; JACK & TOOL
BLACK THA 		8-97427-712-0 01 1 1409- ● ●
202 SEAL; CENTER PILLAR
(A) THA 		8-97350-306-0 02 1 1409- ● ●
202 SEAL; CENTER PILLAR
(C) THA 		8-98179-381-3 02 1 1409- ● ●
202 SEAL; CENTER PILLAR
(B) THA 		8-98269-733-0 02 1 1409- ● ●
226 TRIM ASM; QTR LWR
(B) BLACK THA 		8-97424-386-2 01 1 1409- ● ●
226 TRIM ASM; QTR LWR
(A) BLACK THA 		8-97424-387-2 01 1 1409- ● ●
227 TRIM ASM; QTR UPR
AIR BAG DRIVER & PASSENGER<AK5> GRAY THA 		8-97424-389-2 01 1 1409- ● ●
227 TRIM ASM; QTR UPR
AIR BAG DRIVER & PASSENGER<AK5> GRAY THA 		8-97424-390-2 01 1 1409- ● ●
227 TRIM ASM; QTR UPR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> GRAY THA 		8-97424-391-2 01 1 1409- ● ●
227 TRIM ASM; QTR UPR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> GRAY THA 		8-97424-392-2 01 1 1409- ● ●
230 RETAINER; TRIM
REAR COOLER WO/HEATER<C69> (B) GRAY THA 		8-97416-696-0 04 1 1409- ●
230 RETAINER; TRIM
(B) GRAY THA 		8-97416-696-0 04 1 1409- ●
230 RETAINER; TRIM
(A) BLACK THA 		8-97416-808-0 02 1 1409- ● ●
233 COVER; COOLER
REAR COOLER WO/HEATER<C69> THA 		8-98231-991-2 01 1 1409- ●
233 COVER; COOLER
THA 		8-98231-991-2 01 1 1409- ●
234 TRIM; QTR
(B) BLACK THA 		8-97427-708-0 01 1 1409- ● ●
234 TRIM; QTR
(A) BLACK THA 		8-97427-710-0 01 1 1409- ● ●

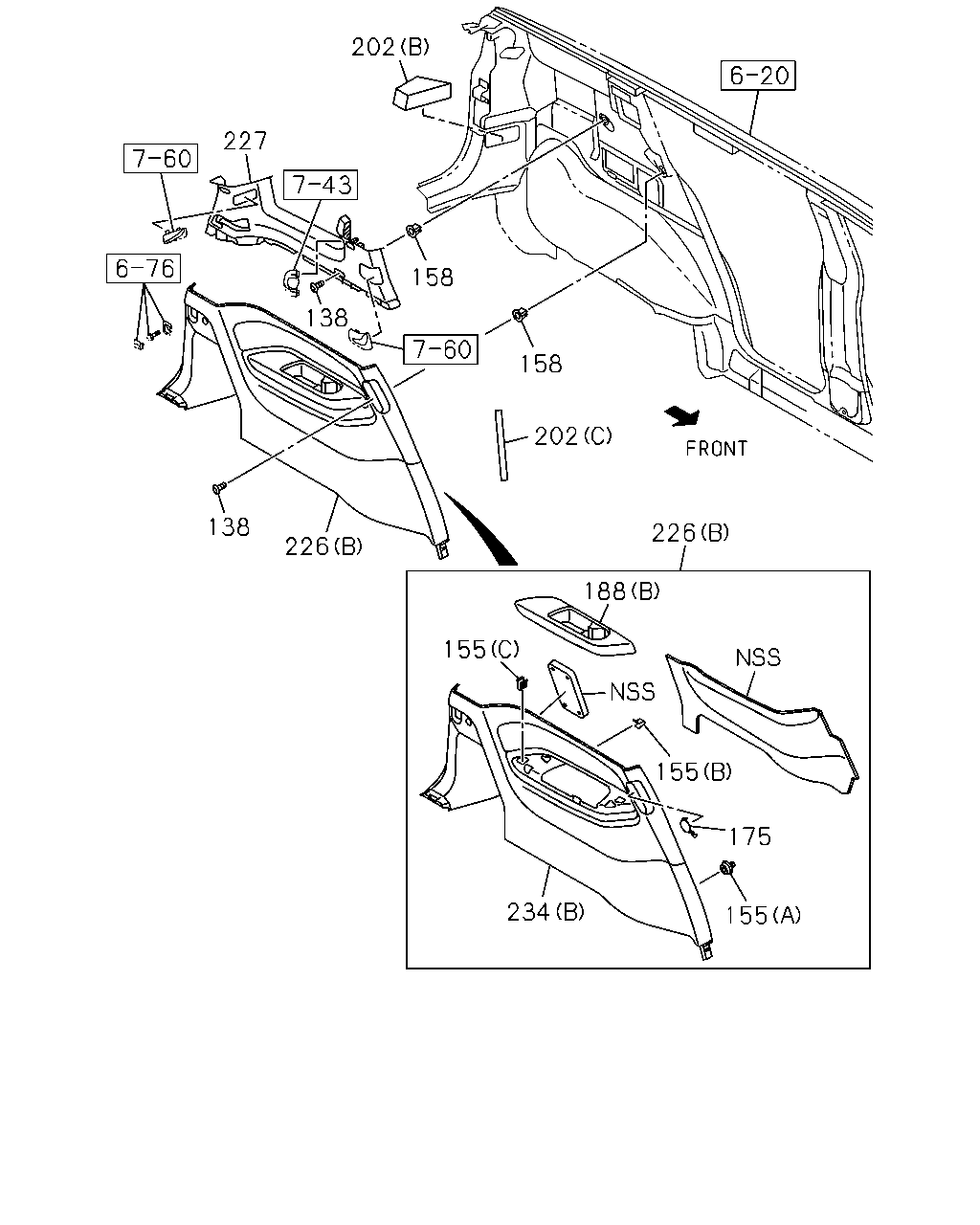

çizim 439592
202 227 138 158 158 202 226 138 188 155 226 155 175 234 155
BalonParca AdiParca NoAdetTipApplied Date A B
138 SCREW; TRIM COVER
M5X14 TAPPING THA 		8-98184-363-0 04 1 1409- ● ●
155 CLIP; TRIM,QUARTER
(A) THA 		8-97351-983-0 11 1 1409- ● ●
155 CLIP; TRIM,QUARTER
(B) THA 		8-98164-677-0 10 1 1409- ● ●
155 CLIP; TRIM,QUARTER
(C) THA 		8-98217-477-0 09 1 1409- ● ●
158 GROMMET; SCREW,TRIM
THA 		8-94152-494-0 04 1 1409- ● ●
175 COVER; TRIM,SIDE
BLACK THA 		8-97416-610-0 02 1 1409- ● ●
188 BAR; GUARD
(B) BLACK THA 		8-97427-709-0 01 1 1409- ● ●
188 BAR; GUARD
(A) BLACK THA 		8-97427-711-0 01 1 1409- ● ●
202 SEAL; CENTER PILLAR
(A) THA 		8-97350-306-0 02 1 1409- ● ●
202 SEAL; CENTER PILLAR
(C) THA 		8-98179-381-3 02 1 1409- ● ●
202 SEAL; CENTER PILLAR
(B) THA 		8-98269-733-0 02 1 1409- ● ●
226 TRIM ASM; QTR LWR
(B) BLACK THA 		8-97424-386-2 01 1 1409- ● ●
226 TRIM ASM; QTR LWR
(A) BLACK THA 		8-97424-387-2 01 1 1409- ● ●
227 TRIM ASM; QTR UPR
AIR BAG DRIVER & PASSENGER<AK5> GRAY THA 		8-97424-389-2 01 1 1409- ● ●
227 TRIM ASM; QTR UPR
AIR BAG DRIVER & PASSENGER<AK5> GRAY THA 		8-97424-390-2 01 1 1409- ● ●
227 TRIM ASM; QTR UPR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> GRAY THA 		8-97424-391-2 01 1 1409- ● ●
227 TRIM ASM; QTR UPR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> GRAY THA 		8-97424-392-2 01 1 1409- ● ●
234 TRIM; QTR
(B) BLACK THA 		8-97427-708-0 01 1 1409- ● ●
234 TRIM; QTR
(A) BLACK THA 		8-97427-710-0 01 1 1409- ● ●
