◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51577 - UCR/UCS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#147299) — 37 parça

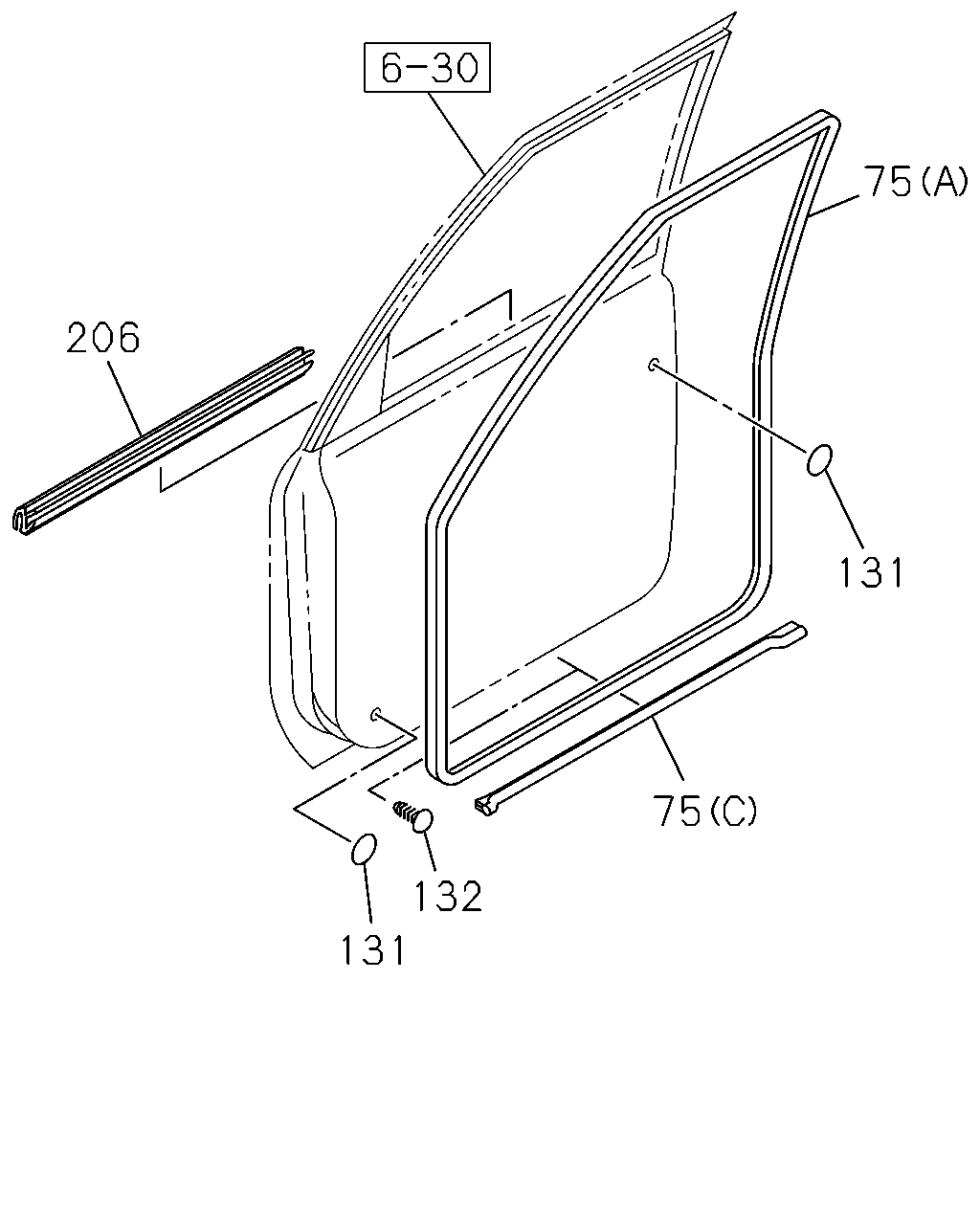

çizim 439258
206 75 131 75 132 131
BalonParca AdiParca NoAdetTipApplied Date A B
75 WEATHERSTRIP; FRT DOOR
INTERIOR CUSTOM<RBD> (C) THA 		8-98165-107-0 01 1 1409- ●
75 WEATHERSTRIP; FRT DOOR
(C) THA 		8-98165-107-0 01 1 1409- ●
75 WEATHERSTRIP; FRT DOOR
INTERIOR CUSTOM<RBD> (C) THA 		8-98165-108-0 01 1 1409- ●
75 WEATHERSTRIP; FRT DOOR
(C) THA 		8-98165-108-0 01 1 1409- ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98052-199-9 01 1 1409- ● ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98052-200-9 01 1 1409- ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98282-670-1 01 1 1409- ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98282-671-1 01 1 1409- ● ●
131 SEAL; FRT DOOR
OD=25 BLACK THA 		1-76798-019-0 04 1 1409- ● ●
132 CLIP; SEAL,DOOR
INTERIOR BASIC<RBA> IMA 		8-94279-922-0 14 1 1409- ●
206 WEATHERSTRIP; FRT DOOR GLASS
THA 		8-98052-197-2 01 1 1409- ● ●
206 WEATHERSTRIP; FRT DOOR GLASS
THA 		8-98052-198-2 01 1 1409- ● ●
çizim 439286
1 75 11 91 26 25 27 22 21 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
THA 		8-98073-843-2 01 1 1409- ● ●
1 GLASS; FRT DOOR
THA 		8-98073-844-2 01 1 1409- ● ●
11 RAIL; RR GUIDE,FRT DOOR
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98100-794-6 01 1 1409- ● ●
11 RAIL; RR GUIDE,FRT DOOR
THA 		8-98100-793-5 01 1 1409- ● ●
11 RAIL; RR GUIDE,FRT DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98100-792-5 01 1 1409- ● ●
19 REGULATOR; WINDOW,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> THA 		8-98093-555-1 01 1 1409- ● ●
19 REGULATOR; WINDOW,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98093-554-1 01 1 1409- ● ●
19 REGULATOR; WINDOW,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98093-553-1 01 1 1409- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> THA 		8-98160-725-0 01 1 1409- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98160-724-0 01 1 1409- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98160-723-0 01 1 1409- ● ●
22 SCREW; POWER WINDOW MOTOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98195-236-0 03 1 1409- ● ●
22 SCREW; POWER WINDOW MOTOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98195-236-0 03 1 1409- ● ●
25 BOLT; WINDOW REG
M6X10 FLANGE THA 		8-98188-381-0 06 1 1409- ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE THA 		8-98049-362-0 04 1 1409- ● ●
27 BOLT; GLASS FIX
M6X10 FLANGE THA 		8-98188-381-0 04 1 1409- ● ●
75 WEATHERSTRIP; FRT DOOR
INTERIOR CUSTOM<RBD> (C) THA 		8-98165-107-0 01 1 1409- ●
75 WEATHERSTRIP; FRT DOOR
(C) THA 		8-98165-107-0 01 1 1409- ●
75 WEATHERSTRIP; FRT DOOR
INTERIOR CUSTOM<RBD> (C) THA 		8-98165-108-0 01 1 1409- ●
75 WEATHERSTRIP; FRT DOOR
(C) THA 		8-98165-108-0 01 1 1409- ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98052-199-9 01 1 1409- ● ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98052-200-9 01 1 1409- ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98282-670-1 01 1 1409- ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-98282-671-1 01 1 1409- ● ●
91 BOLT; GUIDE RAIL TO DOOR
M6X8 FLANGE THA 		8-98048-996-0 02 1 1409- ● ●
