Isuzu WW
▶
SUV
▶
UCR
▶
51577 - UCR/UCS(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-05 - FRONT PANEL
▶
6-05 — FRONT PANEL
(#147293) — 34 parça
Tümü
A - UCB5VC
B - UCS5VC
◀

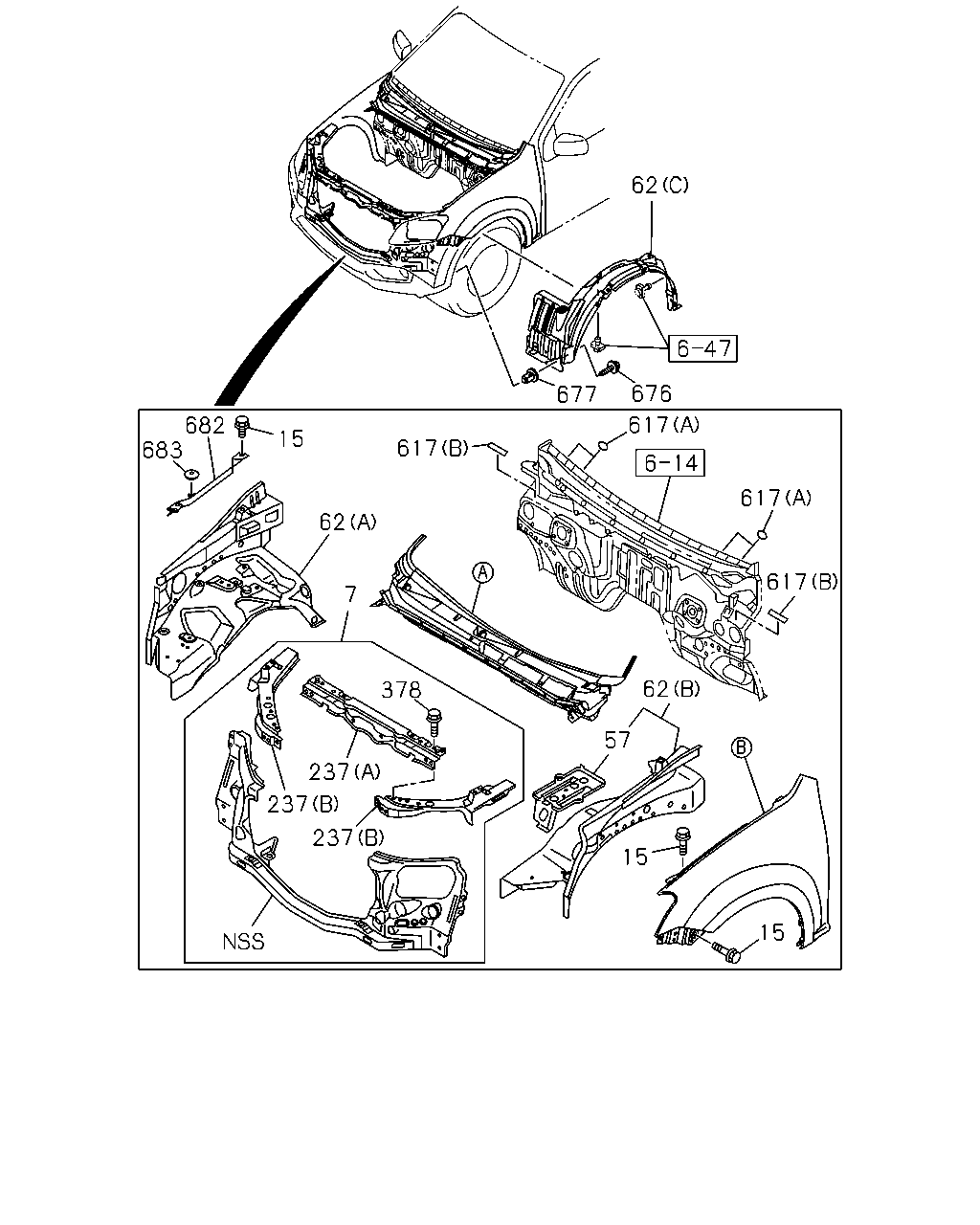

[605A] NO.1 (18 parça)

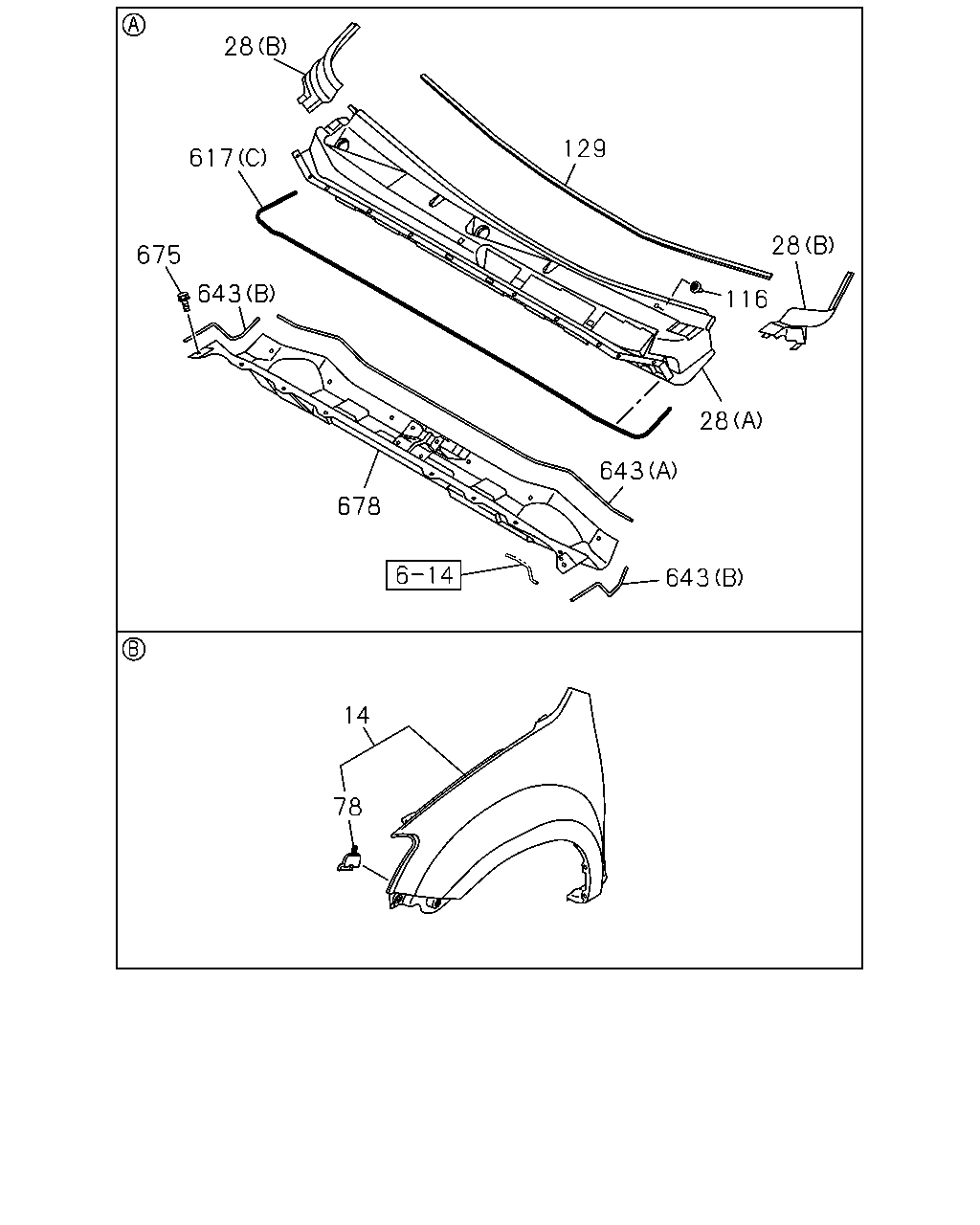

[605A] NO.2 (16 parça)
▶
62
677
676
682
683
15
617
617
617
617
62
57
15
15
378
7
62
237
237
237
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
PANEL; DEFLECTOR
THA
8-98103-202-0
01
1
1409-
●
●
15
BOLT; FENDER
M6X15 W/LK&PL WASHER THA
8-98167-615-0
12
1
1409-
●
●
57
TRAY; BATTERY
THA
8-98104-480-5
01
1
1409-
●
●
62
PANEL; WHEEL HOUSE
(C) THA
8-98077-253-6
01
1
1409-
●
●
62
PANEL; WHEEL HOUSE
(C) THA
8-98077-256-6
01
1
1409-
●
●
62
PANEL; WHEEL HOUSE
(A) THA
8-98222-295-4
01
1
1409-
●
●
62
PANEL; WHEEL HOUSE
(B) THA
8-98226-409-3
01
1
1409-
●
●
237
SUPPORT; DEFLECTOR
(A) THA
8-98104-224-4
01
1
1409-
●
●
237
SUPPORT; DEFLECTOR
(B) THA
8-98104-244-4
01
1
1409-
●
●
237
SUPPORT; DEFLECTOR
(B) THA
8-98104-253-4
01
1
1409-
●
●
378
BOLT; SUPPORT
M6X12 FLANGE THA
0-28060-612-0
08
1
1409-
●
●
617
SEAL; DASH
(A) OD=25 BLACK THA
1-76798-019-0
04
1
1409-
●
●
617
SEAL; DASH
(C) T=5.0 THA
8-98134-005-0
01
1
1409-
●
●
617
SEAL; DASH
(B) 110X10 THA
8-98192-905-0
02
1
1409-
●
●
676
BOLT; WHEEL HOUSE
M6X20 TAPPING W/PL WASHER THA
8-98167-444-0
02
1
1409-
●
●
677
NUT; WHEEL HOUSE
D=9.7X9.7 L=8 THA
8-94222-314-0
02
1
1409-
●
●
682
PROTECTOR; HEAT,ENG
THA
8-98139-849-3
01
1
1409-
●
●
683
RIVET; PROTECTOR,HEAT
THA
8-98057-864-0
02
1
1409-
●
●
28
129
28
116
28
643
643
678
643
675
617
14
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
14
FENDER; FRT
THA
8-98103-207-0
01
1
1409-
●
●
14
FENDER; FRT
THA
8-98103-209-0
01
1
1409-
●
●
28
COVER; DASH COWL
(B) THA
8-98133-981-6
01
1
1409-
●
●
28
COVER; DASH COWL
(B) THA
8-98133-982-5
01
1
1409-
●
●
28
COVER; DASH COWL
(A) THA
8-98133-983-0
01
1
1409-
●
●
78
BRACKET; FENDER
THA
8-98104-033-1
01
1
1409-
●
●
78
BRACKET; FENDER
THA
8-98104-034-1
01
1
1409-
●
●
116
CLIP; COWL COVER
THA
8-98134-004-1
06
1
1409-
●
●
129
FINISHER; COWL COVER
THA
8-98133-991-0
01
1
1409-
●
●
617
SEAL; DASH
(A) OD=25 BLACK THA
1-76798-019-0
04
1
1409-
●
●
617
SEAL; DASH
(C) T=5.0 THA
8-98134-005-0
01
1
1409-
●
●
617
SEAL; DASH
(B) 110X10 THA
8-98192-905-0
02
1
1409-
●
●
643
SEAL; COWL
(A) THA
8-98110-283-1
01
1
1409-
●
●
643
SEAL; COWL
(B) THA
8-98110-284-1
02
1
1409-
●
●
675
BOLT; PANEL
M6X12 W/PL WASHER THA
8-98180-459-2
08
1
1409-
●
●
678
PANEL; COWL
THA
8-98065-803-3
01
1
1409-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
