◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51577 - UCR/UCS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#147292) — 24 parça

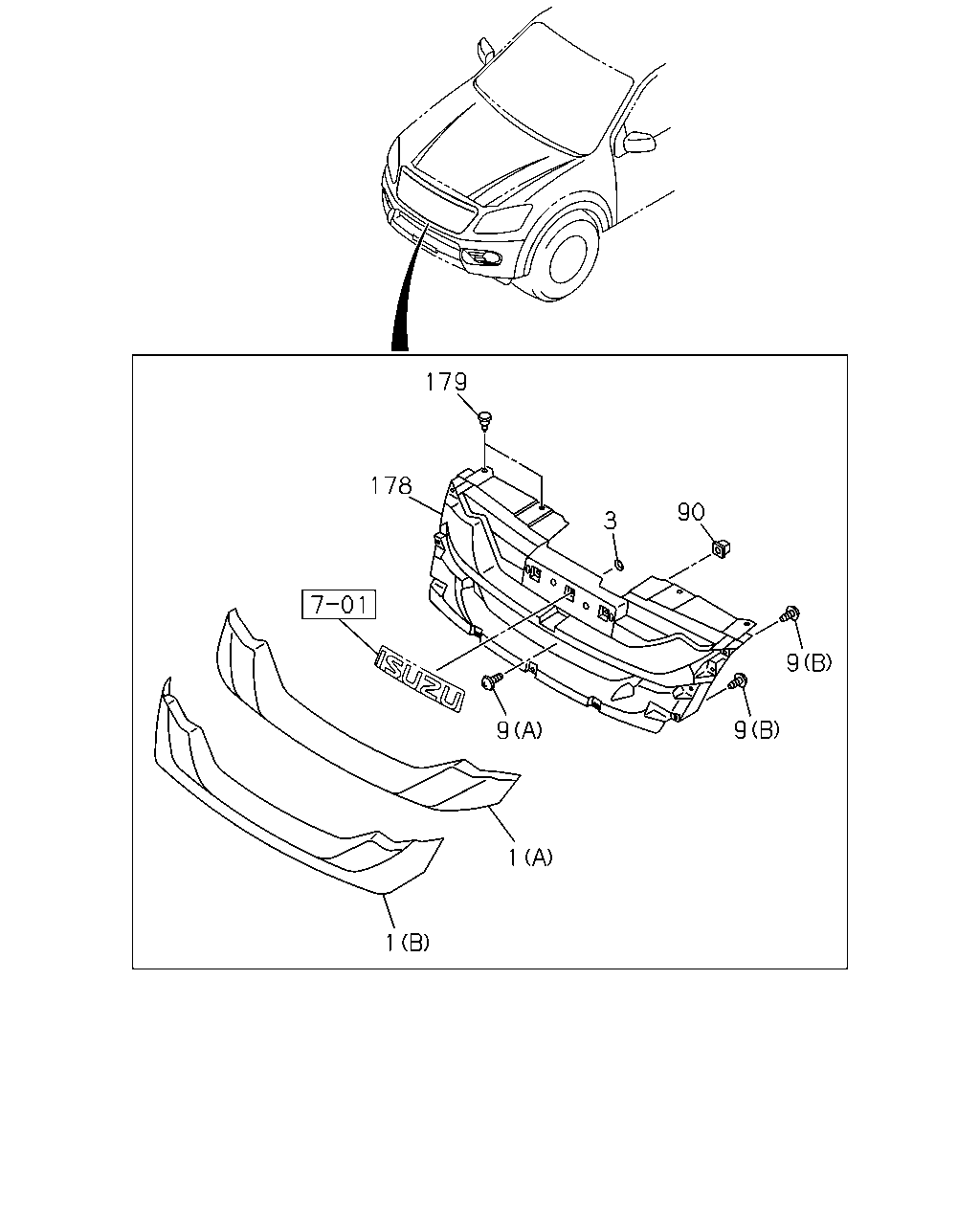

çizim 439111
179 178 3 90 9 9 9 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (A) PLATED THA 		8-98249-946-0 01 1 1409- ● ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) PLATED THA 		8-98249-949-0 01 1 1409- ● ●
1 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22> (A) THA 		8-98249-944-0 01 1 1409- ● ●
1 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22> (B) THA 		8-98249-947-0 01 1 1409- ● ●
1 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> (A) PLEASE PAINT TO MATCH BODY COLOR THA 		8-98250-257-0 01 1 1409- ● ●
1 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> (B) PLEASE PAINT TO MATCH BODY COLOR THA 		8-98250-258-0 01 1 1409- ● ●
3 CLIP; GRILLE
THA 		8-98211-687-0 03 1 1409- ● ●
9 SCREW; RAD GRILLE
(B) M5X16 TAPPING W/PL WASHER THA 		8-98193-872-0 11 1 1409- ● ●
9 SCREW; RAD GRILLE
(A) M5X16 THA 		8-98167-352-0 01 1 1409- ● ●
90 NUT; RAD GRILLE
D=7X7 L=7.5 THA 		8-94291-927-0 01 1 1409- ● ●
178 GRILLE; INNER,RAD
THA 		8-98249-943-1 01 1 1409- ● ●
179 RETAINER; GRILLE,RAD
THA 		8-97301-188-0 04 1 1409- ● ●

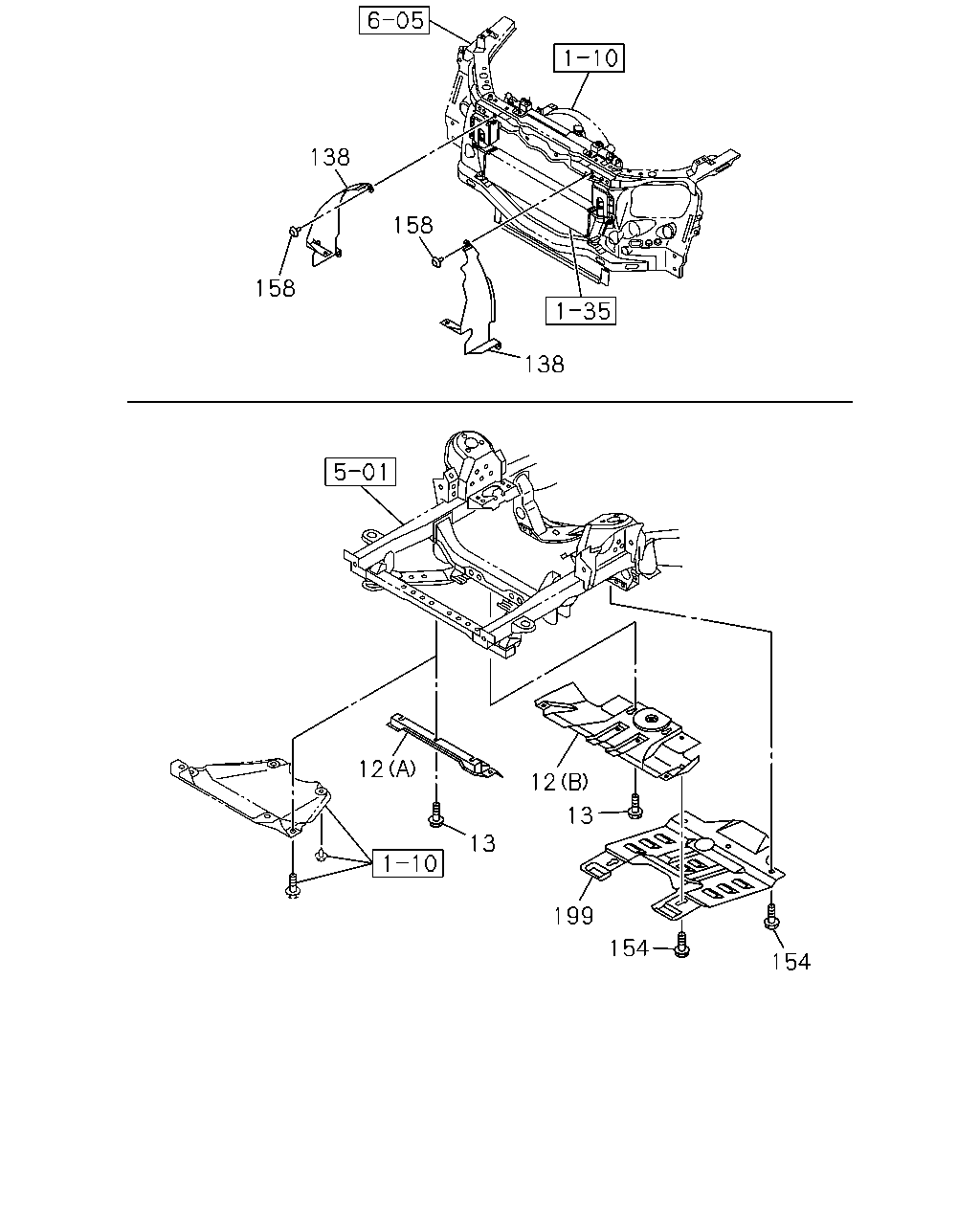

çizim 439113
138 158 138 12 13 12 13 199 154 154 158
BalonParca AdiParca NoAdetTipApplied Date A B
12 PLATE; SKID,RAD
SKID PLATE<7WE> (B) THA 		8-98229-406-0 01 1 1409- ●
12 PLATE; SKID,RAD
UNDER FRT GUARD<6RJ> (B) THA 		8-98229-406-0 01 1 1409- ●
12 PLATE; SKID,RAD
SKID PLATE<7WE> (A) THA 		8-98102-129-1 01 1 1409- ●
12 PLATE; SKID,RAD
(A) THA 		8-98102-129-1 01 1 1409- ●
12 PLATE; SKID,RAD
EXC. UNDER FRT GUARD<6RJ> (B) THA 		8-98102-131-2 01 1 1409- ●
13 BOLT; RAD SKID PLATE
SKID PLATE<7WE> M10X28 W/LK&PL WASHER THA 		8-97945-706-0 09 1 1409- ●
13 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER THA 		8-97945-706-0 09 1 1409- ●
138 GUIDE; AIR
THA 		8-98137-586-1 01 1 1409- ● ●
138 GUIDE; AIR
THA 		8-98137-587-1 01 1 1409- ● ●
154 BOLT; COVER
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> UNDER FRT GUARD<6RJ> M12X25 FLANGE THA 		8-98230-015-0 04 1 1409- ●
158 CLIP; PROTECTOR
OD=22 L=10.7 THA 		8-94215-211-0 06 1 1409- ● ●
199 PLATE; OIL PAN
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> UNDER FRT GUARD<6RJ> THA 		8-98229-404-0 01 1 1409- ●
