6-01 — FRONT BUMPER (#147291) — 26 parça

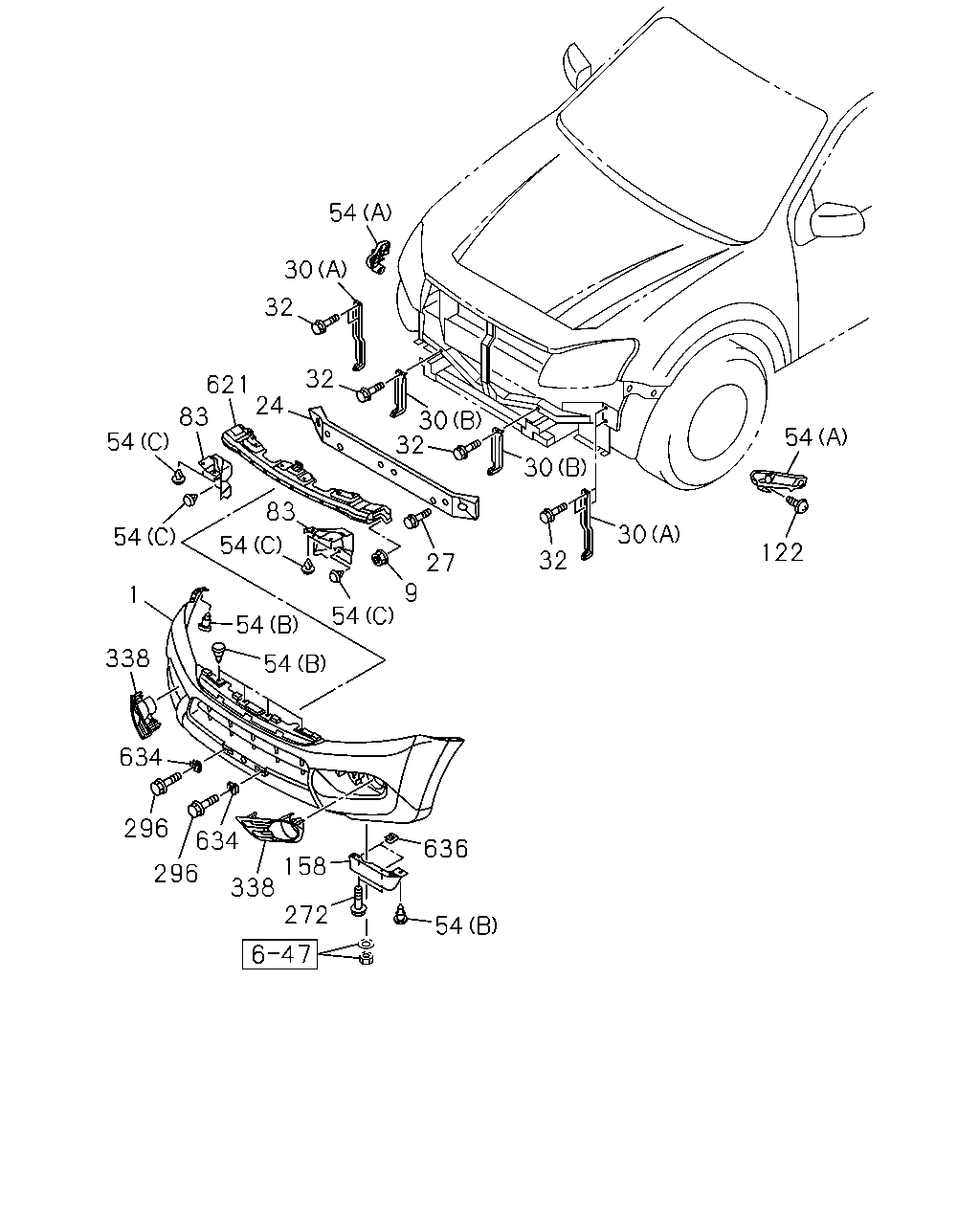

çizim 439318
54 30 32 32 30 32 30 32 30 122 54 24 621 83 54 54 1 54 83 27 54 9 54 54 338 634 296 634 296 338 158 272 636 54
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
COLOR KEYED BUMPER<VT4> PRIMER THA 		8-98249-950-2 01 1 1409- ● ●
1 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER<VT4> UPR; PRIMER,LWR; COLOR PAINTED DARK GRAY THA 		8-98253-374-1 01 1 1409- ● ●
9 NUT; REINF,FRT BUMPER
M6 FLANGE THA 		0-91180-106-0 06 1 1409- ● ●
24 BAR; FRT BUMPER
THA 		8-98165-112-1 01 1 1409- ● ●
27 BOLT; BUMPER TO BACK BAR
M10X25 FLANGE THA 		0-28661-025-0 04 1 1409- ● ●
30 BRACKET; FRT BUMPER
(A) THA 		8-98087-391-2 02 1 1409- ● ●
30 BRACKET; FRT BUMPER
(B) THA 		8-98087-392-0 02 1 1409- ● ●
32 BOLT; BRKT,BUMPER
M6X16 FLANGE THA 		0-28650-616-0 06 1 1409- ● ●
54 RETAINER; FRT BUMPER
(B) THA 		8-97301-188-0 10 1 1409- ● ●
54 RETAINER; FRT BUMPER
(C) THA 		8-98050-462-0 06 1 1409- ● ●
54 RETAINER; FRT BUMPER
(A) THA 		8-98210-025-0 01 1 1409- ● ●
54 RETAINER; FRT BUMPER
(A) THA 		8-98210-026-0 01 1 1409- ● ●
83 GUIDE; AIR,FRT BUMPER
THA 		8-98139-694-0 01 1 1409- ● ●
83 GUIDE; AIR,FRT BUMPER
THA 		8-98139-695-0 01 1 1409- ● ●
122 BOLT; RET,FRT BUMPER
M6X16 TAPPING W/PL WASHER THA 		0-74160-616-0 02 1 1409- ● ●
158 EXTENSION; FRT BUMPER
THA 		8-98101-950-0 01 1 1409- ● ●
158 EXTENSION; FRT BUMPER
THA 		8-98101-951-0 01 1 1409- ● ●
272 BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER THA 		8-98164-799-0 04 1 1409- ● ●
296 BOLT; LICENSE PLATE,FRT
M6X16 FLANGE THA 		0-28050-616-0 02 1 1409- ● ●
338 BEZEL; FOG LAMP
FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> THA 		8-98187-265-0 01 1 1409- ●
338 BEZEL; FOG LAMP
FOG LAMP<T96> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> THA 		8-98187-266-0 01 1 1409- ●
338 BEZEL; FOG LAMP
EXC. FOG LAMP<T96> THA 		8-98187-267-0 01 1 1409- ●
338 BEZEL; FOG LAMP
EXC. FOG LAMP<T96> THA 		8-98187-268-0 01 1 1409- ●
621 SUPPORT; FRT BUMPER
THA 		8-98087-390-1 01 1 1409- ● ●
634 NUT; LICENCE PLATE
THA 		8-98054-813-0 02 1 1409- ● ●
636 NUT; EXT,FRT BUMPER
THA 		8-98072-786-0 04 1 1409- ● ●
