Isuzu WW
▶
SUV
▶
UCR
▶
51577 - UCR/UCS(THAILAND)
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶

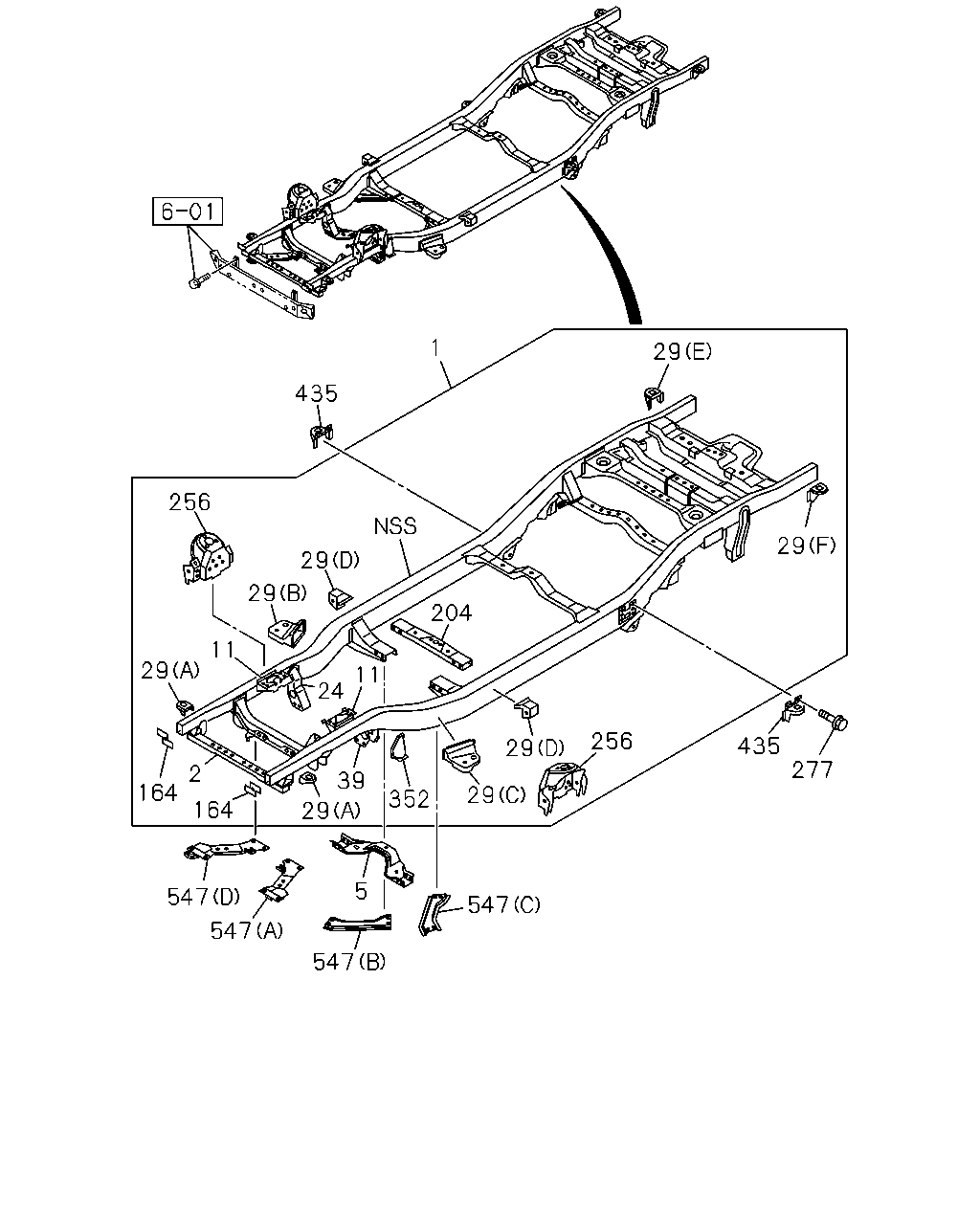

5-01 — FRAME AND OTHER PARTS
(#147285) — 42 parça
Tümü
A - UCB5VC
B - UCS5VC
◀
[501A] FRAME ASM (37 parça)
[501A] BOLT,NUT (5 parça)
▶
1
435
29
29
256
29
164
164
547
547
547
5
547
352
29
2
29
39
24
11
204
29
256
29
435
277
11
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
FRAME ASM
A/T 5 SPEED-AISIN<MA1> THA
8-98274-953-0
01
1
1409-
●
1
FRAME ASM
M/T MUA 5 SPEED 5H<MWQ> THA
8-98274-952-0
01
1
1409-
●
1
FRAME ASM
A/T 5 SPEED-AISIN<MA1> THA
8-98274-955-0
01
1
1409-
●
1
FRAME ASM
M/T MUX 5 SPEED 5S<MZJ> THA
8-98274-954-0
01
1
1409-
●
2
MEMBER; CROSS,1ST
THA
8-98106-701-1
01
1
1409-
●
●
5
MEMBER; CROSS,SUSPENSION
THA
8-98173-915-1
01
1
1409-
●
5
MEMBER; CROSS,SUSPENSION
THA
8-98229-450-0
01
1
1409-
●
11
BRACKET; ENG MTG
THA
8-98106-794-2
01
1
1409-
●
●
11
BRACKET; ENG MTG
THA
8-98106-796-2
01
1
1409-
●
●
24
BRACKET; FRT SPR,FRT
THA
8-98106-807-1
01
1
1409-
●
●
29
BRACKET; CAB MTG
(A) THA
8-97942-341-3
02
1
1409-
●
●
29
BRACKET; CAB MTG
(B) THA
8-98106-784-3
01
1
1409-
●
●
29
BRACKET; CAB MTG
(C) THA
8-98106-791-3
01
1
1409-
●
●
29
BRACKET; CAB MTG
(D) THA
8-98107-534-0
02
1
1409-
●
●
29
BRACKET; CAB MTG
(E) THA
8-98217-263-0
01
1
1409-
●
●
29
BRACKET; CAB MTG
(F) THA
8-98217-264-0
01
1
1409-
●
●
39
BRACKET; FRT SPR,RR
THA
8-98106-809-1
01
1
1409-
●
●
164
PLATE; FRT
THA
8-98106-814-0
01
1
1409-
●
●
164
PLATE; FRT
THA
8-98106-815-0
01
1
1409-
●
●
204
MEMBER; CROSS,TRANS MTG
A/T 5 SPEED-AISIN<MA1> THA
8-98106-760-5
01
1
1409-
●
204
MEMBER; CROSS,TRANS MTG
M/T MUA 5 SPEED 5H<MWQ> THA
8-98106-759-4
01
1
1409-
●
204
MEMBER; CROSS,TRANS MTG
A/T 5 SPEED-AISIN<MA1> THA
8-98204-867-1
01
1
1409-
●
204
MEMBER; CROSS,TRANS MTG
M/T MUX 5 SPEED 5S<MZJ> THA
8-98204-866-1
01
1
1409-
●
256
BRACKET; S/ABS
THA
8-98106-801-6
01
1
1409-
●
●
256
BRACKET; S/ABS
THA
8-98106-803-4
01
1
1409-
●
●
277
BOLT; CAB MTG BRKT
THA
8-98196-741-0
12
1
1409-
●
●
352
BRACKET; BUMPER RUBBER
THA
8-98106-835-3
01
1
1409-
●
●
352
BRACKET; BUMPER RUBBER
THA
8-98106-836-3
01
1
1409-
●
●
435
BRACKET; CAB MTG
THA
8-98205-085-0
02
1
1409-
●
●
547
BRACE; C/MBR
(B) THA
8-98173-913-0
01
1
1409-
●
547
BRACE; C/MBR
(C) THA
8-98173-914-0
01
1
1409-
●
547
BRACE; C/MBR
(D) THA
8-98177-568-3
01
1
1409-
●
547
BRACE; C/MBR
(A) THA
8-98177-569-1
01
1
1409-
●
547
BRACE; C/MBR
(B) THA
8-98173-911-0
01
1
1409-
●
547
BRACE; C/MBR
(C) THA
8-98173-912-0
01
1
1409-
●
547
BRACE; C/MBR
(D) THA
8-98229-465-0
01
1
1409-
●
547
BRACE; C/MBR
(A) THA
8-98229-466-0
01
1
1409-
●
497
497
497
497
485
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
485
NUT; TRANS MTG MBR,FRAME
M10 FLANGE THA
0-91180-210-0
04
1
1409-
●
●
497
BOLT; C/MBR
(C) M10X120 FLANGE THA
0-28066-012-0
04
1
1409-
●
●
497
BOLT; C/MBR
(D) M12X30 FLANGE THA
0-28651-230-0
08
1
1409-
●
●
497
BOLT; C/MBR
(B) M10X35 FLANGE THA
0-28661-035-0
06
1
1409-
●
●
497
BOLT; C/MBR
EXC. SKID PLATE<7WE> (A) M10X28 W/LK&PL WASHER THA
8-97945-706-0
02
1
1409-
●
