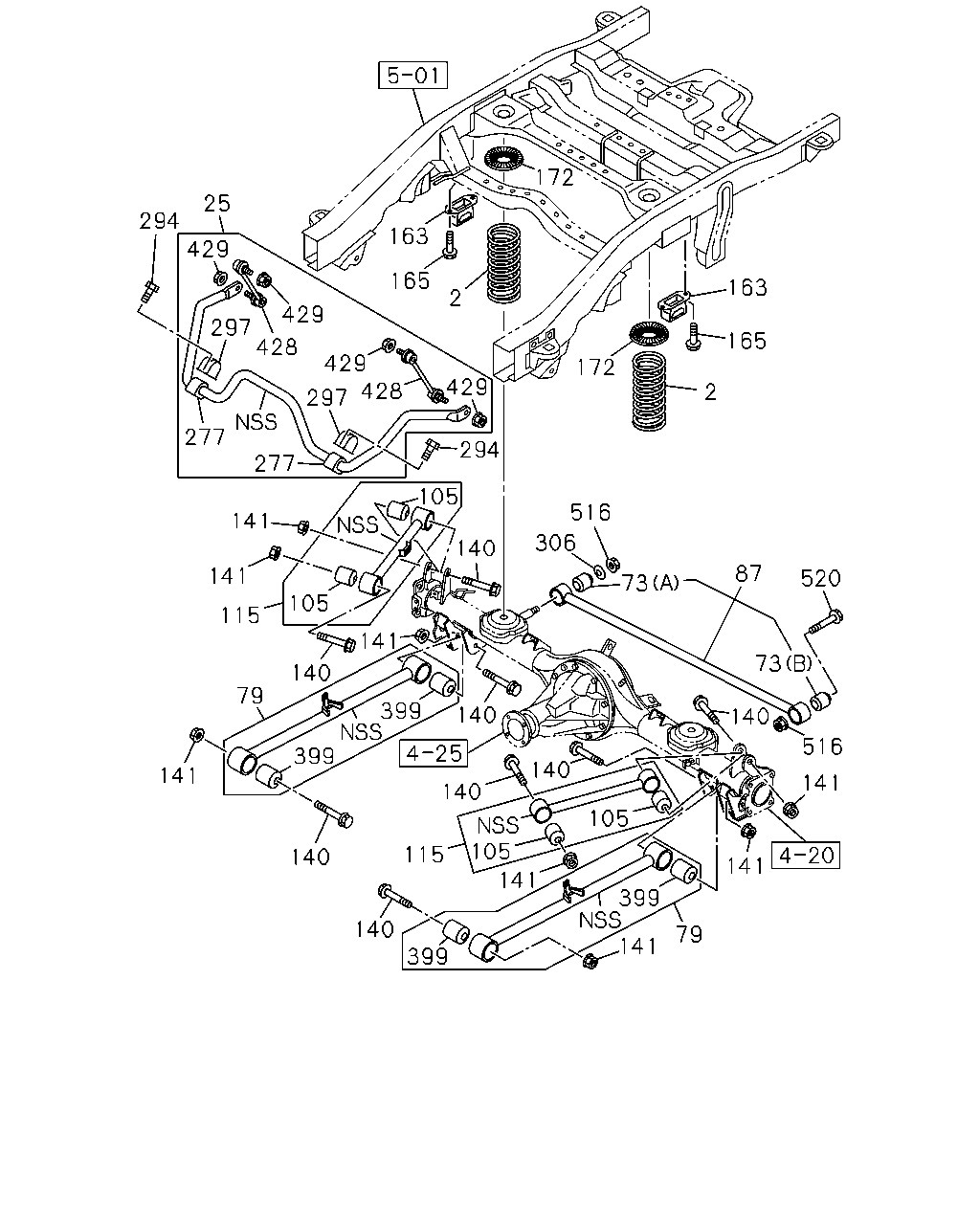

4-60 — REAR SUSPENSION
(#147282) — 22 parça
Tümü
A - UCB5VC
B - UCS5VC
25
294
297
297
277
429
428
428
294
2
165
163
429
429
277
141
141
115
140
79
141
140
115
140
399
141
141
140
105
141
79
141
140
73
520
87
73
516
306
140
105
105
399
399
140
140
399
516
2
172
165
163
172
141
105
429
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
SPRING; COIL,RR SUSP
THA
8-97947-799-2
02
1
1409-
●
●
25
BAR ASM; STAB,RR SUSP
THA
8-97947-792-0
01
1
1409-
●
●
73
BUSHING; LATERAL ROD,RR SUSP
(A) THA
8-97947-785-1
01
1
1409-
●
●
73
BUSHING; LATERAL ROD,RR SUSP
(B) THA
8-97947-786-0
01
1
1409-
●
●
79
LINK; TRAILING,RR SUSP
THA
8-97947-369-0
02
1
1409-
●
●
87
LINK; LATERAL,RR SUSP
THA
8-97947-365-2
01
1
1409-
●
●
105
BUSHING; UPR LINK
THA
8-97947-787-0
04
1
1409-
●
●
115
LINK; UPR,W/BUSHING
THA
8-97947-367-1
02
1
1409-
●
●
140
BOLT; CONT ARM TO BODY
THA
8-97947-834-0
08
1
1409-
●
●
141
NUT; CONT ARM TO BODY
THA
8-98217-474-0
08
1
1409-
●
●
163
RUBBER; HELPER,RR SPR
THA
8-97947-790-0
02
1
1409-
●
●
165
BOLT; HELPER RUBBER
M10X25 FLANGE THA
0-28661-025-0
04
1
1409-
●
●
172
INSULATOR; RR SPR UPR
THA
8-97947-789-0
02
1
1409-
●
●
277
BUSHING; STAB,RR UPR
THA
8-97247-083-0
02
1
1409-
●
●
294
BOLT; STAB BAR TO RR AXLE
M8X20 FLANGE THA
0-28650-820-0
04
1
1409-
●
●
297
CAP; STAB BAR
THA
8-97947-948-0
02
1
1409-
●
●
306
WASHER; ROD
THA
8-97947-826-0
01
1
1409-
●
●
399
BUSHING; TRAILING ROD
THA
8-97947-788-0
04
1
1409-
●
●
428
LINK; RR STABILIZER
THA
8-97947-794-0
02
1
1409-
●
●
429
NUT; LINK
M12 LOCK NUT FLANGE THA
0-91380-012-0
04
1
1409-
●
●
516
NUT; ROD
THA
8-98217-474-0
02
1
1409-
●
●
520
BOLT; ROD
IMA
0-29261-490-0
01
1
1409-
●
●
