◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51577 - UCR/UCS(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#147281) — 48 parça

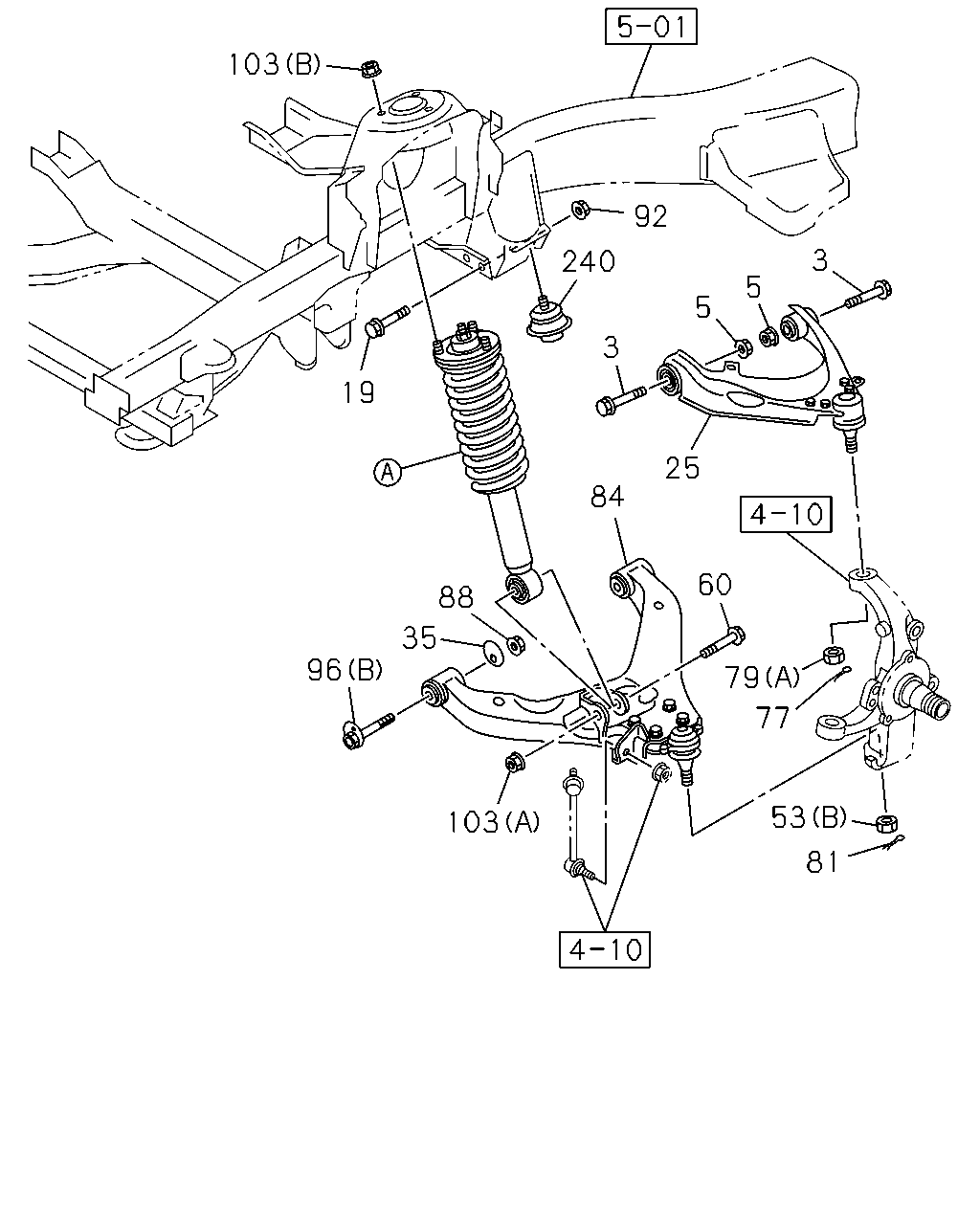

çizim 439134
92 240 19 3 5 5 3 25 84 88 35 96 103 77 79 60 53 81 103
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; UPR LINK TO FRAME
M14X74 THA 		8-97947-455-0 04 1 1409- ● ●
5 NUT; UPR LINK TO FRAME
M14 FLANGE THA 		8-97245-635-0 04 1 1409- ● ●
19 BOLT; FRT SUSP TO C/MBR
M10X100 THA 		0-28061-000-0 04 1 1409- ● ●
25 ARM; UPR CONT
THA 		8-97945-841-2 01 1 1409- ● ●
25 ARM; UPR CONT
THA 		8-97945-842-2 01 1 1409- ● ●
35 PLATE; BUSHING SUPPORT
THA 		8-97214-814-0 04 1 1409- ● ●
53 NUT; LWR LINK
(B) M18 THA 		0-91110-518-0 02 1 1409- ● ●
53 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1409- ● ●
60 BOLT; S/ABS TO LWR LINK
M14X74 THA 		8-97947-455-0 02 1 1409- ● ●
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 IMA 		0-81123-028-0 02 1 1409- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 THA 		0-91110-514-0 02 1 1409- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M8 FLANGE THA 		0-91180-208-0 08 1 1409- ● ●
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=2.8 L=28 IMA 		0-81123-028-0 02 1 1409- ● ●
84 ARM; LWR CONT
THA 		8-97945-843-1 01 1 1409- ● ●
84 ARM; LWR CONT
THA 		8-97945-844-1 01 1 1409- ● ●
88 NUT; LWR LINK
M16 FLANGE THA 		8-97245-631-0 04 1 1409- ● ●
92 NUT; FRT SUSP
M10 FLANGE THA 		0-91180-210-0 04 1 1409- ● ●
96 BOLT; LWR LINK
(A) M12X37 FLANGE THA 		8-97245-639-0 08 1 1409- ● ●
96 BOLT; LWR LINK
(B) M16X102 W/PLATE THA 		8-98186-404-0 04 1 1409- ● ●
103 NUT; S/ABS TO LWR LINK
(A) M14 FLANGE THA 		8-97245-635-0 02 1 1409- ● ●
103 NUT; S/ABS TO LWR LINK
(B) M10 FLANGE THA 		8-97245-637-0 06 1 1409- ● ●
240 BUMPER; LWR CONT ARM
THA 		8-97946-180-0 02 1 1409- ● ●

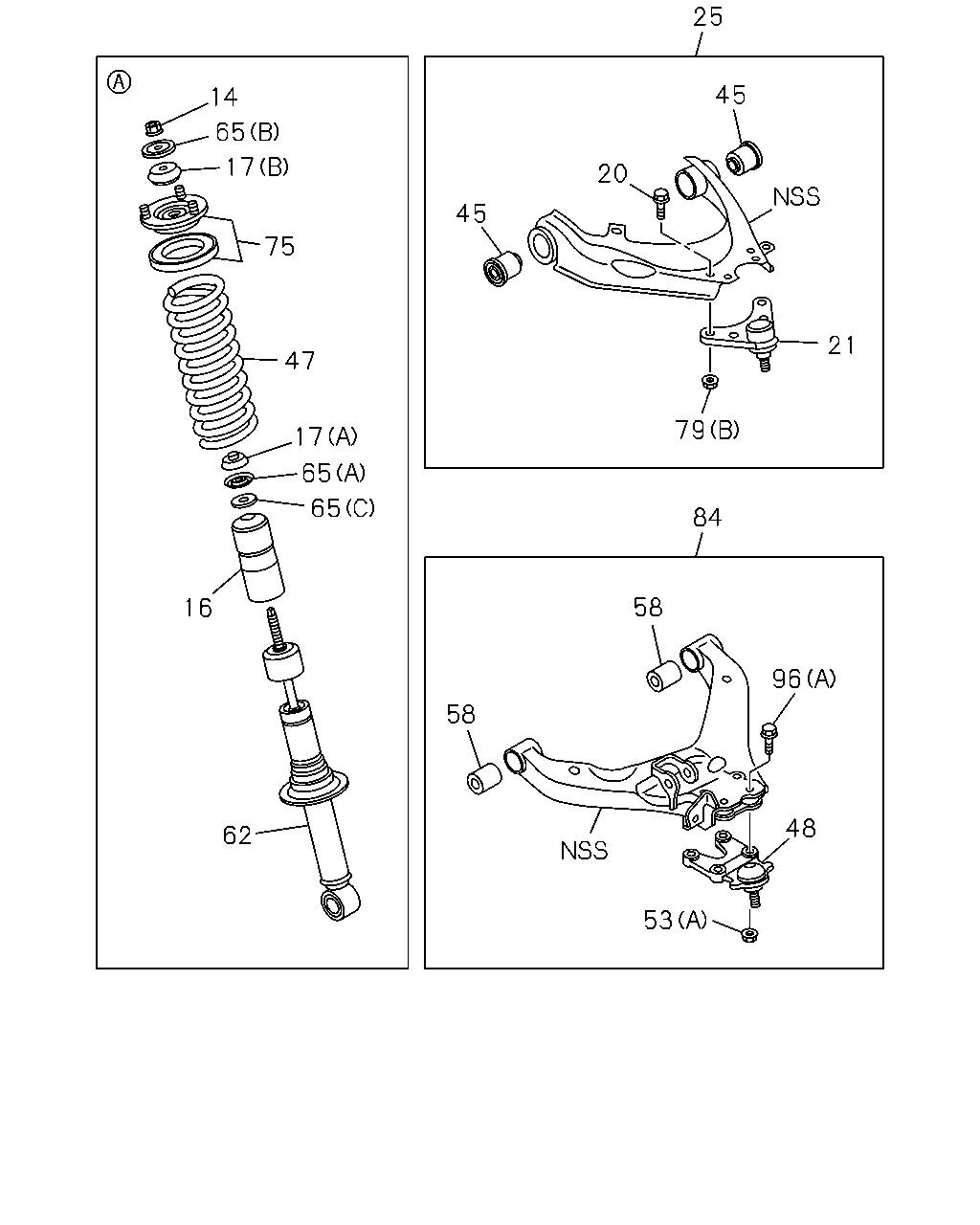

çizim 439141
14 65 17 75 47 17 65 65 16 62 58 58 84 96 48 53 21 79 45 25 20 45
BalonParca AdiParca NoAdetTipApplied Date A B
14 NUT; S/ABS,UPR
M12 FLANGE THA 		8-97236-304-0 02 1 1409- ● ●
16 COVER; DUST,FRT S/ABS
THA 		8-97947-100-0 02 1 1409- ● ●
17 BUSHING; RUBBER,S/ABS
(A) THA 		8-97236-303-0 02 1 1409- ● ●
17 BUSHING; RUBBER,S/ABS
(B) THA 		8-97264-184-0 02 1 1409- ● ●
20 BOLT; UPR LINK END TO UPR LINK
M8X25 FLANGE IMA 		0-28060-825-0 08 1 1409- ● ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-98005-827-0 02 1 1409- ● ●
25 ARM; UPR CONT
THA 		8-97945-841-2 01 1 1409- ● ●
25 ARM; UPR CONT
THA 		8-97945-842-2 01 1 1409- ● ●
45 BUSHING; UPR LINK,FRT
THA 		8-97947-419-0 04 1 1409- ● ●
47 SPRING; COIL,FRT SUSP
THA 		8-97947-205-3 02 1 1409- ●
47 SPRING; COIL,FRT SUSP
THA 		8-97947-960-1 02 1 1409- ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-98005-875-0 02 1 1409- ● ●
53 NUT; LWR LINK
(B) M18 THA 		0-91110-518-0 02 1 1409- ● ●
53 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1409- ● ●
58 BUSHING; LWR LINK
THA 		8-97947-087-1 04 1 1409- ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97947-796-1 02 1 1409- ● ●
65 WASHER; S/ABS
(C) THA 		8-97944-892-0 02 1 1409- ● ●
65 WASHER; S/ABS
(B) THA 		8-98005-971-0 02 1 1409- ● ●
65 WASHER; S/ABS
(A) THA 		8-98005-972-0 02 1 1409- ● ●
75 BRACKET; FRT S/ABS
THA 		8-98177-899-1 02 1 1409- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 THA 		0-91110-514-0 02 1 1409- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M8 FLANGE THA 		0-91180-208-0 08 1 1409- ● ●
84 ARM; LWR CONT
THA 		8-97945-843-1 01 1 1409- ● ●
84 ARM; LWR CONT
THA 		8-97945-844-1 01 1 1409- ● ●
96 BOLT; LWR LINK
(A) M12X37 FLANGE THA 		8-97245-639-0 08 1 1409- ● ●
96 BOLT; LWR LINK
(B) M16X102 W/PLATE THA 		8-98186-404-0 04 1 1409- ● ●
