Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#147273) — 181 parça

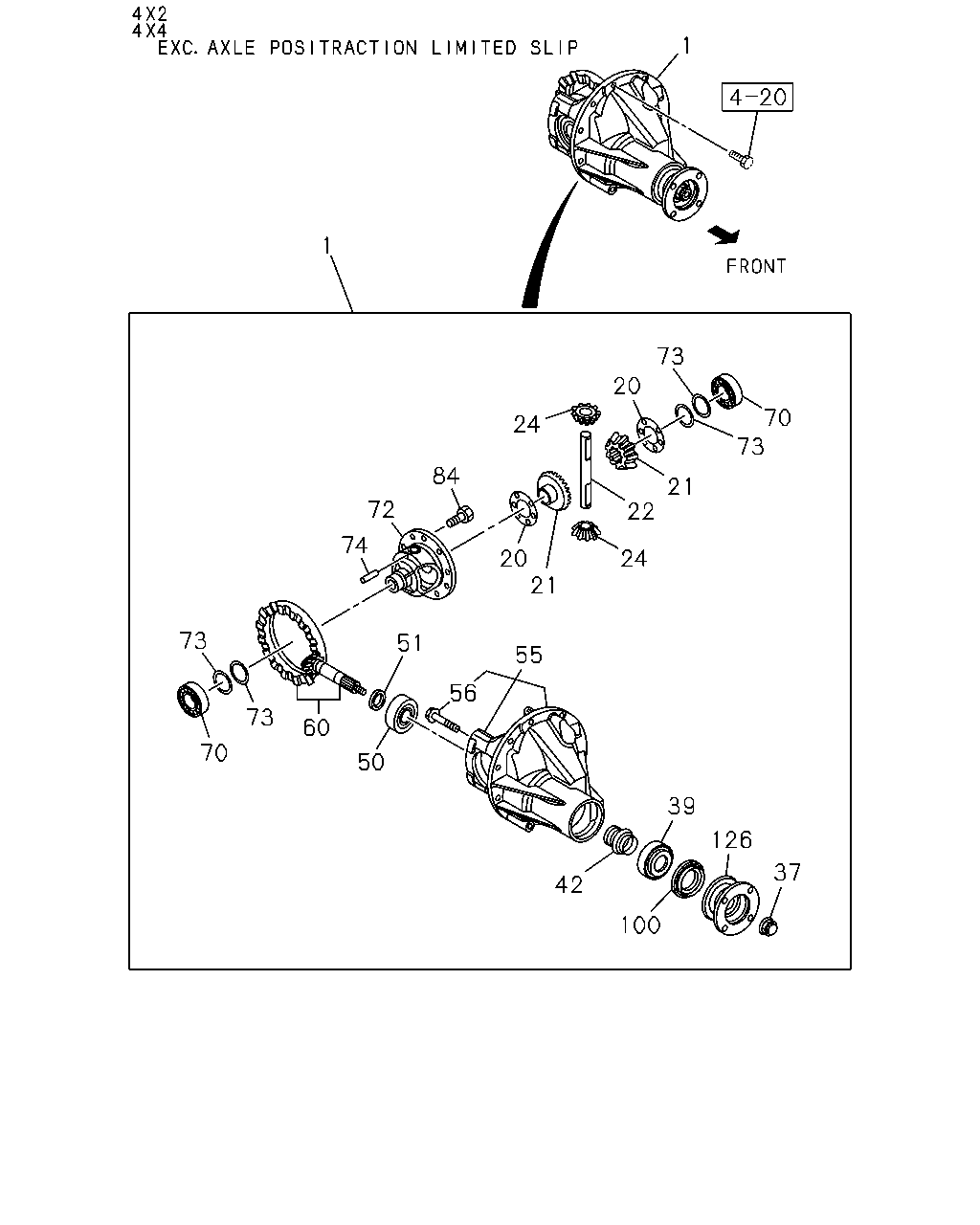

1 1 73 70 60 73 50 51 56 20 55 72 74 84 24 20 73 70 73 21 22 24 21 39 126 37 100 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR ABS W/EBD BRAKE ASSIST<JE5> FINAL GEAR RATIO 41/11<GT4> VAC POWER 4 WHL DISC BRAKE<JF8> 41/11 THA	8-97947-761-0	01	1	1409-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11<GT4> EXC. AXLE POSITRACTION LIMITED SLIP<G80> 41/11 THA	8-97947-761-0	01	1	1409-		●
1	DRIVE ASM; FINAL,RR ABS W/EBD BRAKE ASSIST<JE5> FINAL GEAR RATIO 41/10<GT5> VAC POWER 4 WHL DISC BRAKE<JF8> 41/10 THA	8-97947-763-0	01	1	1409-	●
1	DRIVE ASM; FINAL,RR ABS W/EBD BRAKE ASSIST<JE5> FINAL GEAR RATIO 43/11<GW1> VAC POWER 4 WHL DISC BRAKE<JF8> 43/11 THA	8-97947-762-0	01	1	1409-1510	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11<GW1> EXC. AXLE POSITRACTION LIMITED SLIP<G80> 43/11 THA	8-97947-762-0	01	1	1409-1510		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11<GW1> 43/11 THA	8-98334-753-0	01	1	1511-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11<GW1> EXC. AXLE POSITRACTION LIMITED SLIP<G80> 43/11 THA	8-98334-753-0	01	1	1511-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12<GM0> AXLE POSITRACTION LIMITED SLIP<G80> EXC. ELECTRONIC TRACTION CONTROL<NW9> 43/12 THA	8-97947-558-0	01	1	1409-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12<GM0> EXC. AXLE POSITRACTION LIMITED SLIP<G80> 43/12 THA	8-97947-760-0	01	1	1409-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11<GT4> AXLE POSITRACTION LIMITED SLIP<G80> EXC. ELECTRONIC TRACTION CONTROL<NW9> 41/11 THA	8-97947-559-0	01	1	1409-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11<GW1> AXLE POSITRACTION LIMITED SLIP<G80> EXC. ELECTRONIC TRACTION CONTROL<NW9> 43/11 THA	8-97947-560-0	01	1	1409-		●
20	WASHER; THRUST,SIDE GEAR T=0.80 IMA	8-94435-343-0	02	1	1409-	●
20	WASHER; THRUST,SIDE GEAR EXC. AXLE POSITRACTION LIMITED SLIP<G80> T=0.80 IMA	8-94435-343-0	02	1	1409-		●
20	WASHER; THRUST,SIDE GEAR T=0.90 IMA	8-94435-344-0	02	1	1409-	●
20	WASHER; THRUST,SIDE GEAR EXC. AXLE POSITRACTION LIMITED SLIP<G80> T=0.90 IMA	8-94435-344-0	02	1	1409-		●
20	WASHER; THRUST,SIDE GEAR T=1.10 IMA	8-94435-345-0	02	1	1409-	●
20	WASHER; THRUST,SIDE GEAR EXC. AXLE POSITRACTION LIMITED SLIP<G80> T=1.10 IMA	8-94435-345-0	02	1	1409-		●
20	WASHER; THRUST,SIDE GEAR T=1.20 IMA	8-94435-346-0	02	1	1409-	●
20	WASHER; THRUST,SIDE GEAR EXC. AXLE POSITRACTION LIMITED SLIP<G80> T=1.20 IMA	8-94435-346-0	02	1	1409-		●
20	WASHER; THRUST,SIDE GEAR T=1.30 IMA	8-94435-347-0	02	1	1409-	●
20	WASHER; THRUST,SIDE GEAR EXC. AXLE POSITRACTION LIMITED SLIP<G80> T=1.30 IMA	8-94435-347-0	02	1	1409-		●
20	WASHER; THRUST,SIDE GEAR T=1.00 IMA	9-41562-602-0	02	1	1409-	●
20	WASHER; THRUST,SIDE GEAR EXC. AXLE POSITRACTION LIMITED SLIP<G80> T=1.00 IMA	9-41562-602-0	02	1	1409-		●
20	WASHER; THRUST,SIDE GEAR AXLE POSITRACTION LIMITED SLIP<G80> T=1.60 IMA	8-94365-187-0	02	1	1409-		●
20	WASHER; THRUST,SIDE GEAR AXLE POSITRACTION LIMITED SLIP<G80> T=1.70 IMA	8-94365-188-0	02	1	1409-		●
20	WASHER; THRUST,SIDE GEAR AXLE POSITRACTION LIMITED SLIP<G80> T=1.50 IMA	8-94453-935-0	02	1	1409-		●
20	WASHER; THRUST,SIDE GEAR AXLE POSITRACTION LIMITED SLIP<G80> T=1.80 IMA	8-97066-412-0	02	1	1409-		●
21	GEAR; SIDE,DIFF Z=18 IMA	8-98186-828-1	02	1	1409-	●
21	GEAR; SIDE,DIFF EXC. AXLE POSITRACTION LIMITED SLIP<G80> Z=18 IMA	8-98186-828-1	02	1	1409-		●
21	GEAR; SIDE,DIFF AXLE POSITRACTION LIMITED SLIP<G80> IMA	8-97200-286-0	02	1	1409-		●
22	SPIDER; DIFF PINION IMA	8-94435-308-1	01	1	1409-	●
22	SPIDER; DIFF PINION EXC. AXLE POSITRACTION LIMITED SLIP<G80> IMA	8-94435-308-1	01	1	1409-		●
24	GEAR; PINION,DIFF Z=10 IMA	8-98186-829-0	02	1	1409-	●
24	GEAR; PINION,DIFF EXC. AXLE POSITRACTION LIMITED SLIP<G80> Z=10 IMA	8-98186-829-0	02	1	1409-		●
24	GEAR; PINION,DIFF AXLE POSITRACTION LIMITED SLIP<G80> IMA	8-97200-285-1	04	1	1409-		●
37	NUT; DRIVING PINION M24 FLANGE IMA	8-94376-261-1	01	1	1409-1502	●	●
37	NUT; DRIVING PINION M24 FLANGE THA	8-97948-984-0	01	1	1503-	●	●
39	BEARING; FINAL PINION JTEKT THA	8-97947-477-0	01	1	1409-	●	●
42	COLLAR; DIST,COLLAPSIBLE IMA	8-97035-399-0	01	1	1409-1510	●	●
42	COLLAR; DIST,COLLAPSIBLE THA	8-98319-329-0	01	1	1511-	●	●
50	BEARING; FINAL PINION JTEKT THA	8-97947-487-0	01	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=1.94 IMA	8-94435-356-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=1.96 IMA	8-94435-357-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=1.98 IMA	8-94435-358-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.00 IMA	8-94435-359-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.02 IMA	8-94435-360-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.04 IMA	8-94435-361-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.06 IMA	8-94435-362-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.08 IMA	8-94435-363-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.10 IMA	8-94435-364-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.12 IMA	8-94435-365-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.14 IMA	8-94435-366-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.16 IMA	8-94435-367-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.18 IMA	8-94435-368-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.20 IMA	8-94435-369-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.22 IMA	8-94435-370-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.24 IMA	8-94435-371-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.26 IMA	8-94435-372-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.28 IMA	8-94435-373-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.30 IMA	8-94435-374-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.32 IMA	8-94435-375-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.34 IMA	8-94435-376-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.36 IMA	8-94435-377-0	AR	1	1409-	●	●
55	CARRIER; DIFF FINAL GEAR RATIO 43/11<GW1> THA	8-98288-710-0	01	1	1511-	●
55	CARRIER; DIFF FINAL GEAR RATIO 43/11<GW1> EXC. AXLE POSITRACTION LIMITED SLIP<G80> THA	8-98288-710-0	01	1	1511-		●
55	CARRIER; DIFF IMA	8-97240-889-2	01	1	1409-1510	●	●
55	CARRIER; DIFF FINAL GEAR RATIO 41/11<GT4>,FINAL GEAR RATIO 41/10<GT5> IMA	8-97240-889-2	01	1	1511-	●
55	CARRIER; DIFF AXLE POSITRACTION LIMITED SLIP<G80> IMA	8-97240-889-2	01	1	1511-		●
55	CARRIER; DIFF FINAL GEAR RATIO 43/12<GM0>,FINAL GEAR RATIO 41/11<GT4> EXC. AXLE POSITRACTION LIMITED SLIP<G80> IMA	8-97240-889-2	01	1	1511-		●
56	BOLT; BRG CAP M12X75 FLANGE IMA	8-98176-233-0	04	1	1409-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/11<GT4> 41/11 IMA	8-98030-515-1	01	1	1409-	●	●
60	GEAR SET; FINAL DRIVE,RR ABS W/EBD BRAKE ASSIST<JE5> FINAL GEAR RATIO 41/10<GT5> VAC POWER 4 WHL DISC BRAKE<JF8> 41/10 IMA	8-98014-984-1	01	1	1409-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/11<GW1> 43/11 IMA	8-98014-980-1	01	1	1409-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/12<GM0> 43/12 IMA	8-97374-174-1	01	1	1409-		●
70	BEARING; DIFF CAGE NSK THA	8-97947-476-0	02	1	1409-	●	●
72	CAGE; DIFF FINAL GEAR RATIO 43/11<GW1> THA	8-98288-712-0	01	1	1511-	●
72	CAGE; DIFF FINAL GEAR RATIO 43/11<GW1> EXC. AXLE POSITRACTION LIMITED SLIP<G80> THA	8-98288-712-0	01	1	1511-		●
72	CAGE; DIFF IMA	8-94325-448-0	01	1	1409-1510	●
72	CAGE; DIFF EXC. AXLE POSITRACTION LIMITED SLIP<G80> IMA	8-94325-448-0	01	1	1409-1510		●
72	CAGE; DIFF FINAL GEAR RATIO 41/11<GT4>,FINAL GEAR RATIO 41/10<GT5> IMA	8-94325-448-0	01	1	1511-	●
72	CAGE; DIFF FINAL GEAR RATIO 43/12<GM0>,FINAL GEAR RATIO 41/11<GT4> EXC. AXLE POSITRACTION LIMITED SLIP<G80> IMA	8-94325-448-0	01	1	1511-		●
73	SHIM; DIFF SIDE BRG T=0.12 THA	8-97947-965-0	AR	1	1409-	●	●
73	SHIM; DIFF SIDE BRG T=0.15 THA	8-97947-966-0	AR	1	1409-	●	●
73	SHIM; DIFF SIDE BRG T=0.18 THA	8-97947-967-0	AR	1	1409-	●	●
73	SHIM; DIFF SIDE BRG T=0.25 THA	8-97947-968-0	AR	1	1409-	●	●
73	SHIM; DIFF SIDE BRG T=0.30 THA	8-97947-969-0	AR	1	1409-	●	●
73	SHIM; DIFF SIDE BRG T=0.50 THA	8-97947-970-0	AR	1	1409-	●	●
74	PIN; LK,CROSS PIN OD=5 L=35 IMA	9-09878-096-0	01	1	1409-	●
74	PIN; LK,CROSS PIN EXC. AXLE POSITRACTION LIMITED SLIP<G80> OD=5 L=35 IMA	9-09878-096-0	01	1	1409-		●
84	BOLT; FINAL DRIVE GEAR M10X18.5 IMA	8-97038-064-0	12	1	1409-	●	●
100	SEAL; OIL,FINAL PINION NOK THA	8-97947-678-0	01	1	1409-	●	●
126	COUPLING; DRIVING PINION THA	8-97946-794-1	01	1	1409-	●	●

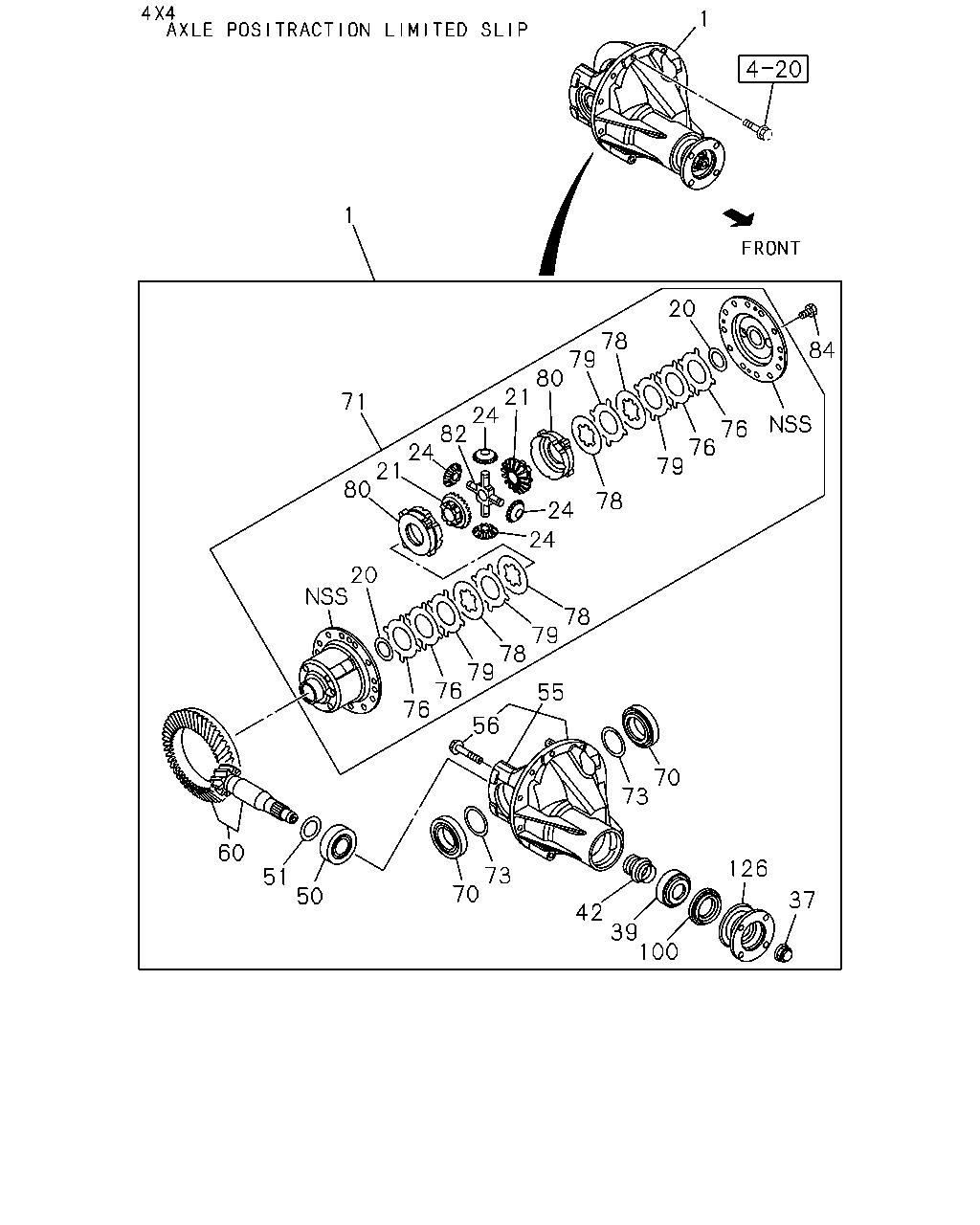

1 1 71 20 76 78 79 76 79 55 78 24 79 78 24 76 76 84 20 78 79 80 21 24 82 24 21 80 37 126 100 39 42 70 73 73 70 50 51 60 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR ABS W/EBD BRAKE ASSIST<JE5> FINAL GEAR RATIO 41/11<GT4> VAC POWER 4 WHL DISC BRAKE<JF8> 41/11 THA	8-97947-761-0	01	1	1409-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11<GT4> EXC. AXLE POSITRACTION LIMITED SLIP<G80> 41/11 THA	8-97947-761-0	01	1	1409-		●
1	DRIVE ASM; FINAL,RR ABS W/EBD BRAKE ASSIST<JE5> FINAL GEAR RATIO 41/10<GT5> VAC POWER 4 WHL DISC BRAKE<JF8> 41/10 THA	8-97947-763-0	01	1	1409-	●
1	DRIVE ASM; FINAL,RR ABS W/EBD BRAKE ASSIST<JE5> FINAL GEAR RATIO 43/11<GW1> VAC POWER 4 WHL DISC BRAKE<JF8> 43/11 THA	8-97947-762-0	01	1	1409-1510	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11<GW1> EXC. AXLE POSITRACTION LIMITED SLIP<G80> 43/11 THA	8-97947-762-0	01	1	1409-1510		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11<GW1> 43/11 THA	8-98334-753-0	01	1	1511-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11<GW1> EXC. AXLE POSITRACTION LIMITED SLIP<G80> 43/11 THA	8-98334-753-0	01	1	1511-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12<GM0> AXLE POSITRACTION LIMITED SLIP<G80> EXC. ELECTRONIC TRACTION CONTROL<NW9> 43/12 THA	8-97947-558-0	01	1	1409-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12<GM0> EXC. AXLE POSITRACTION LIMITED SLIP<G80> 43/12 THA	8-97947-760-0	01	1	1409-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11<GT4> AXLE POSITRACTION LIMITED SLIP<G80> EXC. ELECTRONIC TRACTION CONTROL<NW9> 41/11 THA	8-97947-559-0	01	1	1409-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11<GW1> AXLE POSITRACTION LIMITED SLIP<G80> EXC. ELECTRONIC TRACTION CONTROL<NW9> 43/11 THA	8-97947-560-0	01	1	1409-		●
20	WASHER; THRUST,SIDE GEAR T=0.80 IMA	8-94435-343-0	02	1	1409-	●
20	WASHER; THRUST,SIDE GEAR EXC. AXLE POSITRACTION LIMITED SLIP<G80> T=0.80 IMA	8-94435-343-0	02	1	1409-		●
20	WASHER; THRUST,SIDE GEAR T=0.90 IMA	8-94435-344-0	02	1	1409-	●
20	WASHER; THRUST,SIDE GEAR EXC. AXLE POSITRACTION LIMITED SLIP<G80> T=0.90 IMA	8-94435-344-0	02	1	1409-		●
20	WASHER; THRUST,SIDE GEAR T=1.10 IMA	8-94435-345-0	02	1	1409-	●
20	WASHER; THRUST,SIDE GEAR EXC. AXLE POSITRACTION LIMITED SLIP<G80> T=1.10 IMA	8-94435-345-0	02	1	1409-		●
20	WASHER; THRUST,SIDE GEAR T=1.20 IMA	8-94435-346-0	02	1	1409-	●
20	WASHER; THRUST,SIDE GEAR EXC. AXLE POSITRACTION LIMITED SLIP<G80> T=1.20 IMA	8-94435-346-0	02	1	1409-		●
20	WASHER; THRUST,SIDE GEAR T=1.30 IMA	8-94435-347-0	02	1	1409-	●
20	WASHER; THRUST,SIDE GEAR EXC. AXLE POSITRACTION LIMITED SLIP<G80> T=1.30 IMA	8-94435-347-0	02	1	1409-		●
20	WASHER; THRUST,SIDE GEAR T=1.00 IMA	9-41562-602-0	02	1	1409-	●
20	WASHER; THRUST,SIDE GEAR EXC. AXLE POSITRACTION LIMITED SLIP<G80> T=1.00 IMA	9-41562-602-0	02	1	1409-		●
20	WASHER; THRUST,SIDE GEAR AXLE POSITRACTION LIMITED SLIP<G80> T=1.60 IMA	8-94365-187-0	02	1	1409-		●
20	WASHER; THRUST,SIDE GEAR AXLE POSITRACTION LIMITED SLIP<G80> T=1.70 IMA	8-94365-188-0	02	1	1409-		●
20	WASHER; THRUST,SIDE GEAR AXLE POSITRACTION LIMITED SLIP<G80> T=1.50 IMA	8-94453-935-0	02	1	1409-		●
20	WASHER; THRUST,SIDE GEAR AXLE POSITRACTION LIMITED SLIP<G80> T=1.80 IMA	8-97066-412-0	02	1	1409-		●
21	GEAR; SIDE,DIFF Z=18 IMA	8-98186-828-1	02	1	1409-	●
21	GEAR; SIDE,DIFF EXC. AXLE POSITRACTION LIMITED SLIP<G80> Z=18 IMA	8-98186-828-1	02	1	1409-		●
21	GEAR; SIDE,DIFF AXLE POSITRACTION LIMITED SLIP<G80> IMA	8-97200-286-0	02	1	1409-		●
24	GEAR; PINION,DIFF Z=10 IMA	8-98186-829-0	02	1	1409-	●
24	GEAR; PINION,DIFF EXC. AXLE POSITRACTION LIMITED SLIP<G80> Z=10 IMA	8-98186-829-0	02	1	1409-		●
24	GEAR; PINION,DIFF AXLE POSITRACTION LIMITED SLIP<G80> IMA	8-97200-285-1	04	1	1409-		●
37	NUT; DRIVING PINION M24 FLANGE IMA	8-94376-261-1	01	1	1409-1502	●	●
37	NUT; DRIVING PINION M24 FLANGE THA	8-97948-984-0	01	1	1503-	●	●
39	BEARING; FINAL PINION JTEKT THA	8-97947-477-0	01	1	1409-	●	●
42	COLLAR; DIST,COLLAPSIBLE IMA	8-97035-399-0	01	1	1409-1510	●	●
42	COLLAR; DIST,COLLAPSIBLE THA	8-98319-329-0	01	1	1511-	●	●
50	BEARING; FINAL PINION JTEKT THA	8-97947-487-0	01	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=1.94 IMA	8-94435-356-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=1.96 IMA	8-94435-357-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=1.98 IMA	8-94435-358-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.00 IMA	8-94435-359-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.02 IMA	8-94435-360-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.04 IMA	8-94435-361-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.06 IMA	8-94435-362-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.08 IMA	8-94435-363-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.10 IMA	8-94435-364-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.12 IMA	8-94435-365-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.14 IMA	8-94435-366-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.16 IMA	8-94435-367-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.18 IMA	8-94435-368-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.20 IMA	8-94435-369-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.22 IMA	8-94435-370-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.24 IMA	8-94435-371-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.26 IMA	8-94435-372-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.28 IMA	8-94435-373-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.30 IMA	8-94435-374-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.32 IMA	8-94435-375-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.34 IMA	8-94435-376-0	AR	1	1409-	●	●
51	SHIM; PINION,FINAL DRIVE T=2.36 IMA	8-94435-377-0	AR	1	1409-	●	●
55	CARRIER; DIFF FINAL GEAR RATIO 43/11<GW1> THA	8-98288-710-0	01	1	1511-	●
55	CARRIER; DIFF FINAL GEAR RATIO 43/11<GW1> EXC. AXLE POSITRACTION LIMITED SLIP<G80> THA	8-98288-710-0	01	1	1511-		●
55	CARRIER; DIFF IMA	8-97240-889-2	01	1	1409-1510	●	●
55	CARRIER; DIFF FINAL GEAR RATIO 41/11<GT4>,FINAL GEAR RATIO 41/10<GT5> IMA	8-97240-889-2	01	1	1511-	●
55	CARRIER; DIFF AXLE POSITRACTION LIMITED SLIP<G80> IMA	8-97240-889-2	01	1	1511-		●
55	CARRIER; DIFF FINAL GEAR RATIO 43/12<GM0>,FINAL GEAR RATIO 41/11<GT4> EXC. AXLE POSITRACTION LIMITED SLIP<G80> IMA	8-97240-889-2	01	1	1511-		●
56	BOLT; BRG CAP M12X75 FLANGE IMA	8-98176-233-0	04	1	1409-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/11<GT4> 41/11 IMA	8-98030-515-1	01	1	1409-	●	●
60	GEAR SET; FINAL DRIVE,RR ABS W/EBD BRAKE ASSIST<JE5> FINAL GEAR RATIO 41/10<GT5> VAC POWER 4 WHL DISC BRAKE<JF8> 41/10 IMA	8-98014-984-1	01	1	1409-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/11<GW1> 43/11 IMA	8-98014-980-1	01	1	1409-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/12<GM0> 43/12 IMA	8-97374-174-1	01	1	1409-		●
70	BEARING; DIFF CAGE NSK THA	8-97947-476-0	02	1	1409-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE AXLE POSITRACTION LIMITED SLIP<G80> IMA	8-98167-619-0	01	1	1409-		●
73	SHIM; DIFF SIDE BRG T=0.12 THA	8-97947-965-0	AR	1	1409-	●	●
73	SHIM; DIFF SIDE BRG T=0.15 THA	8-97947-966-0	AR	1	1409-	●	●
73	SHIM; DIFF SIDE BRG T=0.18 THA	8-97947-967-0	AR	1	1409-	●	●
73	SHIM; DIFF SIDE BRG T=0.25 THA	8-97947-968-0	AR	1	1409-	●	●
73	SHIM; DIFF SIDE BRG T=0.30 THA	8-97947-969-0	AR	1	1409-	●	●
73	SHIM; DIFF SIDE BRG T=0.50 THA	8-97947-970-0	AR	1	1409-	●	●
76	DISC; BEVEL AXLE POSITRACTION LIMITED SLIP<G80> IMA	8-97096-209-0	04	1	1409-		●
78	DISC; FRICTION AXLE POSITRACTION LIMITED SLIP<G80> IMA	8-94453-937-0	04	1	1409-		●
79	PLATE; FRICTION AXLE POSITRACTION LIMITED SLIP<G80> T=1.85 IMA	8-94365-189-0	04	1	1409-		●
79	PLATE; FRICTION AXLE POSITRACTION LIMITED SLIP<G80> T=1.75 IMA	8-94453-936-0	04	1	1409-		●
80	RING; PRESSURE AXLE POSITRACTION LIMITED SLIP<G80> IMA	8-94453-931-0	02	1	1409-		●
82	SPIDER; DIFF PINION AXLE POSITRACTION LIMITED SLIP<G80> IMA	8-94453-932-0	01	1	1409-		●
84	BOLT; FINAL DRIVE GEAR M10X18.5 IMA	8-97038-064-0	12	1	1409-	●	●
100	SEAL; OIL,FINAL PINION NOK THA	8-97947-678-0	01	1	1409-	●	●
126	COUPLING; DRIVING PINION THA	8-97946-794-1	01	1	1409-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
