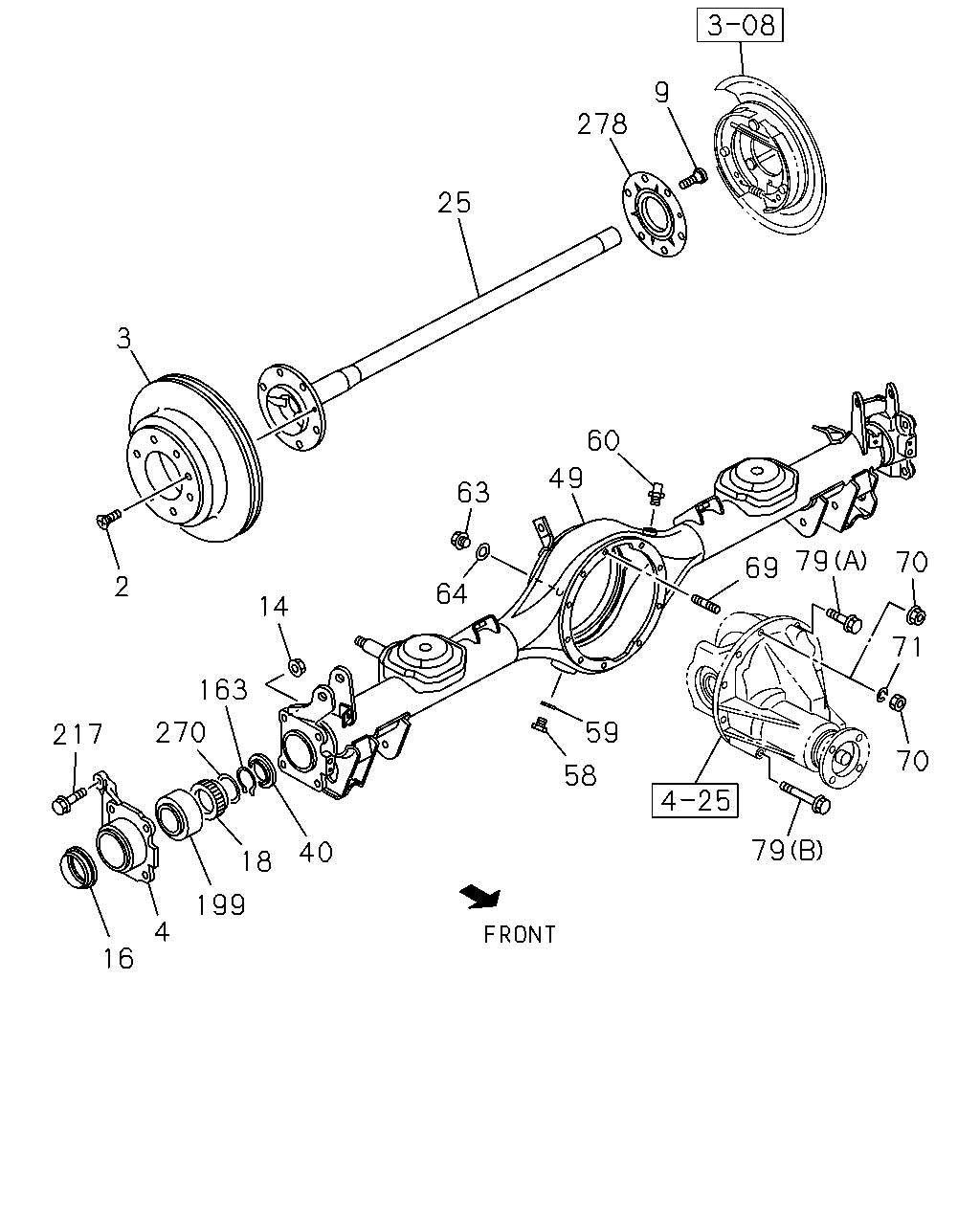

4-20 — REAR AXLE CASE AND SHAFT
(#147272) — 30 parça
Tümü
A - UCB5VC
B - UCS5VC
70
71
70
79
69
79
59
58
60
49
63
64
14
163
270
217
40
18
199
4
16
3
2
25
278
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
BOLT; BRK DRUM
M6X16 CK-HEAD THA
0-36410-616-0
02
1
1409-
●
●
3
ROTOR; DISC BRK,RR
THA
8-98115-794-1
02
1
1409-
●
●
4
HOLDER; BRG,AXLE SHAFT
THA
8-98191-376-0
02
1
1409-
●
●
9
PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD THA
8-97944-831-1
12
1
1409-
●
●
14
NUT; BRG HOLDER TO CASE
M12 FLANGE THA
0-91180-212-0
08
1
1409-
●
●
16
SEAL; OIL,RR HUB,OUTER
THA
8-98134-394-0
02
1
1409-
●
●
18
RETAINER; RR AXLE
THA
8-98009-341-0
02
1
1409-
●
●
25
SHAFT; AXLE,RR
THA
8-98080-678-2
02
1
1409-
●
●
40
SEAL; OIL,REAR AXLE
THA
8-97323-297-0
02
1
1409-
●
●
49
CASE; RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> THA
8-98191-432-4
01
1
1409-
●
●
49
CASE; RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> THA
8-98191-431-4
01
1
1409-
●
●
58
PLUG; DRAIN,AXLE CASE
M16X12.5 IMA
8-97307-060-0
01
1
1409-
●
●
59
GASKET; DRAIN PLUG
ID=16.2 OD=24 THA
9-09571-416-0
01
1
1409-
●
●
60
BREATHER; RR AXLE CASE
L=29 IMA
8-98006-960-0
01
1
1409-
●
●
63
PLUG; OIL FILLER,AXLE CASE
THA
8-97307-059-1
01
1
1409-
●
●
64
GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 THA
8-94462-734-0
01
1
1409-
●
●
69
STUD; AXLE CASE
M10X31 L=43 THA
8-98022-413-0
02
1
1409-
●
●
70
NUT; CARRIER
M10 THA
0-91110-510-0
02
1
1409-1509
●
●
70
NUT; CARRIER
M10 FLANGE THA
0-91180-210-0
02
1
1510-
●
●
71
WASHER; LK,FINAL DRIVE SETTING
ID=10.2 IMA
0-91510-810-0
02
1
1409-1509
●
●
79
BOLT; COVER TO CASE
(A) M10X30 W/LK WASHER THA
0-50561-030-0
07
1
1409-1509
●
●
79
BOLT; COVER TO CASE
(A) M10X30 FLANGE THA
0-28061-030-0
07
1
1510-
●
●
79
BOLT; COVER TO CASE
(B) M10X90 W/LK WASHER THA
0-50561-090-0
01
1
1409-1509
●
●
79
BOLT; COVER TO CASE
(B) M10X90 THA
0-28061-090-0
01
1
1510-
●
●
163
RING; SNAP,AXLE SHAFT
ID=38.5 T=1.75 IMA
9-09180-042-0
AR
1
1409-
●
●
163
RING; SNAP,AXLE SHAFT
ID=38.5 T=2.00 IMA
9-09952-253-0
AR
1
1409-
●
●
199
BEARING; RR AXLE
THA
8-97216-797-2
02
1
1409-
●
●
217
BOLT; RR BRK
M12X25 FLANGE THA
8-98033-645-0
04
1
1409-
●
●
270
SHIM; RETAINER
T=0.24 IMA
9-41519-109-0
AR
1
1409-
●
●
278
CATCHER; OIL
THA
8-98103-447-2
02
1
1409-
●
●
