4-01 — PROPELLER SHAFT (#147267) — 97 parça

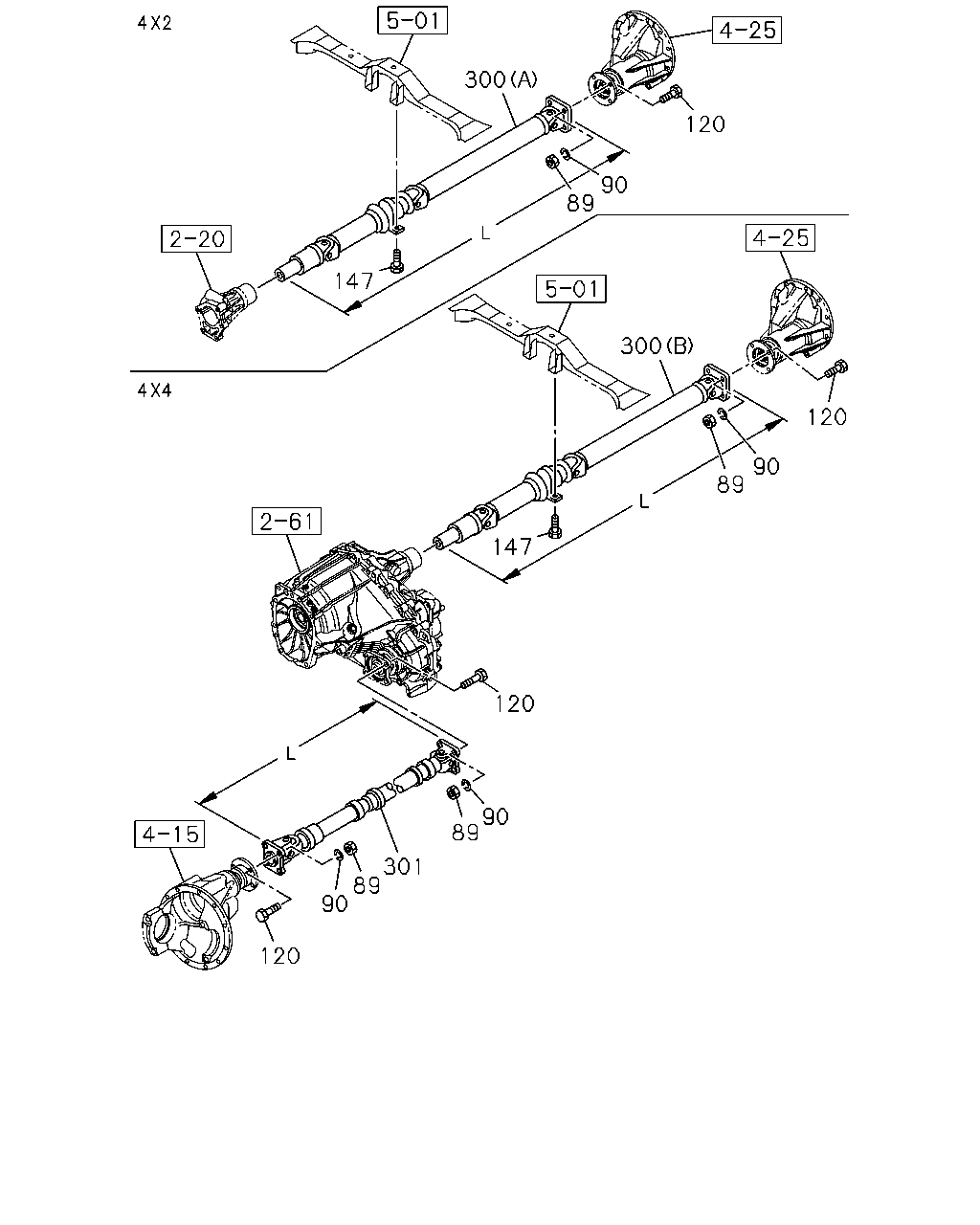

120 89 300 120 90 89 147 300 90 120 90 89 301 89 90 120 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	NUT; YOKE TO RR AXLE M10 FLANGE IMA	8-97246-900-0	04	1	1409-	●	●
89	NUT; YOKE TO RR AXLE M10 FLANGE IMA	8-97246-900-0	08	1	1409-		●
90	WASHER; LK,YOKE TO RR AXLE ID=10.1 IMA	8-97246-901-0	04	1	1409-	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=10.1 IMA	8-97246-901-0	08	1	1409-		●
120	BOLT; YOKE TO RR AXLE M10X29 IMA	8-97246-859-0	04	1	1409-	●	●
120	BOLT; YOKE TO RR AXLE M10X29 IMA	8-97246-859-0	08	1	1409-		●
147	BOLT; CENTER BRG MTG M12X25 FLANGE THA	0-28661-225-0	02	1	1409-	●
300	SHAFT ASM; PROP,RR 4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> (A) L=1480.5 THA	8-97948-752-0	01	1	1409-	●
300	SHAFT ASM; PROP,RR 4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> (A) L=1596.5 THA	8-97948-745-0	01	1	1409-	●
300	SHAFT ASM; PROP,RR 4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> (A) L=1480.5 THA	8-97948-791-0	01	1	1409-	●
300	SHAFT ASM; PROP,RR M/T MUX 5 SPEED 5S<MZJ> (B) L=1220 THA	8-97948-767-0	01	1	1409-		●
300	SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN<MA1> (B) L=1142 THA	8-97948-765-0	01	1	1409-		●
301	SHAFT ASM; PROP,FRT A/T 5 SPEED-AISIN<MA1> L=789 THA	8-97948-762-0	01	1	1409-		●
301	SHAFT ASM; PROP,FRT M/T MUX 5 SPEED 5S<MZJ> L=710 THA	8-97948-761-0	01	1	1409-		●

301 220 9 8 17 103 106 8 9 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT 4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97948-770-0	01	1	1409-	●
8	YOKE; FLANGE,PROP SHAFT 4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> (A) THA	8-97948-771-0	01	1	1409-	●
8	YOKE; FLANGE,PROP SHAFT 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-97948-771-0	01	1	1409-		●
8	YOKE; FLANGE,PROP SHAFT A/T 5 SPEED-AISIN<MA1> (A) THA	8-97948-771-0	01	1	1409-		●
8	YOKE; FLANGE,PROP SHAFT (B) THA	8-97948-772-0	02	1	1409-		●
9	JOURNAL ASM; PROP SHAFT 4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> (C) THA	8-97947-642-0	03	1	1409-	●
9	JOURNAL ASM; PROP SHAFT 4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> (C) THA	8-97947-643-0	03	1	1409-	●
9	JOURNAL ASM; PROP SHAFT 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-97947-645-0	02	1	1409-		●
9	JOURNAL ASM; PROP SHAFT A/T 5 SPEED-AISIN<MA1> (A) THA	8-97947-645-0	02	1	1409-		●
9	JOURNAL ASM; PROP SHAFT (B) THA	8-97947-582-0	02	1	1409-		●
17	NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT THA	0-90301-406-0	02	1	1409-		●
17	NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT THA	0-90301-406-0	02	1	1409-		●
103	BOOT; PROP SHAFT M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97940-114-0	01	1	1409-	●
103	BOOT; PROP SHAFT (A) THA	8-97940-114-0	01	1	1409-		●
103	BOOT; PROP SHAFT A/T 5 SPEED-AISIN<MA1> (A) THA	8-97947-639-0	01	1	1409-	●
103	BOOT; PROP SHAFT (B) THA	8-97943-053-0	01	1	1409-		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT THA	0-90301-406-0	01	1	1409-		●
220	YOKE; SPLINED A/T 5 SPEED-AISIN<MA1> THA	8-97945-105-0	01	1	1409-		●
220	YOKE; SPLINED M/T MUX 5 SPEED 5S<MZJ> THA	8-97943-050-0	01	1	1409-		●
301	SHAFT ASM; PROP,FRT A/T 5 SPEED-AISIN<MA1> L=789 THA	8-97948-762-0	01	1	1409-		●
301	SHAFT ASM; PROP,FRT M/T MUX 5 SPEED 5S<MZJ> L=710 THA	8-97948-761-0	01	1	1409-		●

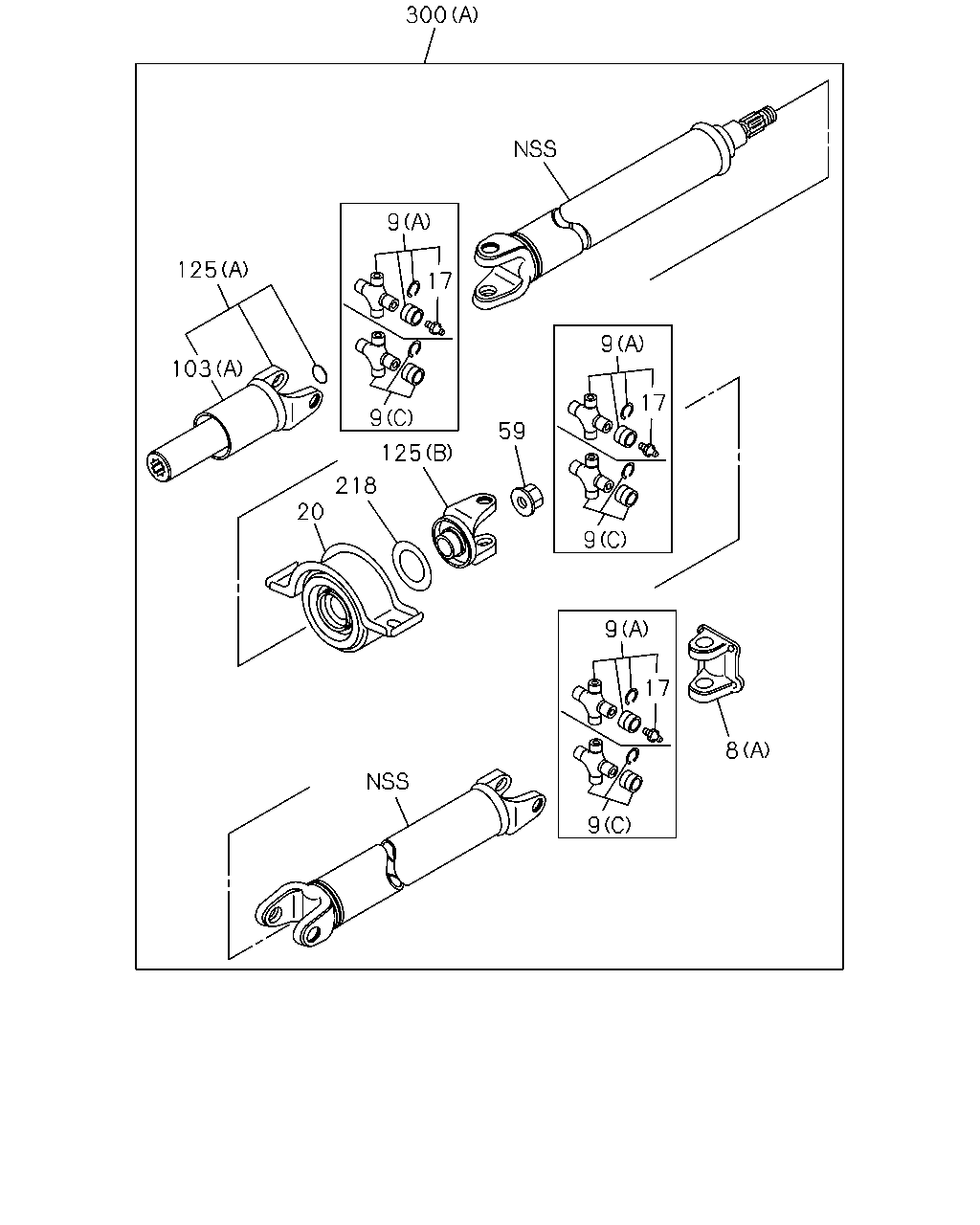

300 125 103 9 9 17 125 218 20 59 9 17 9 9 17 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT 4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97948-770-0	01	1	1409-	●
8	YOKE; FLANGE,PROP SHAFT 4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> (A) THA	8-97948-771-0	01	1	1409-	●
8	YOKE; FLANGE,PROP SHAFT 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-97948-771-0	01	1	1409-		●
8	YOKE; FLANGE,PROP SHAFT A/T 5 SPEED-AISIN<MA1> (A) THA	8-97948-771-0	01	1	1409-		●
8	YOKE; FLANGE,PROP SHAFT (B) THA	8-97948-772-0	02	1	1409-		●
9	JOURNAL ASM; PROP SHAFT 4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> (C) THA	8-97947-642-0	03	1	1409-	●
9	JOURNAL ASM; PROP SHAFT 4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> (C) THA	8-97947-643-0	03	1	1409-	●
9	JOURNAL ASM; PROP SHAFT 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-97947-645-0	02	1	1409-		●
9	JOURNAL ASM; PROP SHAFT A/T 5 SPEED-AISIN<MA1> (A) THA	8-97947-645-0	02	1	1409-		●
9	JOURNAL ASM; PROP SHAFT (B) THA	8-97947-582-0	02	1	1409-		●
17	NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT THA	0-90301-406-0	02	1	1409-		●
17	NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT THA	0-90301-406-0	02	1	1409-		●
20	BEARING ASM; CTR,PROP SHAFT 4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> NSK THA	8-97947-655-0	01	1	1409-	●
20	BEARING ASM; CTR,PROP SHAFT 4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> NTN THA	8-97947-656-0	01	1	1409-	●
20	BEARING ASM; CTR,PROP SHAFT 4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> NSK THA	8-97947-657-0	01	1	1409-	●
20	BEARING ASM; CTR,PROP SHAFT 4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> NTN THA	8-97947-658-0	01	1	1409-	●
59	NUT; RET TO SUPPORT THA	8-97947-557-0	01	1	1409-	●
103	BOOT; PROP SHAFT M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97940-114-0	01	1	1409-	●
103	BOOT; PROP SHAFT (A) THA	8-97940-114-0	01	1	1409-		●
103	BOOT; PROP SHAFT A/T 5 SPEED-AISIN<MA1> (A) THA	8-97947-639-0	01	1	1409-	●
103	BOOT; PROP SHAFT (B) THA	8-97943-053-0	01	1	1409-		●
125	YOKE ASM; SPLINED,PROP SHAFT 4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> (A) THA	8-97947-631-0	01	1	1409-	●
125	YOKE ASM; SPLINED,PROP SHAFT 4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97947-663-0	01	1	1409-	●
125	YOKE ASM; SPLINED,PROP SHAFT 4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97947-629-0	01	1	1409-	●
125	YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> (A) THA	8-97947-632-0	01	1	1409-	●
125	YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> (B) THA	8-97947-664-0	01	1	1409-	●
125	YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-97947-630-0	01	1	1409-		●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 5 SPEED-AISIN<MA1> (A) THA	8-97947-630-0	01	1	1409-		●
218	WASHER; PL,PROP SHAFT ID=30 H=40 L=35 THA	8-97192-641-0	01	1	1409-	●
300	SHAFT ASM; PROP,RR 4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> (A) L=1480.5 THA	8-97948-752-0	01	1	1409-	●
300	SHAFT ASM; PROP,RR 4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> (A) L=1596.5 THA	8-97948-745-0	01	1	1409-	●
300	SHAFT ASM; PROP,RR 4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> (A) L=1480.5 THA	8-97948-791-0	01	1	1409-	●
300	SHAFT ASM; PROP,RR M/T MUX 5 SPEED 5S<MZJ> (B) L=1220 THA	8-97948-767-0	01	1	1409-		●
300	SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN<MA1> (B) L=1142 THA	8-97948-765-0	01	1	1409-		●

300 9 17 125 103 9 17 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT 4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97948-770-0	01	1	1409-	●
8	YOKE; FLANGE,PROP SHAFT 4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> (A) THA	8-97948-771-0	01	1	1409-	●
8	YOKE; FLANGE,PROP SHAFT 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-97948-771-0	01	1	1409-		●
8	YOKE; FLANGE,PROP SHAFT A/T 5 SPEED-AISIN<MA1> (A) THA	8-97948-771-0	01	1	1409-		●
8	YOKE; FLANGE,PROP SHAFT (B) THA	8-97948-772-0	02	1	1409-		●
9	JOURNAL ASM; PROP SHAFT 4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> (C) THA	8-97947-642-0	03	1	1409-	●
9	JOURNAL ASM; PROP SHAFT 4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> (C) THA	8-97947-643-0	03	1	1409-	●
9	JOURNAL ASM; PROP SHAFT 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-97947-645-0	02	1	1409-		●
9	JOURNAL ASM; PROP SHAFT A/T 5 SPEED-AISIN<MA1> (A) THA	8-97947-645-0	02	1	1409-		●
9	JOURNAL ASM; PROP SHAFT (B) THA	8-97947-582-0	02	1	1409-		●
17	NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT THA	0-90301-406-0	02	1	1409-		●
17	NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT THA	0-90301-406-0	02	1	1409-		●
103	BOOT; PROP SHAFT M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97940-114-0	01	1	1409-	●
103	BOOT; PROP SHAFT (A) THA	8-97940-114-0	01	1	1409-		●
103	BOOT; PROP SHAFT A/T 5 SPEED-AISIN<MA1> (A) THA	8-97947-639-0	01	1	1409-	●
103	BOOT; PROP SHAFT (B) THA	8-97943-053-0	01	1	1409-		●
125	YOKE ASM; SPLINED,PROP SHAFT 4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> (A) THA	8-97947-631-0	01	1	1409-	●
125	YOKE ASM; SPLINED,PROP SHAFT 4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97947-663-0	01	1	1409-	●
125	YOKE ASM; SPLINED,PROP SHAFT 4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97947-629-0	01	1	1409-	●
125	YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> (A) THA	8-97947-632-0	01	1	1409-	●
125	YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> (B) THA	8-97947-664-0	01	1	1409-	●
125	YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-97947-630-0	01	1	1409-		●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 5 SPEED-AISIN<MA1> (A) THA	8-97947-630-0	01	1	1409-		●
300	SHAFT ASM; PROP,RR 4JK1-TCX ENG<LR0> A/T 5 SPEED-AISIN<MA1> (A) L=1480.5 THA	8-97948-752-0	01	1	1409-	●
300	SHAFT ASM; PROP,RR 4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> (A) L=1596.5 THA	8-97948-745-0	01	1	1409-	●
300	SHAFT ASM; PROP,RR 4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> (A) L=1480.5 THA	8-97948-791-0	01	1	1409-	●
300	SHAFT ASM; PROP,RR M/T MUX 5 SPEED 5S<MZJ> (B) L=1220 THA	8-97948-767-0	01	1	1409-		●
300	SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN<MA1> (B) L=1142 THA	8-97948-765-0	01	1	1409-		●
