Sayfa 3-58 - Isuzu EPC

3-58 — FIXING PARTS; OIL PIPING (#147265) — 182 parça

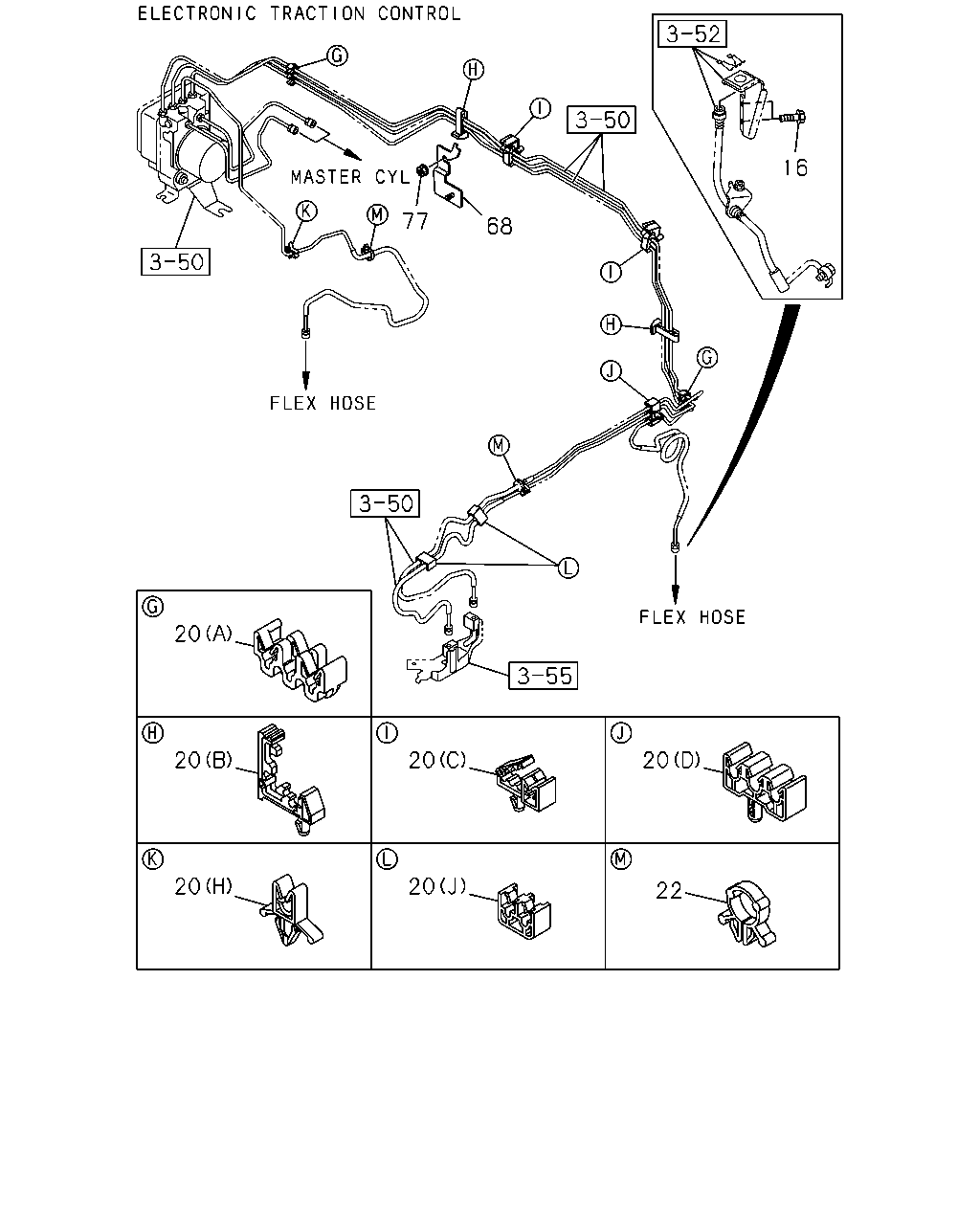

77 68 16 20 22 20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BOLT; BRKT TO FRAME M8X20 FLANGE THA	0-28650-820-0	04	1	1409-	●	●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (H) ID=4.76 THA	8-97300-443-0	01	1	1409-	●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (H) ID=4.76 THA	8-97300-443-0	01	1	1409-	●
20	CLIP; BRK PIPE (H) ID=4.76 THA	8-97300-443-0	01	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (A) ID=4.8X3 THA	8-94487-369-0	02	1	1409-	●
20	CLIP; BRK PIPE (A) ID=4.8X3 THA	8-94487-369-0	02	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (B) ID=4.76X3 THA	8-98113-388-0	02	1	1409-	●
20	CLIP; BRK PIPE (B) ID=4.76X3 THA	8-98113-388-0	02	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1 THA	8-98113-389-0	02	1	1409-	●
20	CLIP; BRK PIPE (C) ID=4.76X3 & 6.35X1 OR 10X1 THA	8-98113-389-0	02	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (D) ID=4.76 OR 6.8X3 THA	8-98113-396-0	01	1	1409-	●
20	CLIP; BRK PIPE (D) ID=4.76 OR 6.8X3 THA	8-98113-396-0	01	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (E) ID=4.76X3 THA	8-97216-721-1	03	1	1409-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (E) ID=4.76X3 THA	8-97216-721-1	03	1	1409-	●
20	CLIP; BRK PIPE (E) ID=4.76X3 THA	8-97216-721-1	03	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1409-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1409-	●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (G) ID=6.8X2 THA	8-97251-124-0	07	1	1409-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (G) ID=6.8X2 THA	8-97251-124-0	07	1	1409-	●
20	CLIP; BRK PIPE (G) ID=6.8X2 THA	8-97251-124-0	07	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	01	1	1409-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	01	1	1409-	●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	01	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (J) ID=6.8X2 THA	8-97251-122-0	02	1	1409-	●
20	CLIP; BRK PIPE ELECTRONIC TRACTION CONTROL<NW9> (J) ID=6.8X2 THA	8-97251-122-0	02	1	1409-		●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1409-1409	●
20	CLIP; BRK PIPE REAR COOLER WO/HEATER<C69> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1410-	●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1410-	●
20	CLIP; BRK PIPE (A) ID=4.8X3 THA	8-94487-369-0	01	1	1410-		●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (K) ID=4.76X2 & 6.35X1 THA	8-98113-390-0	01	1	1409-	●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (L) ID=4.76X3 & 6.35 OR 10X1 THA	8-98113-391-0	02	1	1409-	●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (M) ID=4.76X2 THA	8-98113-395-0	01	1	1409-	●
22	CLIP; PIPE TO FRAME ID=9 THA	5-09707-027-0	02	1	1409-	●	●
68	BRACKET; CLIP REAR COOLER WO/HEATER<C69> THA	8-98211-446-0	01	1	1409-	●
68	BRACKET; CLIP THA	8-98211-446-0	01	1	1409-		●
77	NUT; BRKT,OIL PIPE REAR COOLER WO/HEATER<C69> M6 FLANGE THA	0-91180-106-0	01	1	1409-	●
77	NUT; BRKT,OIL PIPE M6 FLANGE THA	0-91180-106-0	01	1	1409-		●

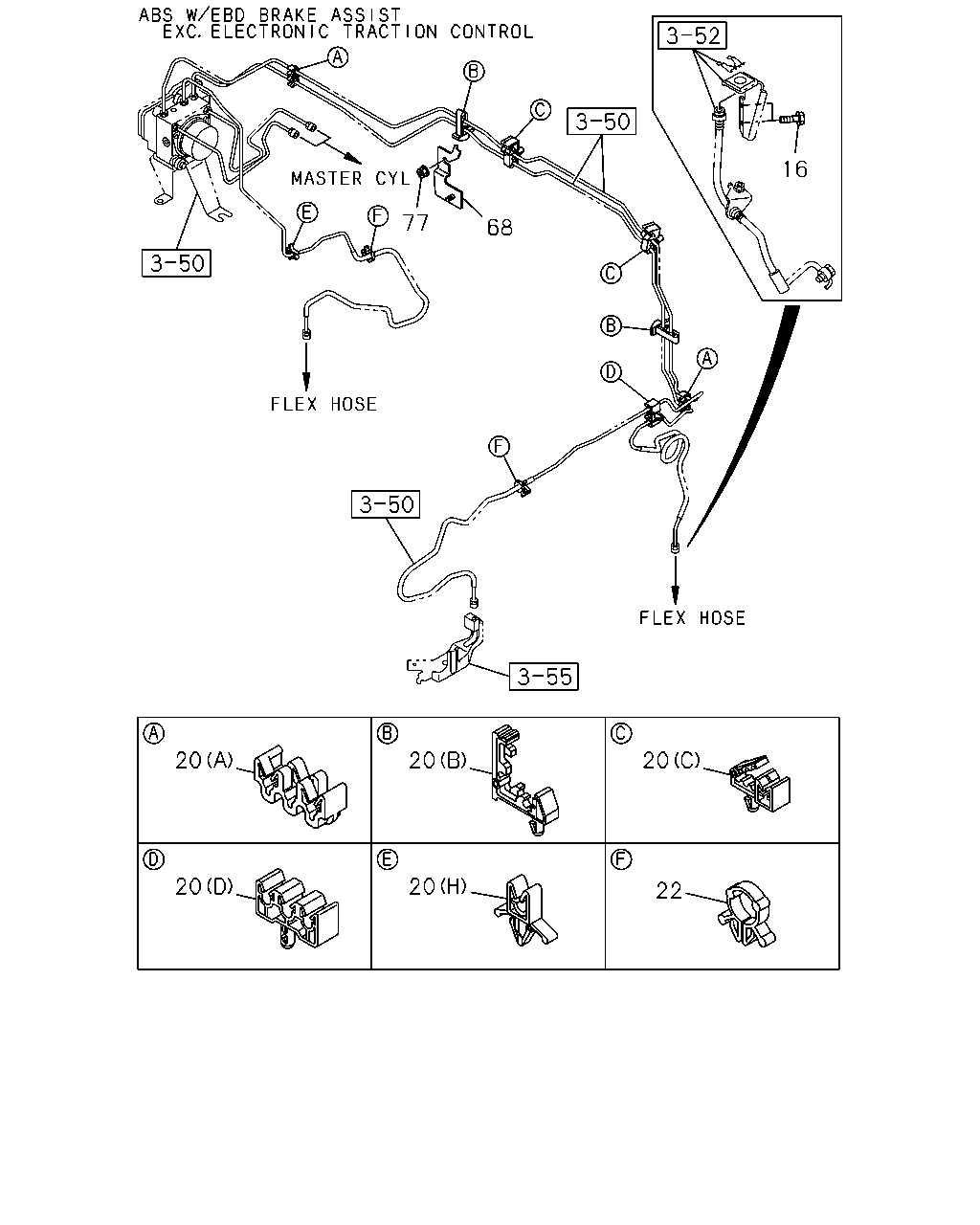

68 77 16 20 22 20 20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BOLT; BRKT TO FRAME M8X20 FLANGE THA	0-28650-820-0	04	1	1409-	●	●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (H) ID=4.76 THA	8-97300-443-0	01	1	1409-	●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (H) ID=4.76 THA	8-97300-443-0	01	1	1409-	●
20	CLIP; BRK PIPE (H) ID=4.76 THA	8-97300-443-0	01	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (A) ID=4.8X3 THA	8-94487-369-0	02	1	1409-	●
20	CLIP; BRK PIPE (A) ID=4.8X3 THA	8-94487-369-0	02	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (B) ID=4.76X3 THA	8-98113-388-0	02	1	1409-	●
20	CLIP; BRK PIPE (B) ID=4.76X3 THA	8-98113-388-0	02	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1 THA	8-98113-389-0	02	1	1409-	●
20	CLIP; BRK PIPE (C) ID=4.76X3 & 6.35X1 OR 10X1 THA	8-98113-389-0	02	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (D) ID=4.76 OR 6.8X3 THA	8-98113-396-0	01	1	1409-	●
20	CLIP; BRK PIPE (D) ID=4.76 OR 6.8X3 THA	8-98113-396-0	01	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (E) ID=4.76X3 THA	8-97216-721-1	03	1	1409-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (E) ID=4.76X3 THA	8-97216-721-1	03	1	1409-	●
20	CLIP; BRK PIPE (E) ID=4.76X3 THA	8-97216-721-1	03	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1409-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1409-	●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (G) ID=6.8X2 THA	8-97251-124-0	07	1	1409-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (G) ID=6.8X2 THA	8-97251-124-0	07	1	1409-	●
20	CLIP; BRK PIPE (G) ID=6.8X2 THA	8-97251-124-0	07	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	01	1	1409-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	01	1	1409-	●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	01	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (J) ID=6.8X2 THA	8-97251-122-0	02	1	1409-	●
20	CLIP; BRK PIPE ELECTRONIC TRACTION CONTROL<NW9> (J) ID=6.8X2 THA	8-97251-122-0	02	1	1409-		●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1409-1409	●
20	CLIP; BRK PIPE REAR COOLER WO/HEATER<C69> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1410-	●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1410-	●
20	CLIP; BRK PIPE (A) ID=4.8X3 THA	8-94487-369-0	01	1	1410-		●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (K) ID=4.76X2 & 6.35X1 THA	8-98113-390-0	01	1	1409-	●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (L) ID=4.76X3 & 6.35 OR 10X1 THA	8-98113-391-0	02	1	1409-	●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (M) ID=4.76X2 THA	8-98113-395-0	01	1	1409-	●
22	CLIP; PIPE TO FRAME ID=9 THA	5-09707-027-0	02	1	1409-	●	●
68	BRACKET; CLIP REAR COOLER WO/HEATER<C69> THA	8-98211-446-0	01	1	1409-	●
68	BRACKET; CLIP THA	8-98211-446-0	01	1	1409-		●
77	NUT; BRKT,OIL PIPE REAR COOLER WO/HEATER<C69> M6 FLANGE THA	0-91180-106-0	01	1	1409-	●
77	NUT; BRKT,OIL PIPE M6 FLANGE THA	0-91180-106-0	01	1	1409-		●

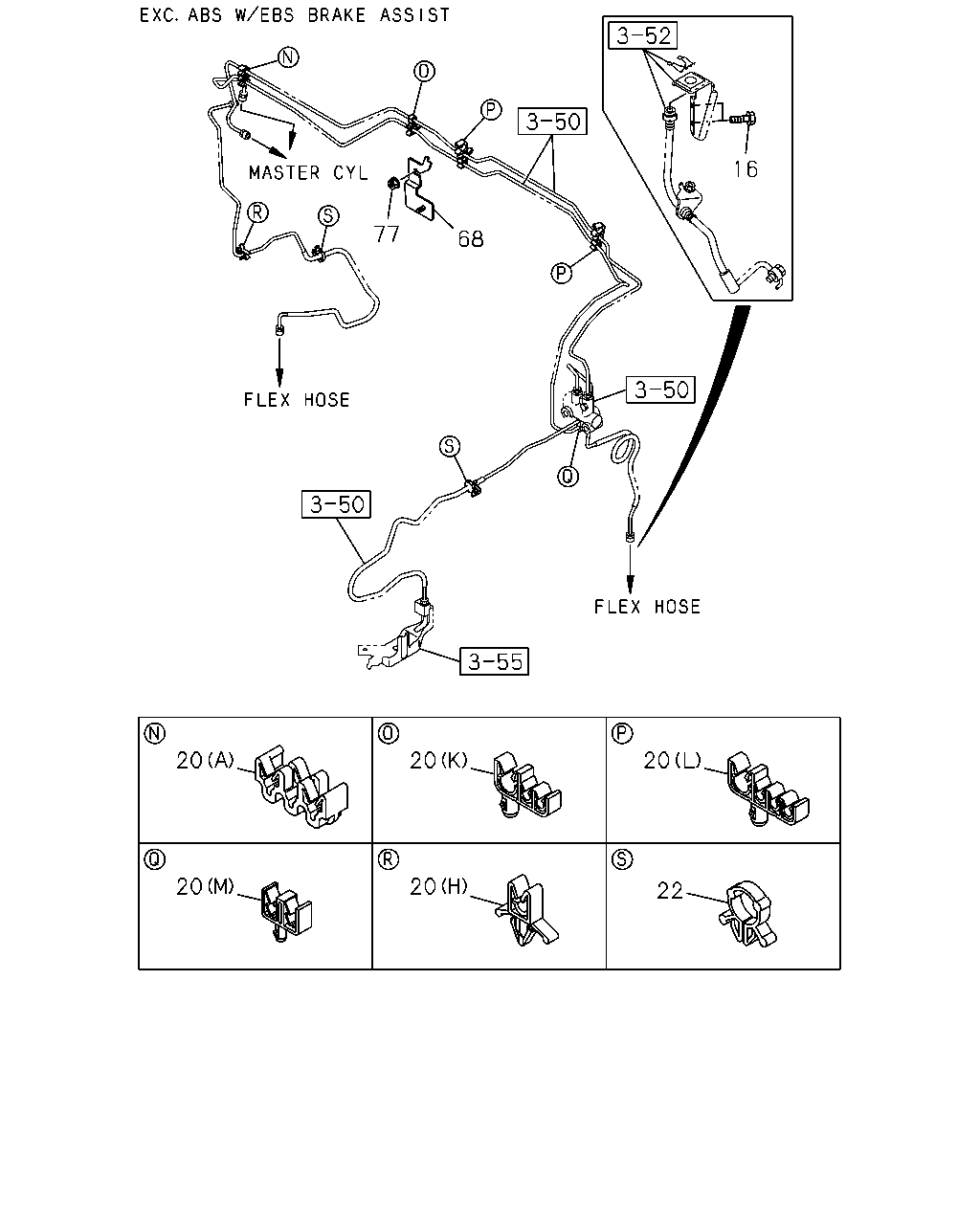

77 68 16 20 22 20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BOLT; BRKT TO FRAME M8X20 FLANGE THA	0-28650-820-0	04	1	1409-	●	●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (H) ID=4.76 THA	8-97300-443-0	01	1	1409-	●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (H) ID=4.76 THA	8-97300-443-0	01	1	1409-	●
20	CLIP; BRK PIPE (H) ID=4.76 THA	8-97300-443-0	01	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (A) ID=4.8X3 THA	8-94487-369-0	02	1	1409-	●
20	CLIP; BRK PIPE (A) ID=4.8X3 THA	8-94487-369-0	02	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (B) ID=4.76X3 THA	8-98113-388-0	02	1	1409-	●
20	CLIP; BRK PIPE (B) ID=4.76X3 THA	8-98113-388-0	02	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1 THA	8-98113-389-0	02	1	1409-	●
20	CLIP; BRK PIPE (C) ID=4.76X3 & 6.35X1 OR 10X1 THA	8-98113-389-0	02	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (D) ID=4.76 OR 6.8X3 THA	8-98113-396-0	01	1	1409-	●
20	CLIP; BRK PIPE (D) ID=4.76 OR 6.8X3 THA	8-98113-396-0	01	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (E) ID=4.76X3 THA	8-97216-721-1	03	1	1409-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (E) ID=4.76X3 THA	8-97216-721-1	03	1	1409-	●
20	CLIP; BRK PIPE (E) ID=4.76X3 THA	8-97216-721-1	03	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1409-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1409-	●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (G) ID=6.8X2 THA	8-97251-124-0	07	1	1409-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (G) ID=6.8X2 THA	8-97251-124-0	07	1	1409-	●
20	CLIP; BRK PIPE (G) ID=6.8X2 THA	8-97251-124-0	07	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	01	1	1409-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	01	1	1409-	●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	01	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (J) ID=6.8X2 THA	8-97251-122-0	02	1	1409-	●
20	CLIP; BRK PIPE ELECTRONIC TRACTION CONTROL<NW9> (J) ID=6.8X2 THA	8-97251-122-0	02	1	1409-		●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1409-1409	●
20	CLIP; BRK PIPE REAR COOLER WO/HEATER<C69> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1410-	●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1410-	●
20	CLIP; BRK PIPE (A) ID=4.8X3 THA	8-94487-369-0	01	1	1410-		●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (K) ID=4.76X2 & 6.35X1 THA	8-98113-390-0	01	1	1409-	●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (L) ID=4.76X3 & 6.35 OR 10X1 THA	8-98113-391-0	02	1	1409-	●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (M) ID=4.76X2 THA	8-98113-395-0	01	1	1409-	●
22	CLIP; PIPE TO FRAME ID=9 THA	5-09707-027-0	02	1	1409-	●	●
68	BRACKET; CLIP REAR COOLER WO/HEATER<C69> THA	8-98211-446-0	01	1	1409-	●
68	BRACKET; CLIP THA	8-98211-446-0	01	1	1409-		●
77	NUT; BRKT,OIL PIPE REAR COOLER WO/HEATER<C69> M6 FLANGE THA	0-91180-106-0	01	1	1409-	●
77	NUT; BRKT,OIL PIPE M6 FLANGE THA	0-91180-106-0	01	1	1409-		●

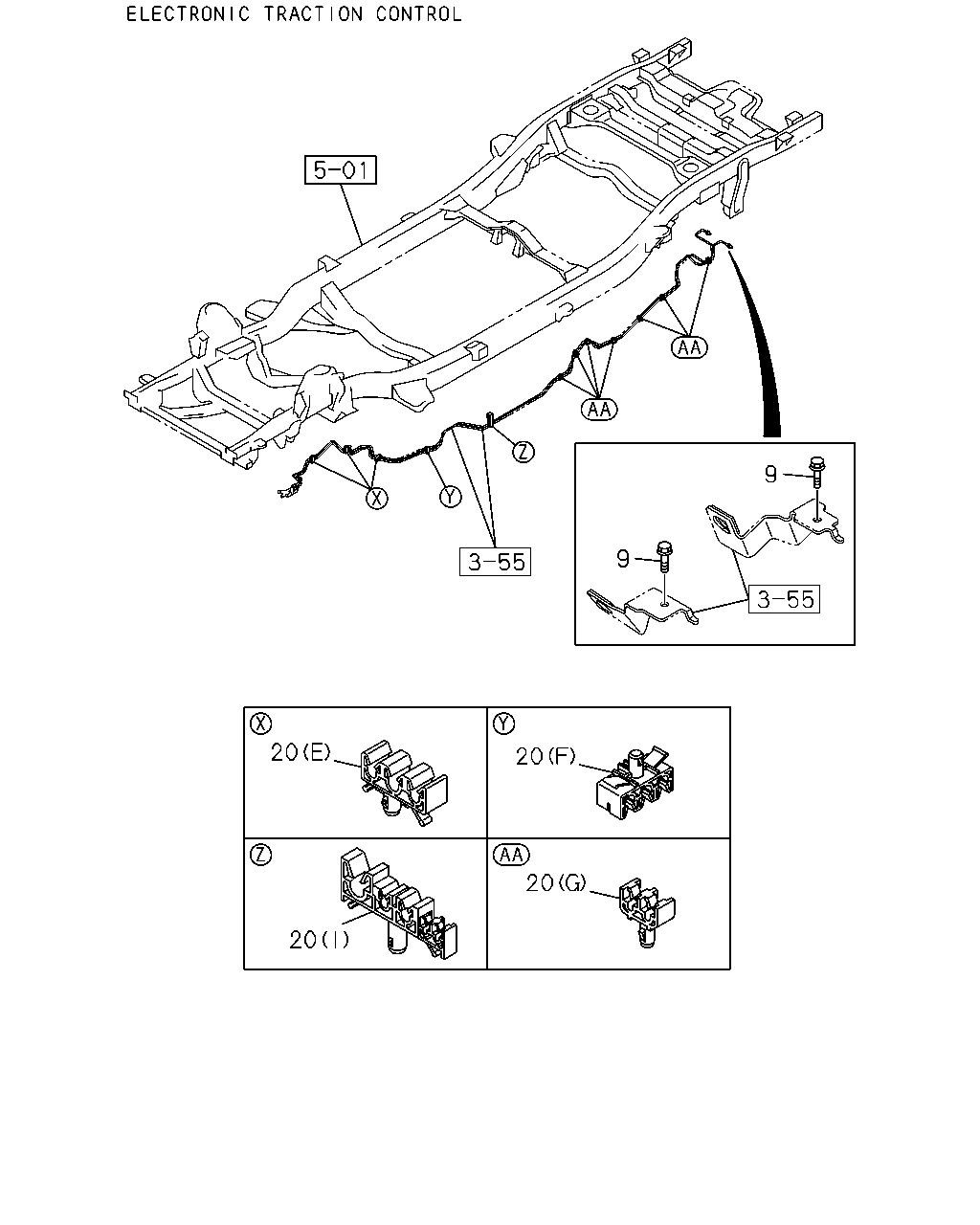

9 20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	BOLT; BRKT ELECTRONIC TRACTION CONTROL<NW9> M8X20 FLANGE THA	0-28650-820-0	02	1	1409-	●	●
9	BOLT; BRKT EXC. ELECTRONIC TRACTION CONTROL<NW9> M8X20 FLANGE THA	0-28650-820-0	01	1	1409-	●	●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (H) ID=4.76 THA	8-97300-443-0	01	1	1409-	●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (H) ID=4.76 THA	8-97300-443-0	01	1	1409-	●
20	CLIP; BRK PIPE (H) ID=4.76 THA	8-97300-443-0	01	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (A) ID=4.8X3 THA	8-94487-369-0	02	1	1409-	●
20	CLIP; BRK PIPE (A) ID=4.8X3 THA	8-94487-369-0	02	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (B) ID=4.76X3 THA	8-98113-388-0	02	1	1409-	●
20	CLIP; BRK PIPE (B) ID=4.76X3 THA	8-98113-388-0	02	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1 THA	8-98113-389-0	02	1	1409-	●
20	CLIP; BRK PIPE (C) ID=4.76X3 & 6.35X1 OR 10X1 THA	8-98113-389-0	02	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (D) ID=4.76 OR 6.8X3 THA	8-98113-396-0	01	1	1409-	●
20	CLIP; BRK PIPE (D) ID=4.76 OR 6.8X3 THA	8-98113-396-0	01	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (E) ID=4.76X3 THA	8-97216-721-1	03	1	1409-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (E) ID=4.76X3 THA	8-97216-721-1	03	1	1409-	●
20	CLIP; BRK PIPE (E) ID=4.76X3 THA	8-97216-721-1	03	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1409-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1409-	●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (G) ID=6.8X2 THA	8-97251-124-0	07	1	1409-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (G) ID=6.8X2 THA	8-97251-124-0	07	1	1409-	●
20	CLIP; BRK PIPE (G) ID=6.8X2 THA	8-97251-124-0	07	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	01	1	1409-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	01	1	1409-	●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	01	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (J) ID=6.8X2 THA	8-97251-122-0	02	1	1409-	●
20	CLIP; BRK PIPE ELECTRONIC TRACTION CONTROL<NW9> (J) ID=6.8X2 THA	8-97251-122-0	02	1	1409-		●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1409-1409	●
20	CLIP; BRK PIPE REAR COOLER WO/HEATER<C69> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1410-	●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1410-	●
20	CLIP; BRK PIPE (A) ID=4.8X3 THA	8-94487-369-0	01	1	1410-		●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (K) ID=4.76X2 & 6.35X1 THA	8-98113-390-0	01	1	1409-	●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (L) ID=4.76X3 & 6.35 OR 10X1 THA	8-98113-391-0	02	1	1409-	●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (M) ID=4.76X2 THA	8-98113-395-0	01	1	1409-	●

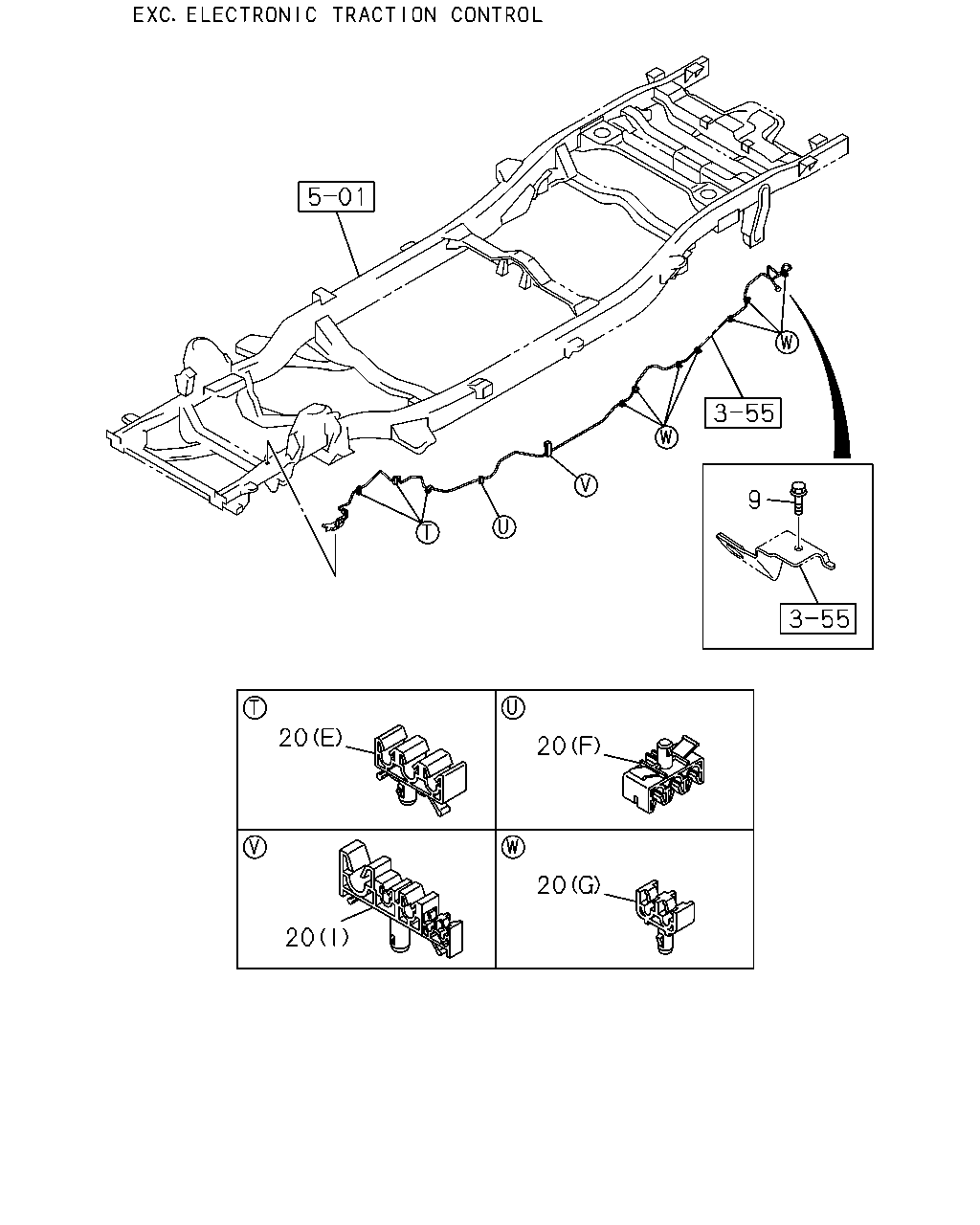

9 9 20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	BOLT; BRKT ELECTRONIC TRACTION CONTROL<NW9> M8X20 FLANGE THA	0-28650-820-0	02	1	1409-	●	●
9	BOLT; BRKT EXC. ELECTRONIC TRACTION CONTROL<NW9> M8X20 FLANGE THA	0-28650-820-0	01	1	1409-	●	●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (H) ID=4.76 THA	8-97300-443-0	01	1	1409-	●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (H) ID=4.76 THA	8-97300-443-0	01	1	1409-	●
20	CLIP; BRK PIPE (H) ID=4.76 THA	8-97300-443-0	01	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (A) ID=4.8X3 THA	8-94487-369-0	02	1	1409-	●
20	CLIP; BRK PIPE (A) ID=4.8X3 THA	8-94487-369-0	02	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (B) ID=4.76X3 THA	8-98113-388-0	02	1	1409-	●
20	CLIP; BRK PIPE (B) ID=4.76X3 THA	8-98113-388-0	02	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1 THA	8-98113-389-0	02	1	1409-	●
20	CLIP; BRK PIPE (C) ID=4.76X3 & 6.35X1 OR 10X1 THA	8-98113-389-0	02	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> (D) ID=4.76 OR 6.8X3 THA	8-98113-396-0	01	1	1409-	●
20	CLIP; BRK PIPE (D) ID=4.76 OR 6.8X3 THA	8-98113-396-0	01	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (E) ID=4.76X3 THA	8-97216-721-1	03	1	1409-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (E) ID=4.76X3 THA	8-97216-721-1	03	1	1409-	●
20	CLIP; BRK PIPE (E) ID=4.76X3 THA	8-97216-721-1	03	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1409-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1409-	●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (G) ID=6.8X2 THA	8-97251-124-0	07	1	1409-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (G) ID=6.8X2 THA	8-97251-124-0	07	1	1409-	●
20	CLIP; BRK PIPE (G) ID=6.8X2 THA	8-97251-124-0	07	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	01	1	1409-	●
20	CLIP; BRK PIPE EXC. ELECTRONIC TRACTION CONTROL<NW9> (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	01	1	1409-	●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	01	1	1409-		●
20	CLIP; BRK PIPE ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (J) ID=6.8X2 THA	8-97251-122-0	02	1	1409-	●
20	CLIP; BRK PIPE ELECTRONIC TRACTION CONTROL<NW9> (J) ID=6.8X2 THA	8-97251-122-0	02	1	1409-		●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1409-1409	●
20	CLIP; BRK PIPE REAR COOLER WO/HEATER<C69> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1410-	●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1410-	●
20	CLIP; BRK PIPE (A) ID=4.8X3 THA	8-94487-369-0	01	1	1410-		●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (K) ID=4.76X2 & 6.35X1 THA	8-98113-390-0	01	1	1409-	●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (L) ID=4.76X3 & 6.35 OR 10X1 THA	8-98113-391-0	02	1	1409-	●
20	CLIP; BRK PIPE EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (M) ID=4.76X2 THA	8-98113-395-0	01	1	1409-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
