3-55 — BRAKE PIPING; OIL,REAR (#147264) — 79 parça

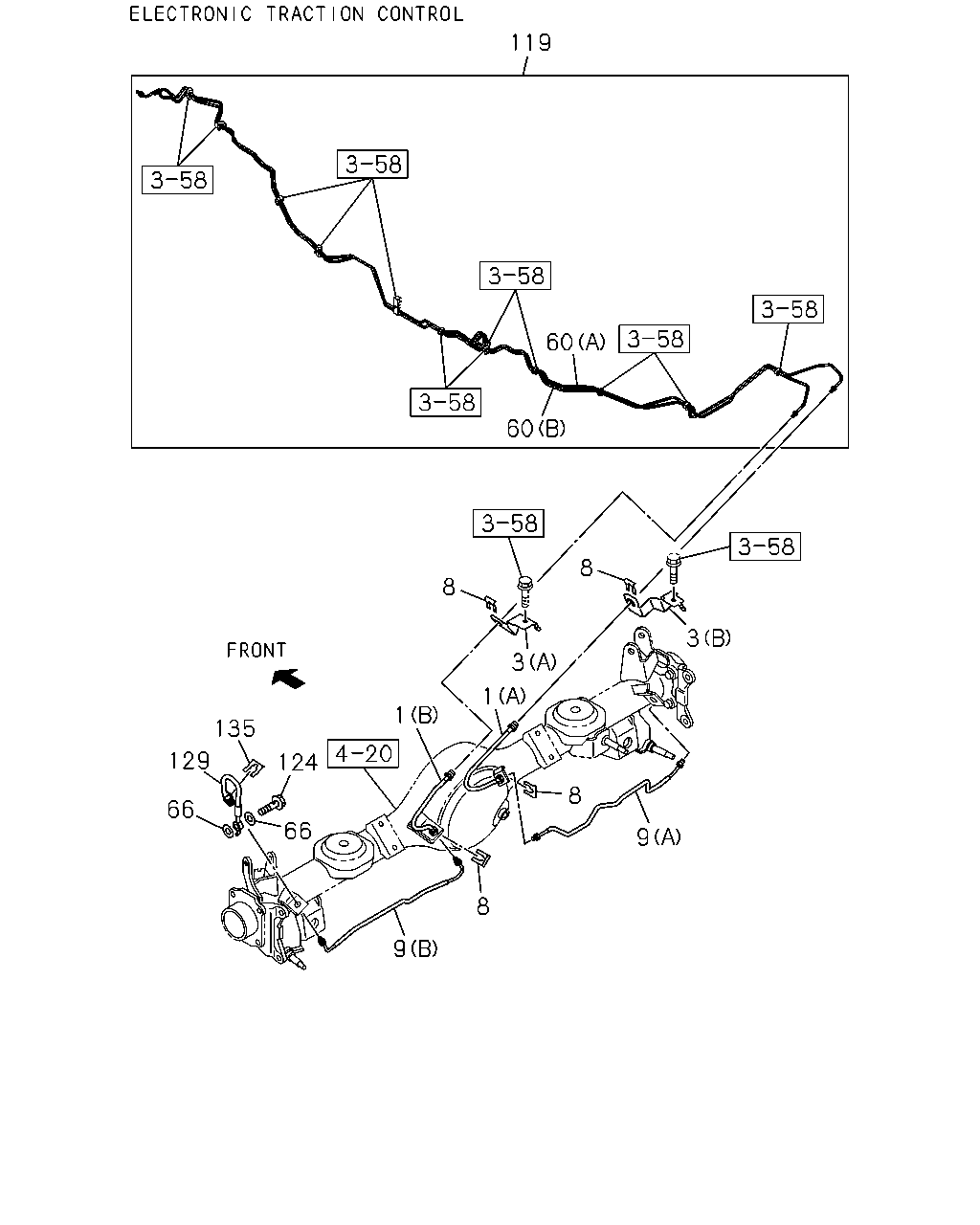

8 3 9 9 12 1 9 9 124 135 66 129 66 119 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK ELECTRONIC TRACTION CONTROL<NW9> (A) THA	8-98198-321-0	01	1	1409-	●	●
1	HOSE; FLEX,RR BRK ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98198-322-0	01	1	1409-	●	●
1	HOSE; FLEX,RR BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) THA	8-98198-320-0	01	1	1409-	●	●
3	BRACKET; FLEX HOSE,RR BRK ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98198-325-0	01	1	1409-	●	●
3	BRACKET; FLEX HOSE,RR BRK (A) THA	8-98198-326-0	01	1	1409-	●	●
8	CLIP; RR BRK ELECTRONIC TRACTION CONTROL<NW9> IMA	8-97360-054-0	04	1	1409-	●	●
8	CLIP; RR BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> IMA	8-97360-054-0	01	1	1409-	●	●
9	PIPE; BRK,RR AXLE VAC POWER 4 WHL DISC BRAKE<JF8> ELECTRONIC TRACTION CONTROL<NW9> (A) THA	8-98191-433-0	01	1	1409-	●
9	PIPE; BRK,RR AXLE ELECTRONIC TRACTION CONTROL<NW9> (A) THA	8-98191-433-0	01	1	1409-		●
9	PIPE; BRK,RR AXLE VAC POWER 4 WHL DISC BRAKE<JF8> ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98191-434-0	01	1	1409-	●
9	PIPE; BRK,RR AXLE ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98191-434-0	01	1	1409-		●
9	PIPE; BRK,RR AXLE VAC POWER 4 WHL DISC BRAKE<JF8> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) THA	8-98191-435-0	01	1	1409-	●
9	PIPE; BRK,RR AXLE EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) THA	8-98191-435-0	01	1	1409-		●
9	PIPE; BRK,RR AXLE VAC POWER 4 WHL DISC BRAKE<JF8> EXC. ELECTRONIC TRACTION CONTROL<NW9> (D) THA	8-98191-436-0	01	1	1409-	●
9	PIPE; BRK,RR AXLE EXC. ELECTRONIC TRACTION CONTROL<NW9> (D) THA	8-98191-436-0	01	1	1409-		●
9	PIPE; BRK,RR AXLE EXC. VAC POWER 4 WHL DISC BRAKE<JF8>,ELECTRONIC TRACTION CONTROL<NW9> (C) THA	8-98191-437-0	01	1	1409-	●
9	PIPE; BRK,RR AXLE EXC. VAC POWER 4 WHL DISC BRAKE<JF8>,ELECTRONIC TRACTION CONTROL<NW9> (E) THA	8-98191-438-0	01	1	1409-	●
12	BOLT; FLEX HOSE TO RR AXLE EXC. ELECTRONIC TRACTION CONTROL<NW9> M8X30 FLANGE THA	0-28650-830-0	01	1	1409-	●	●
60	PIPE ASM; BRK ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) THA	8-98197-852-0	01	1	1409-	●
60	PIPE ASM; BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) THA	8-98197-852-0	01	1	1409-	●
60	PIPE ASM; BRK (A) THA	8-98197-852-0	01	1	1409-		●
60	PIPE ASM; BRK ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98197-851-0	01	1	1409-	●
60	PIPE ASM; BRK ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98197-851-0	01	1	1409-		●
66	GASKET; BRK HOSE VAC POWER 4 WHL DISC BRAKE<JF8> ID=10.2 OD=16.0 THA	9-09571-410-0	04	1	1409-	●
66	GASKET; BRK HOSE ID=10.2 OD=16.0 THA	9-09571-410-0	04	1	1409-		●
119	PIPE; BRK,2WAY TO RR ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98197-850-0	01	1	1409-	●
119	PIPE; BRK,2WAY TO RR ELECTRONIC TRACTION CONTROL<NW9> THA	8-98197-850-0	01	1	1409-		●
119	PIPE; BRK,2WAY TO RR EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98197-849-0	01	1	1409-	●	●
124	BOLT; EYE,FLEX HOSE,RR BRK VAC POWER 4 WHL DISC BRAKE<JF8> M10X22 THA	8-98014-005-0	02	1	1409-	●
124	BOLT; EYE,FLEX HOSE,RR BRK M10X22 THA	8-98014-005-0	02	1	1409-		●
129	HOSE; FLEX,RR DISC VAC POWER 4 WHL DISC BRAKE<JF8> THA	8-98198-323-0	02	1	1409-	●
129	HOSE; FLEX,RR DISC THA	8-98198-323-0	02	1	1409-		●
135	CLIP; FLEX HOSE VAC POWER 4 WHL DISC BRAKE<JF8> IMA	8-97360-054-0	02	1	1409-	●
135	CLIP; FLEX HOSE IMA	8-97360-054-0	02	1	1409-		●

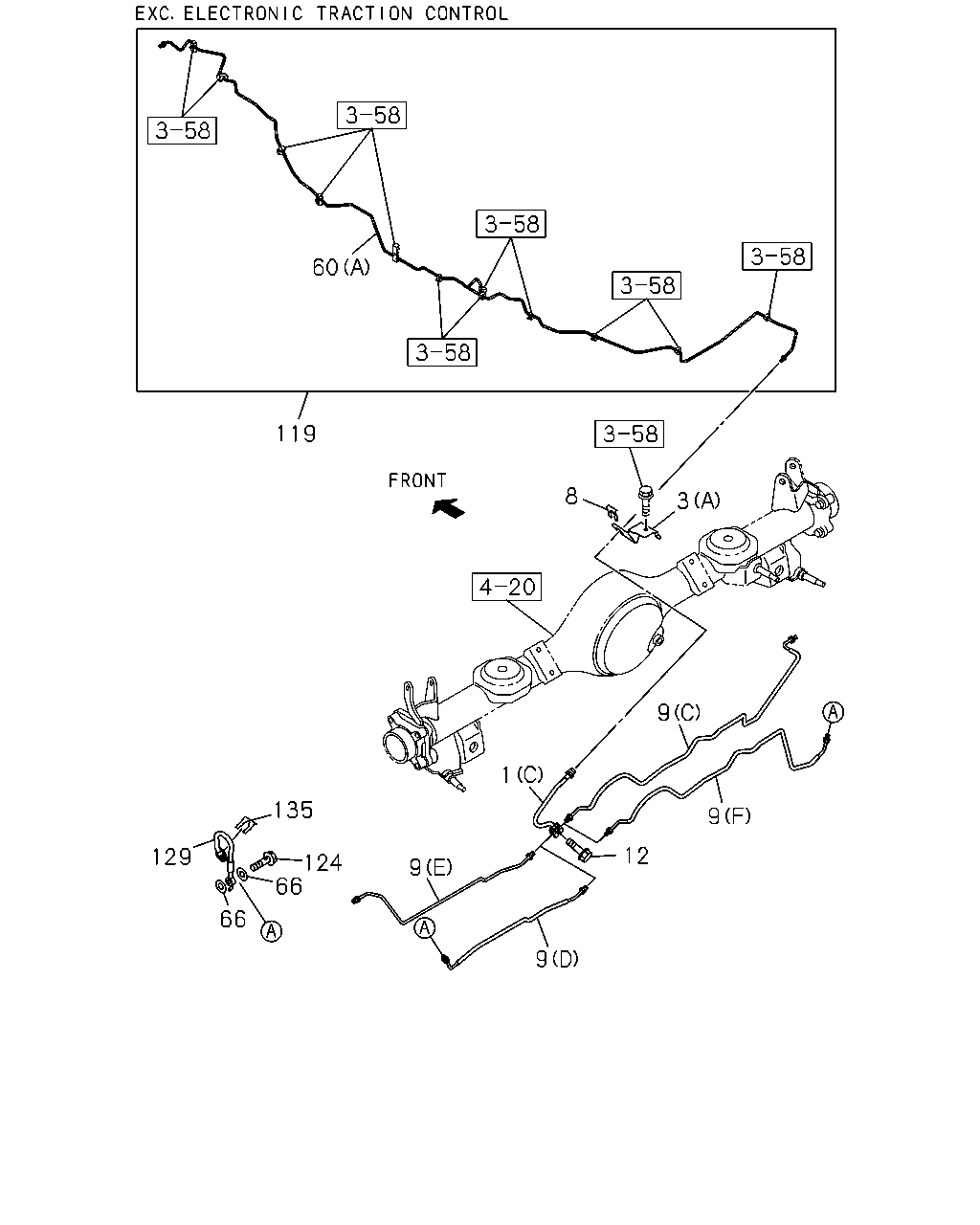

8 1 124 135 129 66 66 9 8 9 8 1 3 8 3 60 60 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK ELECTRONIC TRACTION CONTROL<NW9> (A) THA	8-98198-321-0	01	1	1409-	●	●
1	HOSE; FLEX,RR BRK ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98198-322-0	01	1	1409-	●	●
1	HOSE; FLEX,RR BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) THA	8-98198-320-0	01	1	1409-	●	●
3	BRACKET; FLEX HOSE,RR BRK ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98198-325-0	01	1	1409-	●	●
3	BRACKET; FLEX HOSE,RR BRK (A) THA	8-98198-326-0	01	1	1409-	●	●
8	CLIP; RR BRK ELECTRONIC TRACTION CONTROL<NW9> IMA	8-97360-054-0	04	1	1409-	●	●
8	CLIP; RR BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> IMA	8-97360-054-0	01	1	1409-	●	●
9	PIPE; BRK,RR AXLE VAC POWER 4 WHL DISC BRAKE<JF8> ELECTRONIC TRACTION CONTROL<NW9> (A) THA	8-98191-433-0	01	1	1409-	●
9	PIPE; BRK,RR AXLE ELECTRONIC TRACTION CONTROL<NW9> (A) THA	8-98191-433-0	01	1	1409-		●
9	PIPE; BRK,RR AXLE VAC POWER 4 WHL DISC BRAKE<JF8> ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98191-434-0	01	1	1409-	●
9	PIPE; BRK,RR AXLE ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98191-434-0	01	1	1409-		●
9	PIPE; BRK,RR AXLE VAC POWER 4 WHL DISC BRAKE<JF8> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) THA	8-98191-435-0	01	1	1409-	●
9	PIPE; BRK,RR AXLE EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) THA	8-98191-435-0	01	1	1409-		●
9	PIPE; BRK,RR AXLE VAC POWER 4 WHL DISC BRAKE<JF8> EXC. ELECTRONIC TRACTION CONTROL<NW9> (D) THA	8-98191-436-0	01	1	1409-	●
9	PIPE; BRK,RR AXLE EXC. ELECTRONIC TRACTION CONTROL<NW9> (D) THA	8-98191-436-0	01	1	1409-		●
9	PIPE; BRK,RR AXLE EXC. VAC POWER 4 WHL DISC BRAKE<JF8>,ELECTRONIC TRACTION CONTROL<NW9> (C) THA	8-98191-437-0	01	1	1409-	●
9	PIPE; BRK,RR AXLE EXC. VAC POWER 4 WHL DISC BRAKE<JF8>,ELECTRONIC TRACTION CONTROL<NW9> (E) THA	8-98191-438-0	01	1	1409-	●
60	PIPE ASM; BRK ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) THA	8-98197-852-0	01	1	1409-	●
60	PIPE ASM; BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) THA	8-98197-852-0	01	1	1409-	●
60	PIPE ASM; BRK (A) THA	8-98197-852-0	01	1	1409-		●
60	PIPE ASM; BRK ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98197-851-0	01	1	1409-	●
60	PIPE ASM; BRK ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98197-851-0	01	1	1409-		●
66	GASKET; BRK HOSE VAC POWER 4 WHL DISC BRAKE<JF8> ID=10.2 OD=16.0 THA	9-09571-410-0	04	1	1409-	●
66	GASKET; BRK HOSE ID=10.2 OD=16.0 THA	9-09571-410-0	04	1	1409-		●
119	PIPE; BRK,2WAY TO RR ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98197-850-0	01	1	1409-	●
119	PIPE; BRK,2WAY TO RR ELECTRONIC TRACTION CONTROL<NW9> THA	8-98197-850-0	01	1	1409-		●
119	PIPE; BRK,2WAY TO RR EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98197-849-0	01	1	1409-	●	●
124	BOLT; EYE,FLEX HOSE,RR BRK VAC POWER 4 WHL DISC BRAKE<JF8> M10X22 THA	8-98014-005-0	02	1	1409-	●
124	BOLT; EYE,FLEX HOSE,RR BRK M10X22 THA	8-98014-005-0	02	1	1409-		●
129	HOSE; FLEX,RR DISC VAC POWER 4 WHL DISC BRAKE<JF8> THA	8-98198-323-0	02	1	1409-	●
129	HOSE; FLEX,RR DISC THA	8-98198-323-0	02	1	1409-		●
135	CLIP; FLEX HOSE VAC POWER 4 WHL DISC BRAKE<JF8> IMA	8-97360-054-0	02	1	1409-	●
135	CLIP; FLEX HOSE IMA	8-97360-054-0	02	1	1409-		●

119 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	CONNECTOR ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98099-785-1	01	1	1409-	●
25	CONNECTOR ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98099-785-1	01	1	1409-		●
25	CONNECTOR EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) THA	8-98099-784-1	01	1	1409-	●	●
119	PIPE; BRK,2WAY TO RR ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98197-850-0	01	1	1409-	●
119	PIPE; BRK,2WAY TO RR ELECTRONIC TRACTION CONTROL<NW9> THA	8-98197-850-0	01	1	1409-		●
119	PIPE; BRK,2WAY TO RR EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98197-849-0	01	1	1409-	●	●

119 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	CONNECTOR ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98099-785-1	01	1	1409-	●
25	CONNECTOR ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98099-785-1	01	1	1409-		●
25	CONNECTOR EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) THA	8-98099-784-1	01	1	1409-	●	●
119	PIPE; BRK,2WAY TO RR ABS W/EBD BRAKE ASSIST<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98197-850-0	01	1	1409-	●
119	PIPE; BRK,2WAY TO RR ELECTRONIC TRACTION CONTROL<NW9> THA	8-98197-850-0	01	1	1409-		●
119	PIPE; BRK,2WAY TO RR EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98197-849-0	01	1	1409-	●	●
