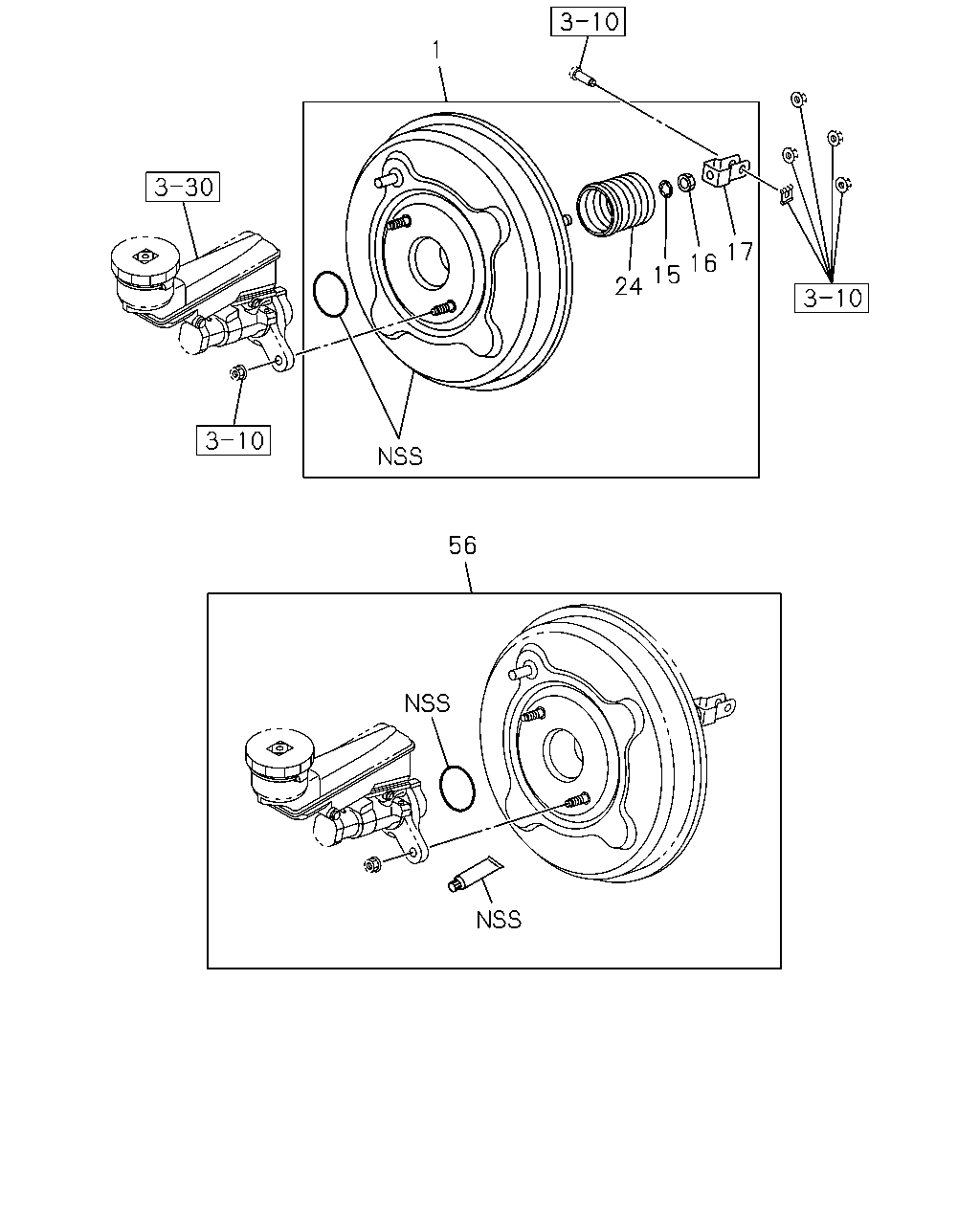

3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#147261) — 7 parça

1 56 24 15 16 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MASTER VAC ASM; BRK ABS W/EBD BRAKE ASSIST<JE5> THA	8-98163-232-1	01	1	1409-	●	●
1	MASTER VAC ASM; BRK A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> EXC. ABS W/EBD BRAKE ASSIST<JE5>,ELECTRONIC TRACTION CONTROL<NW9> THA	8-98163-231-1	01	1	1409-	●
15	RETAINER; GUARD,M/VAC THA	8-98048-040-0	01	1	1409-	●	●
16	NUT; VLV ROD,M/VAC THA	8-98048-038-0	01	1	1409-	●	●
17	CLEVIS; YOKE,M/VAC THA	8-98048-039-0	01	1	1409-	●	●
24	GUARD; VLV BODY,M/VAC THA	8-98185-212-0	01	1	1409-	●	●
56	GASKET KIT; M/CYL TO SERVO UNIT THA	8-98185-211-0	01	1	1409-	●	●
